PNG Images cut off in PDF export

7 replies
10200 views
Translate

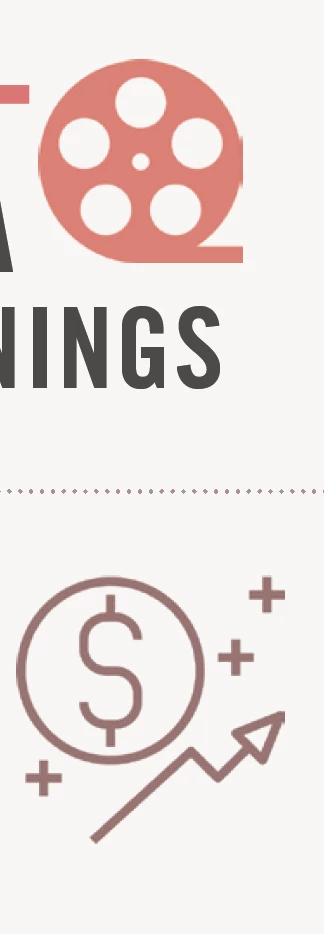

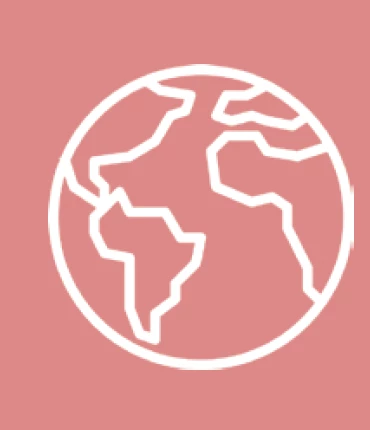

When I export a document within indesign to a PDF - all of the transparent icons which are PNG's are slightly cut off on the right side.
I have ensured that the bounding box around the image is extended well to the right.

Any ideas?

Import and export

E

Eugene TysonCorrect answer

Community Expert

More than likely an error in the original image saves.

I'd reopen the PNGs and resave them all as PNG 24 and relink them.

C

Christina Wynn

Participant

I was having the same issue and looked to my team's IT expert for answers after trying everything on these forums. The answer for me was to - when exporting from InDesign - go to the compression options and select "do not downsample" from all the drop-downs there. It immediately solved the strange pixelation and clipping.

Translate

rob day

Community Expert

Yes, that would also work if you can afford the large file sizes that might output with downsampling turned off.

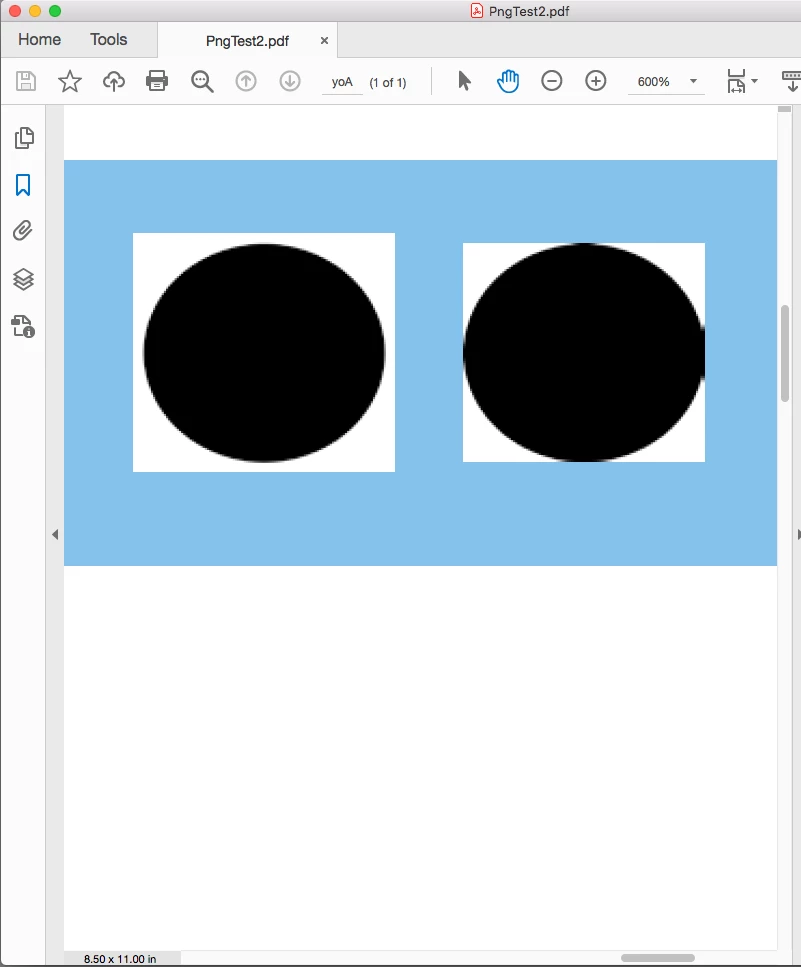

Downsampling requires sampling from the surrounding pixels, so when the pixel is on the right edge of the canvas there are no pixels to the right of the canvas edge to sample from. I the case of a circle, extending the image’s background by 4 or more pixels will add the pixels needed to accurately downsample the circle’s edge.

Translate

rob day

Community Expert

I have ensured that the bounding box around the image is extended well to the right.

Any ideas?

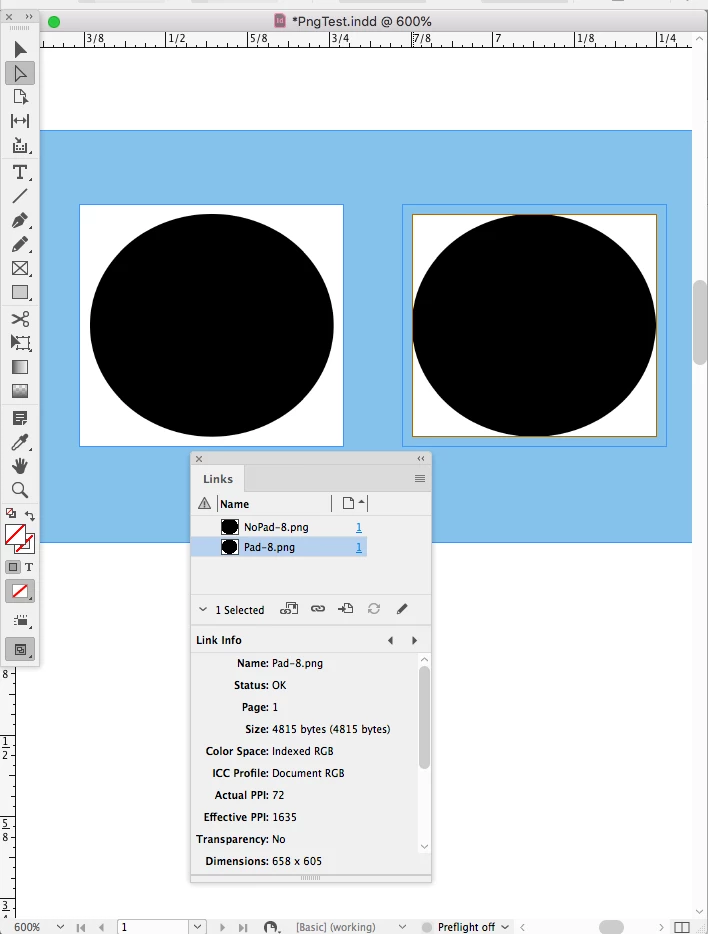

This has come up before, you need to add some padding to the PNG’s canvas in Photoshop and resave—extending the PNG’s parent frame in InDesign doesn’t help
