Print ready in indesign

When I save an indesign document, the crop marks and bleed marks are outside the bleed and background and I need them on the background.

The first picture is what I did.

The second picture is what I reed.

This topic is closed to new replies. Start a new post to keep the conversation going.

6 replies

Peter Spier
Community Expert
Community Expert
Jun 9, 2022 6:50 PM UTC

Your first picture shows only bleed marks, the second only crops, which, in my opinion, are not properly offest. ALL marks should appear completely outside the bleed area so that they do not accidentally show in case of poor trimming.

Translate
rob day
Community Expert
Community Expert
Jun 9, 2022 7:52 PM UTC

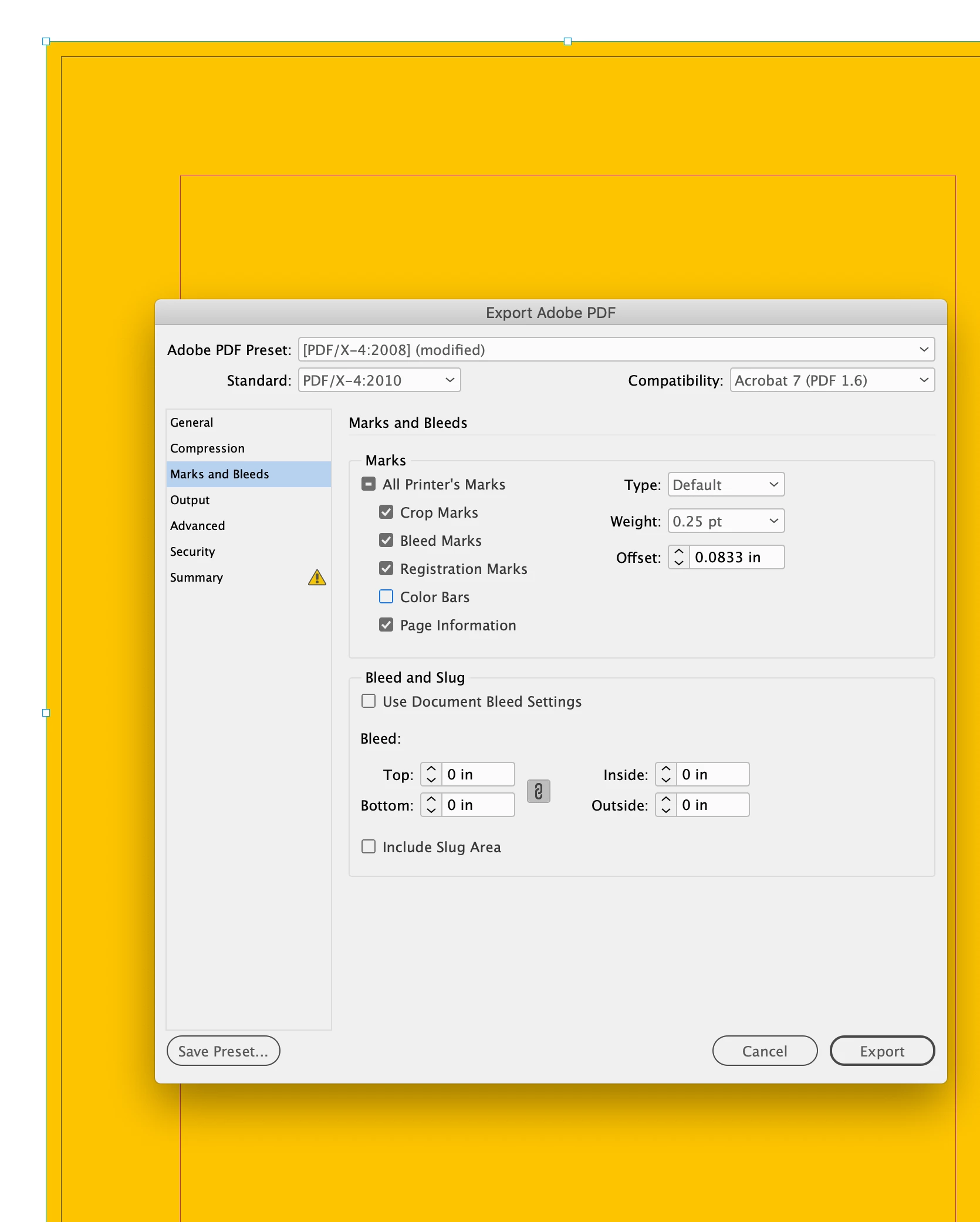

Hi Peter, If the document includes a bleed, but the Bleed is set to 0 in the Print or Export dialog, the Bleed and Crop marks would be on top of each other and there would be no bleed area, which might be what‘s happening in @Pop24801432prm6 ’s first capture





Translate
Peter Spier
Community Expert
Community Expert
Jun 9, 2022 9:00 PM UTC

I suppose that's possible, only the OP can say if that's the case. What strikes me as very strange is the appearance of objects that seem to extend beyond the bleed boundary in the first image.

It would help to see the Marks and bleeds dialog from the OP's settings.

Translate
rob day
Community Expert
Community Expert
Jun 9, 2022 6:19 PM UTC

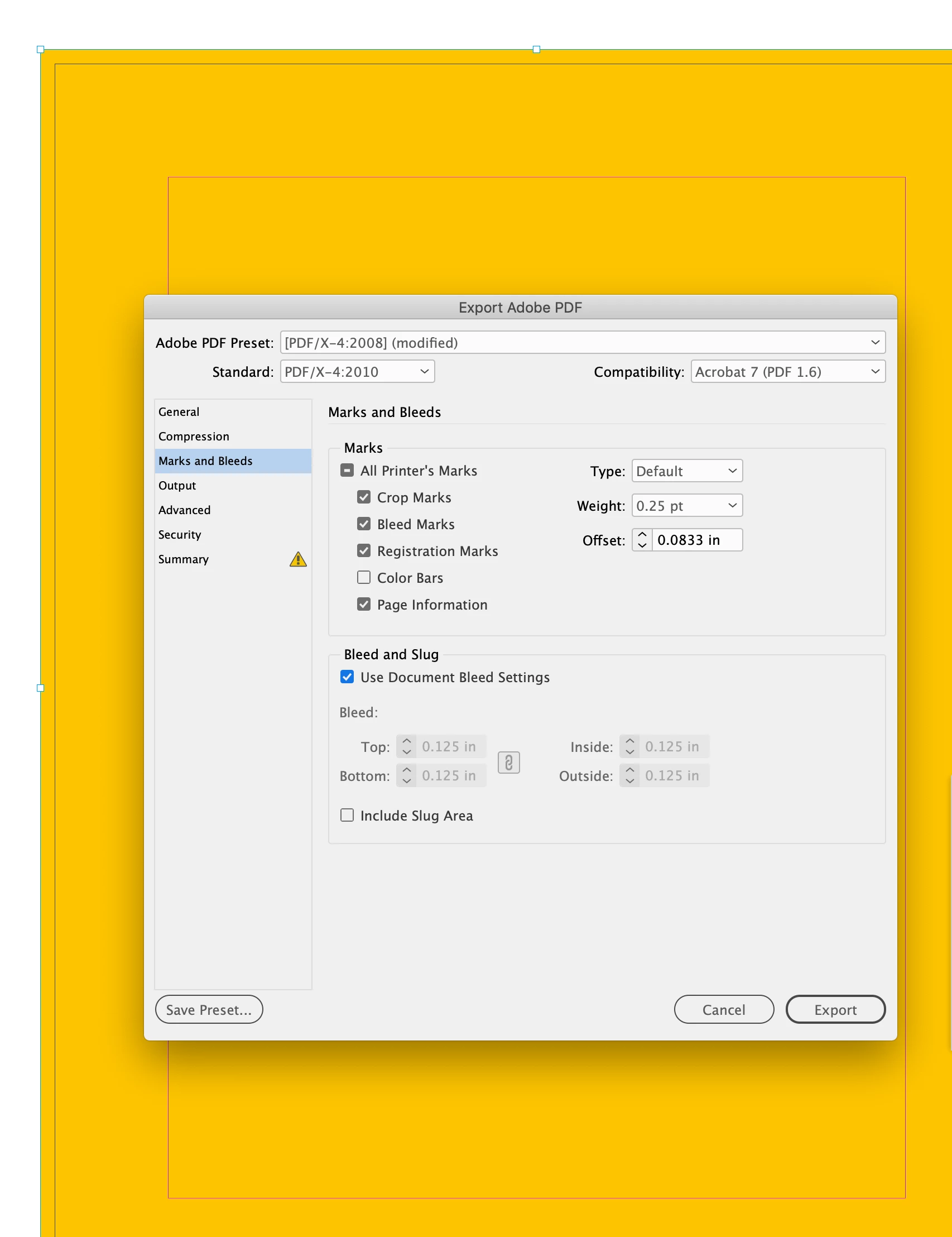

Hi @Pop24801432prm6 , Also in the Print or Export dialog’s Marks and Bleeds tab, make sure you check Use Document Bleed Settings, and the bleed is not set to 0:



Translate
James Gifford—NitroPress
Legend
Jun 9, 2022 5:44 PM UTC

Increase your bleed and background color/graphic area until they extend into the crop marks.



—

Translate
