Quranic annotation signs not working in Indesign

Forum|Forum|4 years ago
July 17, 2021
2 replies
1258 views

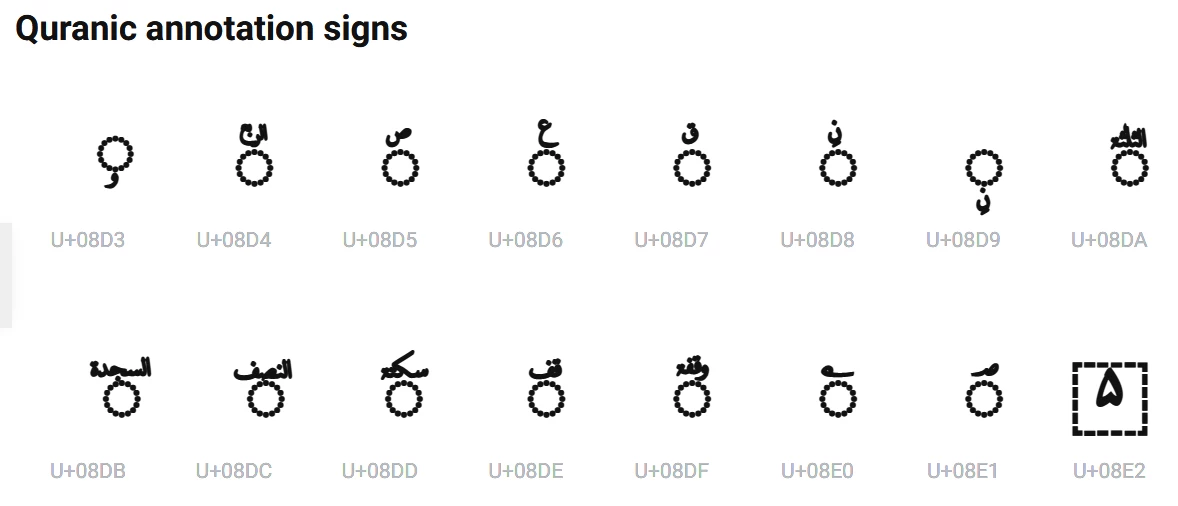

Hi. Standard Pakistani Quranic text is not rendered properly in Indesign because it is uable to handle following Unicode block correctly:

https://unicode-table.com/en/blocks/arabic-extended-a/

Side by side comparison of the rendering to illustrate the problem:

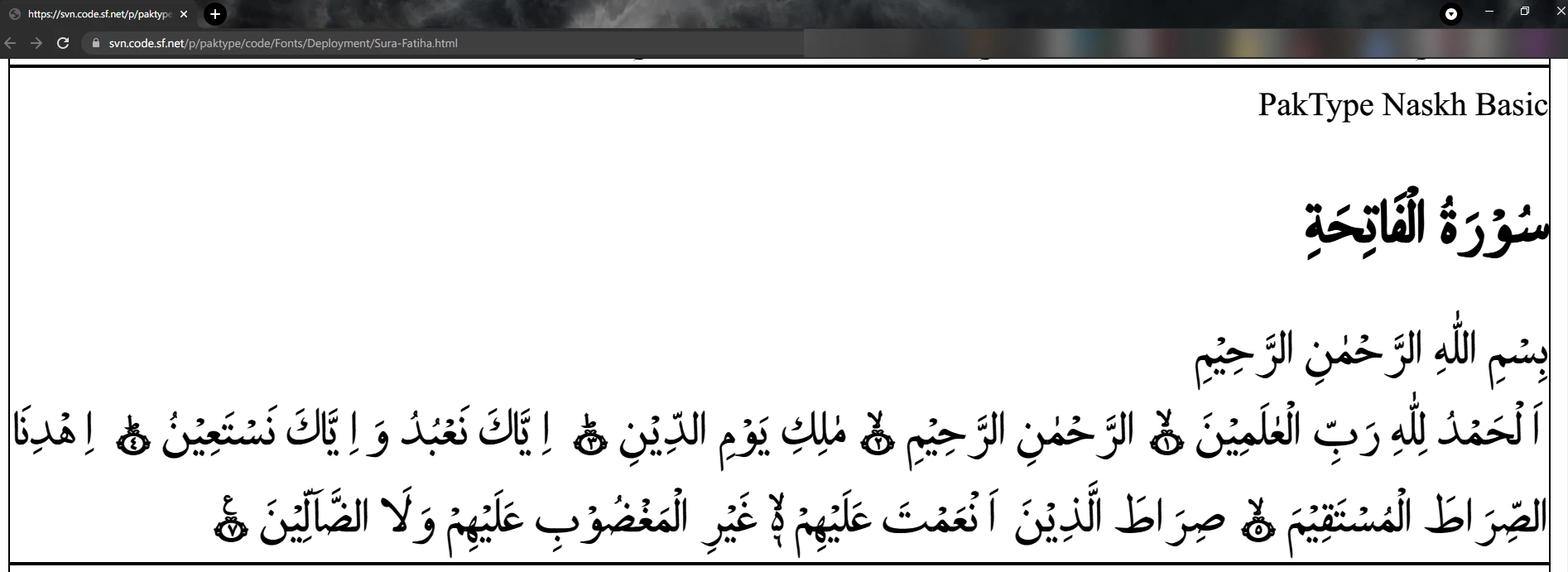

Correct rendering in Google Chrome:

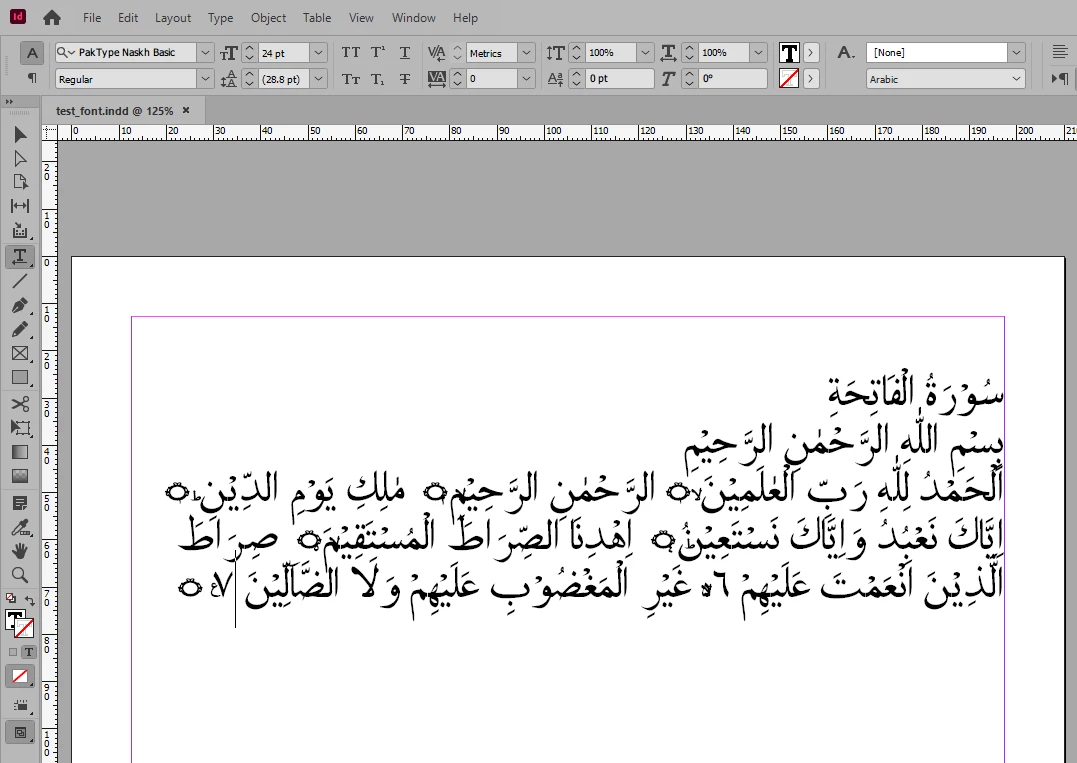

Incorrent rendering in Indesign:

To recreate the problem, download the font 'PakType Naskh Basic' from the link below or see attachment:

https://sourceforge.net/projects/paktype/files/latest/download

For Quranic text sample, use the text from the link below or see attachment:

https://svn.code.sf.net/p/paktype/code/Fonts/Deployment/Sura-Fatiha.html

I hope this bug is fixed as soon as possible because we Pakistanis need to compose stardadized Quran in Indesign. Thank you.

test_font.zip

PakTypeNaskhBasic.zip

Bug

This topic has been closed for replies.

H

Huda382796954ycn

Participant

Hi there,

I understand the frustration with rendering Quranic text in InDesign. Ensure your software is updated and try high-quality fonts like 'Amiri' or 'Scheherazade' for better compatibility. Additionally, double-check your Unicode settings in InDesign to ensure proper handling of Arabic script. If the issue persists, consider using alternative software that supports complex scripts better.

For a beautifully rendered example of Quranic text, look at this resource. I hope this helps!

Best regards,
[Huda]

Zaid Al Hilali

Community Expert

So Huda, you think the issue is mostly related to the font, more than it is related with InDesign?

I tested the font shared up here by the original poster. The font developer most likely didn't test their font in Adobe InDesign.

With regards to the web page you linked to "Surah Rahman". Do you have anything to do with it, I have someone who's uisng InDesign with a special project related to the Holey Qur'an and I wish if that person can hook up with someone who knows better than I do when it comes to Mus-haf design.

Joel Cherney

Community Expert

This is an odd one. The end-of-ayah glyph seems to combine correctly with the annotation signs when the Composer is set to the standard paragraph composer. Mind you, this ruins the rest of the paragraph, but it does indicate that something odd is going on. None of the other fonts I have that claim to have good support for Quranic typesetting render these glyphs correctly. That really supports the idea that this is not a problem with font design but with the Composer.

In order to get this bug in front of the eyes of the InDesign dev team, I would suggest that you take this bug report over to indesg.uservoice.com and post it there in the Bugs section.

A

arifk30354064Author

Participating Frequently

Since the font is rendering fine in Google Chrome, this problem is obviously in Indesign.

Joel Cherney

Community Expert

I... don't think I agree with your troubleshooting steps, but we've reached the same conclusion. You think the problem is "in InDesign," and I suspect that it is InDesign's World-Ready Composer, specifically. Poorly-made fonts often render correctly in browsers or in apps like MS Word, yet fail to render correctly in any of InDesign's Composers. So the mere fact that it looks right in Chrome does not prove that it's a problem in InDesign.

However, there's lots of good evidence in this case that the problem is in InDesign's World-Ready Composer, so I'm glad to see that you went over to uservoice and posted it there.
