Rotate and shear changes object width

Hi Otto,

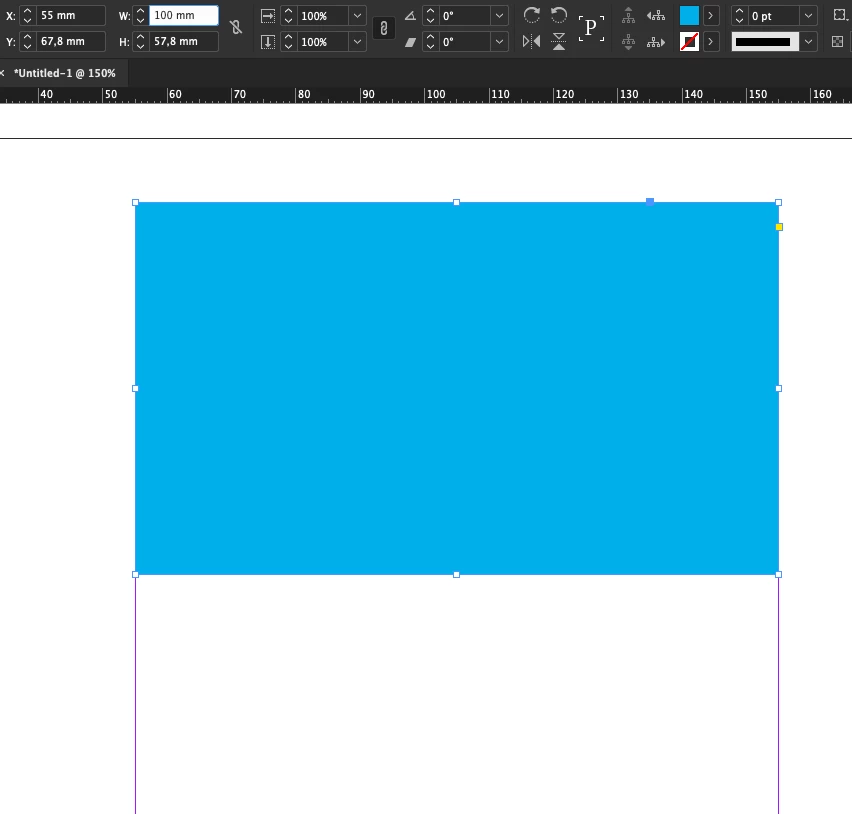

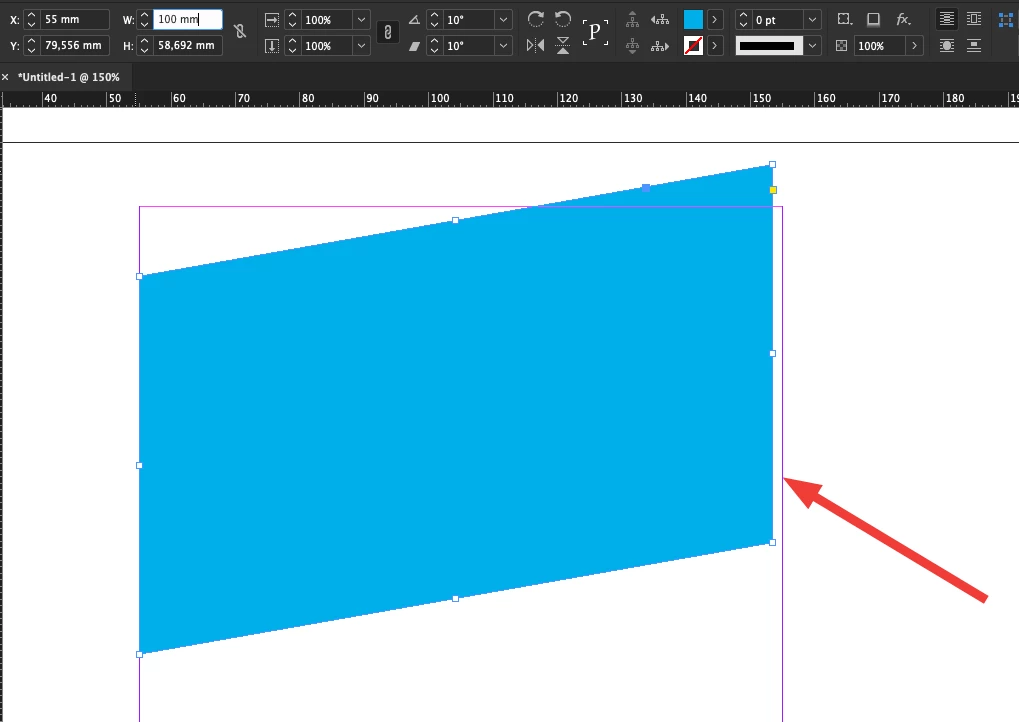

in your screenshot the length of the long edge of your object is still 100 mm. That's the meaning of W in this case. Instead you need a width value of 101.543 mm because of the amount of slope.

InDesign can assist you to get this value by transforming an applied master page.

No calculator necessary to to do the math for the slope.

Here we go:

[1] Add a new master page to your document: Let's name it "B Transformed"

[2] Select the master page with the Page tool.

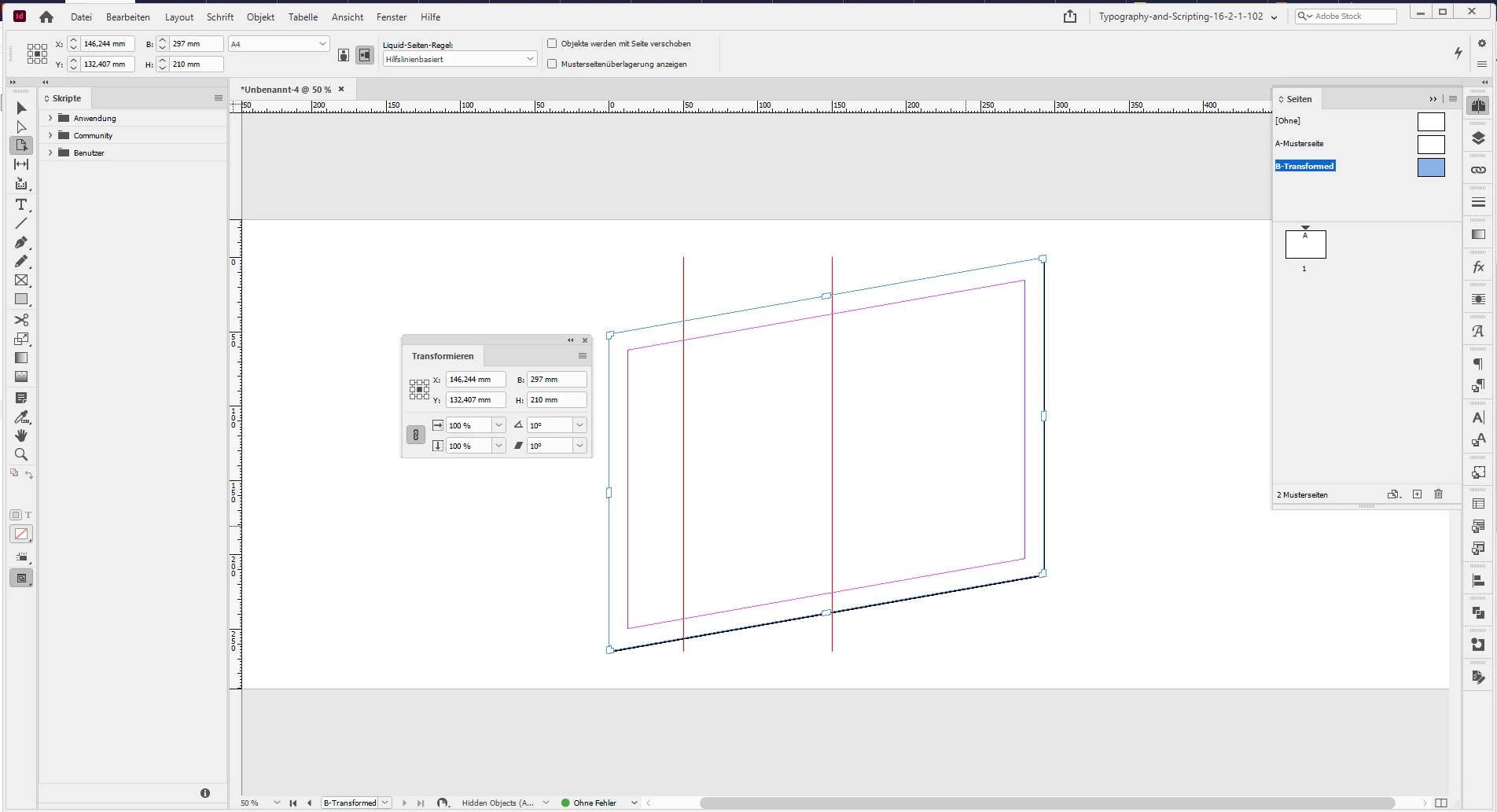

[3] Transform the master page with the Transform panel first and then add two vertical guides with a distance of 100 mm on that master:

[5] Go to the document page and apply that transformed master page.

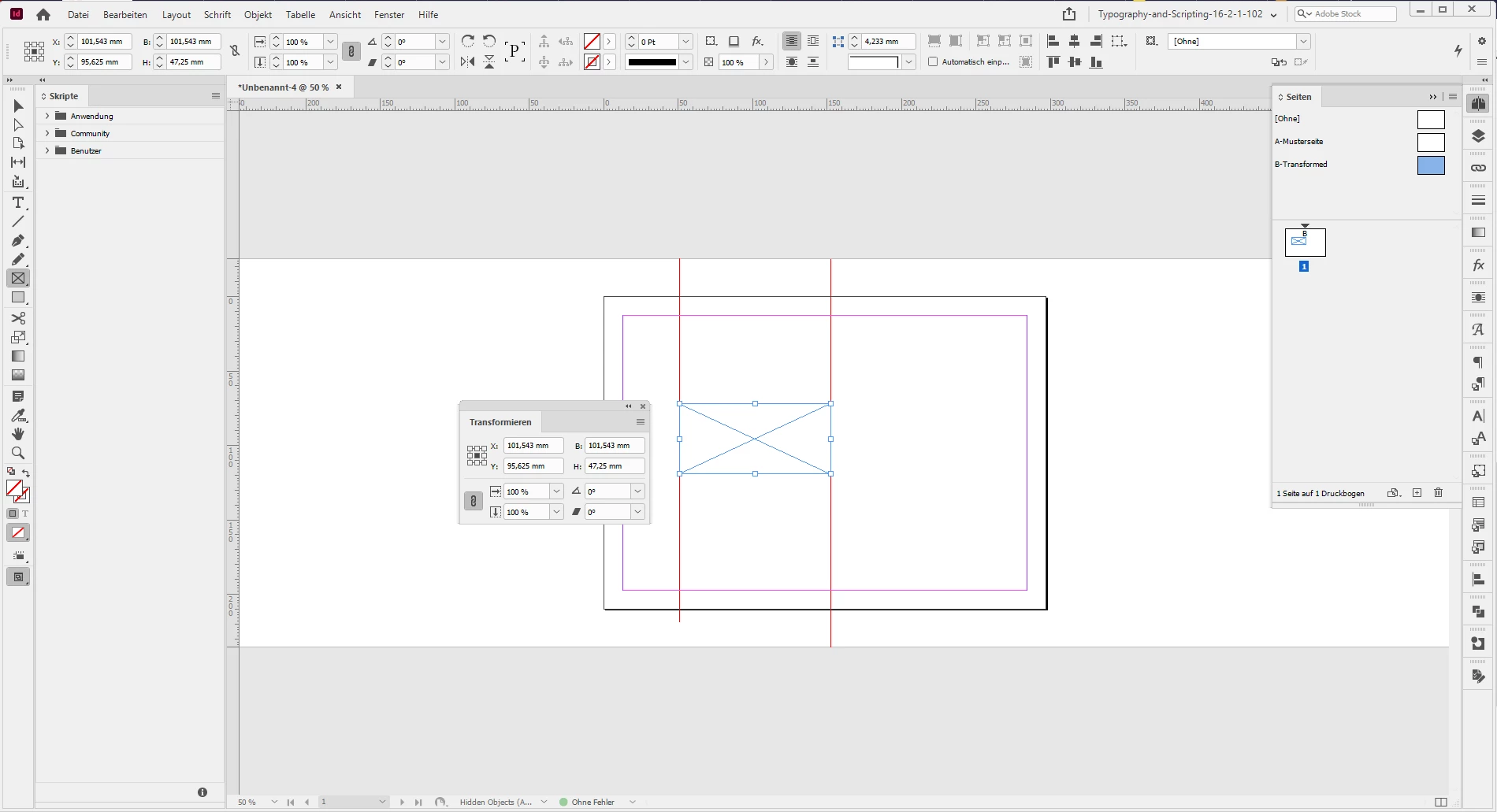

[6] Draw a rectangle the distance of your guides on the master show.

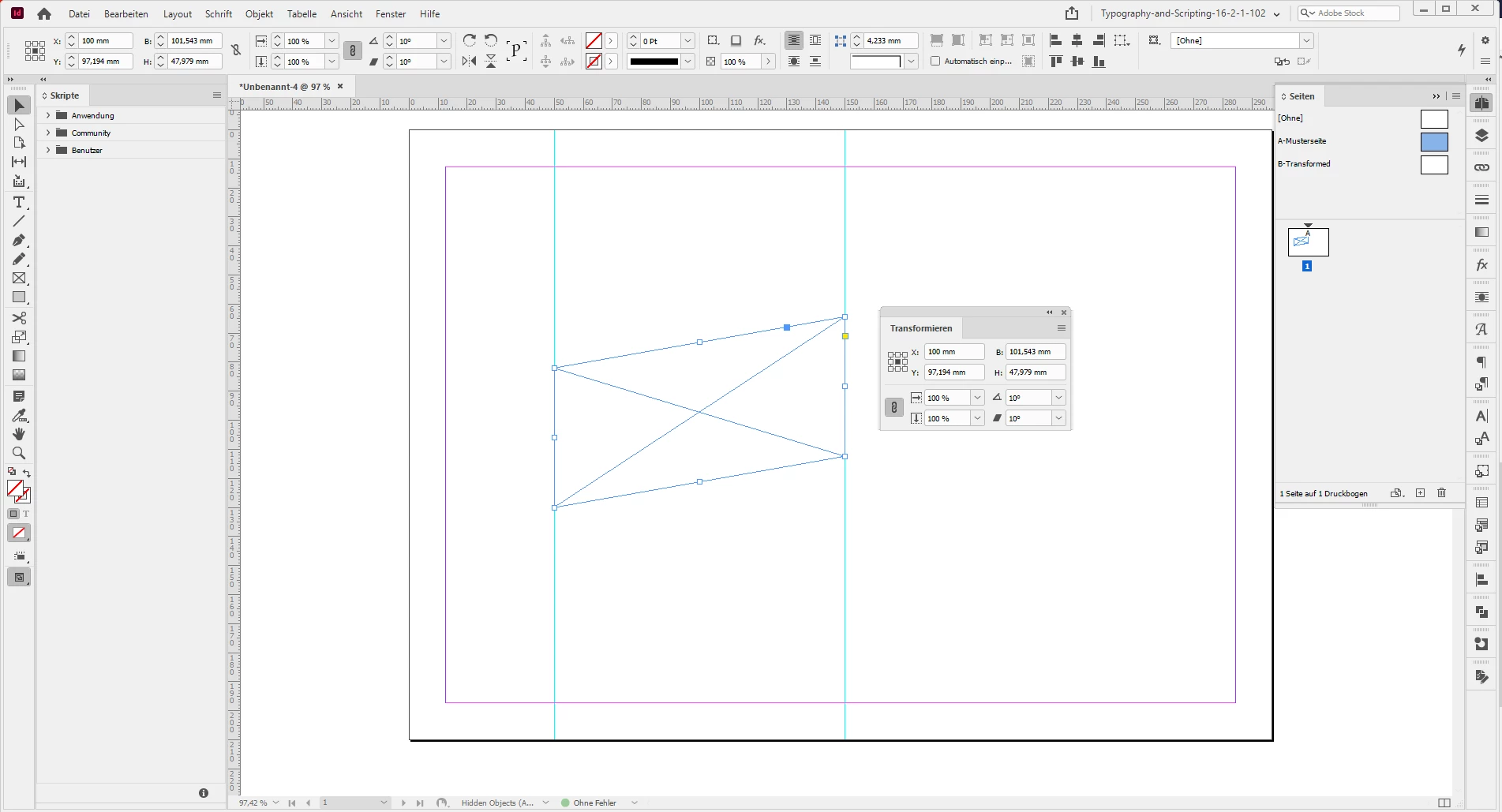

The width of that rectangle will be the necessary width for your rectangle to be transformed by rotation and shear of 10°. As shown below where I re-applied master A to the document page and added two guides in a distance of 100 mm to the page:

Regards,
Uwe Laubender

( ACP )

EDITED

It is not a bug - it is still 100 mm rectangular with 10 degrees/10 degrees properties. Text frame behaves the same. If you need precise sizes try to draw this in Illustrator and then copy your project to InDesign.
