Scissors tool via script

Forum|Forum|4 years ago
October 13, 2021
7 replies
606 views

I need to create a half circle and I think the best way is with the scissors tool. The problem is when I want to do it via script. I can't find anything that can guide me.

Thank you very much.

Scripting

This topic has been closed for replies.

Correct answer Laubender

Alright, we can even get an [object Polygon] when we are using the result of the subtractPath() method as a blueprint:

var doc = app.documents.add();


/*
	Create a "circle"-like oval on the page.
	Why "circle"-like? See:

	A Primer on Bézier Curves
	§42 Circular arcs and cubic Béziers
	https://pomax.github.io/bezierinfo/#circles_cubic

*/

var oval = doc.spreads[0].ovals.add
(
	{
		geometricBounds : [ 0, 0, 100, 100 ] ,
		strokeWeight : 0 ,
		strokeColor : "None" ,
		fillColor : "None"
	}
);

/*
	Create a rectangle that overlaps the oval:
*/

var rectangle = doc.spreads[0].rectangles.add
(
	{
		geometricBounds : [ -10, 50, 110, 110 ] ,
		strokeWeight : 0 ,
		strokeColor : "None" ,
		fillColor : "None"
	}
);

// Use substractPath() method.
// ISSUE: The returned object is still of type [object Oval]
var bluePrint = rectangle.subtractPath
(
	[ oval ]
);

// We could correct that by adding a polygon
// and clone the entirePath of the result, the bluePrint, to the polygon:
var polygon = doc.spreads[0].polygons.add
(
	{
			strokeWeight : 0 ,
			strokeColor : "None" ,
			fillColor : "None"
	}
);

polygon.paths[0].entirePath = bluePrint.paths[0].entirePath;

//The blueprint is not needed anymore:
bluePrint.remove();

Regards,
Uwe Laubender

( ACP )

F

Fernando de MiguelAuthor

Participating Frequently

Thank you very much Uwe. I think that with the ideas you have given me, I can "play" quite a lot.

Peter Kahrel

Community Expert

Nice musings, Uwe. But what's dumb about the pathfinder tools?

P.

L

Laubender

Community Expert

Hi Peter,

ok, that was an exaggeration…

I had this other thread in mind where the high art of constructing an arc is discussed.

Nice, that there is someone who's commenting my musings; and that the one is you.

Regards,
Uwe Laubender

( ACP )

L

Laubender

Community Expert

Hm. Now it dawns on me, that you want to create not a closed path, but an open path of a half circle

If I'm right just add this code at the bottom of the code above:

/*
	Let's simulate the sciccors tool a bit:
	Add a path point
	Open the path
	Remove the added path point.
*/
var newPathPoint = polygon.paths[0].pathPoints.add
(
	{
		anchor : [ 50 , 50] ,
		pointType : PointType.PLAIN
	}
);


polygon.paths[0].pathType = PathType.OPEN_PATH;
newPathPoint.remove();

polygon.strokeWeight = 1;

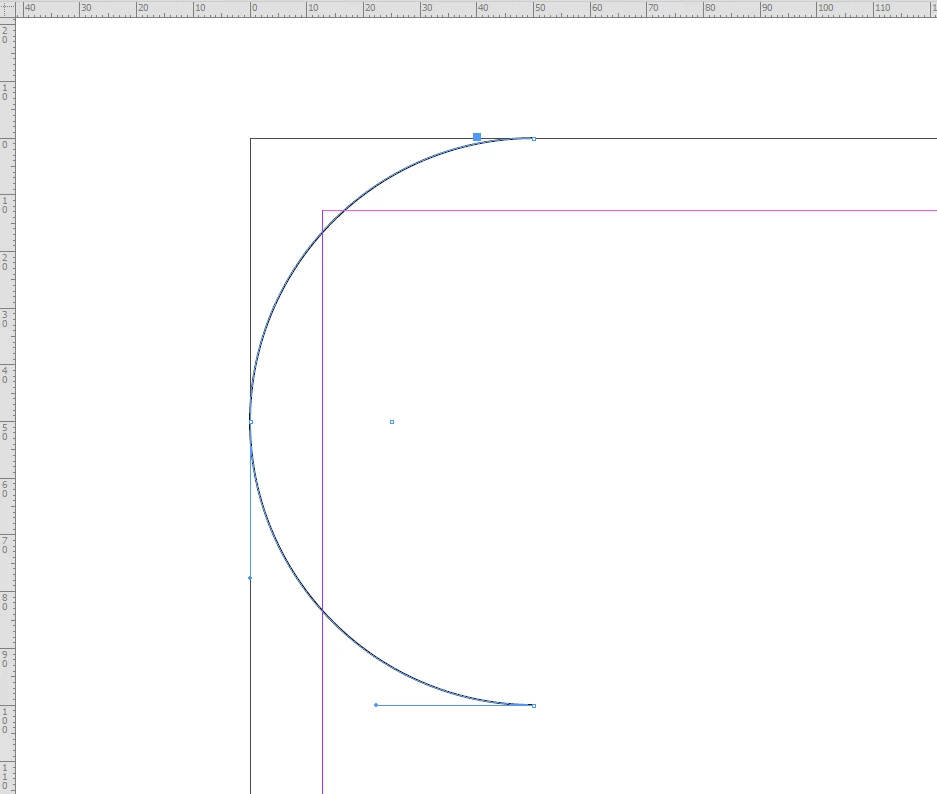

The final result is this:

Regards,
Uwe Laubender

( ACP )

L

Laubender

Correct answer

Community Expert

Alright, we can even get an [object Polygon] when we are using the result of the subtractPath() method as a blueprint:

var doc = app.documents.add();


/*
	Create a "circle"-like oval on the page.
	Why "circle"-like? See:

	A Primer on Bézier Curves
	§42 Circular arcs and cubic Béziers
	https://pomax.github.io/bezierinfo/#circles_cubic

*/

var oval = doc.spreads[0].ovals.add
(
	{
		geometricBounds : [ 0, 0, 100, 100 ] ,
		strokeWeight : 0 ,
		strokeColor : "None" ,
		fillColor : "None"
	}
);

/*
	Create a rectangle that overlaps the oval:
*/

var rectangle = doc.spreads[0].rectangles.add
(
	{
		geometricBounds : [ -10, 50, 110, 110 ] ,
		strokeWeight : 0 ,
		strokeColor : "None" ,
		fillColor : "None"
	}
);

// Use substractPath() method.
// ISSUE: The returned object is still of type [object Oval]
var bluePrint = rectangle.subtractPath
(
	[ oval ]
);

// We could correct that by adding a polygon
// and clone the entirePath of the result, the bluePrint, to the polygon:
var polygon = doc.spreads[0].polygons.add
(
	{
			strokeWeight : 0 ,
			strokeColor : "None" ,
			fillColor : "None"
	}
);

polygon.paths[0].entirePath = bluePrint.paths[0].entirePath;

//The blueprint is not needed anymore:
bluePrint.remove();

Regards,
Uwe Laubender

( ACP )

L

Laubender

Community Expert

And finally we have the "dumb" methods of the pathfinder tools. Also with scripting:

var doc = app.documents.add();


/*
	Create a "circle"-like oval on the page.
	Why "circle"-like? See:

	A Primer on Bézier Curves
	§42 Circular arcs and cubic Béziers
	https://pomax.github.io/bezierinfo/#circles_cubic

*/

var oval = doc.spreads[0].ovals.add
(
	{
		geometricBounds : [ 0, 0, 100, 100 ] ,
		strokeWeight : 0 ,
		strokeColor : "None" ,
		fillColor : "None"
	}
);

/*
	Create a rectangle that overlaps the oval:
*/

var rectangle = doc.spreads[0].rectangles.add
(
	{
		geometricBounds : [ -10, 50, 110, 110 ] ,
		strokeWeight : 0 ,
		strokeColor : "None" ,
		fillColor : "None"
	}
);

// Use substractPath() method:
rectangle.subtractPath
(
	[ oval ]
);

The next step would be to move the resulting item and to scale it.

BUT NOTE: The result is still a [object Oval] which exposes other issues that are discussed elsewhere in the forum. You may have expected a [object Polygon] perhaps…

Regards,
Uwe Laubender

( ACP )
