SCRIPT INDESIGN CC 2019 MAC / Select all Anchor Object in document

Awsome!

If I can select all Images Anchor in all the document that would be awsome!...

reason : its for accessibility, I have a document that has 800 links, all anchors and they are all in a TABLE.

So if I can select all the boxes in my document, this will reduce my time of all selecting them as IMAGES, cause the other select as STORY is less time then images, hope I am amking sense....

Should a placed AI graphic be tagged as IMAGE as well?

Or only pixel based images like PSDs, JPEGs, TIFFs ?

Regards,
Uwe

Hi seanf33852861 ,

you can only select one anchored object at one time with InDesign.

Scripting with method select() makes no difference.

What you are able to do: You can address all anchored images in your document.

That means you can store the reference to all anchored images and do something with them after identifying the ones.

What do you like to do with all anchored images?

EDIT: Oh. You already answered that. You want to tag them as IMAGES.

Here some code to filter all anchored graphics:

// All graphics of the document stored to variable allGraphicsOfDoc:
var allGraphicsOfDoc = app.documents[0].allGraphics;
// Now that we stored all graphics of the document in an array we can sort out the ones that are anchored.
// Would you need all graphics, that means also placed PDFs, AIs, EPS, WMFs? Or only pixel based ones?
// Preparing a container, an array for the results:
var allAnchoredGraphics = [];
// Looping the allGraphicsOfDoc array to filter the ones we need:
for( var n=0 ; n<allGraphicsOfDoc.length ; n++ )
{
    // The parent of a graphic is always a graphic frame
    // If the parent of that graphic frame is a character, the graphic frame containing the graphic is anchored:
    if( allGraphicsOfDoc.parent.parent.constructor.name == "Character" )
    {
        allAnchoredGraphics[allAnchoredGraphics.length++] = allGraphicsOfDoc;
    }
};
// Looping the result to do something to the filtered graphics:
for( var n=0; n<allAnchoredGraphics.length; n++)
{
    doSomethingWithGraphic( allAnchoredGraphics );
}
// Change this function to your needs:
function doSomethingWithGraphic( graphic )
{
    // Get the name of the item link of the placed graphic
    try{
    $.writeln( graphic.itemLink.name );
    }catch(e){ $.writeln( e.message ) };
};

One could also use a GREP find routine for anchored objects.

But you may have also anchored objects like text frames, rectangles or other graphic frames without a graphic in your document.

The allGraphics array may be more to the point.

FWIW: Graphics in graphic cells of a table do not fall under the category "anchored" with the code above.

If you want to include them we have to change the if condition.

Regards,
Uwe

hi sean,

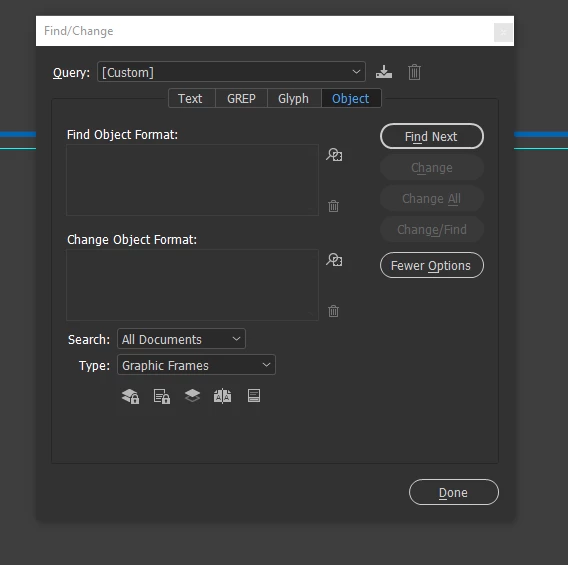

     you can find all images in this way, If you know manually you can create script for this also.
