Hello everyone!

I am working on a report and wanted to change the background color, so I created a rectangular shape. However, I'm having trouble sending it back and I can't see the grid and margins I established before.

Does anyone know how to solve this problem?

I really appreciate any help you can provide.

This topic has been closed for replies.
Correct answer Barb Binder

Hi @Francisca Guzman:



Instead of Prefs > Grids > Grids in Back, uncheck Prefs > Guides and Pasteboard > Guides in Back.



~Barb

2 replies

Barb Binder
Community Expert
Barb BinderCommunity ExpertCorrect answer
Community Expert
May 8, 2023

Hi @Francisca Guzman:



Instead of Prefs > Grids > Grids in Back, uncheck Prefs > Guides and Pasteboard > Guides in Back.



~Barb

~Barb at Rocky Mountain Training
Participating Frequently
May 8, 2023

Thank you so much! It finally worked.

Barb Binder
Community Expert
Community Expert
May 8, 2023

We are always happy to help, @Francisca Guzman.



~Barb

~Barb at Rocky Mountain Training
James Gifford—NitroPress
Legend
May 7, 2023

If you are going to use a background element (a rectangle) to form a background color, it has to be at the very back of all page elements, especially all layers. It sounds as if maybe you have your rectangle grouped with something that remains behind it no matter how you change the stacking order within that 'group' of items.

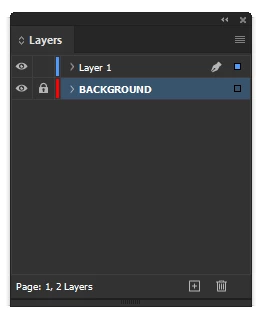

The optimal way to do this is to create a new Layer and place the background object within it, then move that Layer (best named something like BG or Background to minimize confusion) to the very bottom of the stack in the Layers window. Once there, lock the layer so that you don't keep selecting or moving the background object.:



You can do this within a single Layer, as well, as long as the background object is free to be sent all the way to the back of all display objects, and once there, you can lock it individually to keep from moving or selecting it again.

Participating Frequently
May 7, 2023

Thank you for the answer. I tried using layers to fix the problem but I still can't see the grids and margins I put when starting the project.



Is there anything I can do to fix it?



James Gifford—NitroPress
Legend
May 7, 2023

You can turn off and on most of the various grids, guides, etc. with indivdiual commands. It sounds as if you may have switched into preview mode, which turns them all off.



Under View | Screen Mode, select Normal. That should restore all the guides etc. (You can toggle between Normal and Preview by pressing W with nothing [text] selected on the screen. Very useful.)

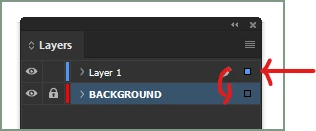

To put your background rectangle in a layer by itself, select it, and then drag the teeny indicator square from its layer to your background layer:
