Special case? GeometricBounds positioning cannot be used when text boxes extend beyond bleed?

  • August 2, 2025
  • 4 replies
  • 1013 views

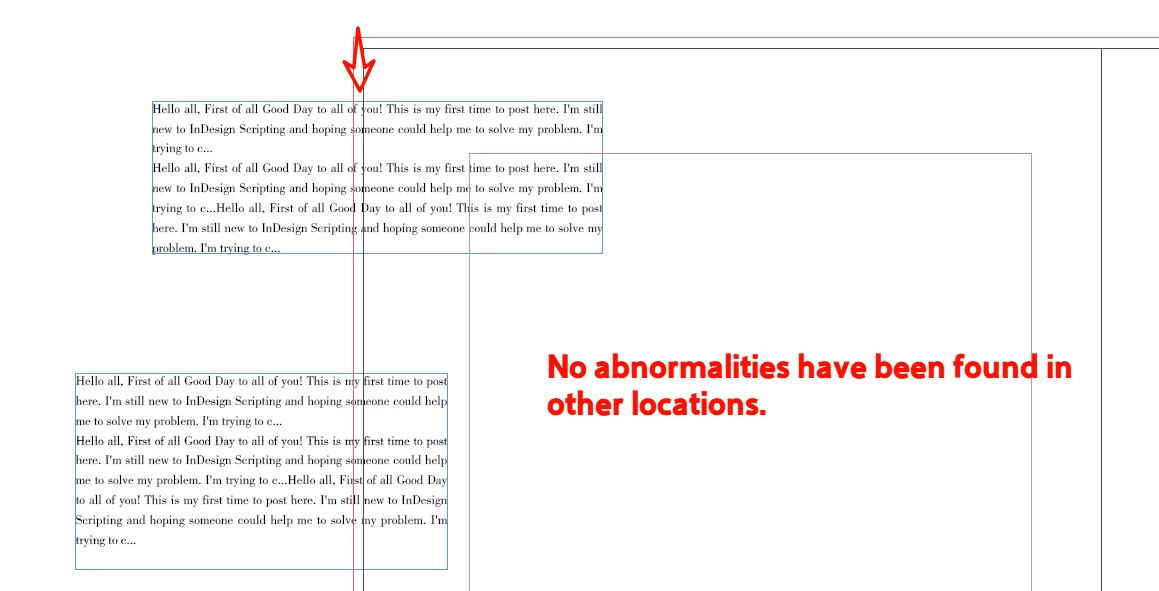

The object is just crossing the bleeding area, and it seems impossible to determine its position.

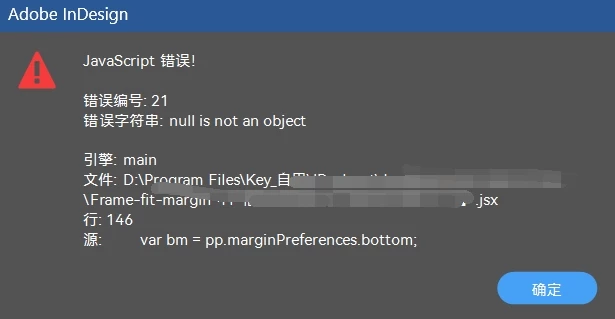

sel[j].parentPage;.marginPreferences.bottom;
will cause an error.

 var sel = app.documents[0].selection;
        var pp = sel[j].parentPage;
        var b = app.activeDocument.selection[j].geometricBounds;
        var sb = sel[0].visibleBounds;
        var bm = pp.marginPreferences.bottom;

if(sel[j].parentPage == null);
b[1]<0&&b[3>0]&&b[3]<cp[0];

All combinations have failed...
            if ((sel[j].parentPage == null && b[3] < 0) || ([1] < 0 && b[3] > 0 && b[3] < cp[0])) {
                app.activeDocument.viewPreferences.rulerOrigin = RulerOrigin.PAGE_ORIGIN;
                sel[j].geometricBounds = [b[0], 0 - 20, b[2], b[3] - b[1] + 20];
            }

            if ((sel[j].parentPage == null) && (b[1] > 0)) {
                app.activeDocument.viewPreferences.rulerOrigin = RulerOrigin.PAGE_ORIGIN;
                sel[j].geometricBounds = [b[0], 0 - 20, b[2], b[3] - b[1] - 20];
            }
Correct answer rob day

Hi @rob day

Thanks for the optimization.


Currently, I've identified two remaining issues.

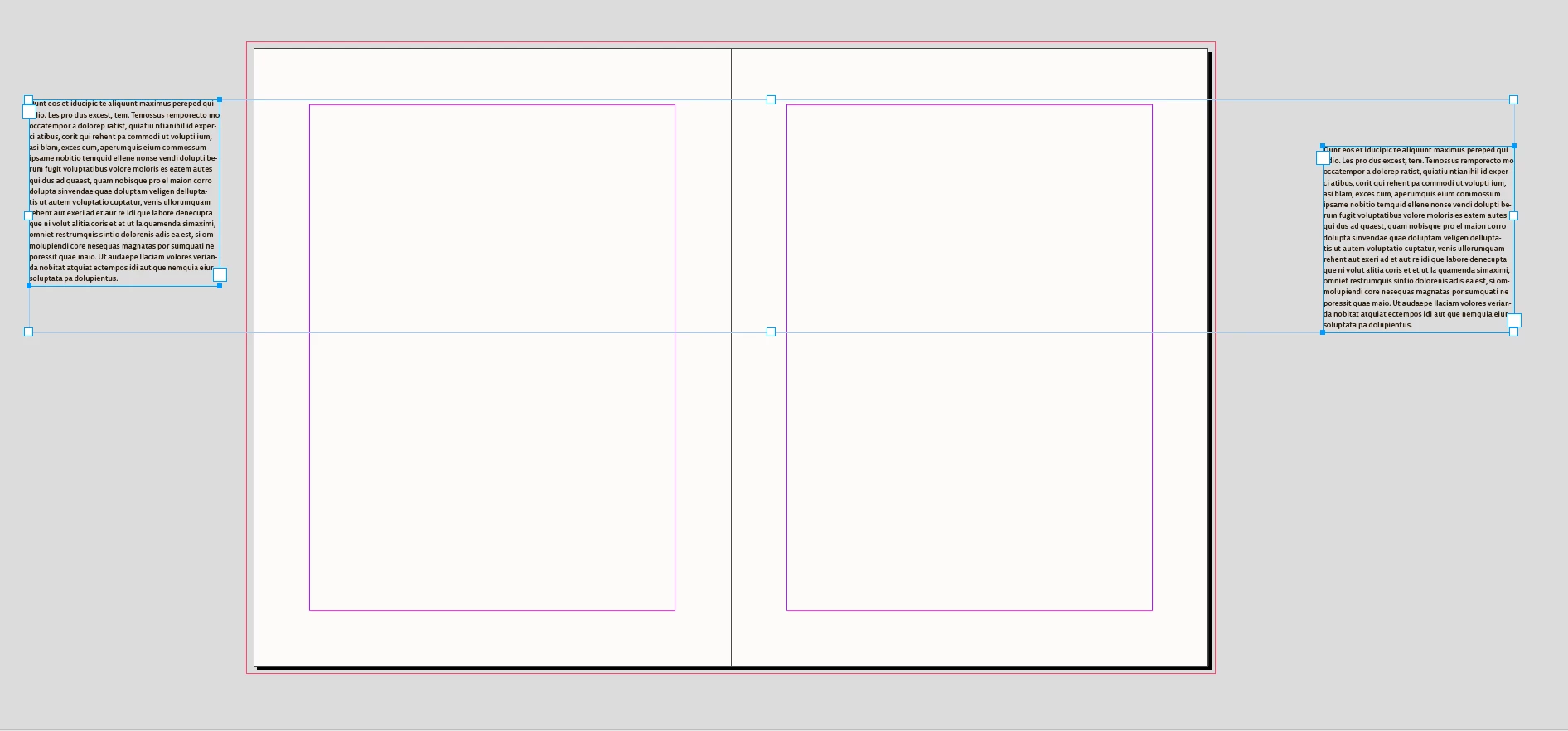

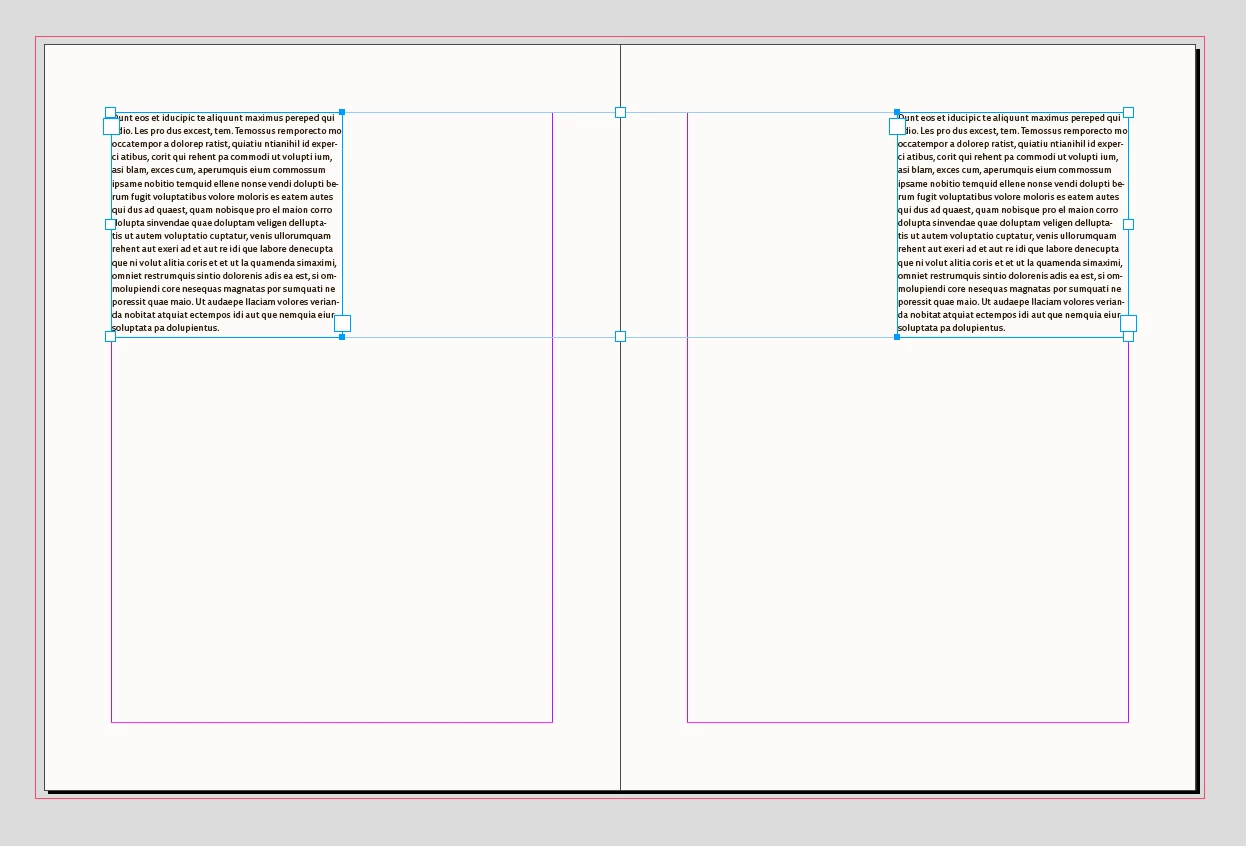

First, if an object is positioned on the right side of the right page, can it be moved only to the right margin?

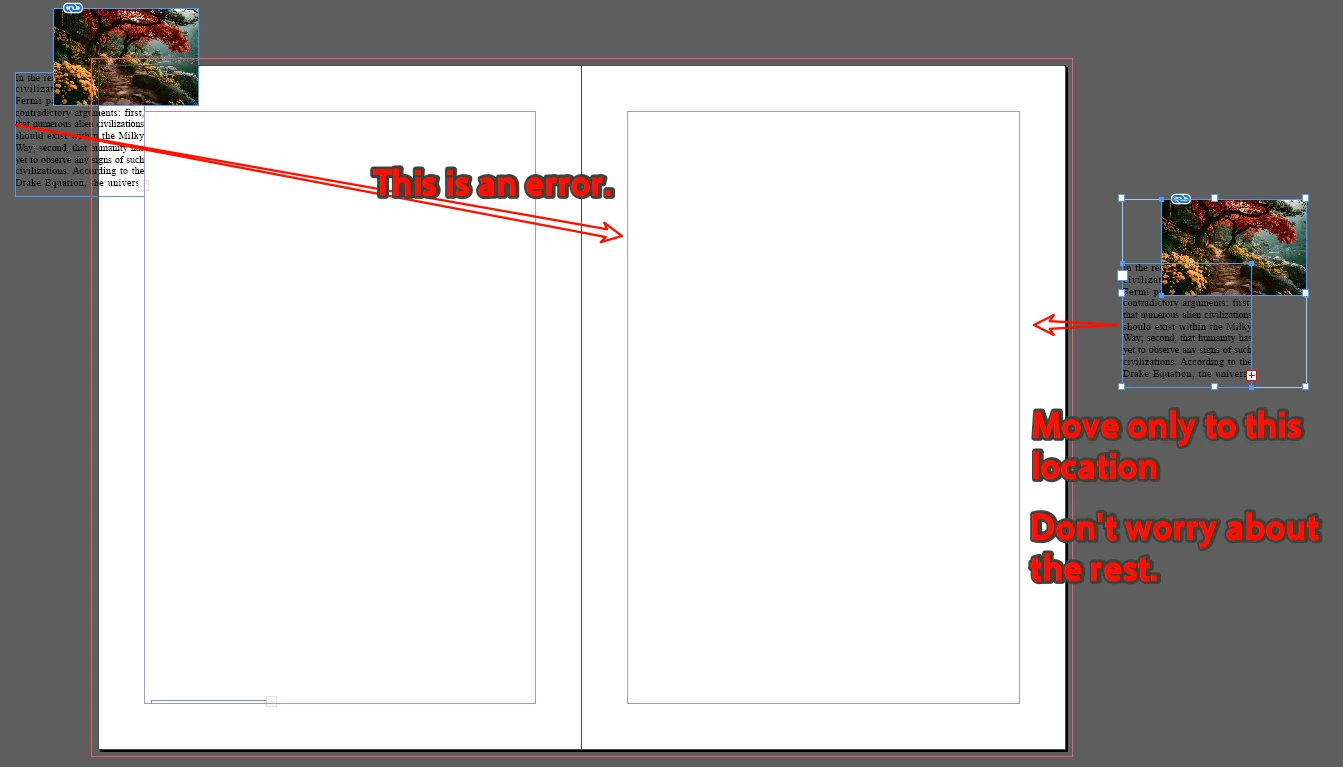

Second, there's an error. When an image on the left side extends beyond the top edge of the page, it gets shifted to the right instead.


The function assumes the selected objects are entirely on the pasteboard (parent page returns as null), You would need a different function to handle objects that do not return nul. Where you decide to move the page item could be anything:



function movePBSel(s){
    //returns null when the selection is entirely on the pasteboard
    var pp = s.parent.pages
    //the page item width
    var rw = s.geometricBounds[3] - s.geometricBounds[1];
    //spread’s right page
    var rp = pp[pp.length-1]
    //right most page’s right bound minus left margin minus page item width
    var px = rp.bounds[3] - rp.marginPreferences.left - rw

    //a single page
    if (pp.length == 1) {
        s.move([px, rp.marginPreferences.top] );
    } else {
        if (s.geometricBounds[3] < 0) {
            //left most page of spread
            s.move([rp.marginPreferences.right, rp.marginPreferences.top ]);
        } else {
            //right most page of spread
            s.move([px, rp.marginPreferences.top ] );
        }
    }
    return s.parentPage
}










4 replies

m1b
Community Expert
m1bCommunity Expert
Community Expert
April 4, 2026

Hi ​@dublove have a look at my code below. Is is “Position Item Relative To Nearest Page”. So, using this approach, you just need to calculate where on the nearest page you want the item to go, eg. [0,0] is top left corner. You can position against margins or whatever just by grabbing those values from the document values and knowing the size of the selected item. So to align item with the bottom right corner of the nearest page, you would subtract the width and height of the item from the width and height of the nearest page.

Does this help in your case?

— Mark



By the way, I have updated my `getNearestPage` to handle master pages (also called parent pages but never called home pages) and also to gracefully return nothing if it fails to find a page.

/**
 * @file Position Item Relative To Nearest Page.js
 *
 * Example of moving a page item to a specific location
 * relative to the nearest page.
 *
 * Usage example:
 *  positionItemRelativeToPage(obj, 12 * mm, 5 * mm);
 *
 * @author m1b
 * @version 2026-04-05
 */
function main() {

    app.scriptPreferences.measurementUnit = MeasurementUnits.POINTS;

    const mm = 2.834645;
    const inch = 72;

    if (
        0 === app.documents.length
        || 0 === app.activeDocument.selection.length
    )
        return alert('Please select a page item and try again.');

    var doc = app.activeDocument;
    var item = doc.selection[0];

    positionItemRelativeToPage(obj, 12 * mm, 5 * mm);

};
app.doScript(main, ScriptLanguage.JAVASCRIPT, undefined, UndoModes.ENTIRE_SCRIPT, 'Position Item');

/**
 * Moves `item` to the top left of the nearest page, offset by [dx, dy].
 * @author m1b
 * @version 2025-11-08
 * @param {PageItem} item - an Indesign PageItem.
 * @param {Number} dx - the X offset.
 * @param {Number} dy - the Y offset.
 */
function positionItemRelativeToPage(item, dx, dy) {

    if ('function' !== typeof item.move)
        throw new Error('positionItemRelativeToNearestPage: cannot move item.');

    // a function I had already written
    var page = getNearestPage(item);

    if (!page)
        // I don't think this should ever happen...
        throw new Error('Could not get nearest page.');

    // get the top left of the page
    var pos = [page.bounds[0], page.bounds[1]];

    // move the item
    item.move([pos[1] + dx, pos[0] + dy]);

};

/**
 * Returns the nearest page to `item`.
 * @author m1b
 * @version 2026-04-05
 * @param {PageItem} item - the target item.
 * @returns {Page} - the nearest page to `item`.
 */
function getNearestPage(item) {

    var found;
    var page = item.parentPage;
    var spread;
    var timeout = 100;

    while (!page && timeout--) {

        spread = item.parent;

        if (Page === spread.constructor)
            found = spread;

        else if (
            Spread === spread.constructor
            || MasterSpread === spread.constructor
        ) {

            var index = findClosestBounds(
                item.visibleBounds,
                spread.pages.everyItem().bounds
            );

            found = spread.pages.item(index);

        }

    }

    return found;

};

/**
 * Returns the index of the bounds in `boundsArray` that is
 * closest to the target bounds. All bounds are in [T, L, B, R] format.
 * @author m1b
 * @version 2025-08-02
 * @param {Array} targetBounds - The target bounds [T, L, B, R].
 * @param {Array<bounds>} boundsArray - An array of bounds arrays.
 * @returns {Number} Index of the closest bounds in the array.
 */
function findClosestBounds(targetBounds, boundsArray) {

    var targetCenter = centerOfBounds(targetBounds);
    var minDist = Infinity;
    var closestIndex = -1;

    for (var i = 0, center, dx, dy, distSq; i < boundsArray.length; i++) {

        center = centerOfBounds(boundsArray[i]);
        dx = targetCenter[0] - center[0];
        dy = targetCenter[1] - center[1];
        distSq = dx * dx + dy * dy;

        if (distSq < minDist) {
            minDist = distSq;
            closestIndex = i;
        }

    }

    return closestIndex;

};

/**
 * Returns the center of `bounds`;
 * @param {Array} bounds - The bounds [T, L, B, R].
 * @returns {Array<Number>} - [cx, cy].
 */
function centerOfBounds(bounds) {
    return [(bounds[1] + bounds[3]) / 2, (bounds[0] + bounds[2]) / 2];
};



dublove
dubloveAuthor
Legend
April 5, 2026

Hi ​@m1b

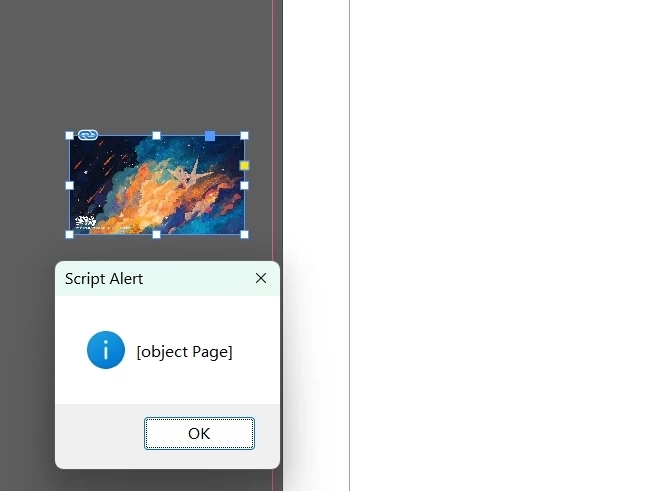

It seems that `var page = getNearestPage(item)` only works when the object is located outside of master pages or regular pages.

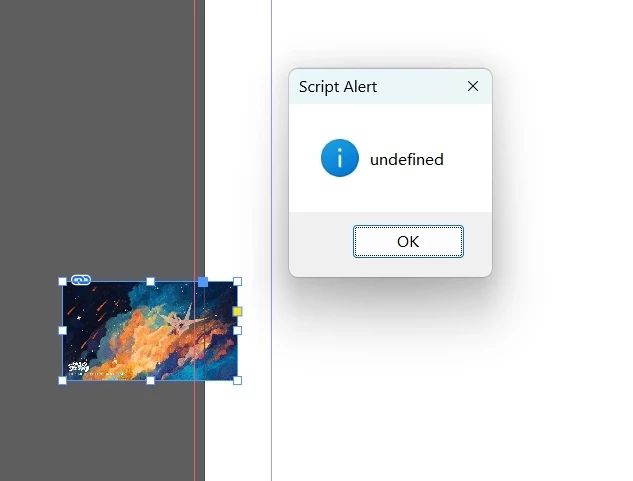

When one side of the object is within a page, `var page = getNearestPage(item)` does not work.(undefined)

In the original version, `var page` could still be retrieved even when the object was within a page.

As long as:
When the object is on the left page, the right side is within the page.
When the object is on the right page, the left side is within the page.
It should be placed directly into the layout without executing `var page = getNearestPage(item);`
and without throwing an exception.

In this case, `page = item.parentPage;`



m1b
Community Expert
m1bCommunity Expert
Community Expert
August 2, 2025

@dublove the challenge here—as Brian alluded—is that you are trying to get the page of an item that has no page. So we need to get the nearest page to the item. I've written a function to do that, and a little example script to show it.

- Mark



/**
 * @file Position Item On Nearest Page.js
 *
 * @author m1b
 * @version 2025-08-02
 * @discussion https://community.adobe.com/t5/indesign-discussions/special-case-geometricbounds-positioning-cannot-be-used-when-text-boxes-extend-beyond-bleed/m-p/15440515
 */
function main() {

    var sel = app.activeDocument.selection[0];
    var pp = getNearestPage(sel);

    var pb = pp.bounds;
    var sb = sel.visibleBounds;
    var bm = pp.marginPreferences.bottom;
    var lm = pp.marginPreferences.left;

    // example: line up `sel` against the left and bottom margins of the page
    sel.move([pb[1] + lm, pb[2] - bm - (sb[2] - sb[0])]);

};
app.doScript(main, ScriptLanguage.JAVASCRIPT, undefined, UndoModes.ENTIRE_SCRIPT, 'Do Script');

/**
 * Returns the nearest page to `item`.
 * @author m1b
 * @version 2025-08-02
 * @param {PageItem} item - the target item.
 * @returns {Page} - the nearest page to `item`.
 */
function getNearestPage(item) {

    var page = item.parentPage;
    var spread;

    while (!page) {

        spread = item.parent;

        if ('Page' === spread.constructor.name)
            page = spread;


        if ('Spread' === spread.constructor.name) {

            var index = findClosestBounds(
                item.visibleBounds,
                spread.pages.everyItem().bounds
            );

            page = spread.pages.item(index);

        }

    }

    return page;

};

/**
 * Returns the index of the bounds in `boundsArray` that is
 * closest to the target bounds. All bounds are in [T, L, B, R] format.
 * @param {Array} targetBounds - The target bounds [T, L, B, R].
 * @param {Array<bounds>} boundsArray - An array of bounds arrays.
 * @returns {Number} Index of the closest bounds in the array.
 */
function findClosestBounds(targetBounds, boundsArray) {

    var targetCenter = centerOfBounds(targetBounds);
    var minDist = Infinity;
    var closestIndex = -1;

    for (var i = 0, center, dx, dy, distSq; i < boundsArray.length; i++) {

        center = centerOfBounds(boundsArray[i]);
        dx = targetCenter[0] - center[0];
        dy = targetCenter[1] - center[1];
        distSq = dx * dx + dy * dy;

        if (distSq < minDist) {
            minDist = distSq;
            closestIndex = i;
        }

    }

    return closestIndex;

};

/**
 * Returns the center of `bounds`;
 * @param {Array} bounds - The bounds [T, L, B, R].
 * @returns {Array<Number>} - [cx, cy].
 */
function centerOfBounds(bounds) {
    return [(bounds[1] + bounds[3]) / 2, (bounds[0] + bounds[2]) / 2];
};
dublove
dubloveAuthor
Legend
August 2, 2025

Hi @m1b .
Thank you very much.

Your script does indeed move the object into the layout.
However, the object is offset too far in the Y direction, The feeling of jumping is not good.





I thought of another simple and effective method, which is to scale down the image proportionally and then reset it to

sel[j].geometricBounds = [c[0], cp[0], c[0] + hnew, cp[0] + wnew,]


cp[0] and cp[0] + wnew always exist and are real values,
so simply translating them will work.



I will try my best to make sure that the object does not jump up and down, and it is best to deform it without moving the upper left corner.
But that's all for later.



Oh,my Great m1b, don't forget me.

headerRows = convertToRowType(headerRows, RowTypes.HEADER_ROW);

This is what keeps me awake at night.

m1b
Community Expert
m1bCommunity Expert
Community Expert
August 2, 2025

Hi @dublove all this talk of "jumping"... you must read what my example is trying to do. That first example always moves the item to the bottom left margins. It was just an example—you can code it to move where you want it.



For example, the following code ensures that the selected item is within the page margins, and it will move the item only the minimum distance required to achieve that. Again, remember these are just examples. You must adjust them the way you want.



By the way, I would avoid setting the geometricBounds as it can be messy. Better to use the .move and .resize methods, I think.

- Mark



/**
 * @file Position Item Within Nearest Page Margins.js
 *
 * @author m1b
 * @version 2025-08-02
 * @discussion https://community.adobe.com/t5/indesign-discussions/special-case-geometricbounds-positioning-cannot-be-used-when-text-boxes-extend-beyond-bleed/m-p/15440515
 */
function main() {

    var sel = app.activeDocument.selection[0];
    var pp = getNearestPage(sel);

    var pb = pp.bounds;
    var sb = sel.visibleBounds;
    var sw = sb[3] - sb[1];
    var sh = sb[2] - sb[0];

    // example: move `sel` so it is within the page margins
    var x = sb[1];
    var y = sb[0];

    if (sb[3] > pb[3] - pp.marginPreferences.right) {
        // the item is past the right side of the page
        x = pb[3] - pp.marginPreferences.right - sw;
    }
    if (sb[1] < pb[1] + pp.marginPreferences.left) {
        // the item is past the left side of the page
        x = pb[1] + pp.marginPreferences.left;
    }
    if (sb[2] > pb[2] - pp.marginPreferences.bottom) {
        // the item is past the bottom of the page
        y = pb[2] - pp.marginPreferences.bottom - sh;
    }
    if (sb[0] < pb[0] + pp.marginPreferences.top) {
        // the item is past the top of the page
        y = pb[0] + pp.marginPreferences.top;
    }

    sel.move([x, y]);

};
app.doScript(main, ScriptLanguage.JAVASCRIPT, undefined, UndoModes.ENTIRE_SCRIPT, 'Move Item Inside Page Margins');

/**
 * Returns the nearest page to `item`.
 * @author m1b
 * @version 2025-08-02
 * @param {PageItem} item - the target item.
 * @returns {Page} - the nearest page to `item`.
 */
function getNearestPage(item) {

    var page = item.parentPage;
    var spread;

    while (!page) {

        spread = item.parent;

        if ('Page' === spread.constructor.name)
            page = spread;


        if ('Spread' === spread.constructor.name) {

            var index = findClosestBounds(
                item.visibleBounds,
                spread.pages.everyItem().bounds
            );

            page = spread.pages.item(index);

        }

    }

    return page;

};

/**
 * Returns the index of the bounds in `boundsArray` that is
 * closest to the target bounds. All bounds are in [T, L, B, R] format.
 * @param {Array} targetBounds - The target bounds [T, L, B, R].
 * @param {Array<bounds>} boundsArray - An array of bounds arrays.
 * @returns {Number} Index of the closest bounds in the array.
 */
function findClosestBounds(targetBounds, boundsArray) {

    var targetCenter = centerOfBounds(targetBounds);
    var minDist = Infinity;
    var closestIndex = -1;

    for (var i = 0, center, dx, dy, distSq; i < boundsArray.length; i++) {

        center = centerOfBounds(boundsArray[i]);
        dx = targetCenter[0] - center[0];
        dy = targetCenter[1] - center[1];
        distSq = dx * dx + dy * dy;

        if (distSq < minDist) {
            minDist = distSq;
            closestIndex = i;
        }

    }

    return closestIndex;

};

/**
 * Returns the center of `bounds`;
 * @param {Array} bounds - The bounds [T, L, B, R].
 * @returns {Array<Number>} - [cx, cy].
 */
function centerOfBounds(bounds) {
    return [(bounds[1] + bounds[3]) / 2, (bounds[0] + bounds[2]) / 2];
};



Willi Adelberger
Community Expert
Willi AdelbergerCommunity Expert
Community Expert
August 2, 2025

Use a different reference point of the text frame, like the center.

dublove
dubloveAuthor
Legend
August 2, 2025

Can you give me a rough idea?
For example?

 if (b[1] < 0 && (b[1] +(b[3] - b[1]) / 2) > 0)
or
 if (b[1] < 0 && (b[3] - (b[3] - b[1]) / 2) > 0)
?
brian_p_dts
Community Expert
brian_p_dtsCommunity Expert
Community Expert
August 2, 2025

Yes, an object off the page will have an invalid parentPage. Gonna have to find another way to identify it.

Terms & ConditionsAccessibility statement
Using the community Terms of use Privacy Cookie preferences Do not sell or share my personal information ad choicesAdChoices
