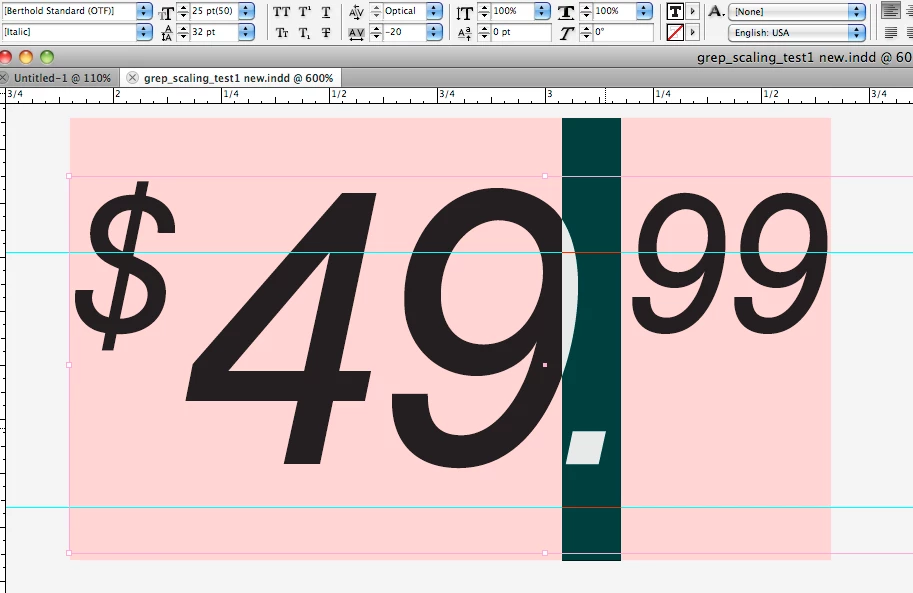

Strange behaviour when scaling GREP styled text.

Thanks! I wish there was more documentation that you can set those transformPreferences.whenScaling multiple times as you did, I would have assumed it was an either or as the UI only gives you radio buttons.. It's true we are using XMPie and I will test this on Monday but it so far it seemed to do the job. Thank you very much!

Bob

Here's my dropbox link:

http://dl.dropbox.com/u/32953233/grep_scaling_test1.zip

var myDocument = app.documents.item(0);
var myPages = myDocument.pages;
var myRectangle = myDocument.pages.item(0).pageItems;
var ssize = 2;
//Scale a page around its center point.
var myScaleMatrix = app.transformationMatrices.add({horizontalScaleFactor:ssize,  verticalScaleFactor:ssize});
var idx;
for(idx = 0; idx < app.documents.item(0).pages.length; idx++)
{
    myTransform(myPages.item(idx), myDocument.pages.item(idx).pageItems, myScaleMatrix);
}
// if you want to export a pdf, uncomment
//myPDFExport ();
function myTransform(myPage, myRectangle, myScaleMatrix)
{
     app.transformPreferences.whenScaling = WhenScalingOptions.APPLY_TO_CONTENT;

    var everything;
    var origin;

    if ( ssize > 1.0 )
    {
       //origin = myPage.resolve(AnchorPoint.CENTER_ANCHOR,CoordinateSpaces.PASTEBOARD_COORDINATES)[0];
       origin = myPage.resolve(AnchorPoint.CENTER_ANCHOR,CoordinateSpaces.PASTEBOARD_COORDINATES);
        myPage.transform(CoordinateSpaces.PASTEBOARD_COORDINATES,origin,myScaleMatrix);
        everything = myRectangle.everyItem();
        //origin = myPage.resolve(AnchorPoint.CENTER_ANCHOR,CoordinateSpaces.PASTEBOARD_COORDINATES)[0];
        everything.transform(CoordinateSpaces.PASTEBOARD_COORDINATES,origin,myScaleMatrix);
     }
    else
    {
        everything = myRectangle.everyItem();
        origin = myPage.resolve(AnchorPoint.CENTER_ANCHOR,CoordinateSpaces.PASTEBOARD_COORDINATES)[0];
        everything.transform(CoordinateSpaces.PASTEBOARD_COORDINATES,origin,myScaleMatrix);
        myPage.transform(CoordinateSpaces.PASTEBOARD_COORDINATES,origin,myScaleMatrix);
    }
}
function myPDFExport()
{
        //Basic PDF output options.
        pageRange = PageRange.allPages;
        acrobatCompatibility = AcrobatCompatibility.acrobat8;
        exportGuidesAndGrids = false;
        exportLayers = false;
        exportNonPrintingObjects = false;
        exportReaderSpreads = false;
        generateThumbnails = false;

        try
        {
            ignoreSpreadOverrides = false;
        }
        catch(e) {}

        includeBookmarks = false;
        includeHyperlinks = false;
        includeICCProfiles = true;
        includeSlugWithPDF = true;
        includeStructure = false;
        interactiveElementsOption = InteractiveElementsOptions.doNotInclude;

        //Setting subsetFontsBelow to zero disallows font subsetting;
        //set subsetFontsBelow to some other value to use font subsetting.
        subsetFontsBelow = 0;
        //Bitmap compression/sampling/quality options.
        colorBitmapCompression = BitmapCompression.none;
        //colorBitmapQuality = CompressionQuality.eightBit;
        colorBitmapSampling = Sampling.none;
        //thresholdToCompressColor is not needed in this example.
        //colorBitmapSamplingDPI is not needed when colorBitmapSampling
        //is set to none.
        grayscaleBitmapCompression = BitmapCompression.none;
        //grayscaleBitmapQuality = CompressionQuality.eightBit;
        grayscaleBitmapSampling = Sampling.none;
        //thresholdToCompressGray is not needed in this example.
        //grayscaleBitmapSamplingDPI is not needed when grayscaleBitmapSampling
        //is set to none.
        monochromeBitmapCompression = BitmapCompression.none;
        monochromeBitmapSampling = Sampling.none;
        //thresholdToCompressMonochrome is not needed in this example.
        //monochromeBitmapSamplingDPI is not needed when
        //monochromeBitmapSampling is set to none.
        //
        //Other compression options.
        compressionType = PDFCompressionType.compressNone;
        compressTextAndLineArt = true;
        cropImagesToFrames = true;
        optimizePDF = true;

        //Printers marks and prepress options.
        //Get the bleed amounts from the document's bleed.
//~         bleedBottom = myDocument.documentPreferences.documentBleedBottomOffset;
//~         bleedTop = myDocument.documentPreferences.documentBleedTopOffset;
//~         bleedInside = myDocument.documentPreferences.documentBleedInsideOrLeftOffset;
//~         bleedOutside = myDocument.documentPreferences.documentBleedOutsideOrRightOffset;
//~         //If any bleed area is greater than zero, then export the bleed marks.
//~         if(bleedBottom == 0 && bleedTop == 0 && bleedInside == 0 && bleedOutside == 0)
//~         {
//~             bleedMarks = true;
//~         }
//~         else
//~        {
//~             bleedMarks = false;
//~        }
//~        colorBars = false;
        colorTileSize = 128;
        grayTileSize = 128;
        cropMarks = false;
        omitBitmaps = false;
        omitEPS = false;
        omitPDF = false;
        pageInformationMarks = false;
        pdfColorSpace = PDFColorSpace.unchangedColorSpace;
        //Default mark type.
        pdfMarkType = 1147563124;
        printerMarkWeight = PDFMarkWeight.p125pt;
        registrationMarks = false;
        try
        {
            simulateOverprint = false;
        }
        catch(e) {}

        useDocumentBleedWithPDF = false;

        viewPDF = false;
    //Now export the document.
    var thisDocument = app.documents.item(app.documents.length-1);
    var fullname = app.scriptArgs.getValue("OutputFileName");
    var idx = fullname.indexOf("_");
    var shortname = fullname.substring(0, idx);
    //thisDocument.exportFile(ExportFormat.pdfType, app.scriptArgs.getValue("OutputFolder") + shortname + ".pdf");
    thisDocument.exportFile(ExportFormat.pdfType, "c:\boosttest.pdf");
 }
