stroke on 3 sides of a frame only

16 replies
5281 views
Translate

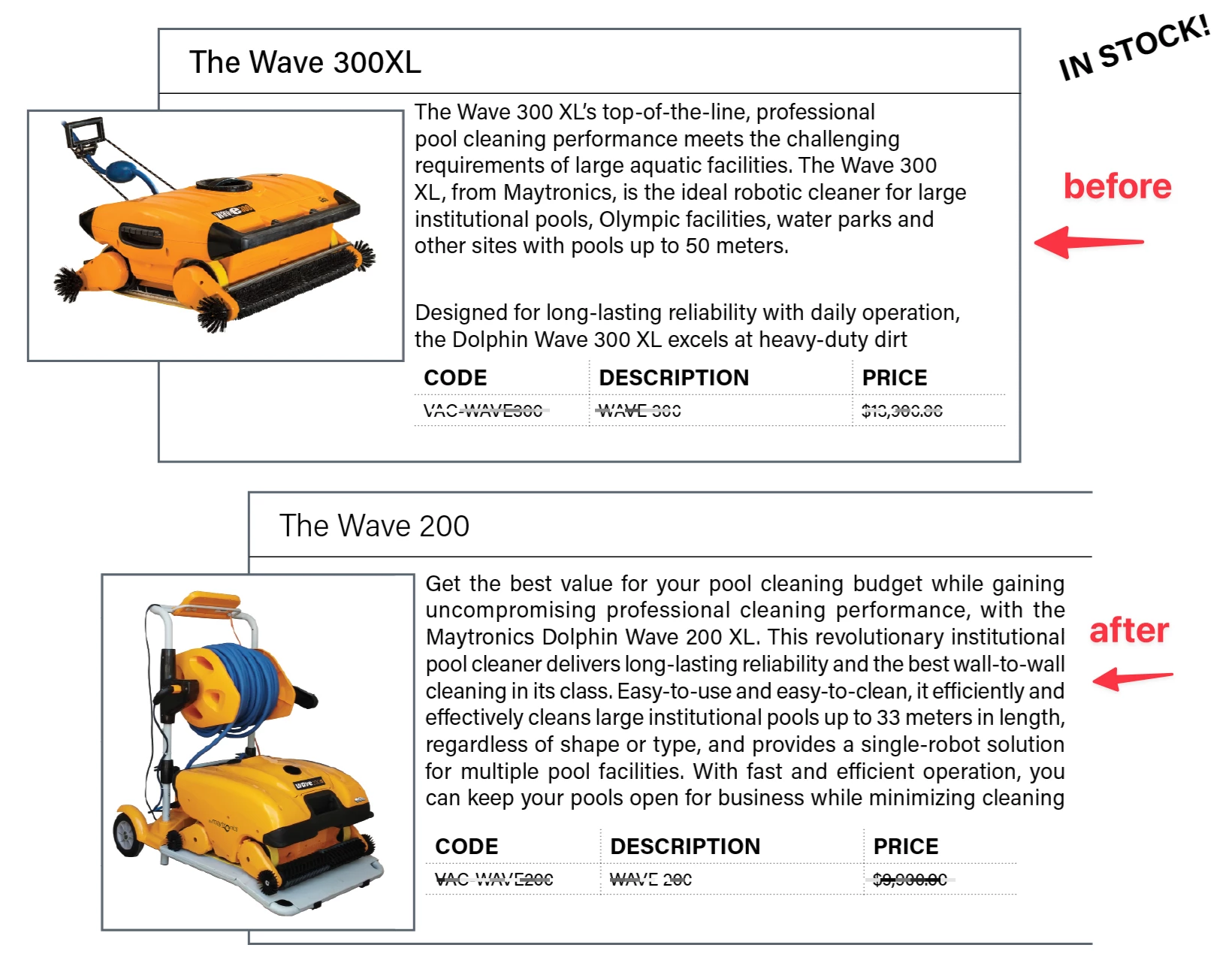

I'm trying to create an object style that will allow me to achive a 3 sided stroke, open on the right side. I know I could just create the frame and then manually delete the right side stroke of the frame, but I'm trying to create the style such that it could be reversible if the client changes their mind and wanted the stroke on all four sides.

How to

James Gifford—NitroPressCorrect answer

Legend

Strokes in InDesign don't have the flexibility they do in more purely graphic apps. (Well, you can often get to the same result, but the tools tend to be clumsy.)

If drawing a line around three sides of a frame isn't the right solution, there may not be a much better one. You could try this: put a stroke around all four sides. Use a graphic frame to mask one side (probably with a white/Paper fill). Then, if you need that stroke to appear, make the masking rectangle disappear. You can do that by either putting the masking element on a separate layer (which can then be turned off), or by using a defined fill color you can globally set to "None." The latter could be grouped with the framed object and copied or moved around, so that might be better.

Best I can come up with from a simple description of your need and the "maybe" nature of the change.

E

Eugene Tyson

Community Expert

For that - I'd use a Table

Then put 0pt for the right side stroke.

Translate

E

Eugene Tyson

Community Expert

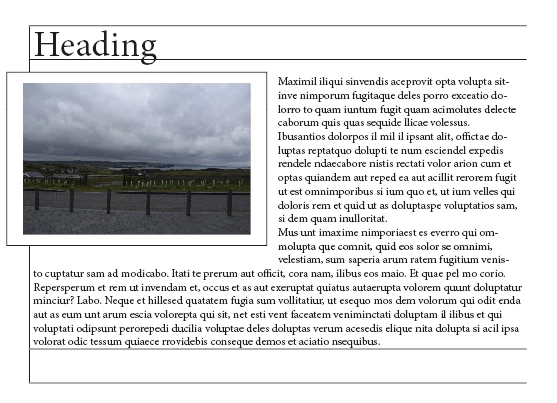

Result

Translate

E

Eugene Tyson

Community Expert

You can then apply the stroke again by selecting the table and selecting the right edge in the top tool bar - and setting the thickness value for that edge.

Translate

Mike Witherell

Community Expert

The white arrow Direct Selection tool can click on a path segment. If you then press the delete key, the box opens up to an open path. If you started with a rectangle, you now have an open sided rectangle.

Later, if you decide you need to close the box side up again, use the white arrow Direct Selection tool to select the two end anchor points. Then click Object > Paths > Join. It becomes a closed-path rectangle once again.

Translate

Mike Witherell

James Gifford—NitroPress

Legend

A better choice than replacing the line, probably. But there are so many headaches with converting a frame to a graphic element and back again I'd just hope the OP doesn't have to bother. 🙂

Translate

Mike Witherell

Community Expert

Maybe the OP should get a better client? 😉

Translate

Mike Witherell

James Gifford—NitroPressCorrect answer

Legend

Strokes in InDesign don't have the flexibility they do in more purely graphic apps. (Well, you can often get to the same result, but the tools tend to be clumsy.)

If drawing a line around three sides of a frame isn't the right solution, there may not be a much better one. You could try this: put a stroke around all four sides. Use a graphic frame to mask one side (probably with a white/Paper fill). Then, if you need that stroke to appear, make the masking rectangle disappear. You can do that by either putting the masking element on a separate layer (which can then be turned off), or by using a defined fill color you can globally set to "None." The latter could be grouped with the framed object and copied or moved around, so that might be better.

Best I can come up with from a simple description of your need and the "maybe" nature of the change.

Translate

R

robertrabAuthor

Participating Frequently

Thanks very much James. That may be my best option. Do you know if I delete one stroke of a frame using the direct selection tool, is there an easy way to "add it back" later if I need to, or if once it's gone it's gone for good?

Translate

James Gifford—NitroPress

Legend

You could re-draw it and join it to the other three segments, but it would probably be easier to delete the 3-segment line and replace it with a frame.

And that's key to making choices here. Unlike, say, Illustrator, where a square and a three-segment line are in the same "family," a frame and that line in InDesign are very different elements. I'd go with the masking frame so that the visual frame remains the same and doesn't have to be converted/replaced.
