Strokes not displaying consistently on object frames

Forum|Forum|4 years ago
November 9, 2021
4 replies
3565 views

Am working with a book design where I have over 100 placed images. When I apply the basic object style to them, it should add a 1pt black stroke around the image. This stroke is not displaying consistently. Sometimes it's too thin, sometimes it's too thick.

Drawing a new object frame and applying the basic object style and then placing the same image corrects the issue.

The original images came from a MS Word import, but were replaced with properly resized PSD files using the link panel.

If I select one of the original images that is displaying incorrectly, and manually change the stroke, it does not display in the proper weight.

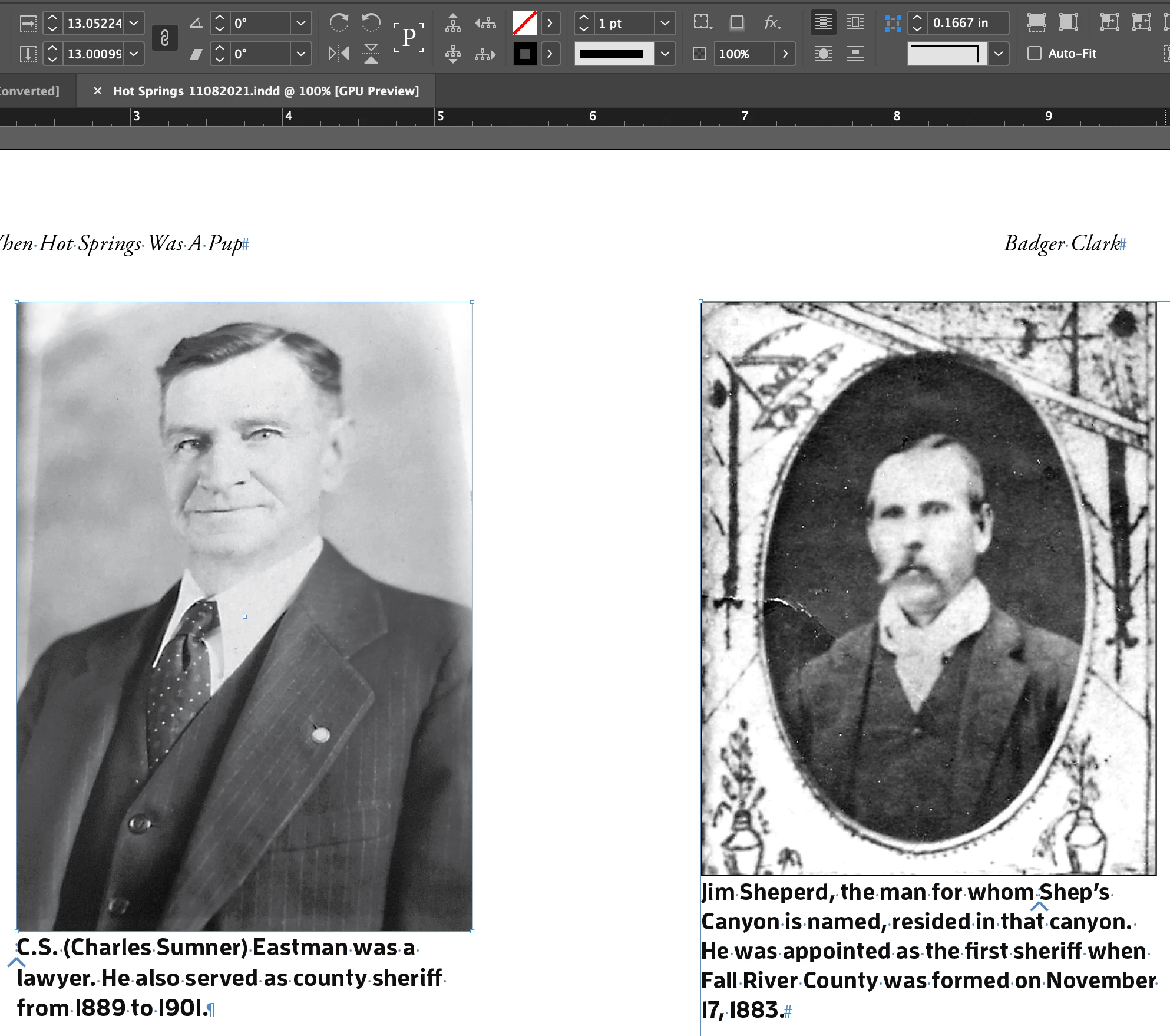

The examples show two images with differing display strokes. Both are defined as 1pt by the basic object style.

What could be causing this behavior?

This topic has been closed for replies.

D

Daria34110786td0p

Participant

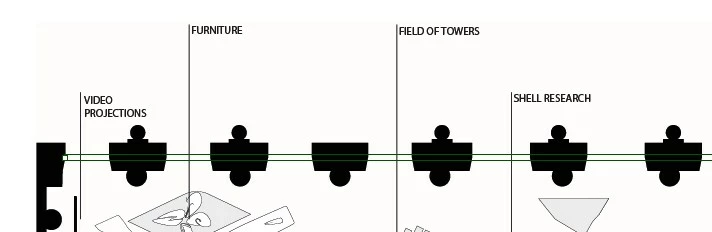

I am having the same issue. Stoke on a 'higher' layer is hidden under a frame object several layers down. This feels like a glitch or a hidden option that needs to be disabled. Have never had this problem before!

Peter Spier

Community Expert

First, this seems like a different problem and you should start a new thread. Second, I have no idea from your screen shots what is or is not missing and what its settings might be or where it is in the layers.

Willi Adelberger

Community Expert

Create a specific Objects Style, no + after the name
In the transorm panel look how strokes are scaled.
If you have overrides on an object, you see a +, reapply the style with holding the alt key. Therefore it is goot to have a dedicated object style for any kind of text or graphic frame (or the content of a graphic frame as well).

dakotakid_parkerAuthor

Known Participant

Thanks, that's what I'm doing. I have a dedicated object style for the images. Really the only thing it should be applying is a 1pt black stroke.

Strokes are not being scaled.

I know how to clear overrides. Seems to make no difference what's actually applied, even if the style is shown to be applied to the image.

S

SJRiegel

Legend

The strokes must be getting scaled somewhere in the process. A quick fix is to do a find/change with the object style, and set your style as the Find and the Change value.

To prevent this from happening, try changing your Object Editing preferences (under General) to uncheck Stroke Weight.

Peter Spier

Community Expert

Have you scaled either frame?

Dave Creamer of IDEAS

Community Expert

And if the Object style shows an override: StyleName+

David Creamer: Community Expert (ACI and ACE 1995-2023)

Dave Creamer of IDEAS

Community Expert

I suspect it's just where the pixels are falling on the monitor due to the resolution, which could be related to monitor resolution and size. If you zoom in to 200%, do they look the same? (You could probably hide the frame edges [blue outline], but that might cause more issues than it would solve.)

David Creamer: Community Expert (ACI and ACE 1995-2023)

dakotakid_parkerAuthor

Known Participant

Thanks for your response. It prints the 1 pt stroke at inconsistent sizes as well. Not a display issue. I'm familiar with hiding and showing frame edges; not a solution to this particular issue. Zooming in shows the inconsistency better.

Replacing the image in a new frame seems to solve the problem, but I've got over 100 illustrations in this book, so that's a tedious work-around. Would like to be able to avoid the issue in the future. If it has any bearing on the problem, the original document was imported from MS Word. The images were all resized and relinked, but I still have the problem on some of the pictures, not all. I'm guessing it's some Word grimble causing the problem.

Dave Creamer of IDEAS

Community Expert

Can you upload a sample file that is displaying the problem?
