Superscripted footnote numbers – modifying its appearance

  • March 17, 2022
  • 3 replies
  • 1421 views

Using 10 pt. Calluna Sans as body text and finding its default superscript to be far too small for footnote numbers. How to access and control these attributes so that when manually placing and superscriptng a footnote number in the body (I do so via shortcut Shift + ctrl + =), it's set to a legible custom size? A related issue may be that the default is in oldstyle which compounds matters some, and it might be ideal to keep body text numerals OS while footnote numbers are lining, but how to do all this without going one-by-one and changing the point size and style? Many thanks in advance!

This topic has been closed for replies.
Correct answer Brad @ Roaring Mouse

Two suggestions (the first is the most likely solution for you):

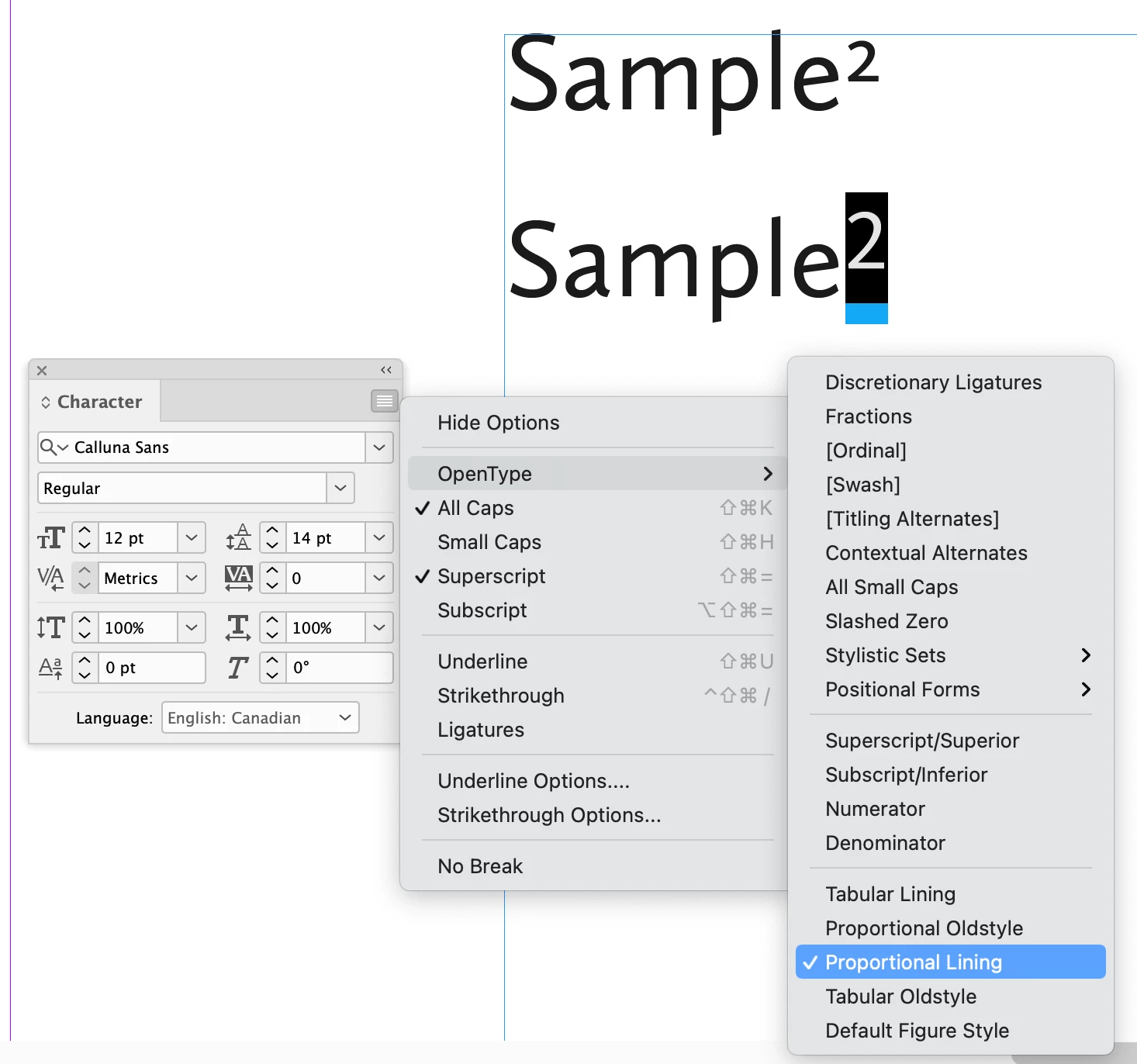

1) The Oldstyle figures are default, but you can change them to Proportional Lining figures, either on your entire Paragraph Style (this will affect ALL the numbers in your paragraph), or as a Character Style, so you can apply it as needed.

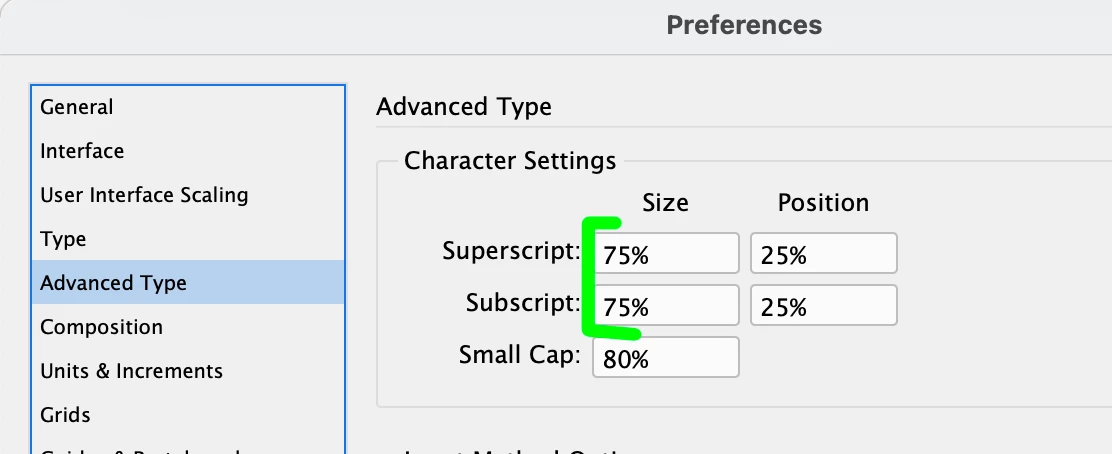

 2) If you, however, prefer the Old Style figures, change your specifications for Superscript/Subscript size in your Preferences > Advanced Type to something larger.

 

3 replies

Barb Binder
Community Expert
Barb BinderCommunity Expert
Community Expert
March 17, 2022

Hi @Typothalamus:



This is fixable using a few avenues but let's start with the easiest. Are these footnote numbers the only superscript numbers in this document? If so you can adjust the default size and position of the superscripts in Preferences > Advanced Type > Character Settings.



Are you not using the Footnote feature to add footnotes? If so, you can superscript the figures in the body of the document automatically with Type > Document Footnote Options. You can also assign a character style at the same time and then you can control the usage of lining or old-style numbers without impacting other figures in the paragraph.



Let us know if this works for you and if you need more info, of course we will continue to help you.



~Barb

~Barb at Rocky Mountain Training
    Typothalamus
    TypothalamusAuthor
    Known Participant
    March 19, 2022

    Thank you Barb – straightforward and helpful, though the layout design employs margin notes/shoulder notes rather than footnotes at bottom, which complicates things somewhat. I'm aware there's a script out there for this, but I've no experience using scripts, and, foolishly, am partial to doing things manually when intimidated.



    I do need to automate this further though, setting a basic distance between the margin note number in the text and the last letter of punctuation it follows.

    And I've long heard it's a typographic faux pas to mix Oldstyle with Lining numerals in the same layout, but when it comes to this particular typeface's legibility for body text note numbers in Lining, I have to wonder, when are the rules to be broken.

    Peter Kahrel
    Community Expert
    Peter KahrelCommunity Expert
    Community Expert
    March 17, 2022

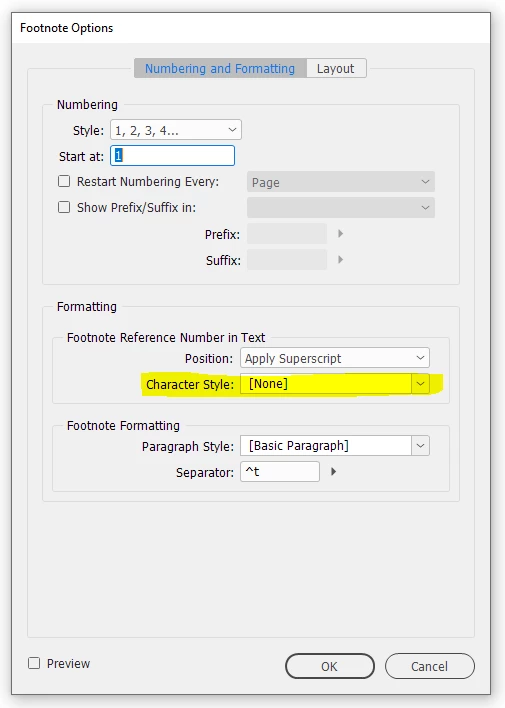

    Create a character style that sets the numbers as you want them. Then set that style as the one to use in the footnote options window (Typpe > Document Footnote options). Set Position to Normal and select your character style in the highlighted dropdown:

    The display of the numbers in the notes can be set with another character style which is applied to the number by a nested style.



      Typothalamus
      TypothalamusAuthor
      Known Participant
      March 19, 2022

      Thank you Peter – as mentioned to Barb and Brad, the notes are actually margin notes and I'm not versed in using scripts which I think is the only option to get obtain footnote functionality applied to margin/shoulder notes.

      Also, how best to add appropriate spacing between the note numbers without a footnote function, and do you see the use of both Oldstyle (hard to read as note numbers) and Proportional Lining in the same layout as a no-go? Greatly appreciated, all this input.

      Peter Kahrel
      Community Expert
      Peter KahrelCommunity Expert
      Community Expert
      March 21, 2022

      > how best to add appropriate spacing between the note numbers without a footnote function

      Do as Brad explained: insert some space (hiar, thin) using a GREP replacement. If you find that not all letter+footnote number combinations need the same amount of space (e.g. you may not need any space between the letter o and the number 8, while f+2 probably does need space), you can use this script:

      https://creativepro.com/files/kahrel/indesign/kern.html



      > do you see the use of both Oldstyle (hard to read as note numbers) and Proportional Lining in the same layout as a no-go?



      There are no absolute typographic rules. The main typographical rule is: If breaking a rule makes the type look better, break the rule. Here's one example of breaking the rule that you should use the same figure style throughout. In a text that uses oldstyle figures, combinations of capitals and oldstyle figures (C3, A5) look awkward. In these cases lining figures look better.

        Brad @ Roaring Mouse
        Community Expert
        Brad @ Roaring MouseCommunity ExpertCorrect answer
        Community Expert
        March 17, 2022

        Two suggestions (the first is the most likely solution for you):

        1) The Oldstyle figures are default, but you can change them to Proportional Lining figures, either on your entire Paragraph Style (this will affect ALL the numbers in your paragraph), or as a Character Style, so you can apply it as needed.

         2) If you, however, prefer the Old Style figures, change your specifications for Superscript/Subscript size in your Preferences > Advanced Type to something larger.

         

          Typothalamus
          TypothalamusAuthor
          Known Participant
          March 19, 2022

          Thank you, Brad – in your view, is it indeed a "type crime" to mix Oldstyle numbers with Proportional Lining in the superscripted footnotes? The legibility of Oldstyle is poor in for the note reference numbers in the text.

          Also, the advanced type sizing option works perfectly, but how do I add an additional parameter to place a half-space between the note number and the last letter or punctuation it follows?

          This book's layout, which I did not specify before, utilizes notes in the margins.

          Brad @ Roaring Mouse
          Community Expert
          Brad @ Roaring MouseCommunity Expert
          Community Expert
          March 19, 2022

          No, it's no crime to mix. 😉

          Even if, say, you love the Oldstyle in general, there are places where they can be problematic: e.g charts/financial statements.

          As for adding the space, there have been others that have scripted adding that space, but I don't have that at hand. (I usually just do a manual GREP search and replace myself). Others may chime in with the answer to that!
