Text On Shape.

Hi @Madhuri1 ,

I'm not exactly sure what you like to do and I cannot help you with the SDK side of things here, but you could do perhaps the following:

Let's assume you have one text frame (TF) with one path and a graphic frame (GF) with an arbitrary shape with one path. Spoken in ExtendScript terms you could set the entirePath array of the first path of the TF to the entirePath array of the first path of the GF to shape the text frame according to the path of the graphic frame.

//ExtendScript
var TF = app.selection[0];
var GF = app.selection[1];

TF.paths[0].entirePath = GF.paths[0].entirePath;

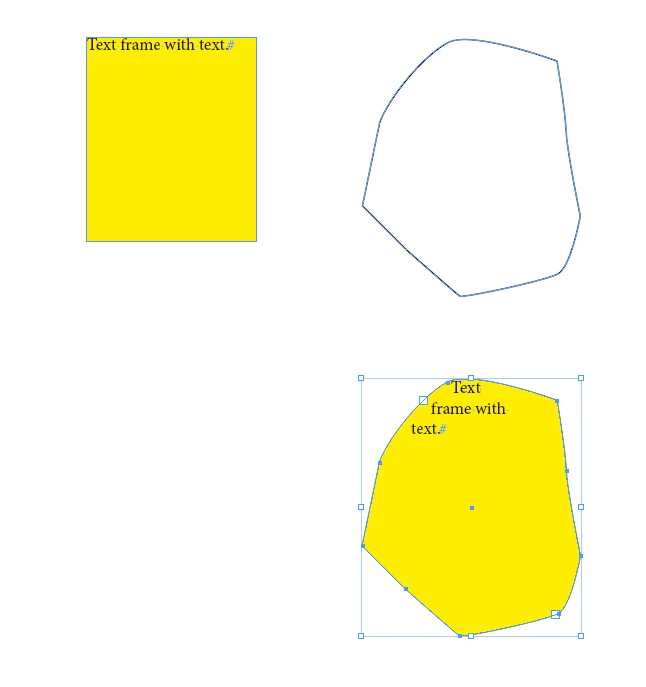

Before:

After script run:

Of course this is a very simplistic approach and does not account for example the transformation of an object.

Regards,
Uwe Laubender
( Adobe Community Professional )

you can draw any closed shape you want with pen tool for example, or creat any shape, just go to type tool, click inside the shape and start writing or paste a text inside..

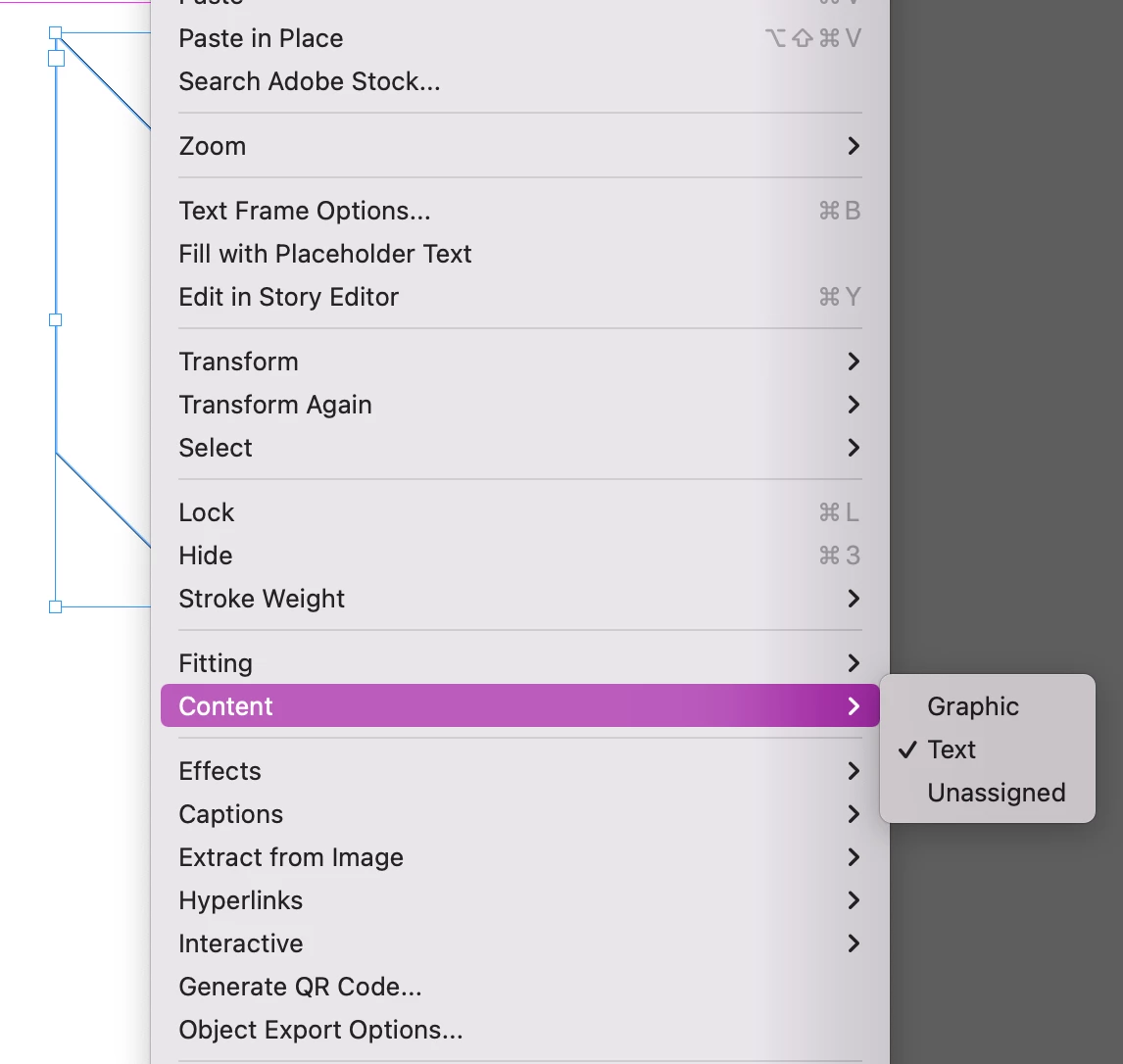

or righ mouse click on the shape> content> Text
