Question

Text wrap unavailable on an image with a caption -- how can I enable it?

  • October 2, 2017
  • 3 replies
  • 1688 views

I just placed an image on a page, then added a caption using Object > Captions > Generate Static Caption.  I placed the caption below the image.  After adding the caption the Text Wrap dialog box is all disabled, can't change anything.  The distance between the caption and the text that continues below it is too big and I need to reduce it.  Help!  (I'm on InDesign CC, Windows 10).

    This topic has been closed for replies.

    3 replies

    Barb Binder
    Community Expert
    Barb BinderCommunity Expert
    Community Expert
    October 2, 2017

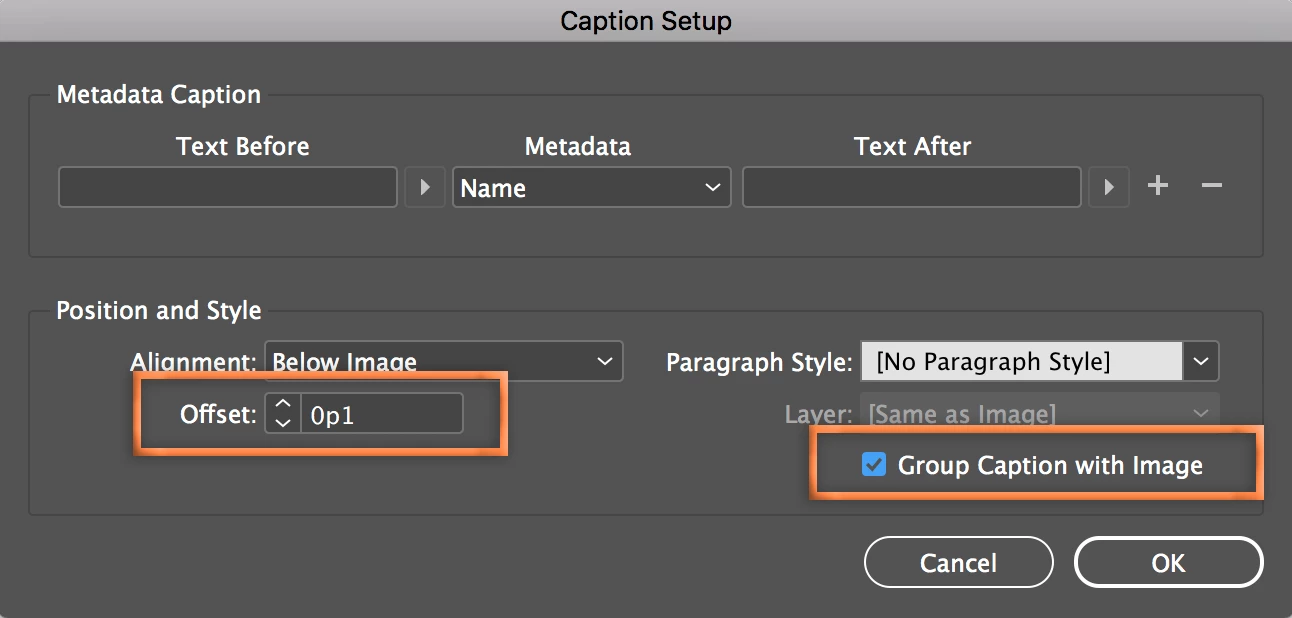

    The combination of both answers may be what you need: First delete the caption. Then go back to Caption Setup to refine the caption offset distance, then group. Regenerate the caption(s) and apply text wrap to the group(s).

    ~Barb at Rocky Mountain Training
    Geckoz100
    Geckoz100Author
    Known Participant
    October 2, 2017

    Thank you both for the responses, very helpful.  I also found that I had to double-click on the image to select it by itself, and this enabled the normal Text Wrap options which weren't available when I single-clicked on the new image/caption, which apparently InDesign groups as one object.

      Barb Binder
      Community Expert
      Barb BinderCommunity Expert
      Community Expert
      October 2, 2017

      apparently InDesign groups as one object.

      Only if you tell it to as per the screen shots above. You must have already had the group enabled.

      Once objects are grouped, you can double click with the Selection tool (black arrow)  to get to the objects within the group, or single click with the Direct Select tool (white arrow) without having to ungroup.

      ~Barb at Rocky Mountain Training
      melissapiccone
      Community Expert
      melissapicconeCommunity Expert
      Community Expert
      October 2, 2017

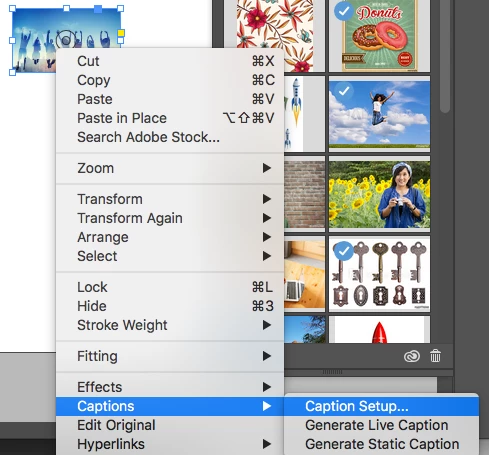

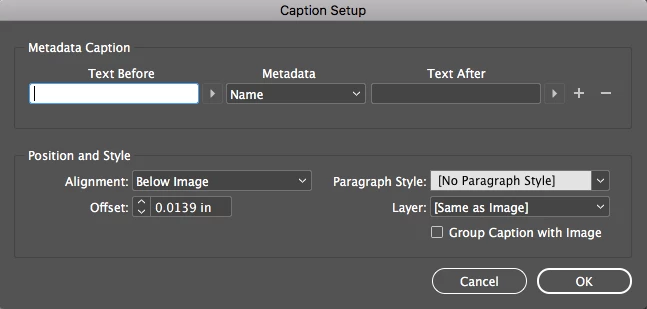

      You can change it in caption set up. Right click on your image:

      Melissa Piccone | Adobe Trainer | Online Courses Author | Fine Artist
      Barb Binder
      Community Expert
      Barb BinderCommunity Expert
      Community Expert
      October 2, 2017

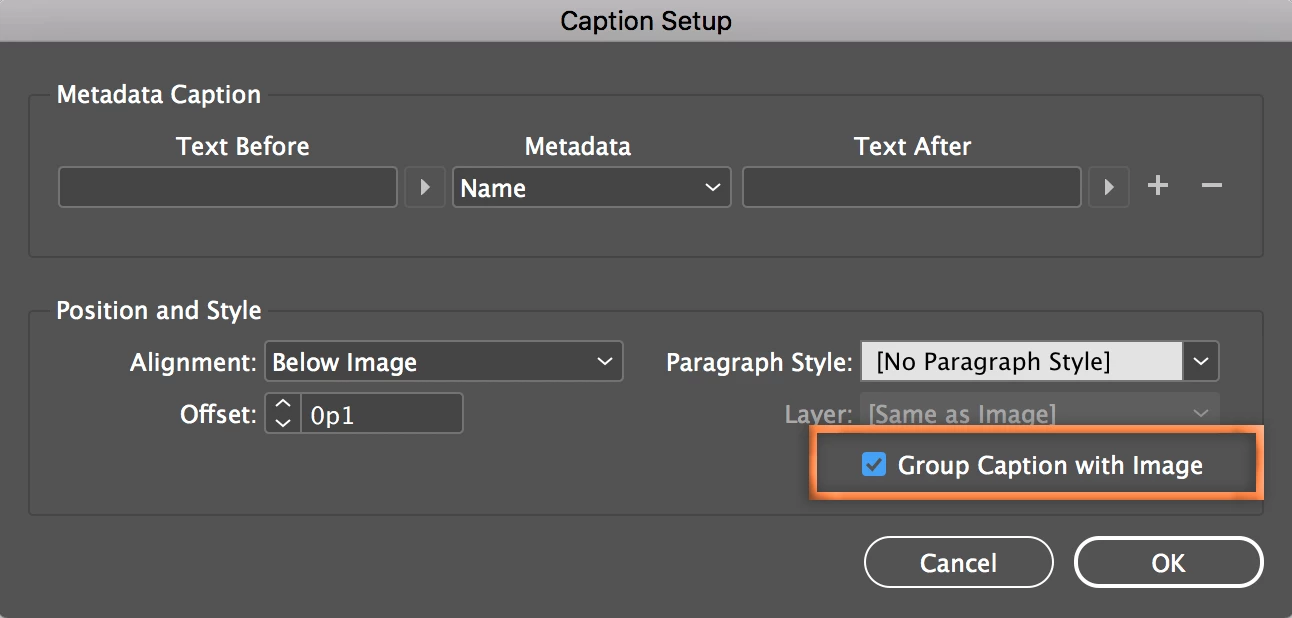

      Turn off text wrap on the image. Group the image and caption, restore text wrap. Note that you can group the image and caption automatically when you generate captions.

      ~Barb at Rocky Mountain Training
