Unbalanced Columns inconsistency

  • June 16, 2021
  • 2 replies
  • 496 views

I'm working on a Mac. I'm using InDesign 2021 16.2.1.

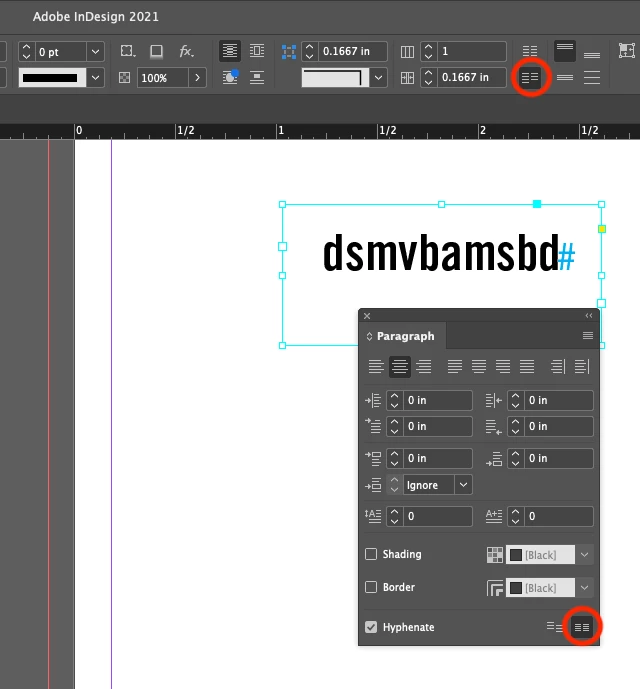

I've noticed that the tool bar at the top shows unbalanced columns, but in the Paragraph window the balanced columns is showing. See my attached screenshot. Anyone know why?



Thanks,

Cralin

This topic has been closed for replies.

2 replies

rob day
Community Expert
Community Expert
June 16, 2021

The Align to baseline Grid and Balance Columns icons are similar, but not the same. Here’s an illustration of @jmlevy ’s post.

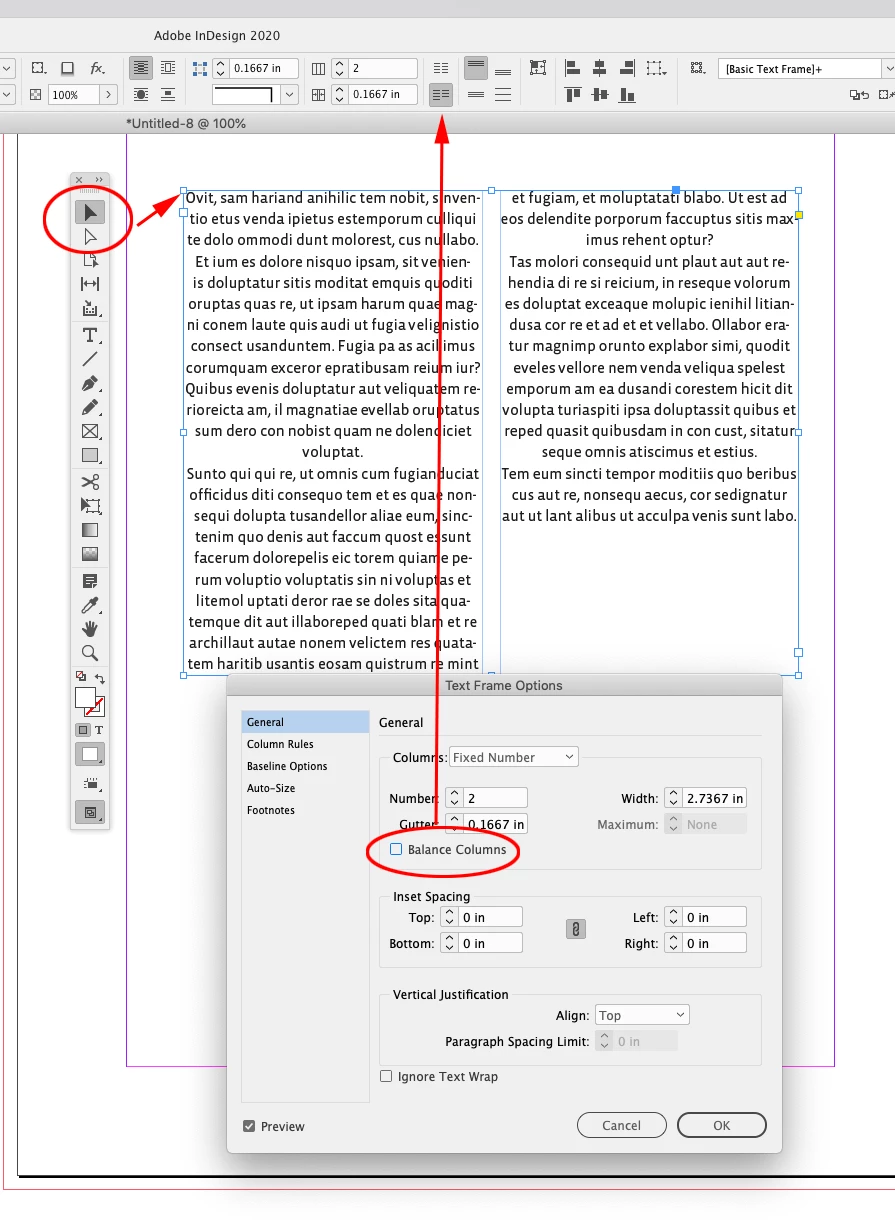

The Control panel is contextual to the current tool. If a selection tool is active and a text frame is selected:

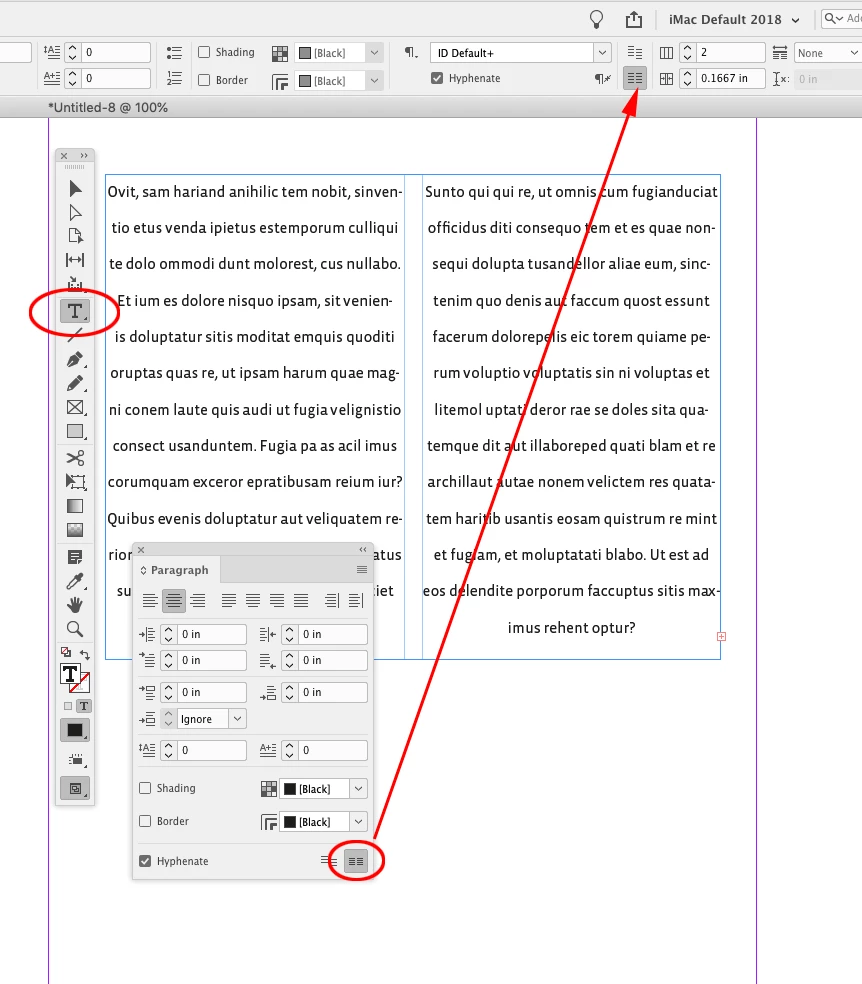

If some text is selected and the Text tool is active:







jmlevy
Community Expert
Community Expert
June 16, 2021

The icon in the paragraph panel is not relative to columns but it is relative to the baseline grid alignment. Balanced column is a text frame attribute, not a paragraph attribute.
