A
aliceell
Participating Frequently
October 18, 2016
Question

Untag specific table cells

  • October 18, 2016
  • 4 replies
  • 1184 views

I've tagged several tables in InDesign to export them to XML. I'd like to untag the top row of cells (circled in red, currently tagged as "header"), while retaining all the interior cells (currently tagged as "Cell"). I want this because when I re-import the XML, the text wrapping in the header cells disappears.

Is there a way to untag *just* the Header cells, while leaving the Table and the Cell tags in place? When I try to untag them manually, it untags the whole table. I'd like to do it manually but I'm told I probably need a script to do it. I am thinking something along the lines of:

function mySnippet(){

  var myDocument = app.activeDocument;

  var root = app.activeDocument.xmlElements[0];

     var pages = root.evaluateXPathExpression('//Page');

     for (i=0; i<pages.length; i++)

     {

        header = i.evaluateXPathExpression('Page/Table/Header');

        // if the tag is 'header' and not cell:

        header.untag();

      }

}

But I'm very new to JavaScript so I don't know what I'm doing at all when it comes to this stuff.

This topic has been closed for replies.

4 replies

jennifersoucy
jennifersoucy
Participant
March 14, 2017

Have you tried setting up table and cell styles for the document? you can set up an xslt to apply those upon import.

Loic.Aigon
Loic.Aigon
Legend
October 25, 2016

Indeed. You can't separate the table contents from the table structure. So tagging an inner content will tag the whole table and untag some inner content will untag the whole table.

Daniel Sterchi
Daniel Sterchi
Inspiring
October 20, 2016

Hi aliceell

What about this few lines

var myDoc = app.activeDocument;
var headers = myDoc.xmlElements[0].evaluateXpathExpression("Page/Table/Table/Header");
// start from the last Element
for (var i =  headers.length -1; i >= 0; i--) {
    headers.untag();
}

kind regards

Daniel (from Switzerland)

    S
    S Hopkins
    Inspiring
    October 19, 2016

    Hi,

    I am trying to get a grip on exactly what your problem is, so forgive me.

    You should be able to untag XML elements from 2 locations:

    1. Structure Pane: (Open Structure Pane from View menu > Structure > Show Structure):

        Select the item you want to untag

        From the Structure Pane contextual menu (the small list menu in its upper right corner)  select Untag Element

    2. From the document Tag Panel (Open Tag Panel from Windoe menu > Utilities > Tags

       Select the tag you want to delete from the tag list

       From the tag panel contextual menu (the small list menu in its upper right corner) select Delete Tag

    Of course, when you untag a page item or delete its tag, the page item no longer is exported with the XML.

    I will recreate your table and XML to try to see exactly what your problem is.

    Shirley Hopkins

    A
    aliceellAuthor
    Participating Frequently
    October 21, 2016

    Hi,

    Sorry for the unclear explanation. It's a little hard to explain.

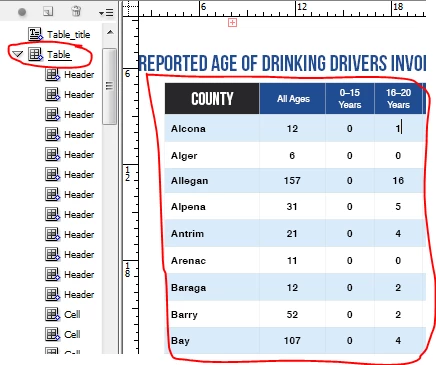

    So as you can see from the screenshot in my previous post, I have already opened the Structure Pane as you suggested. The entire table is tagged as "Table" and is circled in this image.

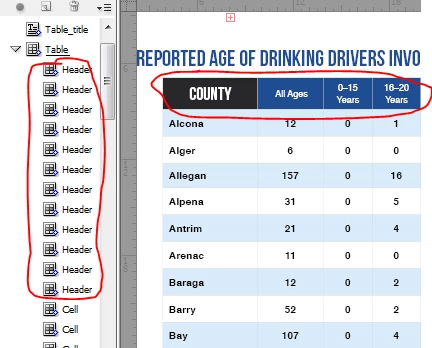

    Within the table, the cells in the first row are tagged as 'Header'. They are circled in the image below.

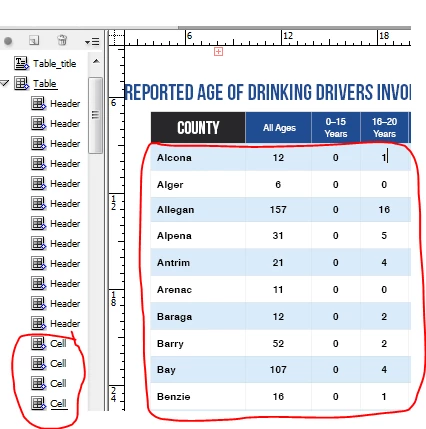

    The rest of the cells are tagged as 'Cell', and are circled in the image below (the rest of the table and cells are not shown).

    I want to tag just the cells in the third image. I don't want to tag the header cells. I don't want to delete them, or tag them as something else-- I want the header cells to not exist in the XML. I just want to keep the cells that are currently tagged as "cells".

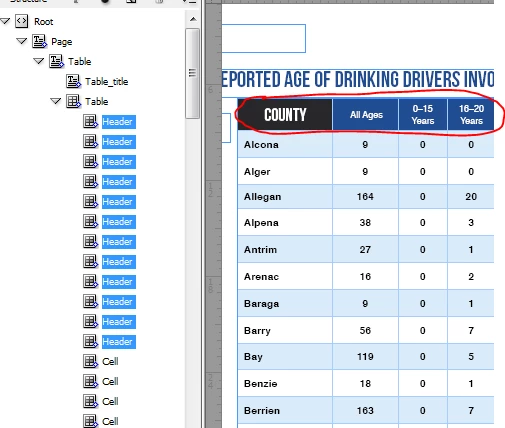

    But when I right-click on all the "Header" tags (and not the "cell" tags") and click "Untag Element":

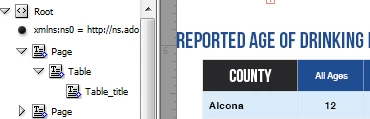

    the Header ​and​ the Cell elements disappear:

    The same thing happens when I try to delete the tag through the Tags menu.

    @Daniel Sterchi Your script does the same thing: it deletes the "Cell" elements along with the "Header" elements.

    I hope this explanation makes more sense, please let me know if I should explain more!

    Loic.Aigon
    Loic.Aigon
    Legend
    October 21, 2016

    That's because you can't have tagged and untagged contents inside a table. When you untag a Table cell element, you remove all teh table tags.
