variable column widths

  • October 31, 2022
  • 3 replies
  • 2674 views

I'm trying and failing to get variable width columns using 'text frame options' dialogue.  For example, two columns, one 2/3 the width of the page and one 1/3.  Is it possible?

Correct answer Eugene Tyson

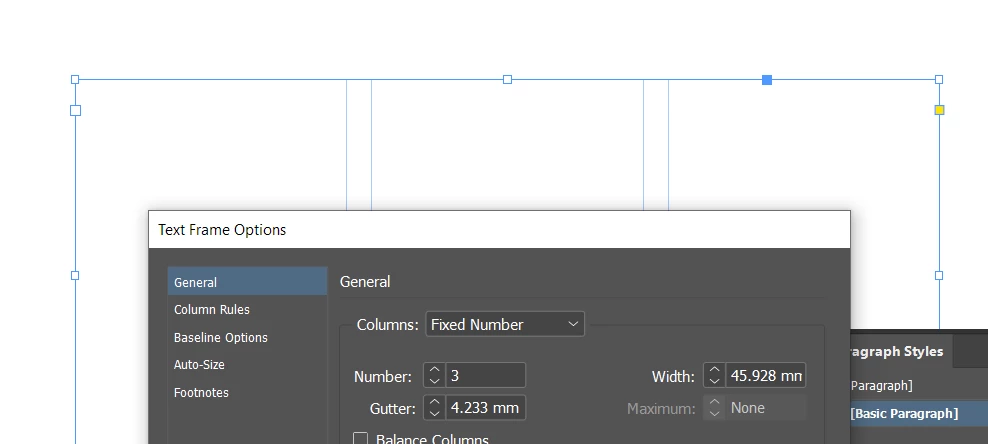

All you need to do is change it to 4 columns and change the span option to 3 columns.

2 or 3 styles and it's setup.

3 replies

Barb Binder
Community Expert
Community Expert
October 31, 2022

Hi No Notes:



are there any plans to add variable-width text frame columns any time soon?

We are users like you who have been vetted by Adobe to help others with their workflow issues. Unless we are on the beta (and if we are, we are under NDA and are not allowed to discuss it) we don't have more information about what is coming than you do. If you want to file a feature request, you can do so here: https://indesign.uservoice.com/



There are three ways to approach this layout as of today and in the foreseeable future:

  • 2 threaded frames of specific sizes as per @Scott Falkner
  • 1 frame with three columns and span settings as per @Eugene Tyson
  • Put the content in a table as per @Eugene Tyson, which may be what you did but you have the visual aids hidden so we can't tell. If this is a multi-page story and not just a short blurb, working inside a table can be awkward and limiting, but we can't tell that from the screen shot either.



I will say I am confused about the "it HAS to be 2/3 and 1/3 precisely" because it doesn't seem like it is. The first column is more than twice the width of the second column.



~Barb

~Barb at Rocky Mountain Training
No NotesAuthor
Known Participant
October 31, 2022

Hi Barb,  thank you for your reply.  As I understood Eugene Tyson's par spanning solution it would only allow precisely 2/3 and 1/3.  I may have misunderstood...?



My work around is fiddly but gives me complete flexibility regarding the width of my two columns.  It'll do for now!

Eugene TysonCommunity ExpertCorrect answer
Community Expert
October 31, 2022

All you need to do is change it to 4 columns and change the span option to 3 columns.

2 or 3 styles and it's setup.

Community Expert
October 31, 2022

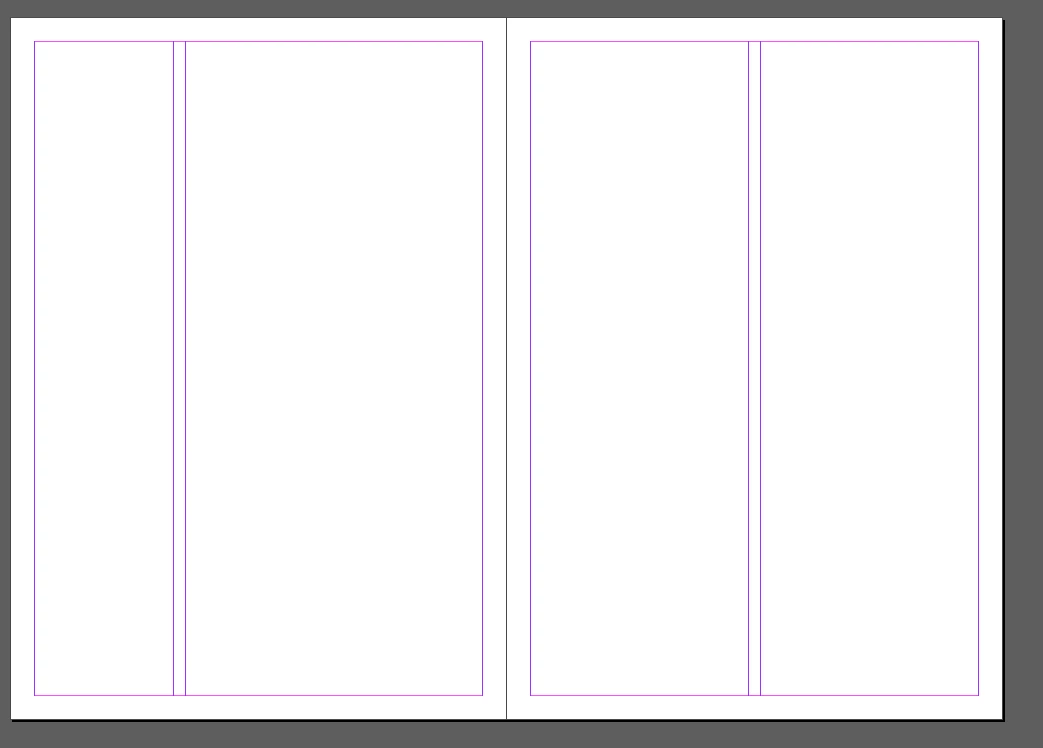

You can adjust the Columns created by the Margin settings

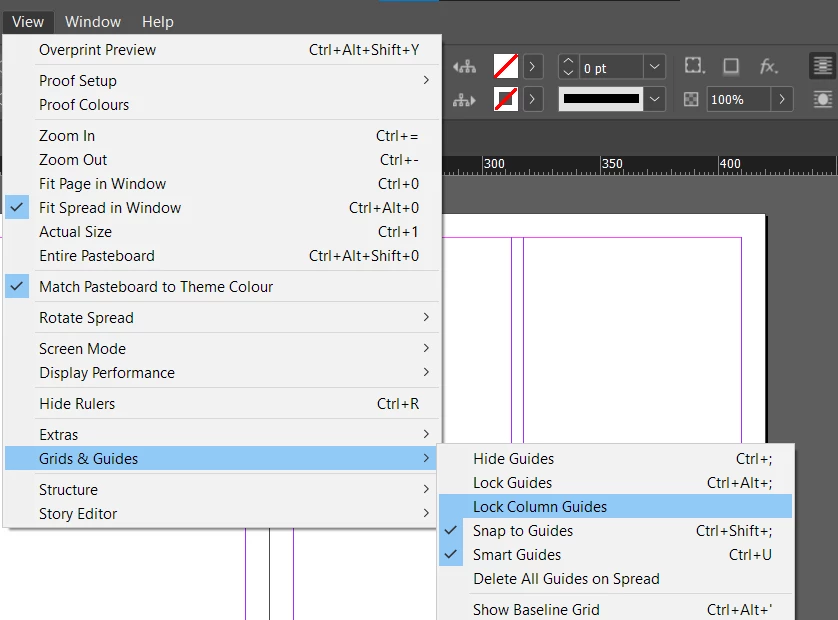

View>Grids & Guides>Lock Column Guides







Then you can DRAG your column margins









No NotesAuthor
Known Participant
October 31, 2022

Thanks, but see my reply to similar suggestion above.

Scott Falkner
Community Expert
Community Expert
October 31, 2022

Not within a single text frame. Columns in a text frame are always of uniform width. What you can do is setup column guides in Layout > Margins and Columns, then drag the column guides wherever you like (this can be done on an individual page or a parent page).

No NotesAuthor
Known Participant
October 31, 2022

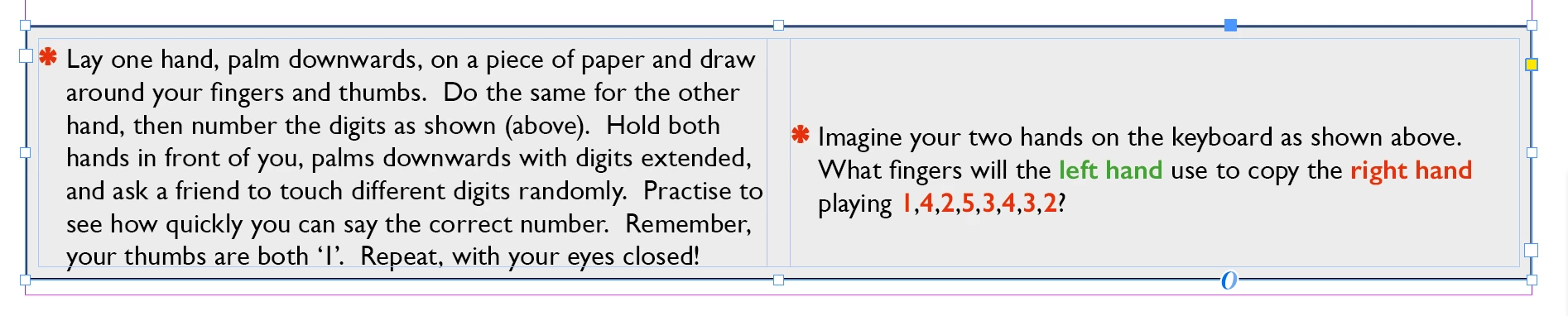

Thanks, but I don't think this solves my layout problem.  I've attached an image of the text frame that I want to split into 2/3 and 1/3.  If I use your solution there will be two separate text frame boxes where I was wanting one...

Community Expert
October 31, 2022

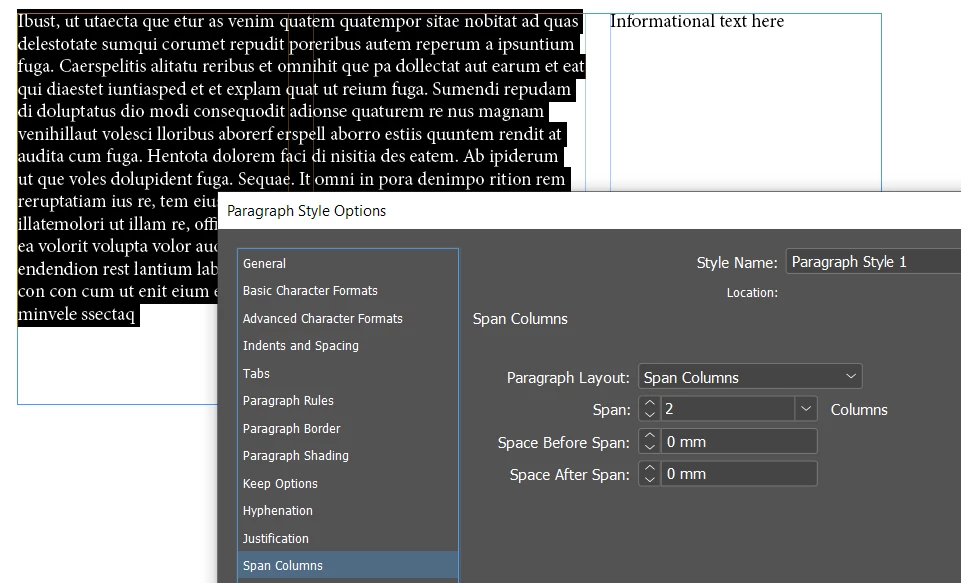

Ok try this way
