While Convert to IDML object style Inner glow size value change

Forum|Forum|5 months ago
September 4, 2025
4 replies
357 views

Hi Team

InDesign Version 20.5

OS: Windows

Issue: While converting to IDML file, Effects Innerglow size get changed if the size value of inner glow is more than 12p6 while converting to IDML size value change to 0p7.

I attached InDesign file and PDF which has different Innerglow size value from 1p6 to 15p. In IDML file upto 11p6 innerglow size value not changed. after 11p6 value change to 0p7

Thanks

Ganesh.R

Test_innerglow-6.zip

Test_innerglow_IDML-6.pdf

Test_innerglow-6.pdf

Test_innerglow-6.zip

Abhishek Rao

Community Manager

Hi everyone,

Thanks for flagging this. I'm checking this with the product team and will post an update here as soon as I have more information.

Appreciate your patience.

Abhishek

Abhishek Rao

Community Manager

Hi everyone,

Thank you all for sharing your observations and examples. I wanted to let you know that we've logged a bug for this issue, and the product team is already working on a fix. I'll post an update here once there's more information or a fix becomes available.

Appreciate your patience and the details you've provided

Abhishek

L

Laubender

Community Expert

One can also see the bug when you export the object to the snippet format *.idms and place the snippet again.

Download my sample IDMS file from my Dropbox:

https://www.dropbox.com/scl/fi/mm2m4370e7nfzl6lxnfjw/Innerglow-12p6.idms?rlkey=ui2d8b1st6ec647vd4kv16fp1&dl=1

Note: This bug is also present if you store objects with inDesign library files *.indl and Creative Cloud Libraries, because the snippet file format IDMS is used for this kind of storage.

Kind regards,
Uwe Laubender
( Adobe Community Expert )

L

Laubender

Community Expert

The bug is with the export module.

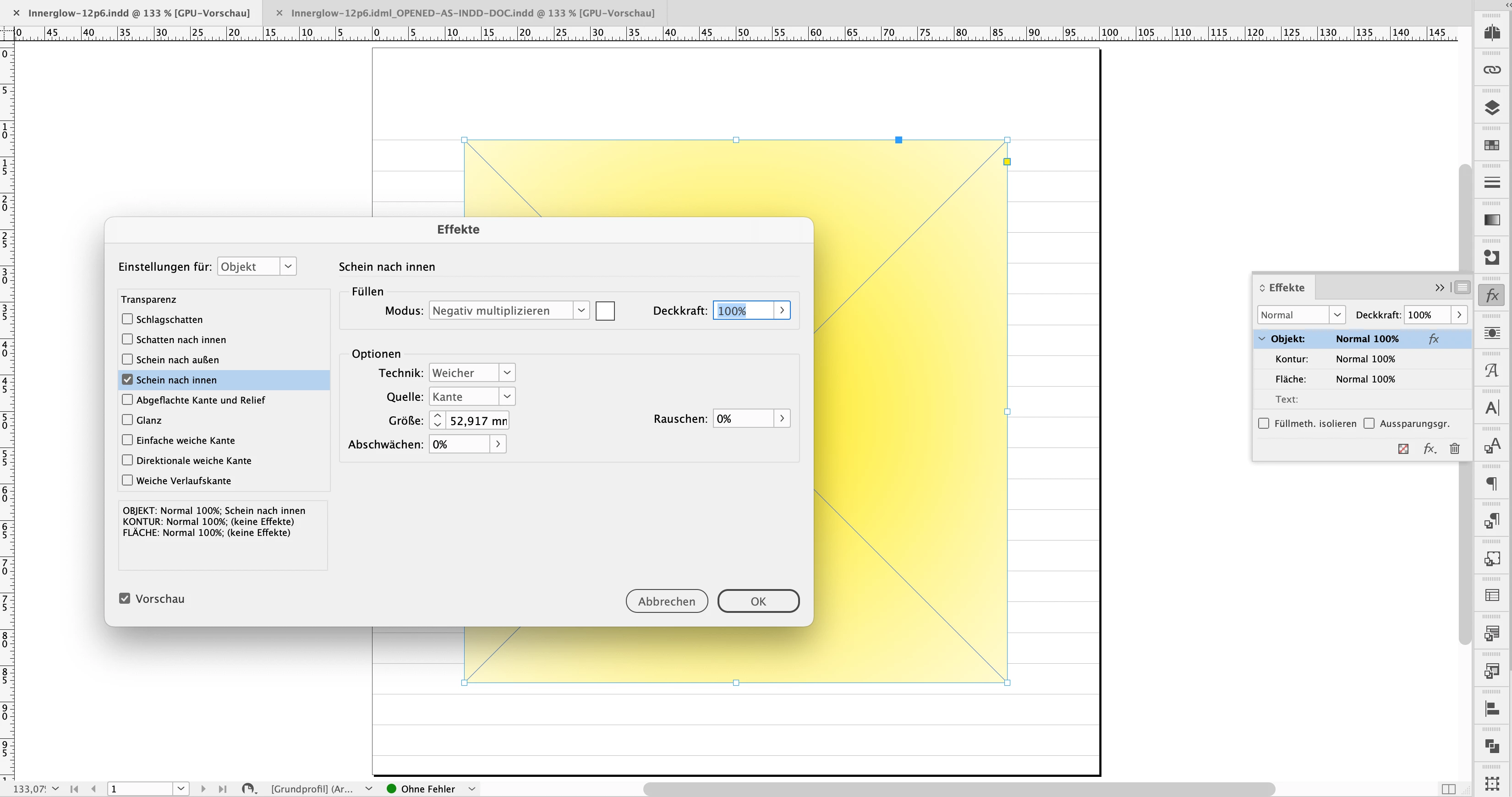

I can already see the wrong value for Inner Glow in the code of the IDMS file that the size shrank to 7 Pt, Size="7", that translates to 2.469 mm in my German InDesign.

Code snippet from the IDMS file:

<
InnerGlowSetting
Applied="false"
BlendMode="Screen"
Opacity="75"
Noise="0"
EffectColor="n"
Technique="Softer"
Spread="0"
Size="7"
Source="EdgeSourced"
/>

Kind regards,
Uwe Laubender
( Adobe Community Expert )
