Why am I getting blurry pictures after exporting interactive PDF?

  • September 27, 2017
  • 9 replies
  • 1468 views

I'm using InDesign cc2017 now, and after I export in interactive PDF my logo and footer with 11 different interactive pictures are blurry. I've already tried exporting with Compression of JPEG 2000 (Lossless) and increasing the Resolution, but the pictures and logo especially are still blurry. I didn't have these issue with InDesign 2015.

Any other thoughts.

    This topic has been closed for replies.

    9 replies

    S
    shannonm33467233Author
    Inspiring
    September 28, 2017

    I need to print an interactive PDF not a print version. The document prints fine in Print PDF, but I need to use Interactive printing and that causes the problems.

    rob day
    Community Expert
    rob dayCommunity Expert
    Community Expert
    September 28, 2017

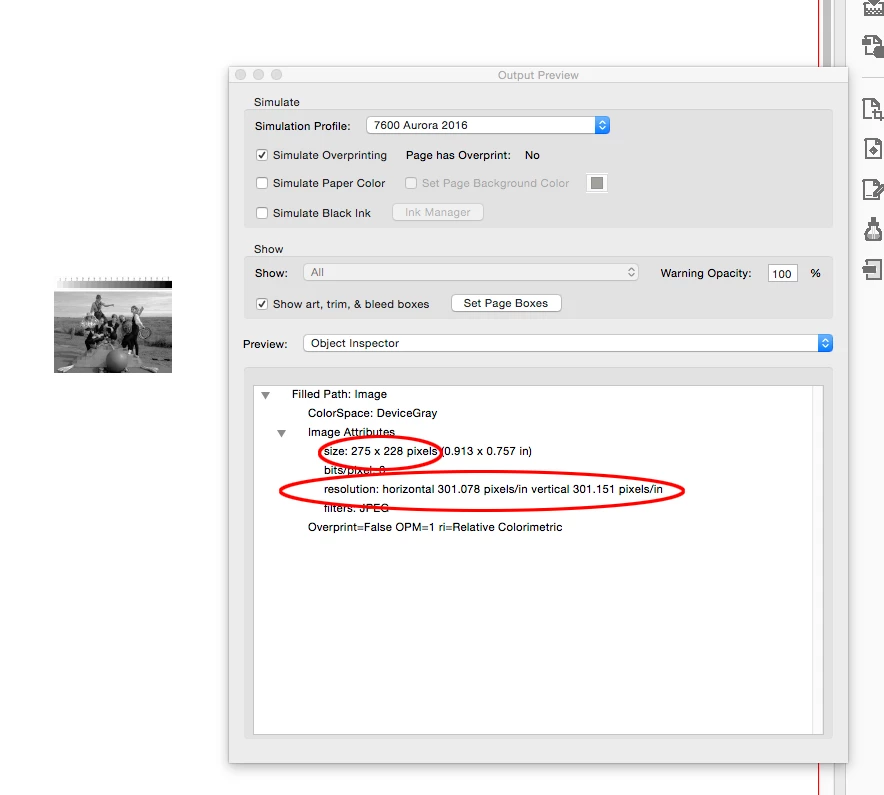

    You can check the exported resolution in AcrobatPro's Output Preview>Object Inspector.

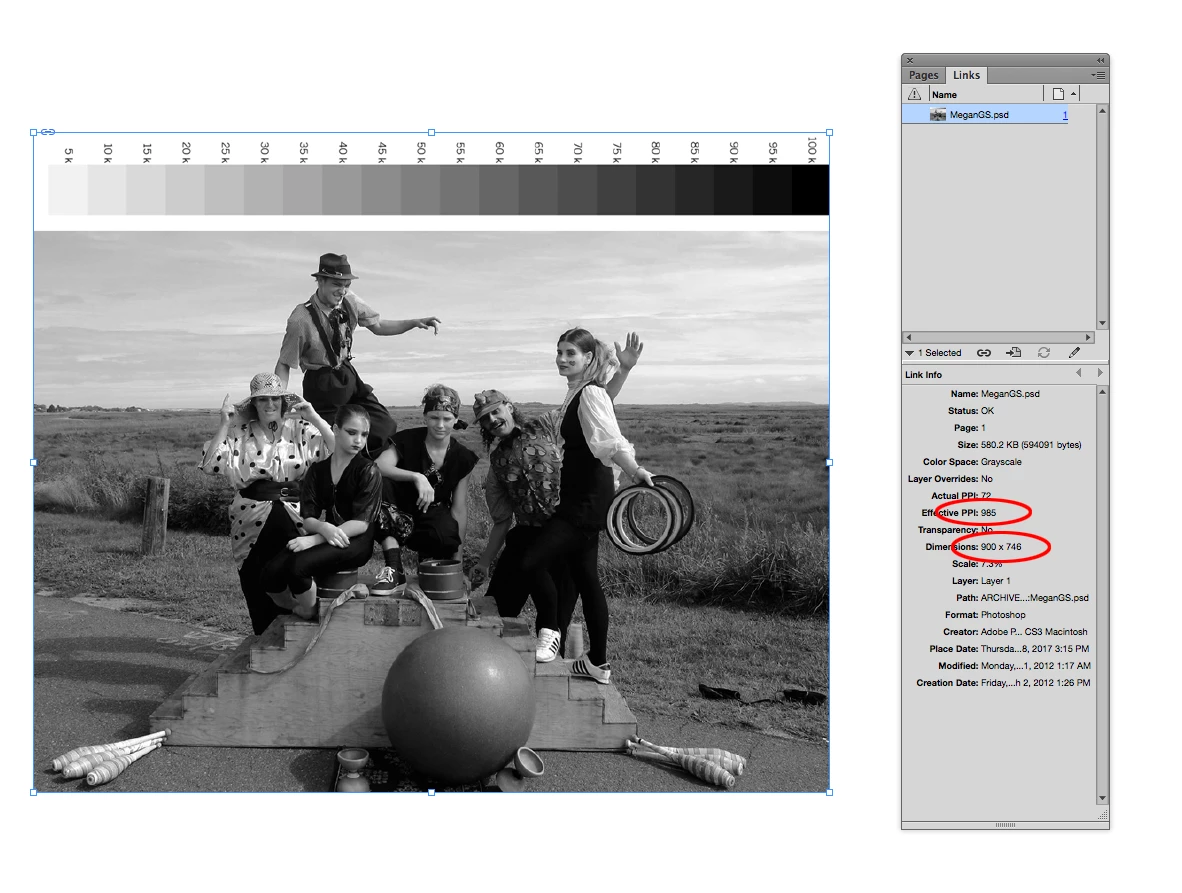

    So here my image is starting with an effective res of 985

    Exported to interactive it is downsampled to 300ppi and the pixel dimensions are now 275x228. I can't stop the downsample with an interactive export

    S
    shannonm33467233Author
    Inspiring
    September 28, 2017

    JPG 2000 (Lossless) or JPG (Lossy) or Automatic are the only options that InDesign offers for the compression when Interactive PDF is used to export. So, if you look up these options, one or the other is used or you can select automatic and InDesign will select one for you.

    As for the Effective Resolution... I'm sure the resolution will be not exceed 300 ppi as I've only seen where it can ever be selected to go to 600 ppi. But the Effective Resolution for all the images are different. I'm not sure about those numbers. But, not of them are around 300. How do you suggest I change the effective resolution on these images? I never had any of these problems until I started using the 2017 version. I thought going up would be an improvement.

    rob day
    Community Expert
    rob dayCommunity Expert
    Community Expert
    September 28, 2017

    As for the Effective Resolution... I'm sure the resolution will be not exceed 300 ppi as I've only seen where it can ever be selected to go to 600 ppi. But the Effective Resolution for all the images are different. I'm not sure about those numbers. But, not of them are around 300. How do you suggest I change the effective resolution on these images? I never had any of these problems until I started using the 2017 version. I thought going up would be an improvement.

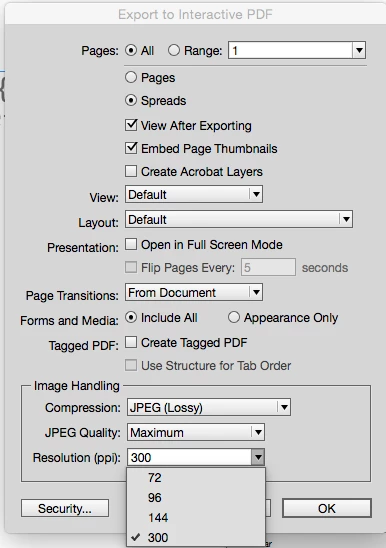

    Interactive PDF Exports have always enforced a maximum resolution. Here's 2014's dialog:

    So any image with an effective resolution over 300 gets its resolution lowered. In your case there's a huge drop in res from 7851 to 300. The effective res (not the actual res) determines whether the image will be downsampled.

    If you export your document to a Print PDF and turn off Downsampling in the Compression tab, you will see that the images don't change.

    If you really thing something has changed you can install older versions via your CC account and test.

    S
    shannonm33467233Author
    Inspiring
    September 27, 2017

    I've still not sure why these pictures are blurry. or even why the pictures or logo with text is really blurry. It seems the smaller the image the worse it is. I have to import giant pictures or logos to get clarity. This just doesn't seem right.

    Derek Cross
    Community Expert
    Derek CrossCommunity Expert
    Community Expert
    September 27, 2017

    As mentioned, JPG2000 is a format that no one uses today so perhaps that doesn't help.

    S
    shannonm33467233Author
    Inspiring
    September 27, 2017

    I had much smaller pictures but that didn't work. I had to bring in larger pictures to help with resolution.

    Derek Cross
    Community Expert
    Derek CrossCommunity Expert
    Community Expert
    September 27, 2017

    Have you tried Placing native PSD images in InDesign?

    S
    shannonm33467233Author
    Inspiring
    September 27, 2017

    The designs are open with Adobe Acrobat Pro.

    S
    shannonm33467233Author
    Inspiring
    September 27, 2017

    Do you think maybe there is a problem because these are 2015 designs converted to 2017?

    Derek Cross
    Community Expert
    Derek CrossCommunity Expert
    Community Expert
    September 27, 2017

    The Effective resolution of 7851PPI is hugely too large – I'm not sure whether that would cause a problem.

    Are you using the Acrobat Reader to look at them?

    S
    shannonm33467233Author
    Inspiring
    September 27, 2017

    The photos and logos vary. I just increased the size of the logo, and its a little less blurry but still not as sharp as it used to be with InDesign 2015.

    The logo is actual 72ppi

    Effective PPI 7851.

    Some of the images have 72 ppi or 180 ppi (not sure how to change this)

    and some of the effective PPI: 2968x1775, 3773x3277

    I have a PPI 300, and Effective PPI 7142x3793, and picture is blurry.

    All these images and logos were fine exporting in 2015? I didn't make any changes except upgrade to 2017.

    S
    shannonm33467233Author
    Inspiring
    September 27, 2017

    I'm outputting the document for all images at 300 PPI and I'm using Adobe Acrobat Pro.

    Derek Cross
    Community Expert
    Derek CrossCommunity Expert
    Community Expert
    September 27, 2017

    What is the Effective PPI of your images in InDesign?

    Derek Cross
    Community Expert
    Derek CrossCommunity Expert
    Community Expert
    September 27, 2017

    What is the Effective PPI of your images and which reader are you using?

    Are JPG2000s compatible?
