Wrong color displaying on certain pages

Forum|Forum|7 years ago
May 1, 2019
5 replies
4133 views

I'm working on a book layout and it's 48 pages long, with facing pages. This is a science text book, and some of the text is bright BLUE instead of black. On spreads 8-9, 40-41 and 44-45 the blue text is showing up as navy, and even when I change the color, it still appears as the navy blue instead of bright blue. It seems like there must be a setting specific to these spreads, and not the text (although the text color starts out as navy when I highlight it to check the color). It looks like the paragraph styles all match, and I've tried using the eyedropper tool. Does anyone have any suggestions on what else I could try, or where I could go to learn more about page settings?

Thank you!

This topic has been closed for replies.

Correct answer vinny38

Hi

Just a guess:

is your bright blue RGB?

If so, I guess that on the spreads where it appears "navy", you have elements that includes transparency (such as effects, PNG with transparency, drop shadow, etc.) Your text color would in fact be converted to CMYK, if your Transparency blend space is set to CMYK.

So, the question is:

what is the intended output of your document?

If it's supposed to be printed, you should change your RGB blue into a CMYK one.

If it's supposed to be seen on screen, change your transparency blend space to RGB.

Let us know...

E

Eugene Tyson

Community Expert

Sounds like you're using a RGB blue, which can't be produced in print, it's onscreen only.

And the text that is showing up as navy is because you have transparency on the page, which forces the page into the CMYK view.

To get around this, change the swatch in your swatch panel for the blue to a CMYK bright blue instead.

maritbAuthor

Participant

Thanks to everyone for your help.

Unfortunately so far I still can't figure out what's going on. The same paragraph and character styles are applied to both sections that are appearing differently. I have deleted the character style that was imported from Word and that didn't change anything.

Also both pages are in RBG.
Does anyone else have any ideas about where I could look or what I could play around with to figure this out? It's only on two spreads as far as I can tell. The bright blue is showing up correctly everywhere else in the document.

T

Test Screen Name

Legend

The pages are in RGB but you haven‘t mentioned the transparency blend space.

vinny38Correct answer

Legend

Hi

Just a guess:

is your bright blue RGB?

If so, I guess that on the spreads where it appears "navy", you have elements that includes transparency (such as effects, PNG with transparency, drop shadow, etc.) Your text color would in fact be converted to CMYK, if your Transparency blend space is set to CMYK.

So, the question is:

what is the intended output of your document?

If it's supposed to be printed, you should change your RGB blue into a CMYK one.

If it's supposed to be seen on screen, change your transparency blend space to RGB.

Let us know...

jane-e

Community Expert

Hi Marit

If neither of these ideas work, can you show a screen shot with a sample of the blue text?

~ Jane

maritbAuthor

Participant

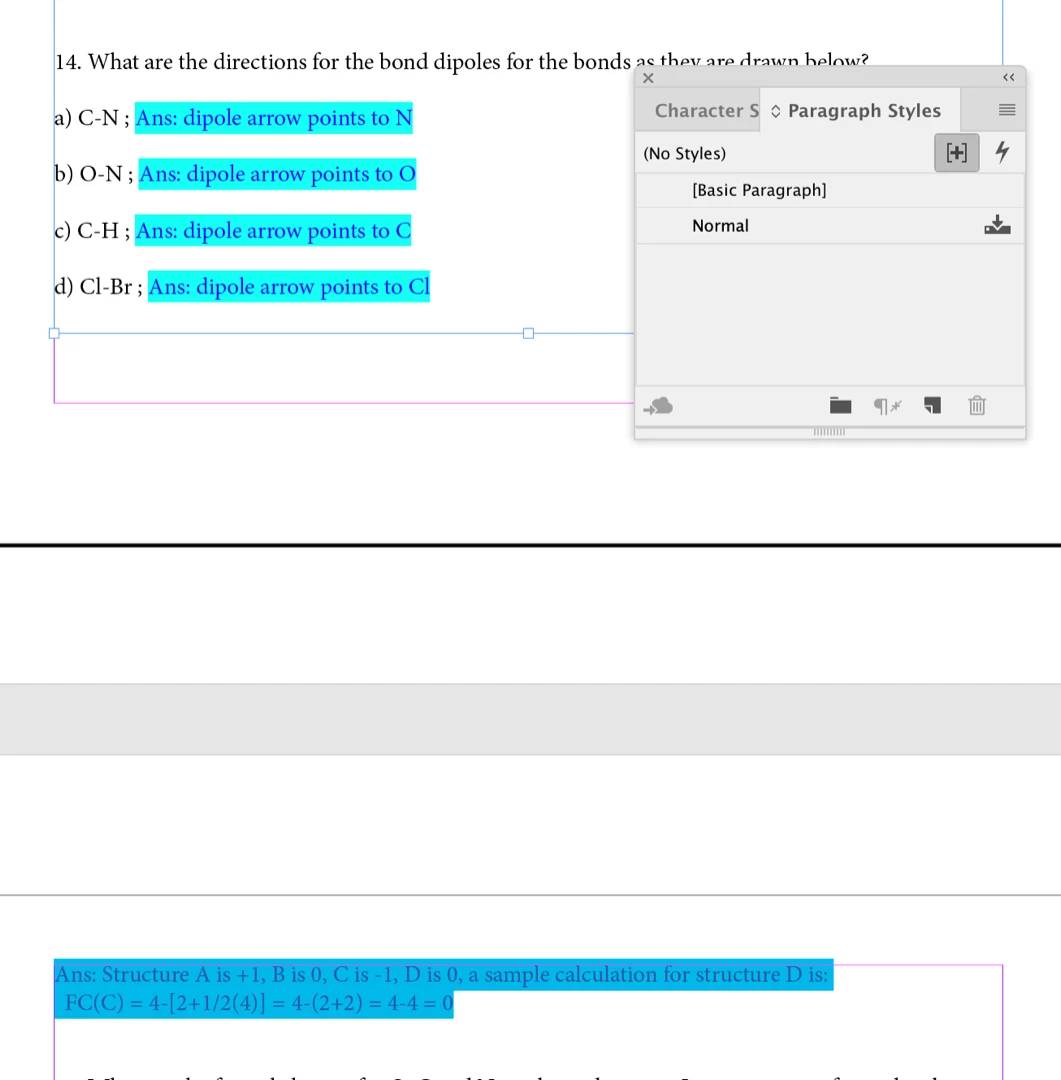

Thank you! I'm attaching a screenshot. The text at the top is what it's supposed to look like when it's changed to blue. But on the next spread it is a darker blue, even though in the color panel it's showing up as the same color when each section is highlighted. Any other advice??

Thanks so much

jane-e

Community Expert

Hi

Delete the Styles from Word, then create and use your own Character styles.

Jane

Michael Bullo

Community Expert

Do you have any manual overrides on the text that isn't displaying correctly? With your cursor inside some of this text do you see a plus sign next to the style inside the Paragraph Styles panel? If so, look for the Clear Overrides button at the bottom of the panel.

Are you using Character Styles? If so, have you accidentally applied one to this problematic text?

maritbAuthor

Participant

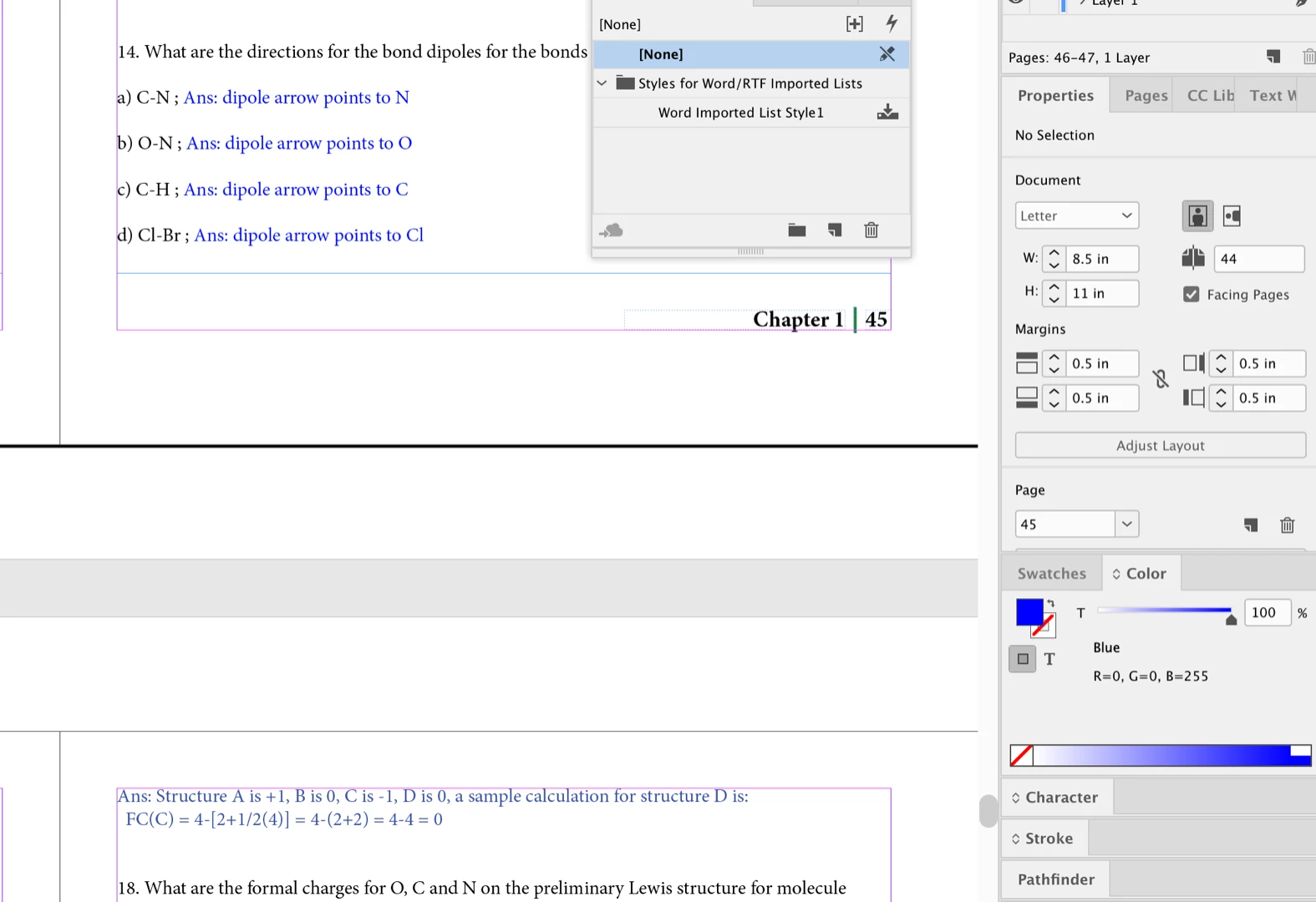

It does appear that I have a style turned on - to change the text from black to Bight Blue. But from one page to the next, the appearance of the blue is different, even though it looks like the same style has been applied. For Paragraph Styles it seems to be [Basic Paragraph] and for Character Styles it looks like it is [None]. See screenshot. The highlighted text in the bottom portion is what is the problem.

Any other suggestions?

Thank you so much for your time!

jane-e

Community Expert

Hi

Click the plus button in your paragraph panel to turn off "Show Overrides".

The alternative (best practice) is to use styles for everything.

Jane

Mike Witherell

Community Expert

If it is the background that is cyan blue, then you must have turned on the Style Override Highlighter button in the upper right corner of the paragraph styles panel (or the character styles panel).

Mike Witherell
