Participating Frequently

Question

Edit in PS turned blue

Forum|Forum|2 years ago
February 1, 2024
5 replies
708 views

Hi,

im using LrC and PS in current versions.

Suddently photos turn completely blue when I transfer them from LrC to PS (edit in PS)

this does not happen when transferring from LR to PS.

Can anybody help me with this issue? I have already re-installed LrC and PS

Thanks

Karl

Windows

This topic has been closed for replies.

HorizonPhotoAuthor

Participating Frequently

Dear all,

I got the problem fixed by deleting all plug-ins and all Adobe programs and settings on my PC.

After a complete re-install I have of course lost some custom pre-sets, actions and so on, however, LrC and PS are behaving as expected again. I will now try to bring back some of the above from the back-up and I will re-install the plug-ins. Let's see if I can find out what has been triggering the problem.

Thank you all for you much appreciated support!

GoldingD

Legend

Please post a screenshot of that image in LrC Develop Module.

Make sure the History panel is fully shown.
Make sure the Histogram is fully shown.
Make sure the Navigation panel is shown (sometimes exhibits oddities)
Nice to have filmstrip shown, and file name shown (typically above filmstrip)
Try to have as many of the right side panels that have modifications in them shown (minimize those without)

HorizonPhotoAuthor

Participating Frequently

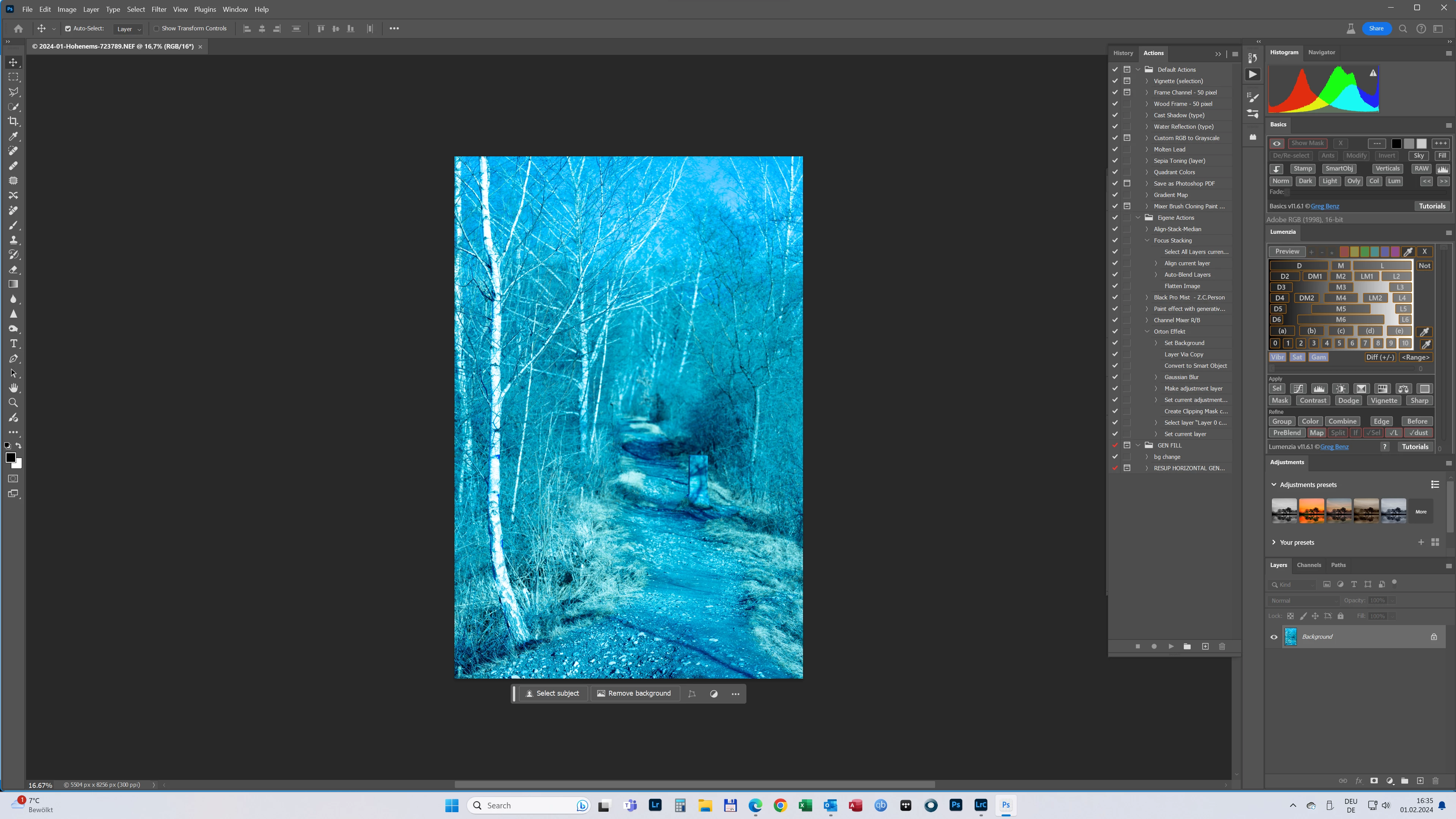

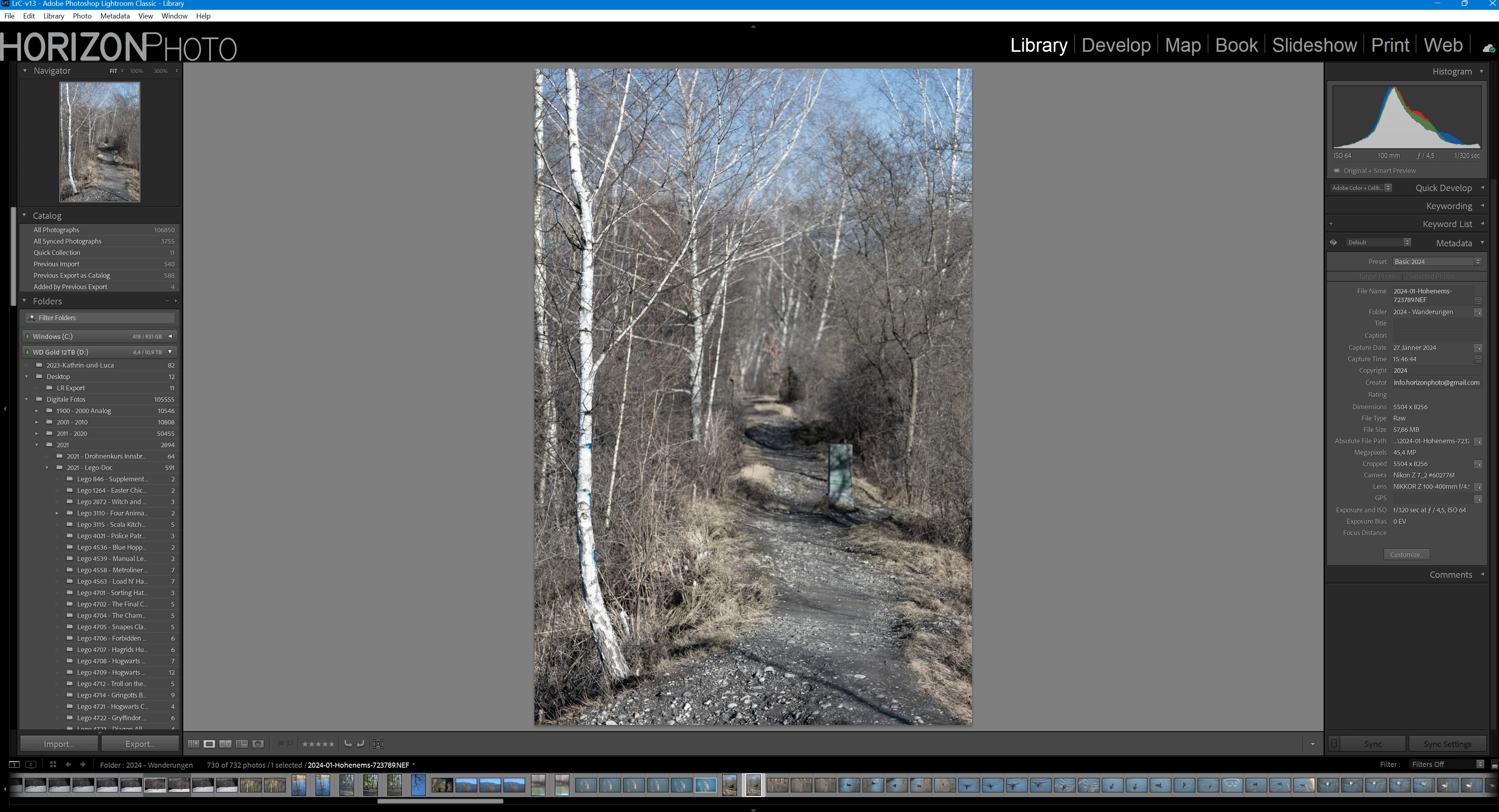

I hope you can see something here

JohanElzenga

Community Expert

What version of Photoshop are you using, and do you use a special custom camera profile in Lightroom? There was a bug in Photoshop some time ago, where sending the image from Lightroom Classic to Photoshop would cause the profile to get lost, resulting in a different appearance of the image in Photoshop. I have never seen it this severe, and that bug was at least a year ago if not two years, but it still looks like something like this bug is happening here.

-- Johan W. Elzenga

AxelMatt

Community Expert

Please try to reset the preferences of Lightroom and Photoshop to the defualt values. In a first step I would try to reset the Photoshop preferences using the steps decribed here:

https://helpx.adobe.com/photoshop/using/preferences.html#reset-preferences

It's recommended to backup your settings before resetting the preferences. You can check:

https://helpx.adobe.com/photoshop/using/preferences.html#backup-photoshop-preferences

If this doesn't help try to reset the Lightroom preferences: https://helpx.adobe.com/lightroom-classic/help/setting-preferences-lightroom.html

It's also recommended to backup your preferences before you reset the preferences to the default settings:

https://helpx.adobe.com/lightroom-classic/kb/preference-file-and-other-file-locations.html

Please try to disable the option to "Use Graphics Procesor" from Photoshop by going to Preferences, then Performance. Once done, quit & relaunch Photoshop to check if that helps.

If it helps, you can check out the steps suggested here: https://helpx.adobe.com/photoshop/kb/troubleshoot-gpu-graphics-card.html

Take a look especially point 7 in the "Troubleshoot GPU and Graphics driver" section.

Is your system up-to-date? Do you have installed all recent updates and patches for the operating system and the device drivers, especially the graphic driver. If you have a NVidia graphic card installed, make sure that you are using the recent Studio version of the driver, not the Game Ready version.

My System: Intel i7-8700K - 64GB RAM - NVidia Geforce RTX 3060 - Windows 11 Pro 25H2 -- LR-Classic 15 - Photoshop 27 - Nik Collection 8 - PureRAW 6 - Topaz Photo AI

HorizonPhotoAuthor

Participating Frequently

HI, I have done all the resets - updated the GPU driver - tried with GPU support in PS and LrC and without - no change

Per Berntsen

Community Expert

Do you have HDR (Windows HD color) enabled in Display settings?

If so, try disabling it.

HorizonPhotoAuthor

Participating Frequently

D Fosse

Community Expert

The histograms clearly show that there has been some extreme processing of the actual underlying data going on here. This isn't a GPU or display issue.

That processing doesn't happen all by itself - something has initiated it. What about those third-party plugins you have installed, sure you didn't hit a button there? There's an awful lot of them...

Per Berntsen

Community Expert

Please go to Help > System Info, click the Copy button and paste in a reply here.

We only need the first four blocks of text, so you can delete everything below Installed plugins.

HorizonPhotoAuthor

Participating Frequently

Lightroom Classic version: 13.1 [ 202312111226-41a494e8 ]

License: Creative Cloud

Language setting: en

Operating system: Windows 11 - Business Edition

Version: 11.0.22631

Application architecture: x64

System architecture: x64

Logical processor count: 12

Processor speed: 4,0GHz

SqLite Version: 3.36.0

CPU Utilisation: 0,0%

Built-in memory: 32691,5 MB

Dedicated GPU memory used by Lightroom: 34,1MB / 8073,0MB (0%)

Real memory available to Lightroom: 32691,5 MB

Real memory used by Lightroom: 2224,6 MB (6,8%)

Virtual memory used by Lightroom: 2292,3 MB

GDI objects count: 722

USER objects count: 2400

Process handles count: 2307

Memory cache size: 346,7MB

Internal Camera Raw version: 16.1 [ 1728 ]

Maximum thread count used by Camera Raw: 5

Camera Raw SIMD optimization: SSE2,AVX,AVX2

Camera Raw virtual memory: 494MB / 16345MB (3%)

Camera Raw real memory: 497MB / 32691MB (1%)

System DPI setting: 144 DPI (high DPI mode)

Desktop composition enabled: Yes

Standard Preview Size: 3840 pixels

Displays: 1) 1920x1200, 2) 3840x2160

Input types: Multitouch: No, Integrated touch: No, Integrated pen: Yes, External touch: No, External pen: Yes, Keyboard: No

Graphics Processor Info:

DirectX: NVIDIA GeForce GTX 1080 (31.0.15.4633)

Init State: GPU for Export supported by default

User Preference: GPU for Export enabled

Application folder: C:\Program Files\Adobe\Adobe Lightroom Classic

Library Path: D:\Digital Medien\Lightroom Aktuell\LrC-v13.lrcat

Settings Folder: C:\Users\kaeic\AppData\Roaming\Adobe\Lightroom

Installed Plugins:

1) AdobeStock

2) ColorChecker Camera Calibration

3) DxO PureRAW 3

4) DxO PureRAW 3 Importer

5) Epson Print Layout

6) Flickr

7) Helicon Focus Export

😎 Loupedeck2

9) LRT Export

10) Nikon Tether Plugin

11) ON1 Effects 2023

12) Topaz Photo AI

Per Berntsen

Community Expert

Your GPU driver is out of date, but I don't know if that causes the issue.

The latest version is 551.23 , you have 546.33.

The histograms in LrC and Ps are dramatically different, and the one in Ps reflects the blue/cyan cast.

So I wonder if you have (inadvertently?) edited the image in Ps.

You have the History panel hidden, what does it say?
