Lightroom 5 ICC profiles clipped shadows under OSX

Forum|Forum|12 years ago
December 27, 2013
14 replies
35357 views

Hi, I've just found a really bad issue occurring in Lr 5 (but also in all other Lightroom versions) under Mac OSX 10.9 with a calibrated monitor: dark shadows (from a value of 20 to 0) are all clipped (pure black with no detail and no textures) while the histogram remains ok, indicating NO clipped shadows at all. This issue afflics also ACR.

Photoshop for now is the only software under MAC that reproduces dark shadows correctly: Library Module shows a bit darker and shifted shadows than Ps but acceptable, Develop Module is really bad showing brutally clipped shadows (but you work in the Develop Module right?!).

The same problem occurred also in OSX 10.8 but it was related only to LUT profiles, creating a Matrix based profile problems were solved.

Now the issue occurs with both Matrix and LUT profiles, v2 and v4. There's no apparent way to make Lr working right.

Under Windows no problems at all: Bridge, Photoshop, ACR, Lr (Library Module and Develop Module) show the same correct NOT clipped shadows.

I tested 8 different Mac running 10.9 with different GPU, different monitors, different profiling Softwares (Color Eyes Display Pro, Eizo Color Navigator, BasICC Color, i1 Profiler). Same results.

I tried to change the gamma value (2.2, sRGB, L*) problems remain. I tried to change ICC version (v2, v4) problems reamain. I tried to change profile type (LUT, MATRIX) problems remain.

How can a photographer work professionally on RAW images if shadows are bad reproduced?

Why Photoshop can reproduce shadows correctly while Lr isn't able to do that?

Why this happens only on a Mac enviroment?

Is Lr based on ColorSync (that can't handle profiles correctly) while Ps isn't (because it can handle and it has no problem)?

Please Adobe, FIX IT for all professional photographers, we can’t use Lr for serious works under Mac.

Max Ramuschi

Adobe Certified Expert

This topic has been closed for replies.

Correct answer Kelly Castro

Hi Folks,

We have up-leveled this issue, identified the source and we are currently testing a solution. We will provide more information as it becomes available.

Kelly C.

Lightroom QE

Show previous replies

P

Phoenixomen

Participant

Hi all, just to put in my 20 cents worth.

I'm having a similar issue with my MacBook Pro with Retina Display. But I haven't updated the Osx to Mavericks. My OS X is 10.8.5 build 12f45 running an Nvidia GT 650 1024 MB.

I got my Mac a few months ago but I've been relying on my Windows Based laptop to process my Raw files until recently. I shoot time lapses and I've noticed that when I work in Lightroom 5 i'll edit and export the 400+ Raw frames in a sequence. Only to find they've been exported lighter that they appear in Lightroom's Develop Module when compiled into a QuickTime movie.

I thought it was my screen calibration that I've done with Spyder Pro 4. But now that I've come across this forum thread I can see I'm not alone. So until it's fixed I'll just have to use Lightroom 5 on my Windows Laptop (which is a shame as the Mac is faster) and then just use the Mac to edit my Time Lapse video clips.

I thought it might help as I haven't upgraded to Mavericks yet.

Here's hoping they fix the issue and soon!

Btw thanks for everyone that's posted, it's been helpful.

Message was edited by: Phoenixomen

J

Jao vdL

Community Expert

Phoenixomen, I am guessing that your QuickTime export issue us due to something else as I tested on 10.8 and the bug is not there. Movie export from Lightroom is just not very good and indeed tends to end up with incorrect gamma depending on which player you use to play the exported movies. What you should do is run the exported time lapse through handbrake (Google for it, it is awesome) and you'll see the gamma corrected. It will also cut down the size of the file by many times as the movie export from Lightroom is really poorly done and you can compress the files by a factor of 4 without losing quality. This is especially true for time lapses. Also, the windows and Mac versions of Lightroom use the exact same compression codec so you won't see a difference. In my experience they output the exact same file for the same setting and I'd still run them through handbrake.

Todd Shaner

Legend

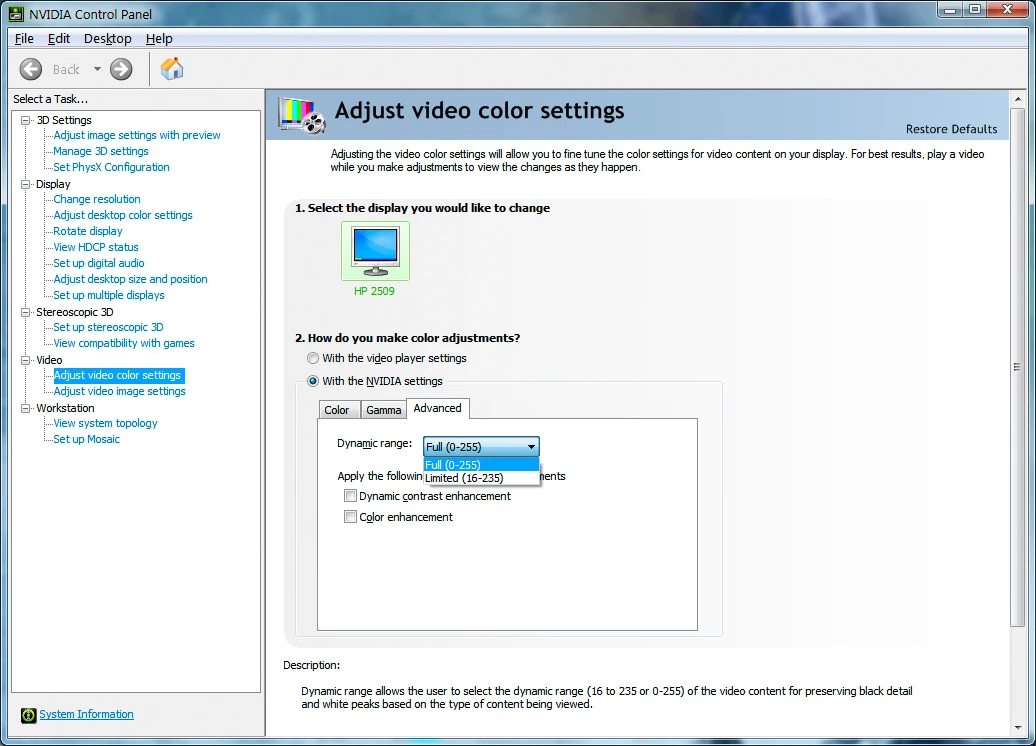

I had a similar problem with video on my WIndows 7 system where blacks were washed out. It was an issue with the Nvdia graphics driver video color settings under 'Advanced.' The default settings is 'Limted (16-235)' and changing it to 'Full (0-255) corrected the issue:

Enchanted_difference1549

Inspiring

Exact same issue here. I just add FYI that shadows get back to normal in Develop when Soft Proofing is ON (both sRGB and AdobeRGB).

Darker shadows in LR Develop module with Soft Proofing OFF only, not in Library (and not in Photoshop and apparently not in Camera RAW as well)

Mavericks 10.9.1

Dell series U2713H Monitor with matrix profile done by i1Pro2+i1Profiler

Any news?

Victoria Bampton LR Queen

Community Expert

The bug report I put in was closed as an external bug. That means they've checked into it and confirmed that it's a bug that Apple need to fix (and I assume reported it to Apple too).

Victoria - The Lightroom Queen

J

Jao vdL

Community Expert

Thanks Victoria. I reported it to Apple through my developer account. Haven’t heard anything from them. They’re more likely to respond to Adobe if they have submitted a report anyway. Hopefully this will get fixed in the upcoming OS X update but I haven’t had time to check into that.

J

Jao vdL

Community Expert

I don't see this problem using LR 5.3 on Mac OS 10.9.1. Calibrated to a v2 profile using a simple Spyder3Pro. Must be quite specific to the calibration solution. Weird that it would be OS dependent. Lightroom supposedly uses the Adobe Color Engine which should be the exact same code as is used in Photoshop so it is strange that there would be a difference but then again the LUT v4 ICC profile problem has been a very long standing one that Photoshop never had. I even took screenshots from the display of your file in Lightroom and PS and overlaid them and they are virtually the same even when boosted using a Curves adjustment layer to show the shadow area more clearly. There are some very minute differences as the Library module displays previews from a jpeg preview instead of the orginal so it is recompressed.

J

Jao vdL

Community Expert

OK, just tried and compared the Develop module with PS CC and the Develop module definately has darker shadows than PS. Not as extreme as you describe but indeed shadows do get darkened (doesn't look blocked but they are indeed somewhat darker). Not good.

Todd Shaner

Legend

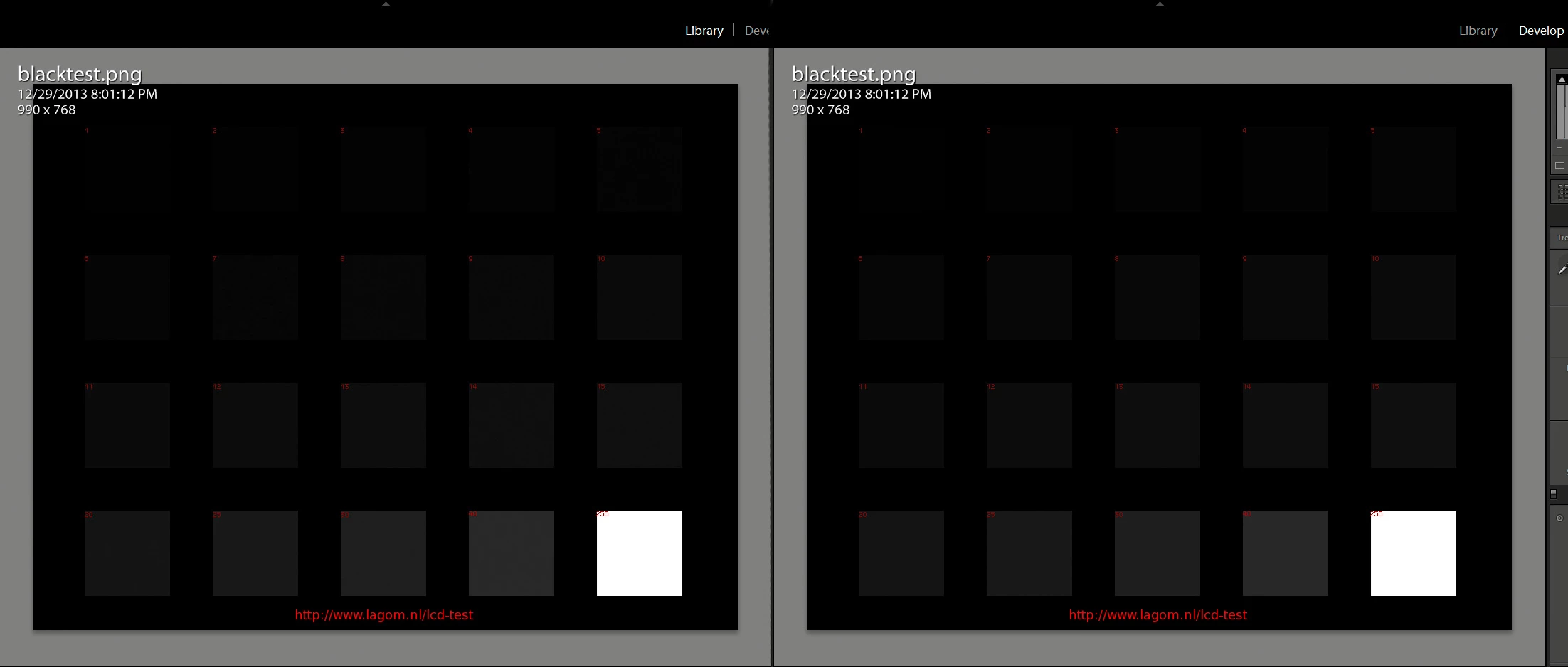

Try the Black Level test pattern at Lagom:

http://www.lagom.nl/lcd-test/img/blacktest.png

Right-click on the image and Save it. No profile is assigned, but it's sRGB. Inside LR I can see the patches all the way down to patch Level 1.

Check it in both the Library and Develop modules and inside PS.

On my Windows 7 system with LR5.3.

Message was edited by: trshaner Added screenshot

Max_RamuschiAuthor

Known Participant

Here is a 100% Crop of a photograph in Lr and Ps.

Todd Shaner

Legend

What file types exhibit this problem? Can you post one to a file download site?

Adobe has indicated there are no issues with Mavericks OS X 10.9 when running the latest builds of CC and CS6 apps

http://helpx.adobe.com/x-productkb/global/mac-os-mavericks-compatability.html?PID=7221644

Are you running LR5.3 Final?

http://www.adobe.com/support/downloads/detail.jsp?ftpID=5692

Max_RamuschiAuthor

Known Participant

Adobe is wrong.

Every file type exhibits this problem (jpg, tiff, raw), 16 bit and 8 bit with every color profile (sRGB, AdobeRGB, ProPhoto).

Yes I am running 5.3 final and the other 8 Macs I tested were running 5.3 final too.

Here is an example:

https://www.dropbox.com/s/kl494m76h9mhfhf/_E0R3160.jpg

Look at the rocks in the shadows on the right side of the waterfall (is the same example I posted here before), they are really different if opened in PS or between Library Module and Develop Module.

Every image that contains shadows from a value of 20 to 0 is right for the issue...

Some photos are really different when you open them into Ps or when you switch between the Library Module and the Develop Module (try taking night shots with lots of shadows with a value < 20 ).

You must have created a monitor profile with any of the profiling softwares on the market and you will see clearly the problem.

Max Ramuschi

Adobe Certified Expert
