Lightroom 7.2 to Photoshop 19.1.3 inconsistent colors

  • April 15, 2018
  • 5 replies
  • 3724 views

Hi guys,

As you know the MORONS at Adobe screwed up 7.3 and i can't upgrade yet as i have a lot of presets that will get messed up.

I accidentally upgraded photoshop to 19.1.3

Now photoshop looks different to the color im seeing in Lightroom 7.2

Is this normal behaviour because i upgraded camera raw and photoshop but not lightroom?

Cheers.

    This topic has been closed for replies.
    Correct answer mickspawn

    ok so im using Lightroom 7.2

    I upgraded camera raw from 9.12.1 to 10.3

    I upgraded Photoshop from 19.1.2 to 19.1.3

    I downgraded Photoshop from 19.1.3 back to 19.1.2 no change.

    I downgraded camera raw from 10.3 back to 9.12.1

    Guess what.  Problem solved.  Camera RAW 10.3 has problems with Lightroom 7.2.


    Moral of the story.  If you aren't upgrading Lightroom to 7.3 don't upgrade Camera RAW.

    Thanks.

    5 replies

    D Fosse
    Community Expert
    Community Expert
    April 16, 2018

    In any case, it must be this specific combination. I can't see anything similar here, with all updated to current and synchronized versions  (Lr 7.3 / ACR 10.3 / PS 19.1.3). Win 7 and Eizo CG246.

    I'll look closer when I have time (but I'm not downgrading just to test)..

    Per Berntsen
    Community Expert
    Community Expert
    April 16, 2018

    This is getting stranger ...

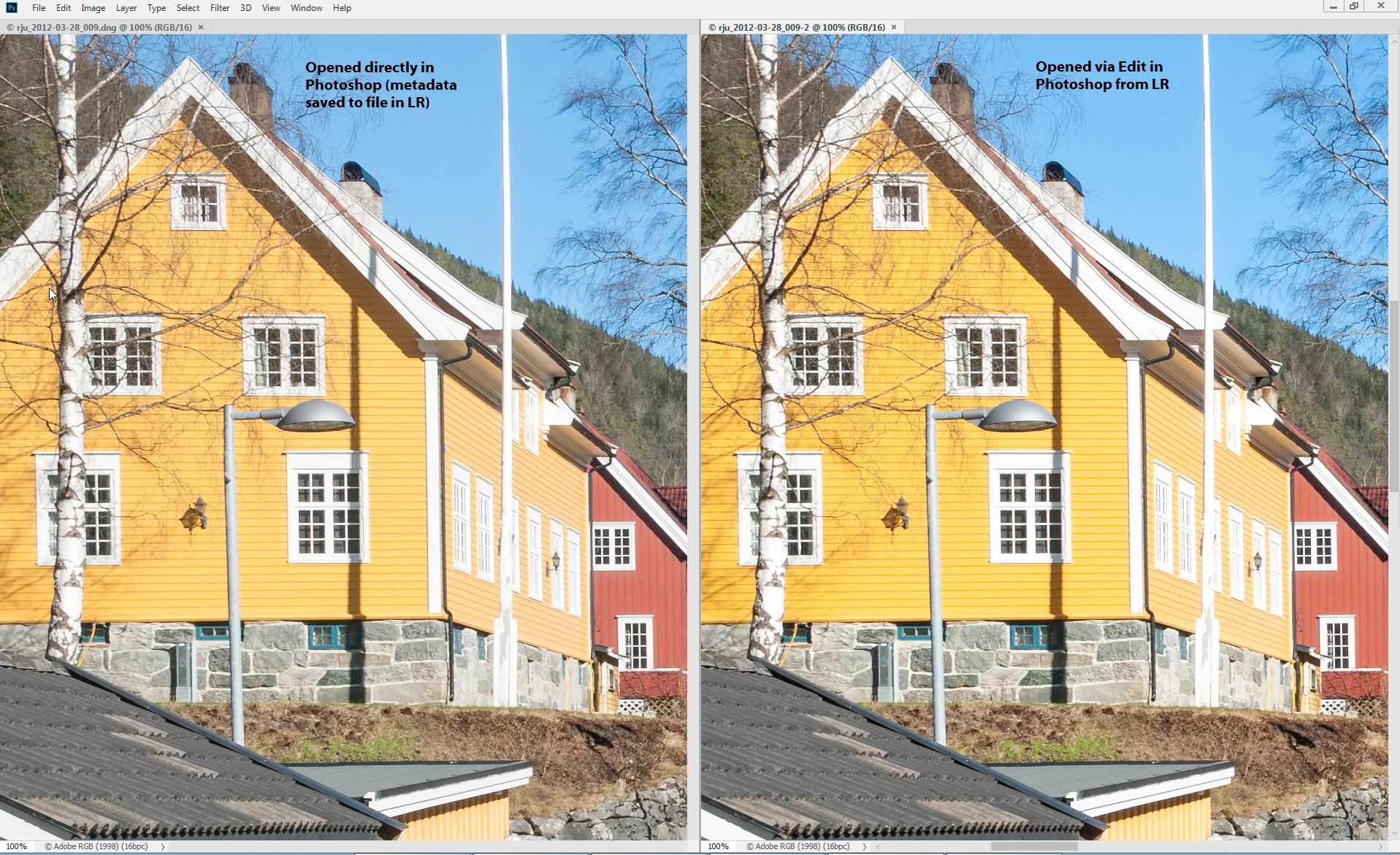

    It turns out that when I open a raw file directly in Photoshop, it displays the same as in Lightroom, but not when using Edit in from Lightroom.

    I'm going to post a bug report over at Camera Raw and DNG | Photoshop Family Customer Community

    D Fosse
    Community Expert
    Community Expert
    April 16, 2018

    OK, so the only possible explanation is presets/camera profiles. It wasn't the monitor profile after all.

    With the Lightroom 7.3 update, corresponding to ACR 10.3, I got a notification that presets had been "successfully converted to xmp". I confess I don't know what that means exactly, but I certainly didn't have any problems after the update. We also got an entirely new Camera Profiles interface, with some new profiles. But still nothing that would cause any issues.

    So this is where I'm a bit lost in your problems. Why would it "mess up" your presets? In fact it seems to me that they were messed up by not updating Lightroom!

    We all know how important it is to keep Lightroom and ACR in sync. I never update one without the other.

    mickspawn
    mickspawnAuthor
    Inspiring
    April 16, 2018

    Presets a total mess in Lightroom 7.3

    check out this thread to understand it only affects people with a large preset collection with symbols.

    If i updated camera raw, lightroom and ps together i would never have had the problem but i would get a problem with presets going in the wrong order / messing up

    and yes after spending the best part of 6 hours messing around, i learned my lesson to never update camera raw without updating PS and LR lol

    Per Berntsen
    Community Expert
    Community Expert
    April 16, 2018

    I am also running LR 7.2 and PS 19.1.3, and it turns out that I am seeing the same thing - a slight yellow cast in Photoshop.

    This is on Windows 7, with an Eizo CX 240.

    The image has not been edited in Lightroom, and the only develop preset that has been used is a sharpening preset on import, and the camera profile is Adobe Standard.

    If you fixed the problem by downgrading ACR, there must be a bug in ACR 10.3.0.933.

    D Fosse
    Community Expert
    Community Expert
    April 15, 2018

    I agree that this has all the signs of a problem in the conversion to monitor profile. Either a defective profile, or possibly a buggy GPU driver. At default Photoshop settings, the actual conversion is performed by OpenGL code in the GPU. One way to test is to set the GPU to "Basic" mode - this shifts display color management back to the CPU, which is more robust and reliable.

    There is a known problem with ProPhoto files in Photoshop, with standard GPU color management. It can show up in various ways depending on the type of monitor profile, but shadow clipping and/or banding, in individual channels, is common. The problem here appears to be shadow channel clipping in Photoshop - although it's hard to say because this file is hard clipped in the shadows either way.

    Try an Adobe RGB or sRGB file, and also set GPU to "Basic". That should eliminate this particular problem (which is apparently caused by inaccuracies in OpenGL code, exaggerated by the compressed shadows in ProPhoto. It's outside Adobe's control).

    Just to be clear - color settings in Lr and Photoshop don't need to match. That's not a requirement. And it certainly doesn't have to be ProPhoto just because Lr's internal color space uses ProPhoto primaries. Any color managed application is supposed to display the file correctly whatever the profile is - that's the whole point.

    Finally, as Per suggests, the way to test the monitor profile is to replace it with a known good one. The stock system profile should be good enough. But the profile embedded in the original screenshot is just "Display", not "Display P3". So either this isn't a wide gamut iMac model, or it's the wrong profile.

    D Fosse
    Community Expert
    Community Expert
    April 15, 2018

    On re-reading the thread, I see "late 2017 5K iMac". That's certainly a wide gamut model with a DCI-P3 panel.

    So if you're using the system default display profile, it should be called "Display P3". But the one in the screenshot is just "Display" (Mac OS embeds the display profile in screenshots).

    Anyway - one more thing I forgot to mention: if using the i1 Display Pro, make sure it's set to produce version 2, matrix-based profiles. Not version 4 and/or table-based (LUT). The latter policies are also known to be problematic in some situations (or so I'm told - never seen any problems myself).

    If the display profile is an accurate description of the display's actual, current response, and the application converts correctly from the document profile - then the file has to display correctly. Yes, I know that sounds very generic and general, but it can help to focus on each of the three individual links in the color management chain: document profile > conversion > display profile. But usually it's the last one.

    mickspawn
    mickspawnAuthor
    Inspiring
    April 16, 2018

    when setting photoshop GPU to basic the exact same color difference happens.

    one thing i noticed in my color settings in Display there are actually 2 iMac profiles for some reason but both are identical..

    with i1 i always use version 2

    I notice if i use the i1 display the screen runs way too warm so i always just stick with the standard apple profile and only adjust my screen brightness.

    Inspiring
    April 15, 2018

    I agree with the others that it's most probably a profile problem.  Other things I'd check:

    1. Upgrade to LR 7.3 (you say you're using 7.2, which has a different in-built ACR version).

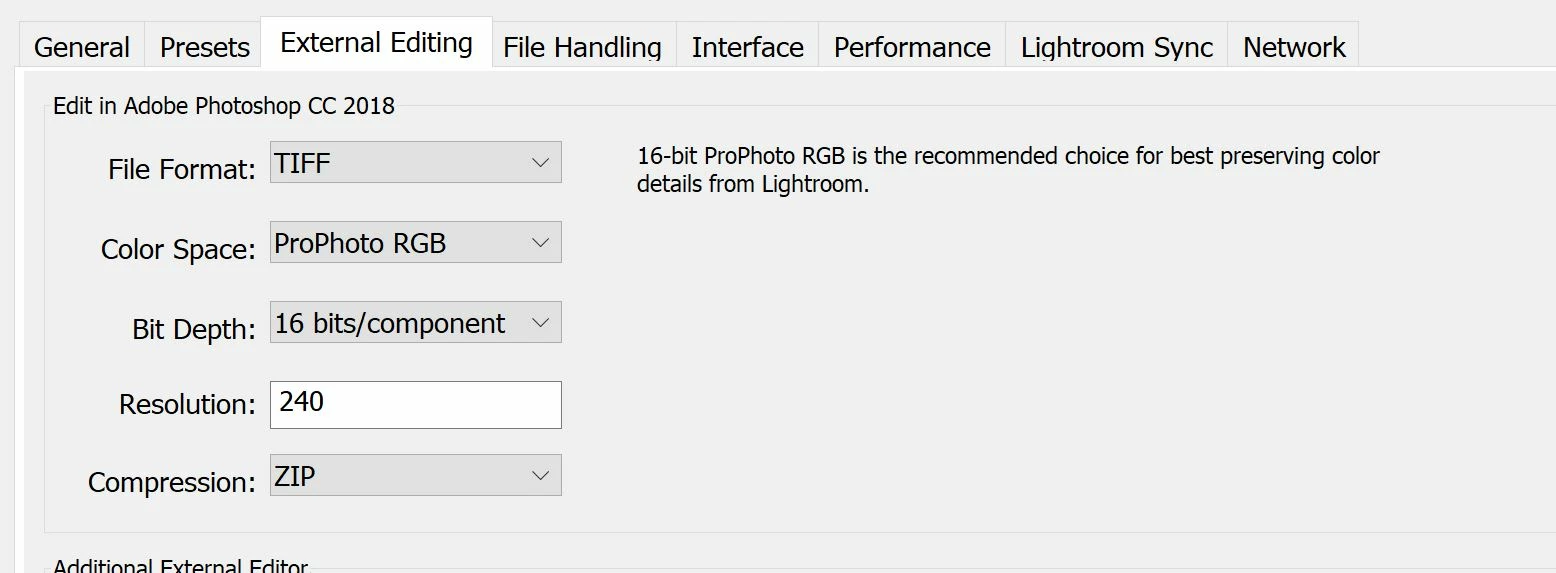

    2. Check LR Preferences -> Edit settings are set to:

    You can't alter LR's internal working space (it's always ProPhoto RGB with linear gamma) but you can alter the colour space and bit-depth passed to PS - best is ProPhoto 16-bit.

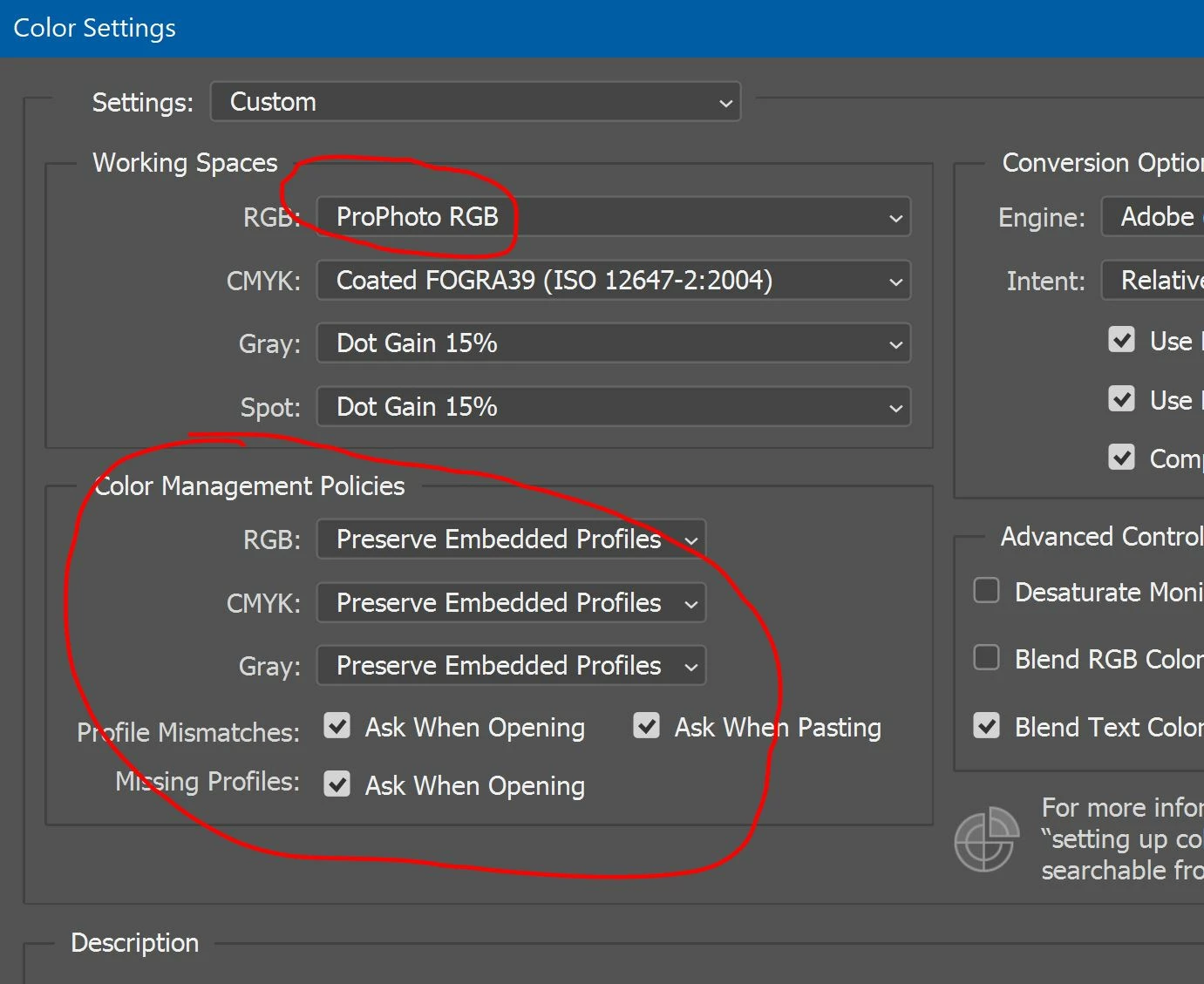

    3. Check PS Edit -> Color settings are set to:

    Not only make sure Working Space is ProPhoto RGB but make sure policies are "Preserve..." and (I suggest) check all the "Ask When..." boxes, so you get warned of problems.

    PS - I don't know if the developers at Adobe are morons, but I've had no problem with presets.

    Per Berntsen
    Community Expert
    Community Expert
    April 15, 2018

    When Lightroom and Photoshop don't display identically, it's usually cased by a defective monitor profile.

    Try setting the monitor profile to sRGB (Adobe RGB if you have a wide gamut monitor).

    See http://www.lightroomqueen.com/articles-page/how-do-i-change-my-monitor-profile-to-check-whether-its-corrupted/

    If this fixes the problem, you should ideally calibrate your monitor with a hardware calibrator, which will also create a new monitor profile that accurately describes your monitor.

    There could also be a color mismatch if you have changed the color settings in Photoshop. (like setting the RGB working space to Monitor RGB, which disables color management) Unless you know what you're doing, leave these settings alone.

    Also make sure that Proof colors is unchecked in the View menu in Photoshop.

    mickspawn
    mickspawnAuthor
    Inspiring
    April 15, 2018

    Hello Per and thank you for trying to help me

    No settings have changed apart from upgrading Photoshop to 19.1.3

    I recalibrated with the i1 display pro and no change to the color mismatch.

    I am using an Imac 5k late 2017.

    I have Lightroom and Photoshop set to use ProPhoto RGB colorspace

    not using proof colors.

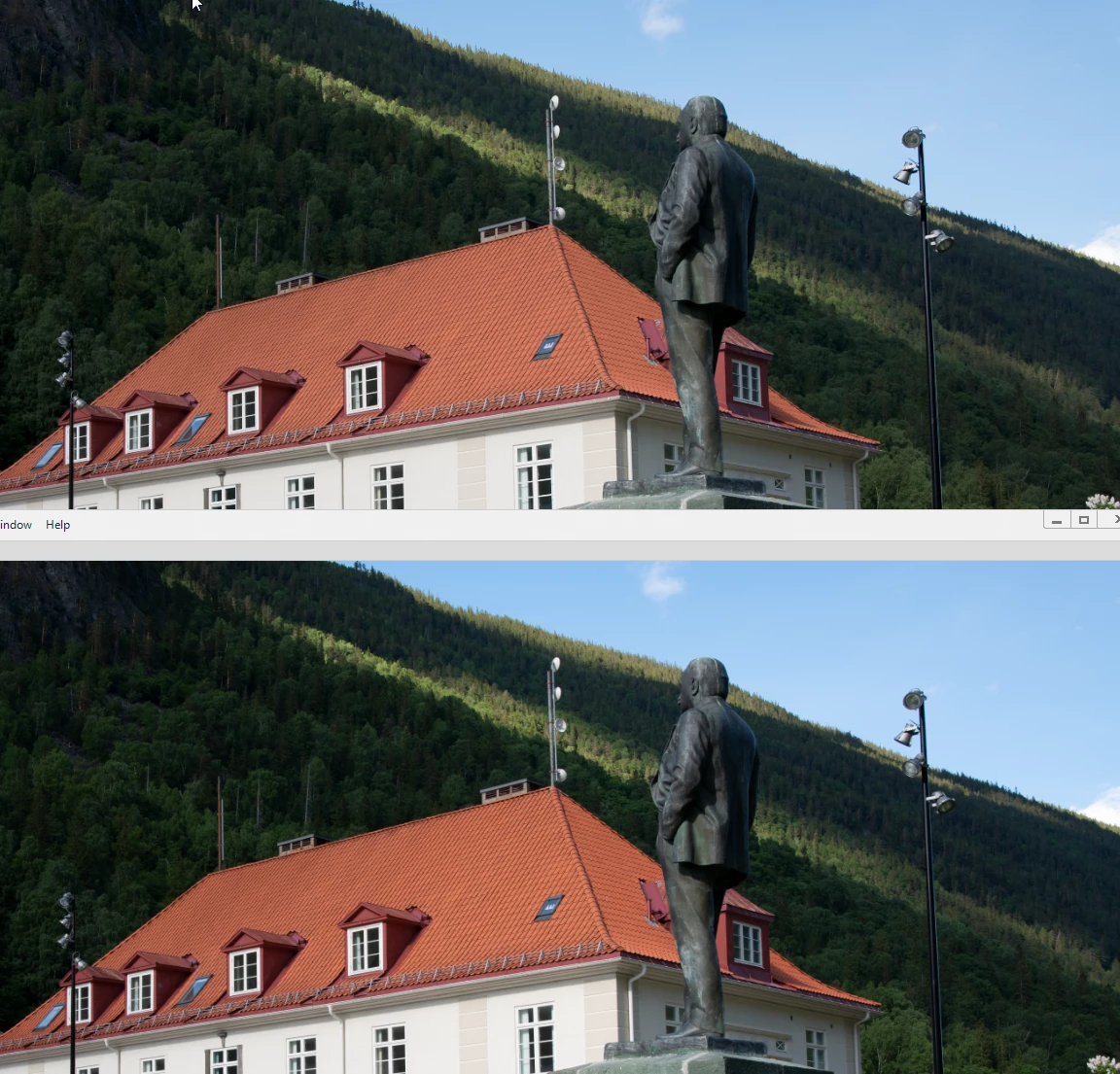

    its almost like the picture is more contrasty and more saturated than lightroom when editing in photoshop
