LrC not opening - preview cache path warning

  • October 4, 2024
  • 3 replies
  • 563 views

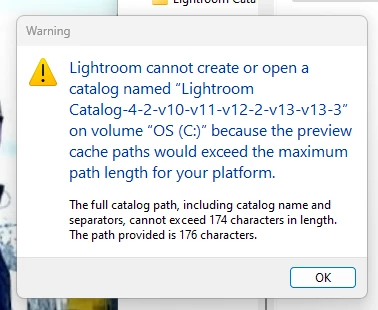

I am trying to open my lightroom classic. And I get a message that there was an error and cannot open. The warning message tells me that the preview cache paths would exceed the maximum path length for my platfom. I'm clueless. What do I do to fix this?

This topic has been closed for replies.

3 replies

GoldingD
GoldingD
Legend
October 8, 2024

Yikes!





Library Path: H:\Lightroom Backup\2024-10-02 1503\Lightroom
Catalog-4-2-v10-v11-v12-2-v13-v13-3\Lightroom
Catalog-4-2-v10-v11-v12-2-v13-v13-3.lrcat







So that would be

H:\Lightroom Backup\2024-10-02 1503\Lightroom Catalog-4-2-v10-v11-v12-2-v13-v13-3\Lightroom Catalog-4-2-v10-v11-v12-2-v13-v13-3.lrcat



That right there is something like 130 characters (including spaces and backslash(s) but ignoring the H



And is this where you keep your backups?



On the drive of your choosing create a new folder, perhaps call it Lightroom. And copy that catalog to it. And rename that catalog Lightroom-v13-3. Then if you still had that on H drive you would have

H:\Lightroom\Lightroom-v13-3.lrcat, only 31 characters (ignoring H)



Also, returning to that inquiry about backups. DO NOT KEEP BACKUPS ON THE SAME HARD DRIVE AS THE WORKING  COPY.

_____________________________________________________________________



What hard drives do you have? I think the following should be stated



  • The Lightroom Classic catalog can take advantage of being on your fastest hard drive
  • The Lightroom Classic catalog must not be on any form of network share, not a server, not a NAS, not a Cloud (not in your case)
  • The Lightroom Classic catalog should not be automatically synced to the cloud, such as OneDrive. Performance will take a hit (not in your case)
  • The Lightroom Classic Library Previews must be on the same hard drive, in the same parent folder as the catalog
  • The Camera RAW CACHE can take advantage of being on your fastest hard drive
  • The Camera RAW CACHE does not need to be on the same hard drive as the catalog
  • On Windows computers, it is recommended to not place the CAMERA RAW CACHE on the same hard drive as the Windows paging file as they will compete for read/wrights, but this is a small performance benefit/cost ratio
  • The photos do not see an advantage of being on the fastest hard drive.
  • The photos do not need to be in the same hard drive as the catalog
  • While Adobe apparently supports the photos being stored on a server, be it an actual server, a NAS, or the Cloud. Do not do that, performance can take a hit, and eventually the catalog appears to loose the connection.
  • Backups should be to separate media. If your catalog and the backup of your catalog is on the same hard drive, then you loose both when that hard drive fails.
  • Server shares such as actual Servers, NAS or the Cloud are a great place for backups
  • Think 3-2-1 for backups
  • The backup in LrC does not back many things up. See second link below











    J
    jinnyj15408250Author
    Participant
    October 8, 2024
    Thank you! This is all very helpful. I really appreciate it.


    406.599.2158
    jinnyjandronphotography@gmail.com
    www.jinnyjandronphotography.com
    johnrellis
    johnrellis
    Legend
    October 8, 2024

    Please do the LR menu command Help > System Info and copy/paste the entire contents here so we can see exactly where your catalog is residing.

    J
    jinnyj15408250Author
    Participant
    October 8, 2024
    Lightroom Classic version: 13.5.1 [ 202408271704-d15d09cd ]
    License: Creative Cloud
    Language setting: en
    Operating system: Windows 11 - Home Premium Edition
    Version: 11.0.22631
    Application architecture: x64
    System architecture: x64
    Logical processor count: 12
    Processor speed: 3.1GHz
    SqLite Version: 3.36.0
    CPU Utilisation: 0.0%
    Power Source: Plugged In
    Built-in memory: 16194.6 MB
    Dedicated GPU memory used by Lightroom: 5593.4MB / 8079.0MB (69%)
    Real memory available to Lightroom: 16194.6 MB
    Real memory used by Lightroom: 2797.7 MB (17.2%)
    Virtual memory used by Lightroom: 14248.2 MB
    GDI objects count: 1409
    USER objects count: 3617
    Process handles count: 9814
    Memory cache size: 33.7MB
    Internal Camera Raw version: 16.5 [ 1954 ]
    Maximum thread count used by Camera Raw: 5
    Camera Raw SIMD optimization: SSE2,AVX,AVX2
    Camera Raw virtual memory: 344MB / 8097MB (4%)
    Camera Raw real memory: -30540MB / 16194MB (-188%)

    Cache1:
    NT- RAM:0.0MB, VRAM:0.0MB, Combined:0.0MB

    Cache2:
    m:33.7MB, n:0.0MB

    U-main: 118.0MB

    System DPI setting: 96 DPI
    Desktop composition enabled: Yes
    Standard Preview Size: 1440 pixels
    Displays: 1) 1920x1080
    Input types: Multitouch: No, Integrated touch: No, Integrated pen: No,
    External touch: No, External pen: No, Keyboard: No

    Graphics Processor Info:
    DirectX: NVIDIA GeForce GTX 1080 (27.21.14.5751)
    Init State: GPU for Export supported by default
    User Preference: Auto
    Enable HDR in Library: OFF

    Application folder: C:\Program Files\Adobe\Adobe Lightroom Classic
    Library Path: H:\Lightroom Backup\2024-10-02 1503\Lightroom
    Catalog-4-2-v10-v11-v12-2-v13-v13-3\Lightroom
    Catalog-4-2-v10-v11-v12-2-v13-v13-3.lrcat
    Settings Folder: C:\Users\msjin\AppData\Roaming\Adobe\Lightroom

    Installed Plugins:
    1) AdobeStock
    2) Export to Photomatix Pro
    3) Flickr
    4) Nikon Tether Plugin
    5) Photomatix Batch
    6) Pixieset

    Config.lua flags:

    Adapter #1: Vendor : 10de
    Device : 1b80
    Subsystem : 33661028
    Revision : a1
    Video Memory : 8079
    Adapter #2: Vendor : 8086
    Device : 3e92
    Subsystem : 8581028
    Revision : 0
    Video Memory : 80
    Adapter #3: Vendor : 1414
    Device : 8c
    Subsystem : 0
    Revision : 0
    Video Memory : 0
    AudioDeviceIOBlockSize: 1024
    AudioDeviceName:
    AudioDeviceNumberOfChannels: 2
    AudioDeviceSampleRate: 44100
    Build: LR5x120
    Direct2DEnabled: false
    GL_ACCUM_ALPHA_BITS: 16
    GL_ACCUM_BLUE_BITS: 16
    GL_ACCUM_GREEN_BITS: 16
    GL_ACCUM_RED_BITS: 16
    GL_ALPHA_BITS: 0
    GL_BLUE_BITS: 8
    GL_DEPTH_BITS: 24
    GL_GREEN_BITS: 8
    GL_MAX_3D_TEXTURE_SIZE: 16384
    GL_MAX_TEXTURE_SIZE: 32768
    GL_MAX_TEXTURE_UNITS: 4
    GL_MAX_VIEWPORT_DIMS: 32768,32768
    GL_RED_BITS: 8
    GL_RENDERER: GeForce GTX 1080/PCIe/SSE2
    GL_SHADING_LANGUAGE_VERSION: 4.60 NVIDIA
    GL_STENCIL_BITS: 8
    GL_VENDOR: NVIDIA Corporation
    GL_VERSION: 4.6.0 NVIDIA 457.51
    GPUDeviceEnabled: false
    OGLEnabled: true
    GL_EXTENSIONS: GL_AMD_multi_draw_indirect
    GL_AMD_seamless_cubemap_per_texture GL_AMD_vertex_shader_viewport_index
    GL_AMD_vertex_shader_layer GL_ARB_arrays_of_arrays GL_ARB_base_instance
    GL_ARB_bindless_texture GL_ARB_blend_func_extended GL_ARB_buffer_storage
    GL_ARB_clear_buffer_object GL_ARB_clear_texture GL_ARB_clip_control
    GL_ARB_color_buffer_float GL_ARB_compatibility
    GL_ARB_compressed_texture_pixel_storage GL_ARB_conservative_depth
    GL_ARB_compute_shader GL_ARB_compute_variable_group_size
    GL_ARB_conditional_render_inverted GL_ARB_copy_buffer GL_ARB_copy_image
    GL_ARB_cull_distance GL_ARB_debug_output GL_ARB_depth_buffer_float
    GL_ARB_depth_clamp GL_ARB_depth_texture GL_ARB_derivative_control
    GL_ARB_direct_state_access GL_ARB_draw_buffers GL_ARB_draw_buffers_blend
    GL_ARB_draw_indirect GL_ARB_draw_elements_base_vertex GL_ARB_draw_instanced
    GL_ARB_enhanced_layouts GL_ARB_ES2_compatibility GL_ARB_ES3_compatibility
    GL_ARB_ES3_1_compatibility GL_ARB_ES3_2_compatibility
    GL_ARB_explicit_attrib_location GL_ARB_explicit_uniform_location
    GL_ARB_fragment_coord_conventions GL_ARB_fragment_layer_viewport
    GL_ARB_fragment_program GL_ARB_fragment_program_shadow
    GL_ARB_fragment_shader GL_ARB_fragment_shader_interlock
    GL_ARB_framebuffer_no_attachments GL_ARB_framebuffer_object
    GL_ARB_framebuffer_sRGB GL_ARB_geometry_shader4 GL_ARB_get_program_binary
    GL_ARB_get_texture_sub_image GL_ARB_gl_spirv GL_ARB_gpu_shader5
    GL_ARB_gpu_shader_fp64 GL_ARB_gpu_shader_int64 GL_ARB_half_float_pixel
    GL_ARB_half_float_vertex GL_ARB_imaging GL_ARB_indirect_parameters
    GL_ARB_instanced_arrays GL_ARB_internalformat_query
    GL_ARB_internalformat_query2 GL_ARB_invalidate_subdata
    GL_ARB_map_buffer_alignment GL_ARB_map_buffer_range GL_ARB_multi_bind
    GL_ARB_multi_draw_indirect GL_ARB_multisample GL_ARB_multitexture
    GL_ARB_occlusion_query GL_ARB_occlusion_query2
    GL_ARB_parallel_shader_compile GL_ARB_pipeline_statistics_query
    GL_ARB_pixel_buffer_object GL_ARB_point_parameters GL_ARB_point_sprite
    GL_ARB_polygon_offset_clamp GL_ARB_post_depth_coverage
    GL_ARB_program_interface_query GL_ARB_provoking_vertex
    GL_ARB_query_buffer_object GL_ARB_robust_buffer_access_behavior
    GL_ARB_robustness GL_ARB_sample_locations GL_ARB_sample_shading
    GL_ARB_sampler_objects GL_ARB_seamless_cube_map
    GL_ARB_seamless_cubemap_per_texture GL_ARB_separate_shader_objects
    GL_ARB_shader_atomic_counter_ops GL_ARB_shader_atomic_counters
    GL_ARB_shader_ballot GL_ARB_shader_bit_encoding GL_ARB_shader_clock
    GL_ARB_shader_draw_parameters GL_ARB_shader_group_vote
    GL_ARB_shader_image_load_store GL_ARB_shader_image_size
    GL_ARB_shader_objects GL_ARB_shader_precision
    GL_ARB_shader_storage_buffer_object GL_ARB_shader_subroutine
    GL_ARB_shader_texture_image_samples GL_ARB_shader_texture_lod
    GL_ARB_shading_language_100 GL_ARB_shader_viewport_layer_array
    GL_ARB_shading_language_420pack GL_ARB_shading_language_include
    GL_ARB_shading_language_packing GL_ARB_shadow GL_ARB_sparse_buffer
    GL_ARB_sparse_texture GL_ARB_sparse_texture2 GL_ARB_sparse_texture_clamp
    GL_ARB_spirv_extensions GL_ARB_stencil_texturing GL_ARB_sync
    GL_ARB_tessellation_shader GL_ARB_texture_barrier
    GL_ARB_texture_border_clamp GL_ARB_texture_buffer_object
    GL_ARB_texture_buffer_object_rgb32 GL_ARB_texture_buffer_range
    GL_ARB_texture_compression GL_ARB_texture_compression_bptc
    GL_ARB_texture_compression_rgtc GL_ARB_texture_cube_map
    GL_ARB_texture_cube_map_array GL_ARB_texture_env_add
    GL_ARB_texture_env_combine GL_ARB_texture_env_crossbar
    GL_ARB_texture_env_dot3 GL_ARB_texture_filter_anisotropic
    GL_ARB_texture_filter_minmax GL_ARB_texture_float GL_ARB_texture_gather
    GL_ARB_texture_mirror_clamp_to_edge GL_ARB_texture_mirrored_repeat
    GL_ARB_texture_multisample GL_ARB_texture_non_power_of_two
    GL_ARB_texture_query_levels GL_ARB_texture_query_lod
    GL_ARB_texture_rectangle GL_ARB_texture_rg GL_ARB_texture_rgb10_a2ui
    GL_ARB_texture_stencil8 GL_ARB_texture_storage
    GL_ARB_texture_storage_multisample GL_ARB_texture_swizzle
    GL_ARB_texture_view GL_ARB_timer_query GL_ARB_transform_feedback2
    GL_ARB_transform_feedback3 GL_ARB_transform_feedback_instanced
    GL_ARB_transform_feedback_overflow_query GL_ARB_transpose_matrix
    GL_ARB_uniform_buffer_object GL_ARB_vertex_array_bgra
    GL_ARB_vertex_array_object GL_ARB_vertex_attrib_64bit
    GL_ARB_vertex_attrib_binding GL_ARB_vertex_buffer_object
    GL_ARB_vertex_program GL_ARB_vertex_shader
    GL_ARB_vertex_type_10f_11f_11f_rev GL_ARB_vertex_type_2_10_10_10_rev
    GL_ARB_viewport_array GL_ARB_window_pos GL_ATI_draw_buffers
    GL_ATI_texture_float GL_ATI_texture_mirror_once GL_S3_s3tc
    GL_EXT_texture_env_add GL_EXT_abgr GL_EXT_bgra GL_EXT_bindable_uniform
    GL_EXT_blend_color GL_EXT_blend_equation_separate
    GL_EXT_blend_func_separate GL_EXT_blend_minmax GL_EXT_blend_subtract
    GL_EXT_compiled_vertex_array GL_EXT_Cg_shader GL_EXT_depth_bounds_test
    GL_EXT_direct_state_access GL_EXT_draw_buffers2 GL_EXT_draw_instanced
    GL_EXT_draw_range_elements GL_EXT_fog_coord GL_EXT_framebuffer_blit
    GL_EXT_framebuffer_multisample GL_EXTX_framebuffer_mixed_formats
    GL_EXT_framebuffer_multisample_blit_scaled GL_EXT_framebuffer_object
    GL_EXT_framebuffer_sRGB GL_EXT_geometry_shader4
    GL_EXT_gpu_program_parameters GL_EXT_gpu_shader4 GL_EXT_multi_draw_arrays
    GL_EXT_multiview_texture_multisample GL_EXT_multiview_timer_query
    GL_EXT_packed_depth_stencil GL_EXT_packed_float GL_EXT_packed_pixels
    GL_EXT_pixel_buffer_object GL_EXT_point_parameters
    GL_EXT_polygon_offset_clamp GL_EXT_post_depth_coverage
    GL_EXT_provoking_vertex GL_EXT_raster_multisample GL_EXT_rescale_normal
    GL_EXT_secondary_color GL_EXT_separate_shader_objects
    GL_EXT_separate_specular_color GL_EXT_shader_image_load_formatted
    GL_EXT_shader_image_load_store GL_EXT_shader_integer_mix
    GL_EXT_shadow_funcs GL_EXT_sparse_texture2 GL_EXT_stencil_two_side
    GL_EXT_stencil_wrap GL_EXT_texture3D GL_EXT_texture_array
    GL_EXT_texture_buffer_object GL_EXT_texture_compression_dxt1
    GL_EXT_texture_compression_latc GL_EXT_texture_compression_rgtc
    GL_EXT_texture_compression_s3tc GL_EXT_texture_cube_map
    GL_EXT_texture_edge_clamp GL_EXT_texture_env_combine
    GL_EXT_texture_env_dot3 GL_EXT_texture_filter_anisotropic
    GL_EXT_texture_filter_minmax GL_EXT_texture_integer GL_EXT_texture_lod
    GL_EXT_texture_lod_bias GL_EXT_texture_mirror_clamp GL_EXT_texture_object
    GL_EXT_texture_shadow_lod GL_EXT_texture_shared_exponent
    GL_EXT_texture_sRGB GL_EXT_texture_sRGB_R8 GL_EXT_texture_sRGB_decode
    GL_EXT_texture_storage GL_EXT_texture_swizzle GL_EXT_timer_query
    GL_EXT_transform_feedback2 GL_EXT_vertex_array GL_EXT_vertex_array_bgra
    GL_EXT_vertex_attrib_64bit GL_EXT_window_rectangles
    GL_EXT_import_sync_object GL_IBM_rasterpos_clip
    GL_IBM_texture_mirrored_repeat GL_KHR_context_flush_control GL_KHR_debug
    GL_EXT_memory_object GL_EXT_memory_object_win32 GL_EXT_win32_keyed_mutex
    GL_KHR_parallel_shader_compile GL_KHR_no_error
    GL_KHR_robust_buffer_access_behavior GL_KHR_robustness GL_EXT_semaphore
    GL_EXT_semaphore_win32 GL_KHR_shader_subgroup GL_KTX_buffer_region
    GL_NV_alpha_to_coverage_dither_control GL_NV_bindless_multi_draw_indirect
    GL_NV_bindless_multi_draw_indirect_count GL_NV_bindless_texture
    GL_NV_blend_equation_advanced GL_NV_blend_equation_advanced_coherent
    GL_NVX_blend_equation_advanced_multi_draw_buffers GL_NV_blend_minmax_factor
    GL_NV_blend_square GL_NV_clip_space_w_scaling GL_NV_command_list
    GL_NV_compute_program5 GL_NV_conditional_render GL_NV_conservative_raster
    GL_NV_conservative_raster_dilate
    GL_NV_conservative_raster_pre_snap_triangles GL_NV_copy_depth_to_color
    GL_NV_copy_image GL_NV_depth_buffer_float GL_NV_depth_clamp
    GL_NV_draw_texture GL_NV_draw_vulkan_image GL_NV_ES1_1_compatibility
    GL_NV_ES3_1_compatibility GL_NV_explicit_multisample GL_NV_feature_query
    GL_NV_fence GL_NV_fill_rectangle GL_NV_float_buffer GL_NV_fog_distance
    GL_NV_fragment_coverage_to_color GL_NV_fragment_program
    GL_NV_fragment_program_option GL_NV_fragment_program2
    GL_NV_fragment_shader_interlock GL_NV_framebuffer_mixed_samples
    GL_NV_framebuffer_multisample_coverage GL_NV_geometry_shader4
    GL_NV_geometry_shader_passthrough GL_NV_gpu_program4
    GL_NV_internalformat_sample_query GL_NV_gpu_program4_1 GL_NV_gpu_program5
    GL_NV_gpu_program5_mem_extended GL_NV_gpu_program_fp64 GL_NV_gpu_shader5
    GL_NV_half_float GL_NV_light_max_exponent GL_NV_memory_attachment
    GL_NV_multisample_coverage GL_NV_multisample_filter_hint
    GL_NV_occlusion_query GL_NV_packed_depth_stencil
    GL_NV_parameter_buffer_object GL_NV_parameter_buffer_object2
    GL_NV_path_rendering GL_NV_path_rendering_shared_edge
    GL_NV_pixel_data_range GL_NV_point_sprite GL_NV_primitive_restart
    GL_NV_query_resource GL_NV_query_resource_tag GL_NV_register_combiners
    GL_NV_register_combiners2 GL_NV_sample_locations
    GL_NV_sample_mask_override_coverage GL_NV_shader_atomic_counters
    GL_NV_shader_atomic_float GL_NV_shader_atomic_float64
    GL_NV_shader_atomic_fp16_vector GL_NV_shader_atomic_int64
    GL_NV_shader_buffer_load GL_NV_shader_storage_buffer_object
    GL_NV_shader_subgroup_partitioned GL_NV_stereo_view_rendering
    GL_NV_texgen_reflection GL_NV_texture_barrier GL_NV_texture_compression_vtc
    GL_NV_texture_env_combine4 GL_NV_texture_multisample
    GL_NV_texture_rectangle GL_NV_texture_rectangle_compressed
    GL_NV_texture_shader GL_NV_texture_shader2 GL_NV_texture_shader3
    GL_NV_transform_feedback GL_NV_transform_feedback2
    GL_NV_uniform_buffer_unified_memory GL_NV_vertex_array_range
    GL_NV_vertex_array_range2 GL_NV_vertex_attrib_integer_64bit
    GL_NV_vertex_buffer_unified_memory GL_NV_vertex_program
    GL_NV_vertex_program1_1 GL_NV_vertex_program2 GL_NV_vertex_program2_option
    GL_NV_vertex_program3 GL_NV_viewport_array2 GL_NV_viewport_swizzle
    GL_NVX_conditional_render GL_NVX_linked_gpu_multicast GL_NV_gpu_multicast
    GL_NVX_gpu_multicast2 GL_NVX_progress_fence GL_NVX_gpu_memory_info
    GL_NVX_multigpu_info GL_NVX_nvenc_interop GL_NV_shader_thread_group
    GL_NV_shader_thread_shuffle GL_KHR_blend_equation_advanced
    GL_KHR_blend_equation_advanced_coherent GL_OVR_multiview GL_OVR_multiview2
    GL_SGIS_generate_mipmap GL_SGIS_texture_lod GL_SGIX_depth_texture
    GL_SGIX_shadow GL_SUN_slice_accum GL_WIN_swap_hint WGL_EXT_swap_control



    406.599.2158
    jinnyjandronphotography@gmail.com
    www.jinnyjandronphotography.com
    GoldingD
    GoldingD
    Legend
    October 5, 2024

    With the catalog file name getting long, the preview file names get even longer, and this can get to the point where Windows OS file name limitations pop up. (this involves the entire path name, not just the file name)



    That catalog  file name

    Catalog-4-2-v10-v11-v12-2-v13-v13-3"

    'Does not need to contain the history of previous upgrades, v1-, v11, v12, etc. Simplify it

    Catalog_13-3

    Would do.









      J
      jinnyj15408250Author
      Participant
      October 8, 2024
      Thank you! How do I go about renaming the file so that LrC will still
      recognize it?


      406.599.2158
      jinnyjandronphotography@gmail.com
      www.jinnyjandronphotography.com
      Terms & ConditionsAccessibility statement
      Using the community Terms of use Privacy Cookie preferences Do not sell or share my personal information ad choicesAdChoices
