Masking slow - overlay takes 1 minute to display

  • August 20, 2022
  • 2 replies
  • 450 views

While my system is older (2017), the masking feature in the latest version of lightroom is almost unusable. I am working on DNG's that are 16 bit (HDR) files and it exhibits the following problematic issues:
1. Red overlay when selecting an already created mask takes over 1 minute to display
2. Updating the mask is slow, particularly when using the brush tool where the wheel starts spinning sometimes even after momentarily starting to paint the mask. Often only a small area of what was painted updates
3. The effects take several seconds to manifest themselves.
4. Selecting a mask can be difficult due to the slowness of the machine to react so I sometimes end up selecting subject when I want to select sky.

Any help would be appreciated. Thank-you.

What follows is a list from LRC of the system info:

Lightroom Classic version: 11.5 [ 202208080927-8a575c91 ]
License: Creative Cloud
Language setting: en-US
Operating system: Mac OS 12
Version: 12.5.1 [21G83]
Application architecture: x64
Logical processor count: 4
Processor speed: 3.4GHz
SqLite Version: 3.36.0
Built-in memory: 16,384.0 MB
Real memory available to Lightroom: 16,384.0 MB
Real memory used by Lightroom: 3,669.2 MB (22.3%)
Virtual memory used by Lightroom: 45,556.0 MB
Memory cache size: 6.2MB
Internal Camera Raw version: 14.5 [ 1177 ]
Maximum thread count used by Camera Raw: 3
Camera Raw SIMD optimization: SSE2,AVX,AVX2
Camera Raw virtual memory: 1191MB / 8191MB (14%)
Camera Raw real memory: 1271MB / 16384MB (7%)
Displays: 1) 5120x2880

Graphics Processor Info:
Metal: AMD Radeon Pro 570


Init State: 3
User Preference: 4

Application folder: /Applications/Adobe Lightroom Classic
Library Path: /Users/davidsimon/Pictures/Lightroom/David Lightroom Catalog-2/David Lightroom Catalog-2-2-2-2-2-2-v10-v11.lrcat
Settings Folder: /Users/davidsimon/Library/Application Support/Adobe/Lightroom

Installed Plugins:
1) AdobeStock
2) Aperture/iPhoto Importer Plug-in
3) Facebook
4) Flickr
5) LR/Enfuse
6) Luminar Flex
7) Nikon Tether Plugin
😎 ON1 Effects 2022
9) ON1 Effects Standalone 2021
10) ON1 HDR 2022
11) ON1 HDR Standalone 2021
12) ON1 NoNoise AI 2022
13) ON1 Photo RAW 2021
14) ON1 Photo RAW 2022
15) ON1 Portrait AI 2022
16) ON1 Portrait AI Standalone 2021
17) ON1 Resize 2021
18) ON1 Resize 2022
19) ON1 Resize Standalone 2021

Config.lua flags: None





This topic has been closed for replies.

2 replies

dj_paige
dj_paige
Legend
August 23, 2022

@dqsimon150

Five year old GPU, and 5K screen. That is the first thing I see that could be related to your issue. Is the GPU turned on in LrC (Preferences->Performance->Use Graphics Processor)?



I see that recommending gaming use for this GPU stops at 2560x1440. I don't know how that relates to LrC performance, but I wouldn't be surprised if your GPU is the problem.

GoldingD
GoldingD
Legend
August 20, 2022





Camera Raw virtual memory: 1191MB / 8191MB (14%)
Camera Raw real memory: 1271MB / 16384MB (7%)



Never clear to me exactly what those two lines tell me.That is, exactly what is setup in preferences for Camera RAW?

So, how much have you alloted?



Displays: 1) 5120x2880
Graphics Processor Info:
Metal: AMD Radeon Pro 570



In Preferences, what is shown for use of the GPU? A screenshot may be helpful. Huge resolution on a old GPU. Are you getting full acceleration?

Also, how much VRAM?



17) ON1 Resize 2021
18) ON1 Resize 2022



More of an observation than a solution, and probably not a performance problem at all. But the older plugins, ON1 2021 vs 2022, any teadon to keep the old ones?



And a question, in your external editor preferences, for that ON1 Resize 2022, does that point to a standalone Resize, or something in ON1 PhotoRAW 2022? Using a preset to edit in ON1 PhotoRAW 2022, then trying to select Resize, is not working for me.



Library Path: /Users/davidsimon/Pictures/Lightroom/David Lightroom Catalog-2/David Lightroom Catalog-2-2-2-2-2-2-v10-v11.lrcat



I would comment that your catalog full path  name is getting a bit long, but MACOS not Windows. If Windows, it would be a good idea to rename, using something shorter, like Davids Lightroom Catalog V11. On a Windows computer, every character from that U in users  (or is the first / included?) to the t in catalog would add up, and when you approach 254 characters, boom, no access. Oh, and that goes for the other files along with the catalog, some that add additional characters. This may actuall go south in LrC on a Windows computer a few characters before the limit. This has nothing to do with performance.



G
guyeatsoctopus
Participant
August 23, 2022

I'm having similar issues but on a newer Mac system. M1 Mac Mini, 16GB ram. Two weeks ago I was masking images just fine with little to no delay. Then Sunday evening I went back to this project and noticed now that masking is lagged a lot. I go to make changes to a mask then I have to wait a few seconds to see if it applied or not, try again wait again. It takes 3-10'sh seconds for it to catch up.  I updated to the latest version of LRC and Camera Raw but it still does it. Maybe the change history on this image has gotten too long? I'm not sure. Not sure what happened, but it's made editing super annoying and time-consuming.

My info:

Lightroom Classic version: 11.5 [ 202208080927-8a575c91 ]
License: Creative Cloud
Language setting: en-US
Operating system: Mac OS 12
Version: 12.4.0 [21F79]
Application architecture: arm64
Logical processor count: 8
Processor speed: NA
SqLite Version: 3.36.0
Built-in memory: 16,384.0 MB
Real memory available to Lightroom: 16,384.0 MB
Real memory used by Lightroom: 2,201.9 MB (13.4%)
Virtual memory used by Lightroom: 464,831.7 MB
Memory cache size: 19.5MB
Internal Camera Raw version: 14.5 [ 1177 ]
Maximum thread count used by Camera Raw: 5
Camera Raw SIMD optimization: SSE2
Camera Raw virtual memory: 1374MB / 8191MB (16%)
Camera Raw real memory: 1612MB / 16384MB (9%)
Displays: 1) 1920x1200

Graphics Processor Info:
Metal: Apple M1


Init State: 5
User Preference: 1

Application folder: /Applications/Adobe Lightroom Classic
Library Path: /Volumes/WD2TBX/Pictures/Lightroom/Lightroom Catalog 20211229.lrcat
Settings Folder: /Users/guyeatsoctopus/Library/Application Support/Adobe/Lightroom

Installed Plugins:
1) AdobeStock
2) Aperture/iPhoto Importer Plug-in
3) Facebook
4) Flickr
5) Nikon Tether Plugin

Config.lua flags: None

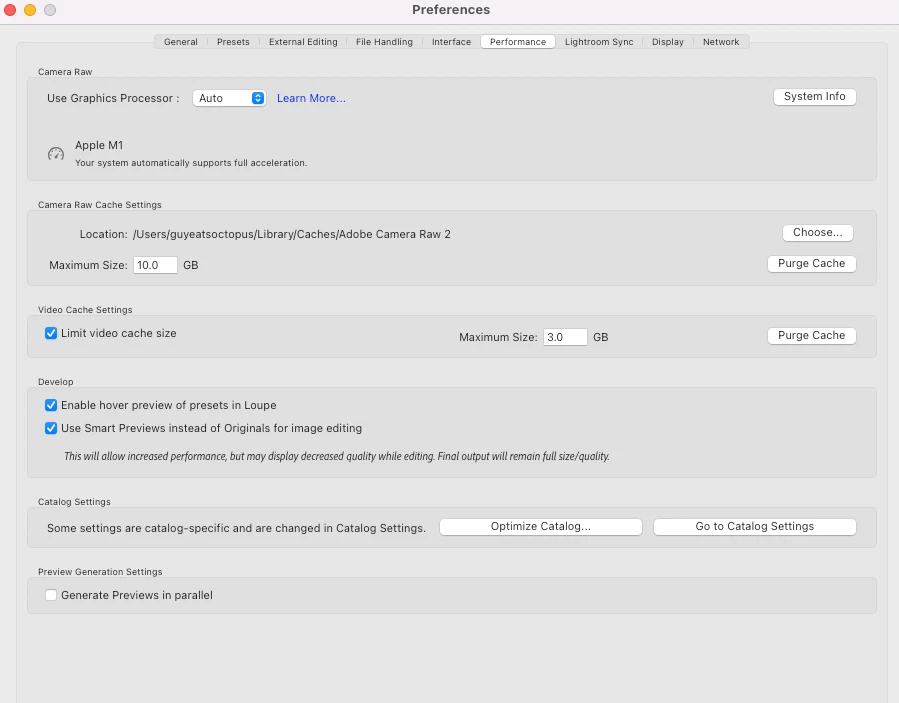

Screenshot of the performance tab.

dj_paige
dj_paige
Legend
August 23, 2022

@guyeatsoctopusPlease start a new thread, as your situation is clearly different (different hardware). I'll be happy to discuss it in a new thread. I will not discuss it in this thread.
