No edit done on TIFF image imported in LR from PS; but before and after is different

Forum|Forum|4 years ago
August 1, 2021
6 replies
716 views

I am facing a strange issue on many images on which I followed the same process :

- OS MAC 10.15.7

- Import RAW images from SD card to LR classic (currently 10.3)

- Basic edits in LR

- Edit image in PS (curently 22.4.2)

- After editing in PS, I save it which automatically saves it back to LR as a TIFF file

- If I look at that TIFF file in LR it seems flatter and less vibrant than in PS. I then realized that when I press the before and after option, it shows a before that seems like the exact copy of the PS rendering and the after is the flatter version

- But I haved not done any editing to that TIFF file in LR how can there be a before and after and how can it be different. And I cannot stay on/keep that before version, it goes away when I take any other action

- And most importantly how can I get and keep the proper version of that TIFF file in LR ???

- Both LR and PS color settings are on Prophoto RGB

Thanks in advance!

macOS

This topic has been closed for replies.

DdeGannes

Community Expert

The only thing I can put down that would cause the issue you are experiencing relates to color management. When you view image file in the Library Module the displayed image is the preview file which is Adobe RGB, the Develop module uses the original file which is ProPhoto RGB.

It may help if you profile and calibrate your display using a physical device.

Some info at the link below.

https://www.lightroomqueen.com/how-do-i-change-my-monitor-profile-to-check-whether-its-corrupted/

Regards, Denis: iMac 27” mid-2015, macOS 11.7.10 Big Sur; 2TB SSD, 24 GB Ram, GPU 2 GB; LrC 12.5,; Lr 6.5, PS 24.7,; ACR 15.5,; (also Laptop Win 11, ver 24H2, LrC 15.3; PS 27.0; ) Camera Oly OM-D E-M1.

Florence_in_SwitzerlandAuthor

Known Participant

Thanks Denis. I do have Spyder installed. I was going to check the guidelines and see if anything else was amiss. Meantime I restarted my computer and the issue seems gone..... !!!

F

JohanElzenga

Community Expert

Have you checked that you do not have soft proof enabled in the develop module?

-- Johan W. Elzenga

Florence_in_SwitzerlandAuthor

Known Participant

thanks Johan, I just did and it is not enabled.

JohanElzenga

Community Expert

Well, that does indeed leave a corrupted monitor profile as one of the few options left.

-- Johan W. Elzenga

DdeGannes

Community Expert

A couple of thoughts did you import a RAW file into LrC?

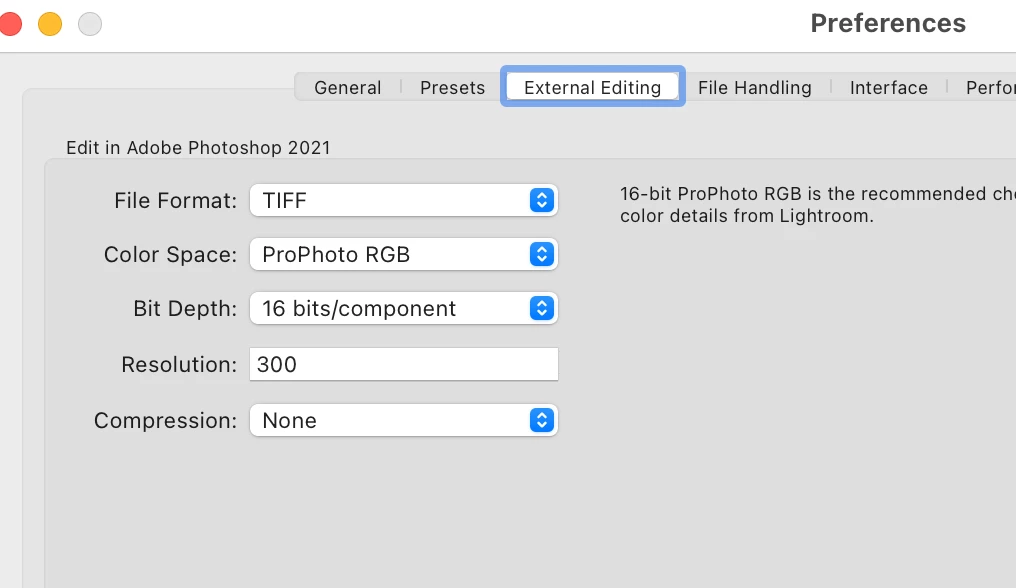

What settings did you have in the edit in PS process? Save as TIFF? Was it set to Adobe RGB or ProPhotoRGB?

I see you have set PS working color space but it's important to know how the image was saved.

Regards, Denis: iMac 27” mid-2015, macOS 11.7.10 Big Sur; 2TB SSD, 24 GB Ram, GPU 2 GB; LrC 12.5,; Lr 6.5, PS 24.7,; ACR 15.5,; (also Laptop Win 11, ver 24H2, LrC 15.3; PS 27.0; ) Camera Oly OM-D E-M1.

Florence_in_SwitzerlandAuthor

Known Participant

Thanks Denis. Yes to all your questions. The one thing I just found out, it's getting weirder..:

- in LR I was finding the issue in the develop module, before and after different even though I have not edited in LR (after the passage in PS)

- now if I look at the same image in the library module it looks fine, i.e. like the before in develop module, i.e. like it should be (slightly more vibrant, more contrast)

- I just checked several images that have the same issue and they all appear different in the develop compared to the library module.....

- I compared the images in LR with jpg exports I had done from LR and they look like the LR image in the library module

- I just don't understand why the image in the develop module would look different than in the library module. So confusing.....

GoldingD

Legend

So, in LrC, after the image returns to LrC. Before you touch anything. Over in the various panels (right side) has LrC touched any sliders? Not you, but LrC, as in some Develop RAW defaults are fouling things up.

Oh, and did the profile change?

Florence_in_SwitzerlandAuthor

Known Participant

Thanks again for your questions. I have not touched anything in the panels and LR has not either, all sliders are untouched. The one thing I just found out, it's getting weirder..:

- in LR I was finding the issue in the develop module, before and after different even though I have not edited in LR (after the passage in PS)

- now if I look at the same image in the library module it looks fine, i.e. like the before in develop module, i.e. like it should be (slightly more vibrant, more contrast)

- I just checked several images that have the same issue and they all appear different in the develop compared to the library module.....

- I compared the images in LR with jpg exports I had done from LR and they look like the LR image in the library module

- I just don't understand why the image in the develop module would look different than in the library module. So confusing.....

GoldingD

Legend

Both LR and PS color settings are on Prophoto RGB

You are looking at the image in the Develop module?

Following implys you are, just checking.

when I press the before and after option, it shows a before that seems like the exact copy of the PS rendering and the after is the flatter version

GoldingD

Legend

Edit image in PS (curently 22.4.2)

By that, do you mean that in LrC you select Edit in PS?

Following implys so, but just to be certain

After editing in PS, I save it which automatically saves it back to LR as a TIFF file

Florence_in_SwitzerlandAuthor

Known Participant

Yes I do select Edit in PS. And yes to your following question I am looking at the image in the develop module
