RAF from Fujifilm X-T5 not loading built-in lens profile (distortion/vignette) until zoomed to 100%

  • January 5, 2023
  • 返信数 4.
  • 3269 ビュー

Raw images from the X-T5 are not loading the built-in lens profile until the image is zoomed to 100%

This makes the images look heavily vignetted and distorted until the image is zoomed to 100%



Basic Steps to reproduce:

  • Open image in develop module
  • Image looks heavily vignetted and distorted

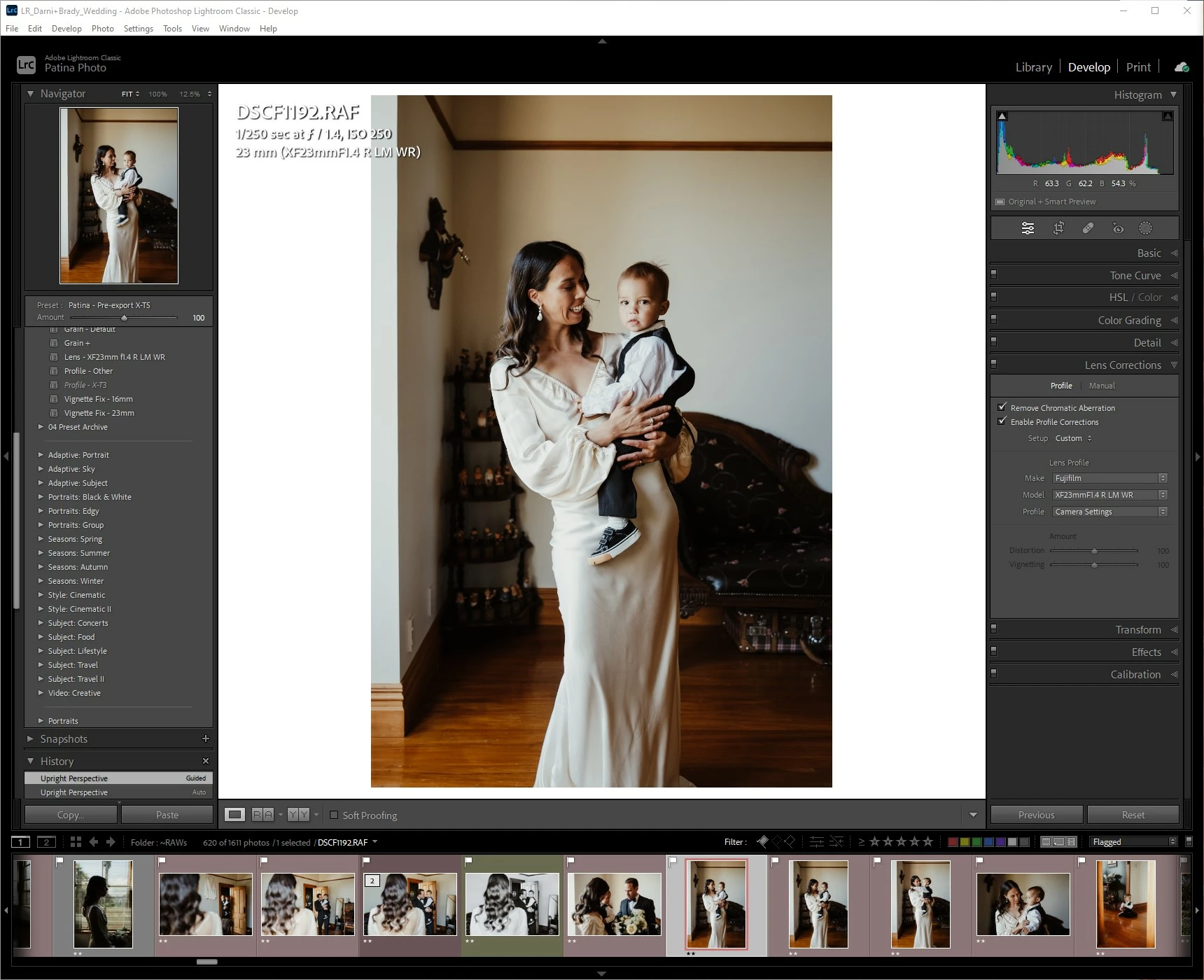

  • Zoom image to 100%
  • Image seems to reload, and the lens profile is applied.
  • Zoom out --image now looks correct



Lightroom Classic Version: 12.1 build 202212072312-d7ab524b

OS Version: Windows 10 Home 19045.2364

Camera: Fujifilm X-T5

Lens: XF23mmF1.4 R LM WR (but also on other lenses as well)

    このトピックへの返信は締め切られました。

    返信数 4

    D
    deanw69410963
    Participant
    March 6, 2023

    I have the exact same issue with my XT-5 and 23mm LM WR. Somehow it seems like on my 33mm LM WR this problem does not appear. It seems to only affect my 23mm on X-T5. The bummer is that after zooming out the rest out of the photos revert back to the distorted versions. Incredibly tough to edit huge batches of files.



    Did u mange to find a solution?

    GoldingD
    GoldingD
    Legend
    January 16, 2023

    Interesting, I have an X-T5, I have Windows, so I just got off my rear end to look at this.

    (note, I have bairly touched this camera as of yet, but well experience with earlier Fiji X))

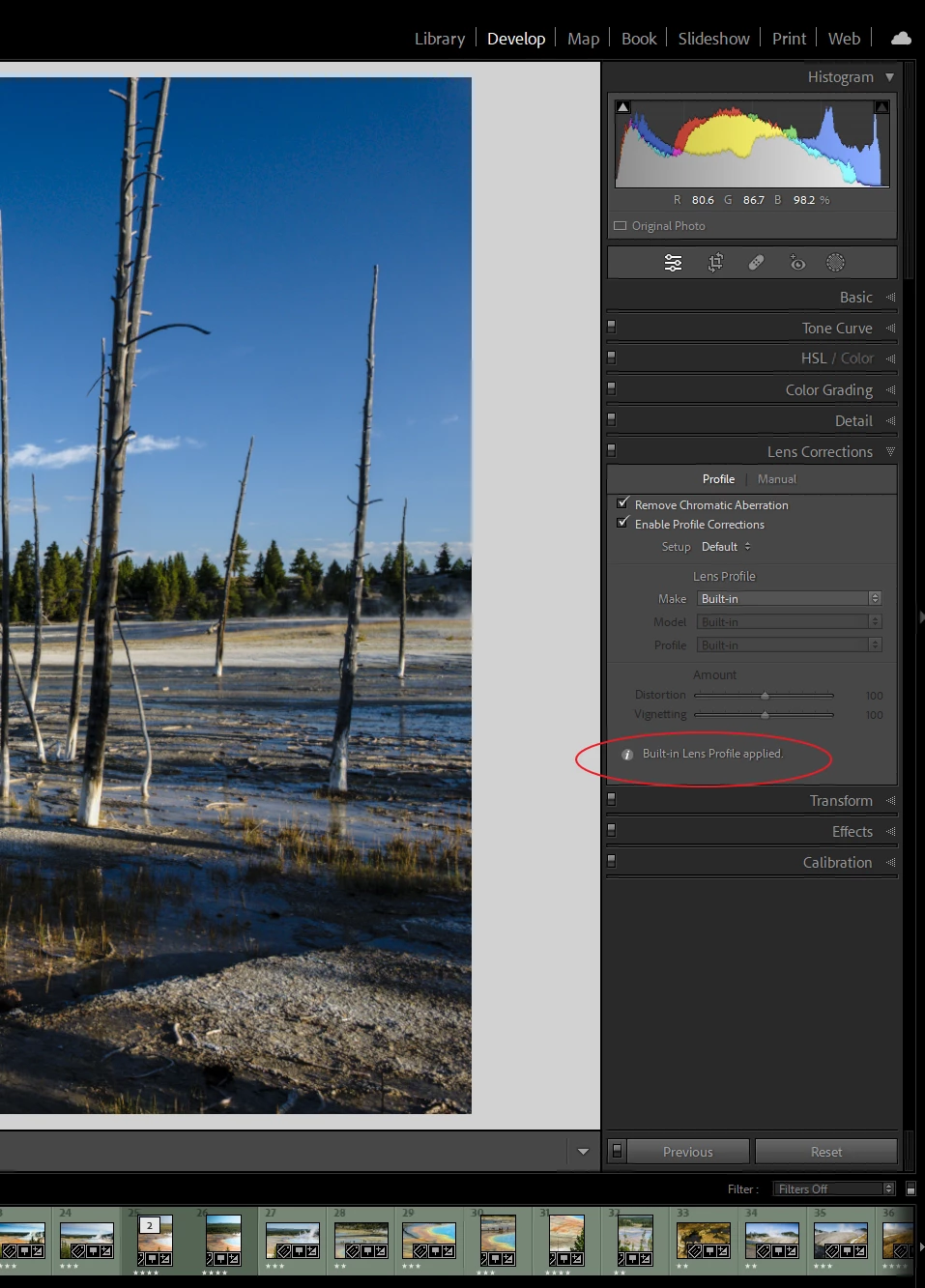

    First interesting issue is that we are not forced to use built-in Lens Profile (correction) as for example on my X-T3:

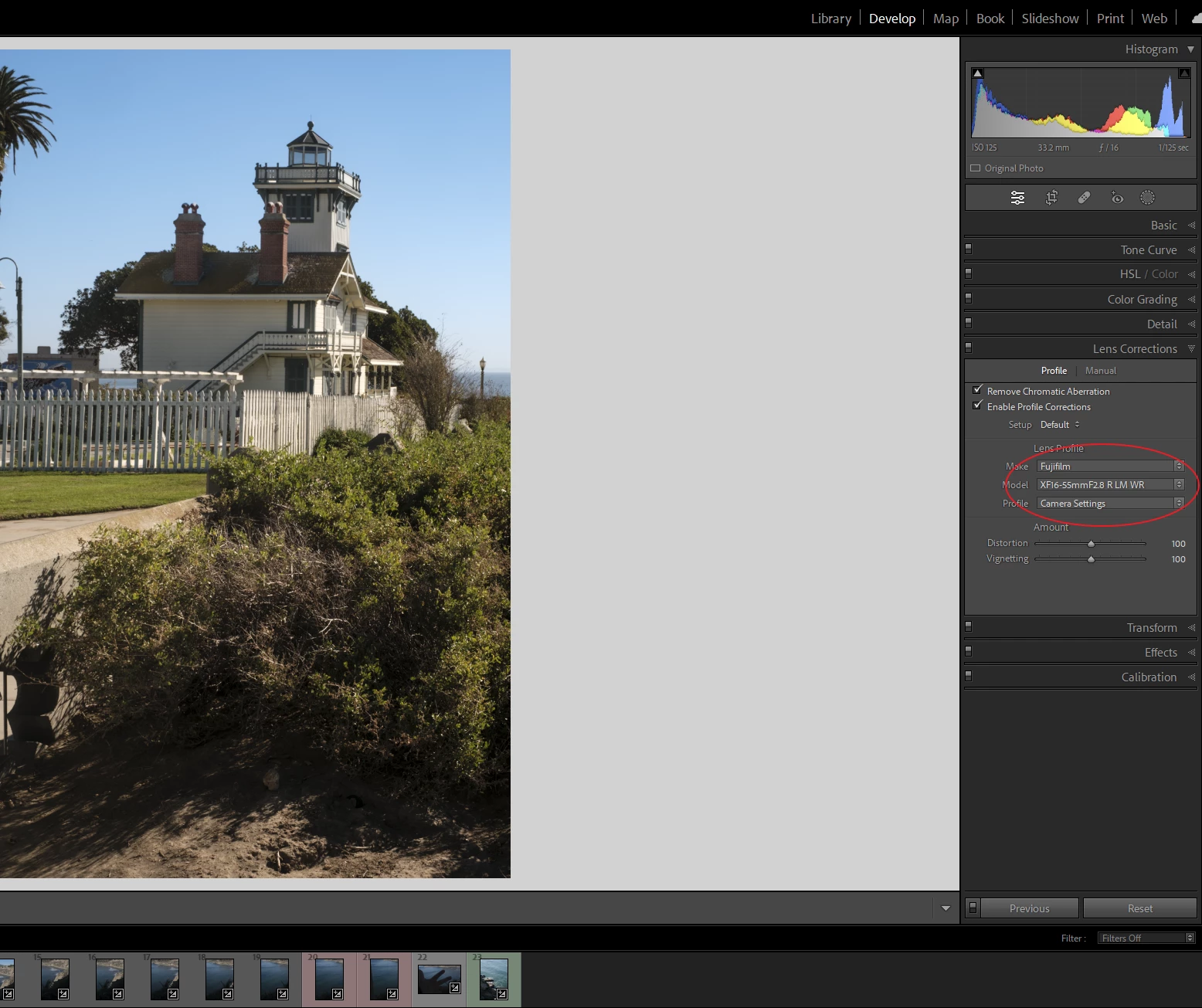

    Instead, as requested by many many members, we get to select (auto in this case) the lens.

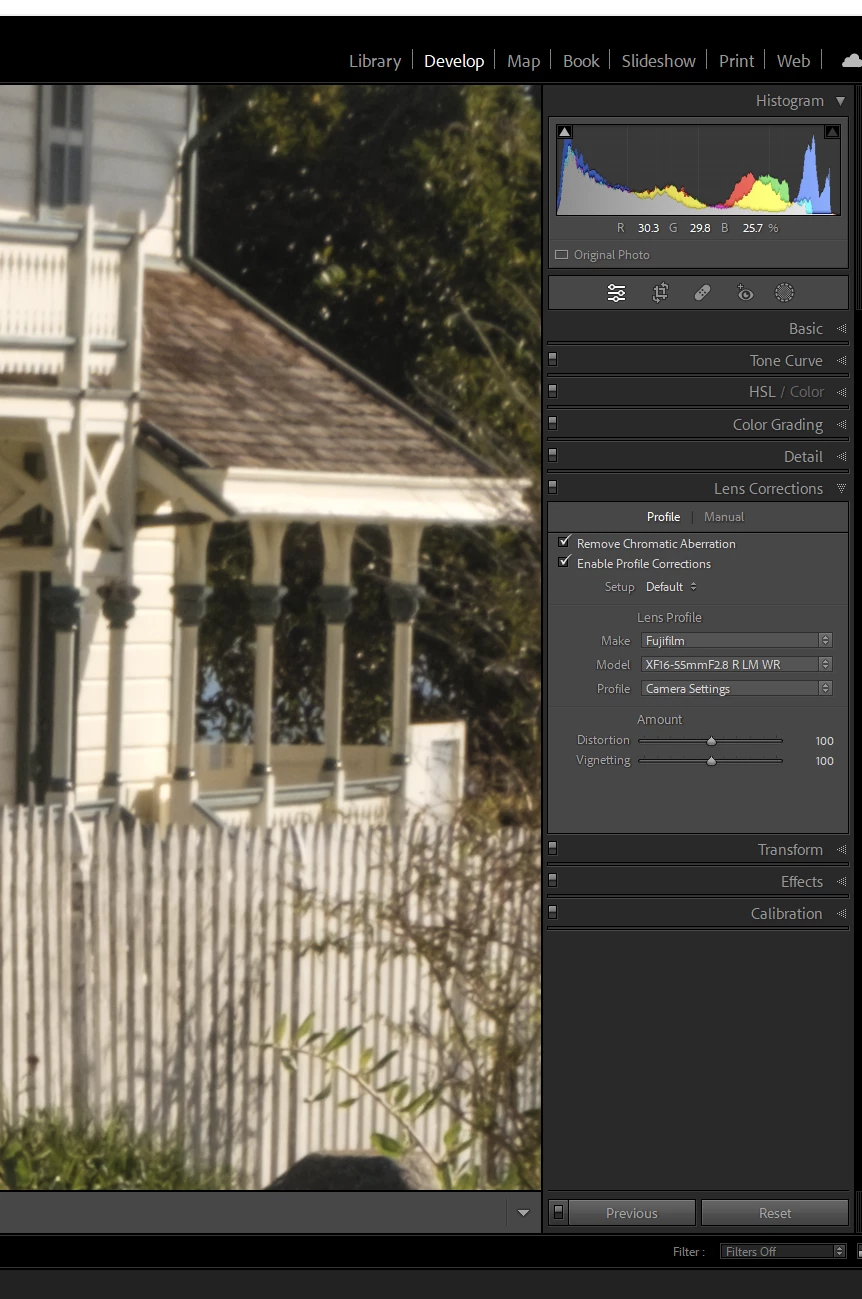

    Zooming in to 100% changes nothing on my rig, my pic:



    Personally I find this a desired behavior over Built-In Lens Correction applied



    As for the Vignette/destination issue?

    GoldingD
    GoldingD
    Legend
    January 5, 2023

    Are you creating the standard previews upon import?



      P
      PatinaPhoto作成者
      Participating Frequently
      January 16, 2023

      Yes. Rendering standard previews and smart previews on import

      johnrellis
      johnrellis
      Legend
      January 16, 2023

      [This post contains formatting and embedded images that don't appear in email. View the post in your Web browser.]



      Hmm, I don't observe that misbehavior in my LR 12.1 / Windows 10 with that file and with build standard previews and smart previews on import. There's something specific to your configuration that we don't yet know that's causing the problem.



      1. Try importing a fresh photo without building smart previews -- does the problem still occur?

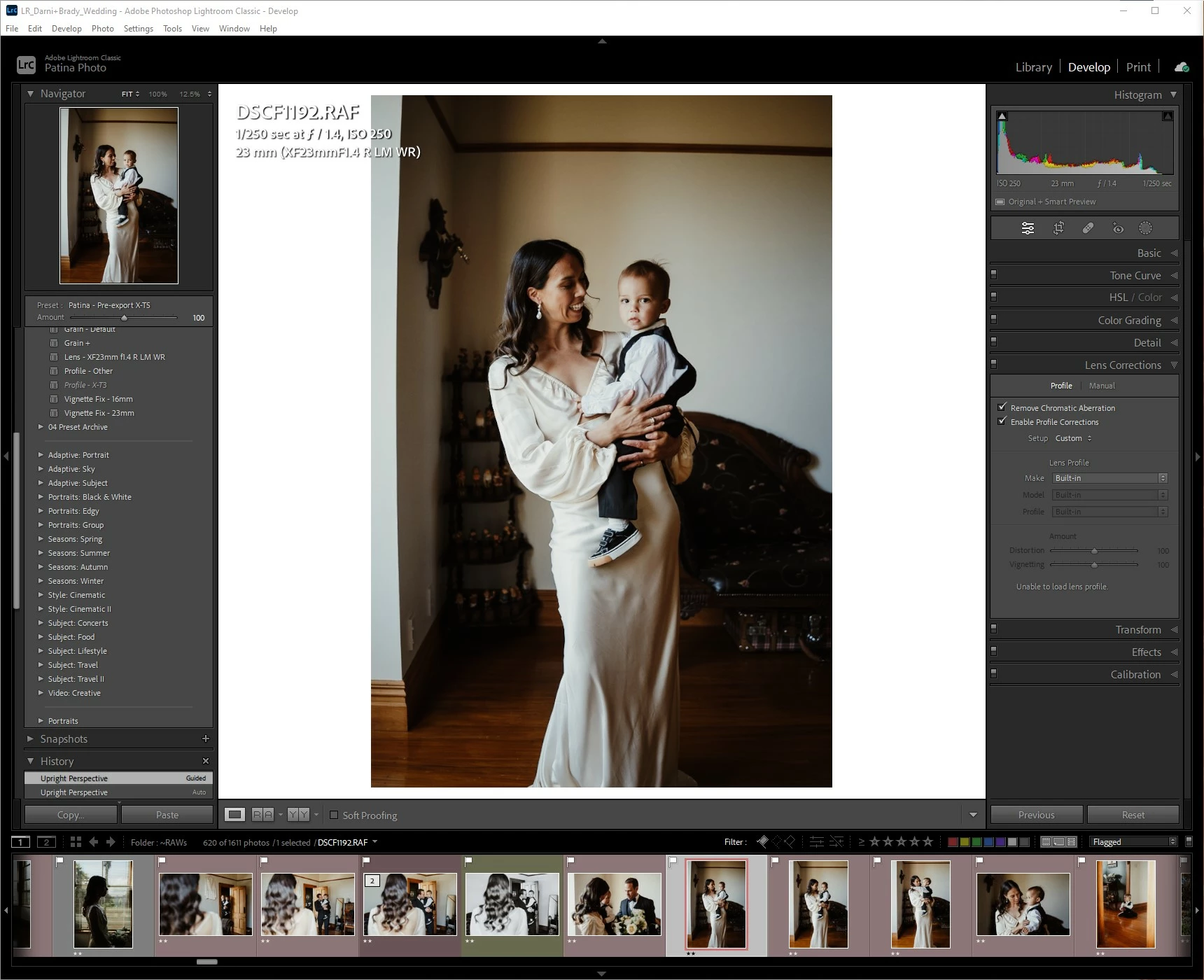

      2. The "before" screenshot shows the Patina - Colour preset applied.  Did you apply this by clicking the preset or was it set by the Import setting Apply During Import > Develop?  If it was set by Import, does the problem occur if you import without setting a develop preset?

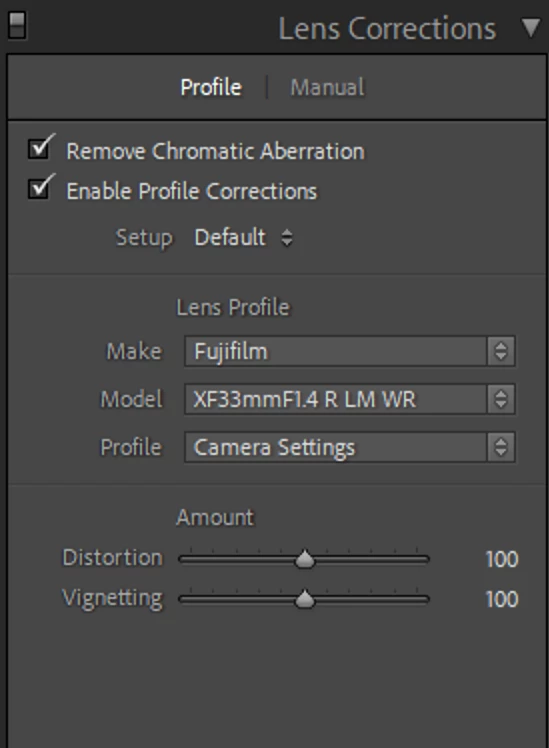

      3. Immediately after importing a new photo but before zooming, make and post a screenshot of the Lens Correction panel, e.g.





        Rikk Flohr_Photography
        Community Manager
        Rikk Flohr_PhotographyCommunity Manager
        Community Manager
        January 5, 2023

        Is it possible to share a raw file with us that exhibits the issue?

        Rikk Flohr: Adobe Photography Org
          johnrellis
          johnrellis
          Legend
          January 5, 2023

          Upload the sample raw file to Dropbox, Google Drive, or similar and post the sharing link here.  (You won't be able to attach a raw file here -- the forum platform chokes on raws.)
