Question

What is the method to perform "Add/Subtract Tool of the selected type" using the SDK

  • January 28, 2024
  • 1 reply
  • 424 views

I am trying to figure out the method to method to perform "Add/Subtract Tool of the selected type" using the SDK.

The current KBSC assigned to those commands are not good anymore to me and so I would rather create equivalent scripts myself to which assign my own KBSC.



I would also like to create my own "Intersect Tool of the selected type" script because that command is missing.



I tried to use LrDevelopController.getSelectedMaskTool ()  but it doesn't' seem to be the right choice.



Can anyone enlighten me?





    This topic has been closed for replies.

    1 reply

    johnrellis
    johnrellis
    Legend
    January 31, 2024

    [Catching up on SDK issues...]



    See these three methods:



    LrDevelopController.addToCurrentMask()

    LrDevelopController.subtractFromCurrentMask()

    LrDevelopController.intersectWithCurrentMask()

    C.Cella
    C.CellaAuthor
    Legend
    January 31, 2024

    If I write the following but it doens't work.



    local LrDevelopController = import "LrDevelopController"

LrDevelopController.getSelectedMaskTool ()
LrDevelopController.intersectWithCurrentMask ()





    I was expecting the maskTool provided by the LrDevelopController.getSelectedMaskTool  to be used but I still need to specify the maskType maskSubtype to intersect myself.



    Several weeks ago I already have created all Intersections, with all tools, but what I need is a "Intersect Tool of the selected type".



    I am just a bit lost here.

    .



    .









    johnrellis
    johnrellis
    Legend
    January 31, 2024

    [This post contains formatting and embedded images that don't appear in email. View the post in your Web browser.]

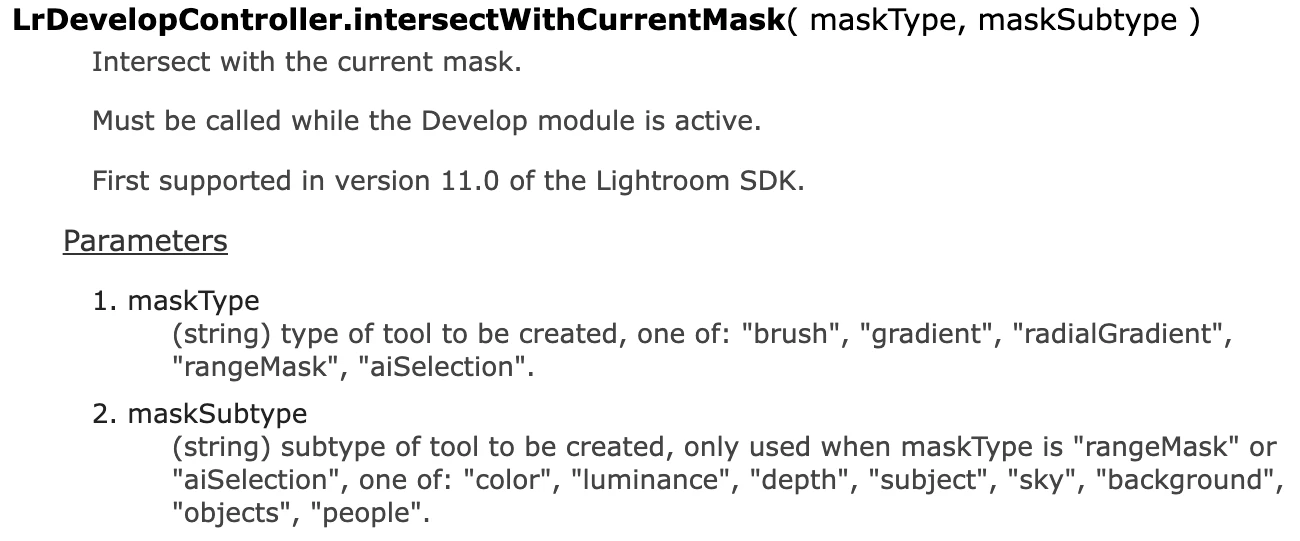

    Looking at the description in the API Reference, intersectWithCurrentMask() applies to the currently selected mask in the user interface:



    So for example:

    LrDevelopController.intersectWithCurrentMask ("aiSelection", "sky")
