What's the last version of Lightroom Classic that supports my Windows 10 Pro x64 Workstation?

  • September 18, 2024
  • 6 replies
  • 1027 views

I have a Dell T3500 Workstation with an Nvidia Quadro 2000 graphics card and 24GB RAM, running Windows 10 pro x64 on a Crucial MX500 SSD. I have installed all the latest firmware and hardware/software updates I could find for Windows, Direct X and my Quadro GFX card.

 I installed LR CC 13.5.1 and it does run but I do get a warning message at startup stating my system is now unsupported. When I go into this version's performance page, the choice to use my Nvidia card is greyed-out.

I'm not expecting miracles but I do want to maximise the performance of my Lightroom rig by running the absolutely last version of LR CC that would have supported my PC and which allows me to use my GFX card's resources.

This topic has been closed for replies.

6 replies

dj_paige
dj_paige
Legend
September 19, 2024



Here you go, this is what LR compiled,

Lightroom Classic version: 13.5.1 [ 202408271704-d15d09cd ]

License: Creative Cloud

Language setting: en

Operating system: Windows 10 - Business Edition

Version: 10.0.19045

...

By @MrMaude



The more I think about it, your GPU is the problem. It is simply too old. Finding an older version of LrC (even if it was possible) means you won't get most of the benefit of many many many Lightroom Classic enhancements and feature improvements. So what is the point? You can have old LrC that uses the GPU, with fewer useful features (if such a thing is possible) or you can have your  current LrC 13.5.1 with a very old GPU that won't provide any benefit, so you can't use the newer features anyway. I don't see how one is preferable to the other.

GoldingD
GoldingD
Legend
September 19, 2024

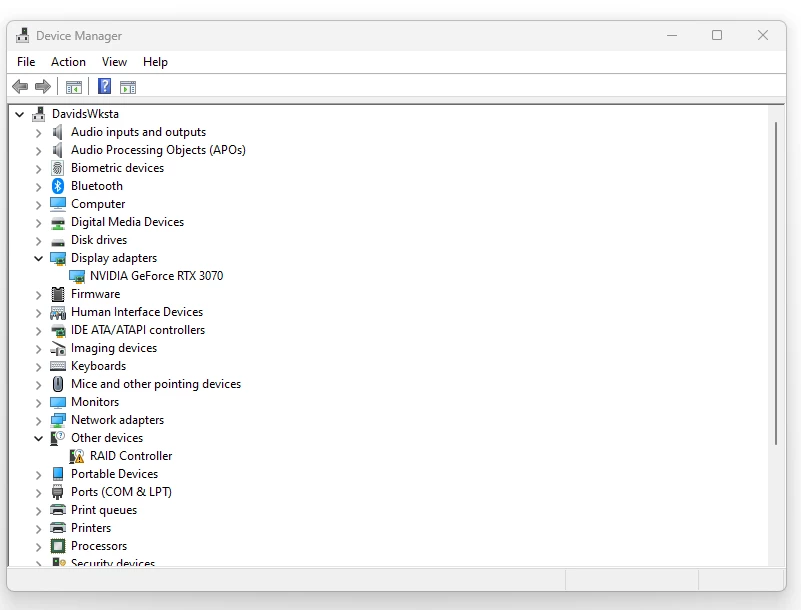

On your Windows PC, bring up the Device Manager, look at the Display Adapters. What does yours show? (please post a screenshot)



example (yours will not look like this):



and see:





GoldingD
GoldingD
Legend
September 18, 2024

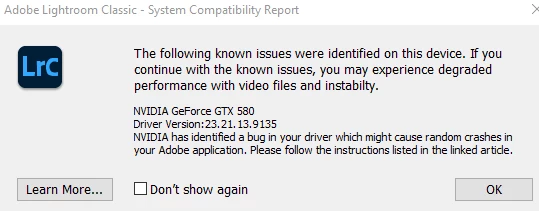

This error message. It sounds like a lightroom classic system compatibility report screen. Likely related to your integrated video controller on your motherboard. Perhaps related to that old GPU, perhaps to the OS (I think not, but..). Thing is, looking for an example I am finding none.



Can you post in a reply a screenshot of that error message?









GoldingD
GoldingD
Legend
September 18, 2024

Please post your System Information as Lightroom Classic (LrC) reports it. In LrC click on Help, then System Info, then Copy. Paste that information into a reply. Please present all information from first line down to and including Plug-in Info. Info after Plug-in info can be cut out as that is just so much dead space to us non-Techs and it takes up vast amounts of scroll space making the reply less readable and less likely that others will bother with your post.



And see:





Wondering what version number your Windows 10 is. 22H2?





Also, the following link, does it describe that GPU? Appears to be only 1 GB of VRAM, as such, does not meet bare bones minimum requirements in above link:





dj_paige
dj_paige
Legend
September 18, 2024

Please be specific and give us the version NUMBER/build number of your Windows 10.



Please be specific and tell us the exact warning message, word-for-word, unedited.



Your Nvidia Quadro 2000 is almost 14 years old and probably isn't going to be of any use in recent releases of Lightroom Classic, maybe not even useful going all the way back to and including the first version of Lightroom Classic which was Lightroom Classic 7.

    M
    MrMaudeAuthor
    Participant
    September 19, 2024

    Here you go, this is what LR compiled,

    Lightroom Classic version: 13.5.1 [ 202408271704-d15d09cd ]

    License: Creative Cloud

    Language setting: en

    Operating system: Windows 10 - Business Edition

    Version: 10.0.19045

    Application architecture: x64

    System architecture: x64

    Logical processor count: 12

    Processor speed: 3.2GHz

    SqLite Version: 3.36.0

    CPU Utilisation: 1.0%

    Power Source: Plugged In

    Built-in memory: 24573.5 MB

    Dedicated GPU memory used by Lightroom: 0.0MB / 0.0MB (0%)

    Real memory available to Lightroom: 24573.5 MB

    Real memory used by Lightroom: 1652.1 MB (6.7%)

    Virtual memory used by Lightroom: 1952.6 MB

    GDI objects count: 952

    USER objects count: 2487

    Process handles count: 1851

    Memory cache size: 74.4MB

    Internal Camera Raw version: 16.5 [ 1954 ]

    Maximum thread count used by Camera Raw: 5

    Camera Raw SIMD optimization: SSE2

    Camera Raw virtual memory: 865MB / 12286MB (7%)

    Camera Raw real memory: 948MB / 24573MB (3%)



    Cache1:
    Final1- RAM:266.0MB, VRAM:0.0MB, Studio Session-006.nef
    Preview2- RAM:22.0MB, VRAM:0.0MB, Studio Session-004.nef
    Preview3- RAM:22.0MB, VRAM:0.0MB, Studio Session-008.nef
    Final4- RAM:189.0MB, VRAM:0.0MB, Studio Session-005.nef
    Final5- RAM:189.0MB, VRAM:0.0MB, Studio Session-007.nef
    Preview6- RAM:22.0MB, VRAM:0.0MB, Studio Session-003.nef
    Preview7- RAM:22.0MB, VRAM:0.0MB, Studio Session-001.nef
    Preview8- RAM:22.0MB, VRAM:0.0MB, Studio Session-002.nef
    NT- RAM:754.0MB, VRAM:0.0MB, Combined:754.0MB



    Cache2:
    m:74.4MB, n:679.0MB



    U-main: 82.0MB



    System DPI setting: 96 DPI

    Desktop composition enabled: Yes

    Standard Preview Size: 1920 pixels

    Displays: 1) 1080x1920

    Input types: Multitouch: No, Integrated touch: No, Integrated pen: No, External touch: No, External pen: No, Keyboard: No



    Graphics Processor Info:



    Init State: GPU Unsupported

    User Preference: Auto

    Enable HDR in Library: OFF



    Application folder: C:\Program Files\Adobe\Adobe Lightroom Classic

    Library Path: C:\Users\Studio\Pictures\Lightroom\Lightroom Catalog.lrcat

    Settings Folder: C:\Users\Studio\AppData\Roaming\Adobe\Lightroom



    Installed Plugins:

    1) AdobeStock

    2) Flickr

    3) Nikon Tether Plugin



    Config.lua flags:



    Adapter #1: Vendor : 10de

    Device : dd8

    Subsystem : 84a10de

    Revision : a1

    Video Memory : 979

    Adapter #2: Vendor : 1414

    Device : 8c

    Subsystem : 0

    Revision : 0

    Video Memory : 0

    AudioDeviceIOBlockSize: 1024

    AudioDeviceName: $$$/dvaaudiodevice/SystemDefaultAndEffectiveDeviceName=System Default - PHL 272V8-1 (NVIDIA High Definition Audio)#{comment}DVAAU-4201250: Open the audio hardware preferences page.

    AudioDeviceNumberOfChannels: 2

    AudioDeviceSampleRate: 48000

    Build: LR5x120

    Direct2DEnabled: false

    GL_ACCUM_ALPHA_BITS: 16

    GL_ACCUM_BLUE_BITS: 16

    GL_ACCUM_GREEN_BITS: 16

    GL_ACCUM_RED_BITS: 16

    GL_ALPHA_BITS: 0

    GL_BLUE_BITS: 8

    GL_DEPTH_BITS: 24

    GL_GREEN_BITS: 8

    GL_MAX_3D_TEXTURE_SIZE: 2048

    GL_MAX_TEXTURE_SIZE: 16384

    GL_MAX_TEXTURE_UNITS: 4

    GL_MAX_VIEWPORT_DIMS: 16384,16384

    GL_RED_BITS: 8

    GL_RENDERER: Quadro 2000/PCIe/SSE2

    GL_SHADING_LANGUAGE_VERSION: 4.50 NVIDIA

    GL_STENCIL_BITS: 8

    GL_VENDOR: NVIDIA Corporation

    GL_VERSION: 4.5.0 NVIDIA 377.83

    GPUDeviceEnabled: false

    OGLEnabled: true

    GL_EXTENSIONS: GL_AMD_multi_draw_indirect GL_ARB_arrays_of_arrays GL_ARB_base_instance GL_ARB_blend_func_extended GL_ARB_buffer_storage GL_ARB_cl_event GL_ARB_clear_buffer_object GL_ARB_clear_texture GL_ARB_clip_control GL_ARB_color_buffer_float GL_ARB_compatibility GL_ARB_compressed_texture_pixel_storage GL_ARB_conservative_depth GL_ARB_compute_shader GL_ARB_compute_variable_group_size GL_ARB_conditional_render_inverted GL_ARB_copy_buffer GL_ARB_copy_image GL_ARB_cull_distance GL_ARB_debug_output GL_ARB_depth_buffer_float GL_ARB_depth_clamp GL_ARB_depth_texture GL_ARB_derivative_control GL_ARB_direct_state_access GL_ARB_draw_buffers GL_ARB_draw_buffers_blend GL_ARB_draw_indirect GL_ARB_draw_elements_base_vertex GL_ARB_draw_instanced GL_ARB_enhanced_layouts GL_ARB_ES2_compatibility GL_ARB_ES3_compatibility GL_ARB_ES3_1_compatibility GL_ARB_ES3_2_compatibility GL_ARB_explicit_attrib_location GL_ARB_explicit_uniform_location GL_ARB_fragment_coord_conventions GL_ARB_fragment_layer_viewport GL_ARB_fragment_program GL_ARB_fragment_program_shadow GL_ARB_fragment_shader GL_ARB_framebuffer_no_attachments GL_ARB_framebuffer_object GL_ARB_framebuffer_sRGB GL_ARB_geometry_shader4 GL_ARB_get_program_binary GL_ARB_get_texture_sub_image GL_ARB_gl_spirv GL_ARB_gpu_shader5 GL_ARB_gpu_shader_fp64 GL_ARB_gpu_shader_int64 GL_ARB_half_float_pixel GL_ARB_half_float_vertex GL_ARB_imaging GL_ARB_indirect_parameters GL_ARB_instanced_arrays GL_ARB_internalformat_query GL_ARB_internalformat_query2 GL_ARB_invalidate_subdata GL_ARB_map_buffer_alignment GL_ARB_map_buffer_range GL_ARB_multi_bind GL_ARB_multi_draw_indirect GL_ARB_multisample GL_ARB_multitexture GL_ARB_occlusion_query GL_ARB_occlusion_query2 GL_ARB_parallel_shader_compile GL_ARB_pipeline_statistics_query GL_ARB_pixel_buffer_object GL_ARB_point_parameters GL_ARB_point_sprite GL_ARB_program_interface_query GL_ARB_provoking_vertex GL_ARB_query_buffer_object GL_ARB_robust_buffer_access_behavior GL_ARB_robustness GL_ARB_sample_shading GL_ARB_sampler_objects GL_ARB_seamless_cube_map GL_ARB_separate_shader_objects GL_ARB_shader_atomic_counter_ops GL_ARB_shader_atomic_counters GL_ARB_shader_bit_encoding GL_ARB_shader_draw_parameters GL_ARB_shader_group_vote GL_ARB_shader_image_load_store GL_ARB_shader_image_size GL_ARB_shader_objects GL_ARB_shader_precision GL_ARB_shader_storage_buffer_object GL_ARB_shader_subroutine GL_ARB_shader_texture_image_samples GL_ARB_shader_texture_lod GL_ARB_shading_language_100 GL_ARB_shading_language_420pack GL_ARB_shading_language_include GL_ARB_shading_language_packing GL_ARB_shadow GL_ARB_sparse_buffer GL_ARB_sparse_texture GL_ARB_stencil_texturing GL_ARB_sync GL_ARB_tessellation_shader GL_ARB_texture_barrier GL_ARB_texture_border_clamp GL_ARB_texture_buffer_object GL_ARB_texture_buffer_object_rgb32 GL_ARB_texture_buffer_range GL_ARB_texture_compression GL_ARB_texture_compression_bptc GL_ARB_texture_compression_rgtc GL_ARB_texture_cube_map GL_ARB_texture_cube_map_array GL_ARB_texture_env_add GL_ARB_texture_env_combine GL_ARB_texture_env_crossbar GL_ARB_texture_env_dot3 GL_ARB_texture_float GL_ARB_texture_gather GL_ARB_texture_mirror_clamp_to_edge GL_ARB_texture_mirrored_repeat GL_ARB_texture_multisample GL_ARB_texture_non_power_of_two GL_ARB_texture_query_levels GL_ARB_texture_query_lod GL_ARB_texture_rectangle GL_ARB_texture_rg GL_ARB_texture_rgb10_a2ui GL_ARB_texture_stencil8 GL_ARB_texture_storage GL_ARB_texture_storage_multisample GL_ARB_texture_swizzle GL_ARB_texture_view GL_ARB_timer_query GL_ARB_transform_feedback2 GL_ARB_transform_feedback3 GL_ARB_transform_feedback_instanced GL_ARB_transform_feedback_overflow_query GL_ARB_transpose_matrix GL_ARB_uniform_buffer_object GL_ARB_vertex_array_bgra GL_ARB_vertex_array_object GL_ARB_vertex_attrib_64bit GL_ARB_vertex_attrib_binding GL_ARB_vertex_buffer_object GL_ARB_vertex_program GL_ARB_vertex_shader GL_ARB_vertex_type_10f_11f_11f_rev GL_ARB_vertex_type_2_10_10_10_rev GL_ARB_viewport_array GL_ARB_window_pos GL_ATI_draw_buffers GL_ATI_texture_float GL_ATI_texture_mirror_once GL_S3_s3tc GL_EXT_texture_env_add GL_EXT_abgr GL_EXT_bgra GL_EXT_bindable_uniform GL_EXT_blend_color GL_EXT_blend_equation_separate GL_EXT_blend_func_separate GL_EXT_blend_minmax GL_EXT_blend_subtract GL_EXT_compiled_vertex_array GL_EXT_Cg_shader GL_EXT_depth_bounds_test GL_EXT_direct_state_access GL_EXT_draw_buffers2 GL_EXT_draw_instanced GL_EXT_draw_range_elements GL_EXT_fog_coord GL_EXT_framebuffer_blit GL_EXT_framebuffer_multisample GL_EXTX_framebuffer_mixed_formats GL_EXT_framebuffer_multisample_blit_scaled GL_EXT_framebuffer_object GL_EXT_framebuffer_sRGB GL_EXT_geometry_shader4 GL_EXT_gpu_program_parameters GL_EXT_gpu_shader4 GL_EXT_multi_draw_arrays GL_EXT_packed_depth_stencil GL_EXT_packed_float GL_EXT_packed_pixels GL_EXT_pixel_buffer_object GL_EXT_point_parameters GL_EXT_polygon_offset_clamp GL_EXT_provoking_vertex GL_EXT_rescale_normal GL_EXT_secondary_color GL_EXT_separate_shader_objects GL_EXT_separate_specular_color GL_EXT_shader_image_load_store GL_EXT_shader_integer_mix GL_EXT_shadow_funcs GL_EXT_stencil_two_side GL_EXT_stencil_wrap GL_EXT_texture3D GL_EXT_texture_array GL_EXT_texture_buffer_object GL_EXT_texture_compression_dxt1 GL_EXT_texture_compression_latc GL_EXT_texture_compression_rgtc GL_EXT_texture_compression_s3tc GL_EXT_texture_cube_map GL_EXT_texture_edge_clamp GL_EXT_texture_env_combine GL_EXT_texture_env_dot3 GL_EXT_texture_filter_anisotropic GL_EXT_texture_integer GL_EXT_texture_lod GL_EXT_texture_lod_bias GL_EXT_texture_mirror_clamp GL_EXT_texture_object GL_EXT_texture_shared_exponent GL_EXT_texture_sRGB GL_EXT_texture_sRGB_decode GL_EXT_texture_storage GL_EXT_texture_swizzle GL_EXT_timer_query GL_EXT_transform_feedback2 GL_EXT_vertex_array GL_EXT_vertex_array_bgra GL_EXT_vertex_attrib_64bit GL_EXT_window_rectangles GL_EXT_import_sync_object GL_IBM_rasterpos_clip GL_IBM_texture_mirrored_repeat GL_KHR_context_flush_control GL_KHR_debug GL_KHR_no_error GL_KHR_robust_buffer_access_behavior GL_KHR_robustness GL_KTX_buffer_region GL_NV_alpha_to_coverage_dither_control GL_NV_bindless_multi_draw_indirect GL_NV_bindless_multi_draw_indirect_count GL_NV_blend_equation_advanced GL_NV_blend_square GL_NV_command_list GL_NV_compute_program5 GL_NV_conditional_render GL_NV_copy_depth_to_color GL_NV_copy_image GL_NV_depth_buffer_float GL_NV_depth_clamp GL_NV_draw_texture GL_NV_ES1_1_compatibility GL_NV_ES3_1_compatibility GL_NV_explicit_multisample GL_NV_fence GL_NV_float_buffer GL_NV_fog_distance GL_NV_fragment_program GL_NV_fragment_program_option GL_NV_fragment_program2 GL_NV_framebuffer_multisample_coverage GL_NV_geometry_shader4 GL_NV_gpu_program4 GL_NV_internalformat_sample_query GL_NV_gpu_program4_1 GL_NV_gpu_program5 GL_NV_gpu_program5_mem_extended GL_NV_gpu_program_fp64 GL_NV_gpu_shader5 GL_NV_half_float GL_NV_light_max_exponent GL_NV_multisample_coverage GL_NV_multisample_filter_hint GL_NV_occlusion_query GL_NV_packed_depth_stencil GL_NV_parameter_buffer_object GL_NV_parameter_buffer_object2 GL_NV_path_rendering GL_NV_pixel_data_range GL_NV_point_sprite GL_NV_primitive_restart GL_NV_register_combiners GL_NV_register_combiners2 GL_NV_shader_atomic_counters GL_NV_shader_atomic_float GL_NV_shader_buffer_load GL_NV_shader_storage_buffer_object GL_NV_texgen_reflection GL_NV_texture_barrier GL_NV_texture_compression_vtc GL_NV_texture_env_combine4 GL_NV_texture_multisample GL_NV_texture_rectangle GL_NV_texture_shader GL_NV_texture_shader2 GL_NV_texture_shader3 GL_NV_transform_feedback GL_NV_transform_feedback2 GL_NV_uniform_buffer_unified_memory GL_NV_vertex_array_range GL_NV_vertex_array_range2 GL_NV_vertex_attrib_integer_64bit GL_NV_vertex_buffer_unified_memory GL_NV_vertex_program GL_NV_vertex_program1_1 GL_NV_vertex_program2 GL_NV_vertex_program2_option GL_NV_vertex_program3 GL_NV_video_capture GL_NVX_conditional_render GL_NVX_gpu_memory_info GL_NVX_multigpu_info GL_NV_shader_thread_group GL_KHR_blend_equation_advanced GL_SGIS_generate_mipmap GL_SGIS_texture_lod GL_SGIX_depth_texture GL_SGIX_shadow GL_SUN_slice_accum GL_WIN_swap_hint WGL_EXT_swap_control

    jane-e
    Community Expert
    jane-eCommunity Expert
    Community Expert
    September 18, 2024

    @MrMaude

    I've moved your post from Creative Cloud Desktop to the Lightroom Classis forum.

    Jane
