Adjusting levels of a western blot image

  • September 21, 2026
  • 6 replies
  • 24 views

I’m asking a question for a colleague. When ones uses the Levels adjustment in Photoshop, specifically clicking on the white dropper for the white background and the black dropper on the darkest line, is this adjusting the entire image? The reason for this question is to determine whether this technique results in a global adjustment, and not a selective edit, specifically when performing this on western blot images for publication. Global edits are acceptable on these images, selective edits are not. Thank you!

    6 replies

    Trevor.Dennis
    Community Expert
    Community Expert
    September 22, 2026

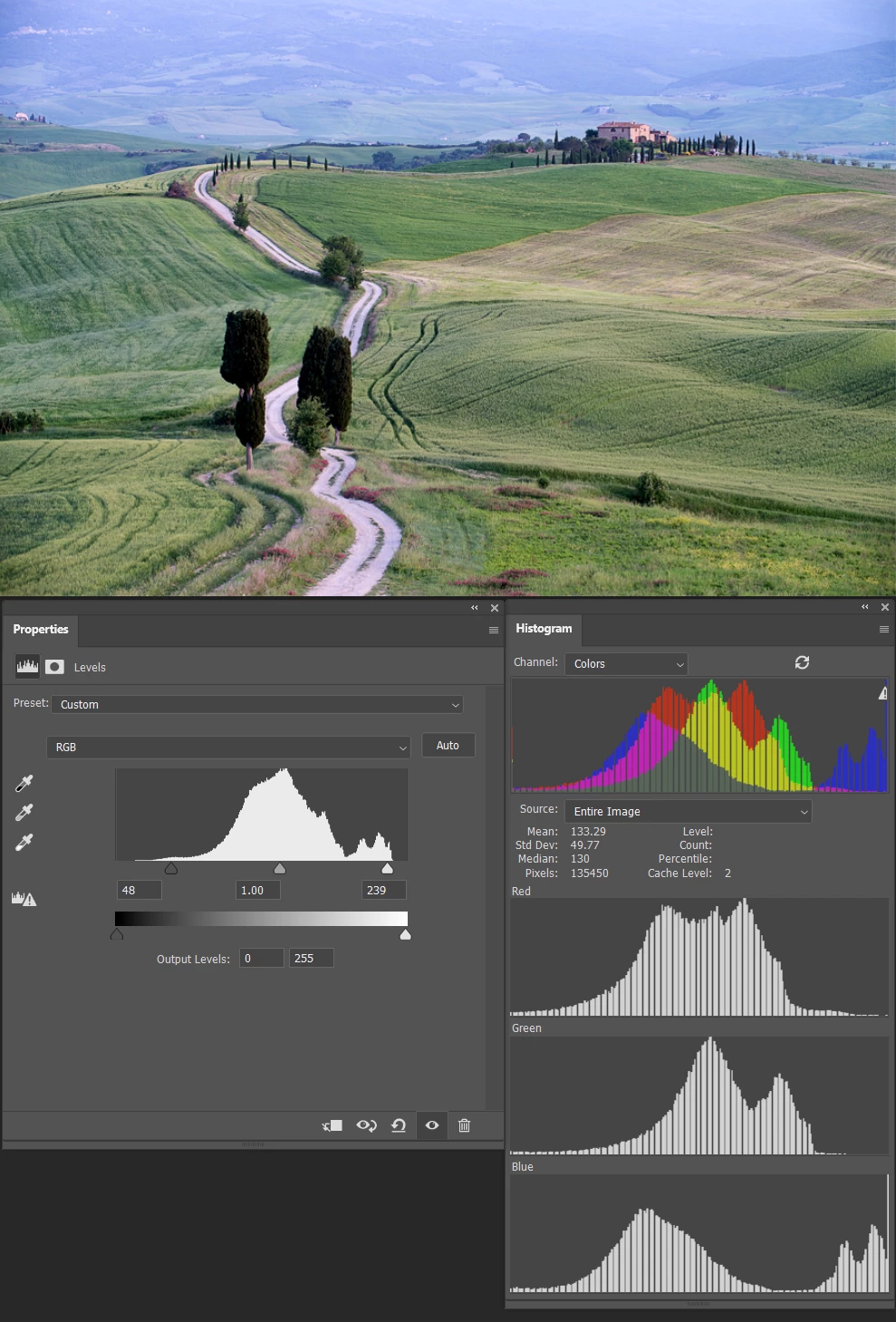

    If you look at the histogram in the Levels Properties you can see that it has very low contrast and no content anywhere near full black and full white.

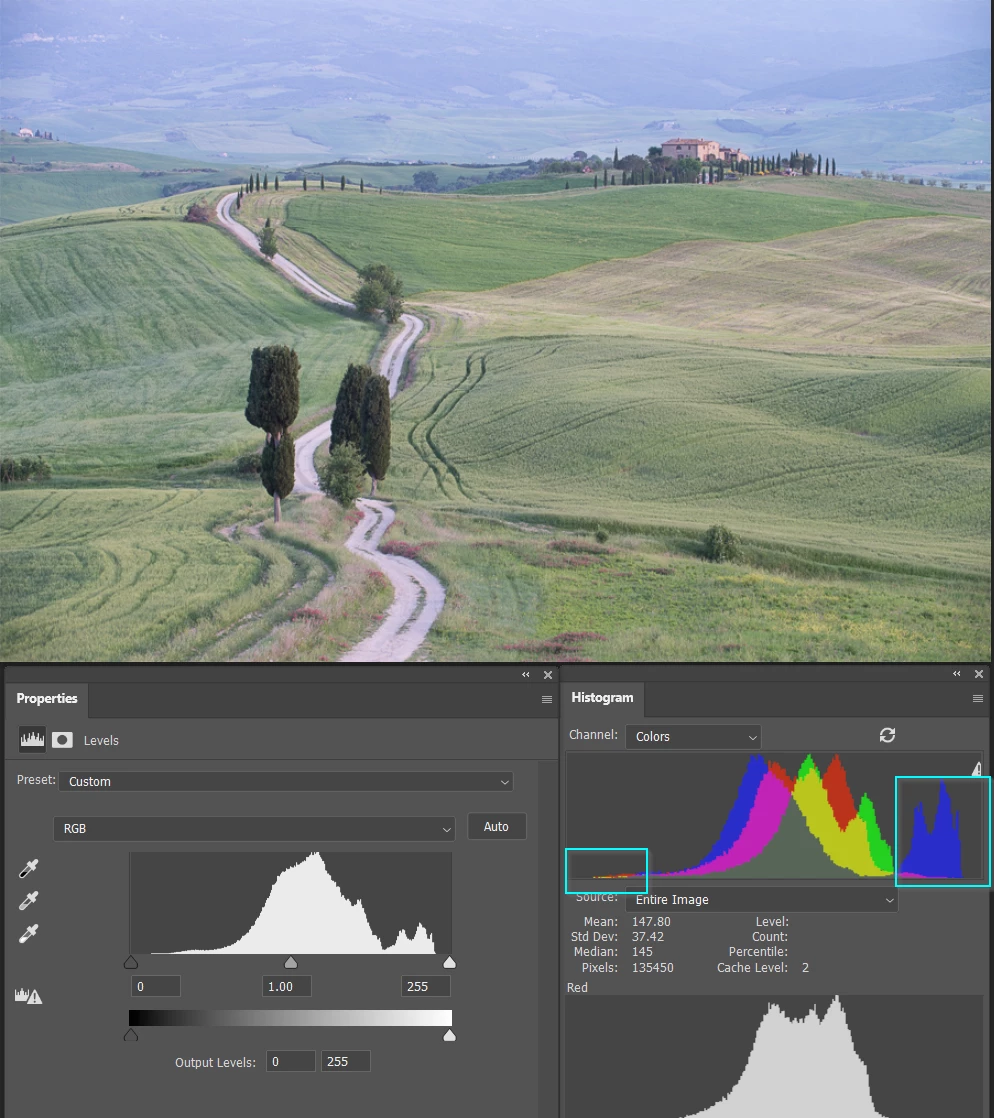

    If we adjust the input sliders to give the image a full tonal range, it will maximise contrast, but stretch out the original tonal range to fill all 256 steps (assuming 8 bit).

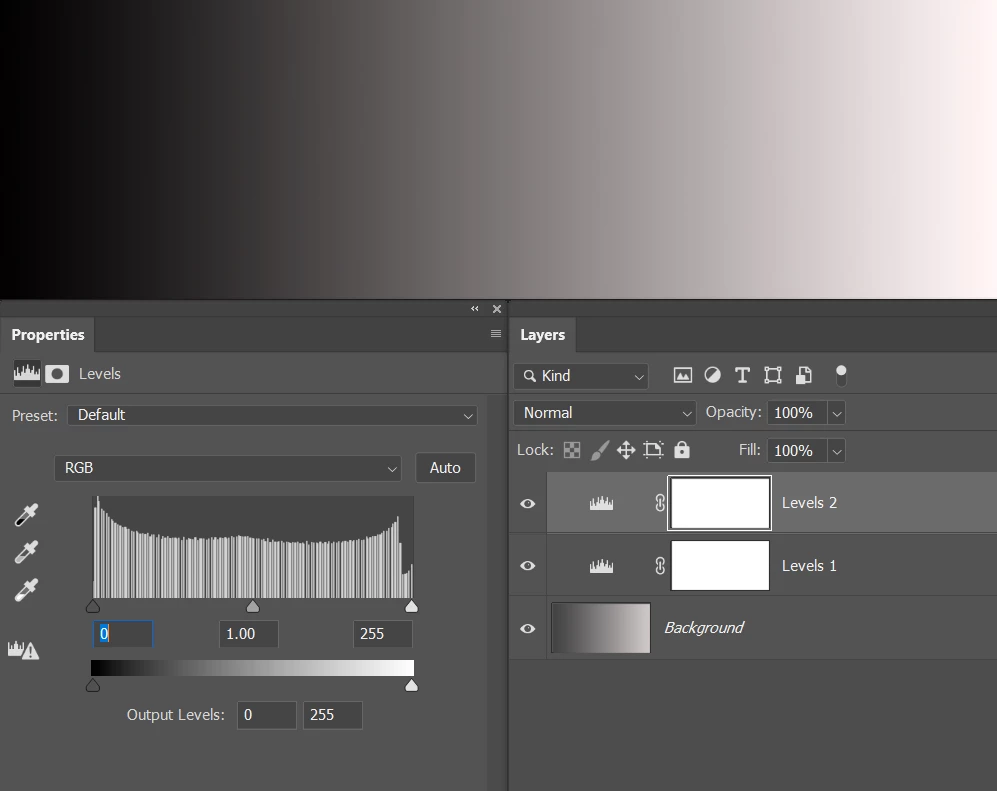

    If we now add a second levels adjustment layer, but not to make furth adjustments, but just see the resulting histogram we see it is full of holes.



    If this was a landscape with subtle blue to lighter blue sky gradient, then that gappy histogram might mean banding if you stretch the tonal range globally.  There was an interesting video on the recent Photoshop Summit 8 from Blake Rudis which suggested using Blend If to target/preclude specific color ranges.  I’d never thought of this before, and he gave a convincing demonstration.  That video is no longer available, but he has a YouTube channel.  This video might cover it.

    Trevor.Dennis
    Community Expert
    Community Expert
    September 22, 2026

    That’s an old video.  This might be better

    Legend
    September 21, 2026

    Taking a guess without seeing a sample of your western blot, unless you’ve used a selection tool (e.g., Marquee) to select a portion of the image, the change is global, not local.

    Adjust color and tone with Levels and Curves eyedroppers

    Larry
    Known Participant
    September 22, 2026

    Thanks. And I should have clarified. There is no selection. He wants assurance that this operation creates a change to the entire image. Sounds like the answer is yes.

    Legend
    September 22, 2026

    The old hands in this community may have a better, clearer answer.

    Larry
