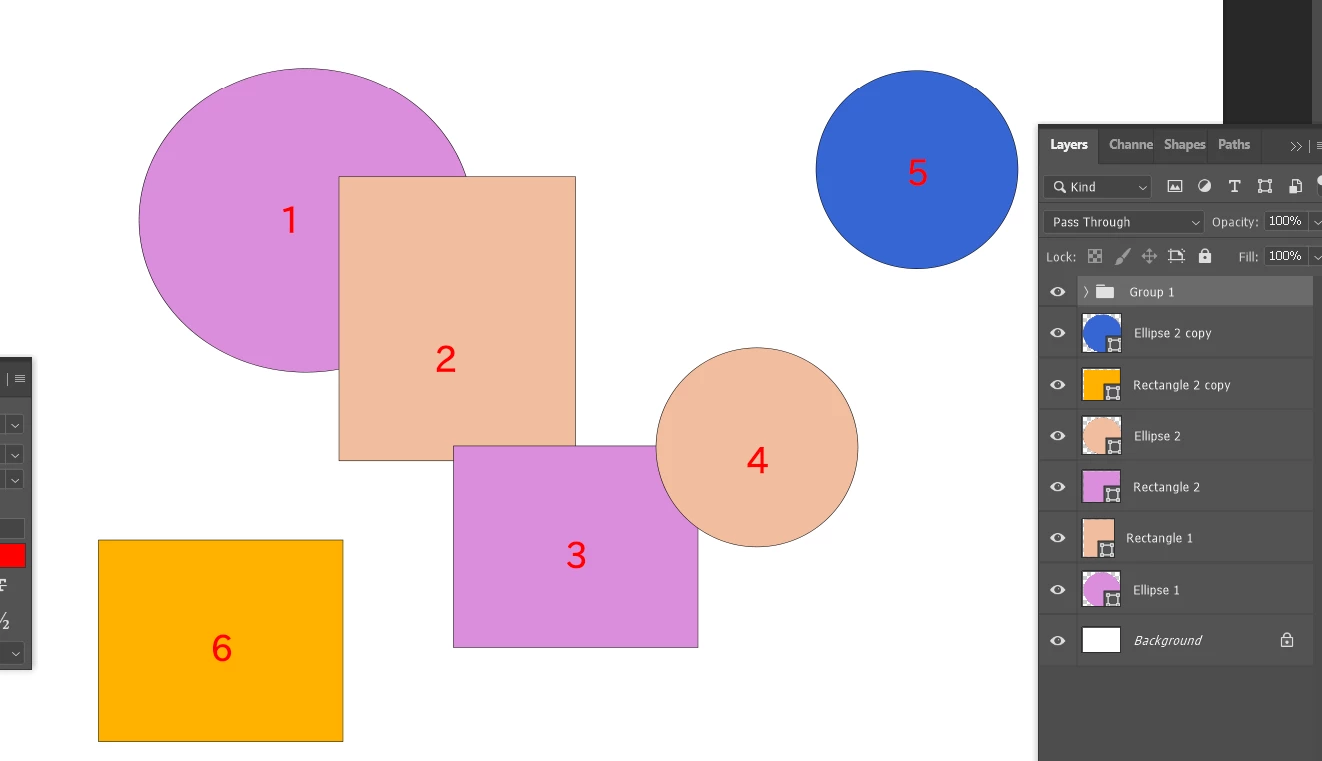

Auto merge overlaps vector layers?

Here is a first draft, it doesn't explicitly work with groups, it only works on the root-level layers.

/*
 * Select And Merge Overlapping Visually Connected Vector Layers.jsx
 * Stephen Marsh
 * v1.0 - 7th June 2026: Initial release
 * https://community.adobe.com/questions-712/auto-merge-overlaps-vector-layers-1626768
 *
 * 1. From the one selected vector shape layer ("target layer"), the Breadth-First Search (BFS)
 *    finds all visually connected (overlapping) vector shape layer "components".
 * 2. If the target layer  has a layer style, copies it via AM copyLayerStyle.
 * 3. Moves the target layer  layer to the top of the components stack, as the
 *    top layer in the stack, as the merge retains the fill and stroke properties.
 * 4. Selects the whole connected components, merges them into one shape layer
 *    (keeps vectors live with an option to destructively combine).
 * 5. If a layer style was captured, pastes it via AM pasteLayerStyle.
 *
 * Only vector shape layers are selected. Pixel, text, smart-object and
 * adjustment layers are completely ignored throughout.
 *
 */

app.activeDocument.suspendHistory("Select And Merge Overlapping Visually Connected Vector Layers", "main()");

function main() {

    // Debug: set true to show a layer-bounds report before BFS
    var DEBUG = false;

    // 1. Checks
    var doc;
    try { doc = app.activeDocument; }
    catch (e) { alert("No document is open."); return; }
    var selectedLayers = getSelectedLayers(doc);
    if (selectedLayers.length === 0) {
        alert("No layers are currently selected."); return;
    }
    if (selectedLayers.length > 1) {
        alert("Please select exactly ONE vector layer before running.\n" +
              "Currently selected: " + selectedLayers.length + " layers."); return;
    }
    var targetLayer = selectedLayers[0];
    if (!isVectorLayer(targetLayer)) {
        alert("\"" + targetLayer.name + "\" is not a vector shape layer.\n" +
              "Please select a vector shape layer and try again."); return;
    }

    // 2. Collect all vector layers (flat, no groups)
    var allLayers = [];
    collectVectorLayers(doc.layers, allLayers);

    if (allLayers.length < 2) {
        alert("There is only one vector layer in this document - nothing to connect."); return;
    }

    // 3. Bounding box cache
    var bounds    = [];
    var targetIndex = -1;

    for (var i = 0; i < allLayers.length; i++) {
        bounds[i] = safeBounds(allLayers[i]);
        if (allLayers[i].id === targetLayer.id) { targetIndex = i; }
    }

    if (targetIndex === -1) {
        alert("Could not locate target layer in vector list: " + targetLayer.name); return;
    }

    if (DEBUG) {
        var dbg = ["Vector layers (" + allLayers.length + "):\n"];
        for (var d = 0; d < allLayers.length; d++) {
            var bd = bounds[d];
            dbg.push(allLayers[d].name + (bd
                ? " [L:" + Math.round(bd.left)   + " T:" + Math.round(bd.top) +
                  " R:"  + Math.round(bd.right)  + " B:" + Math.round(bd.bottom) + "]"
                : " [no bounds]"));
        }
        alert(dbg.join("\n"));
    }

    // 4. Copy layer style from target (if it has one)
    //    Use AM copyLayerStyle while the target layer still exists.
    //    The boolean controls whether to paste later.
    var hasCopiedStyle = false;
    if (hasLayerStyle(targetLayer)) {
        copyLayerStyle(targetLayer);
        hasCopiedStyle = true;
    }

    // 5. Alert target layer
    /* alert("Initially selected layer:\n\n  \"" + targetLayer.name + "\""); */

    // 6. BFS
    var visited = [];
    var queue = [];
    var component = [];

    for (var k = 0; k < allLayers.length; k++) { visited[k] = false; }
    visited[targetIndex] = true;
    queue.push(targetIndex);

    while (queue.length > 0) {
        var current = queue.shift();
        component.push(allLayers[current]);
        for (var j = 0; j < allLayers.length; j++) {
            if (!visited[j] && boundsOverlap(bounds[current], bounds[j])) {
                visited[j] = true;
                queue.push(j);
            }
        }
    }

    // 7. Alert connected component
    var names = [];
    for (var n = 0; n < component.length; n++) {
        names.push("  \"" + component[n].name + "\"");
    }
    if (component.length === 1) {
        alert("This vector layer has NO visually connected neighbours.\n\n" +
              "Selected layer:\n" + names.join("\n"));
        return;   // nothing to merge
    }
    /* alert("Found " + component.length + " visually connected vector layer(s).\n" +
          "All are now selected:\n\n" + names.join("\n")); */

    // 8. Move target layer above all other component layers
    // Photoshop's "Merge Shapes" merges into the topmost selected layer, so we
    // move the target to the top of the component stack before selecting/merging.
    // That guarantees the target layer survives as the merge target and its name,
    // fill and or stroke is kept on the resulting merged shape layer.
    moveTargetAboveComponents(targetLayer, component);

    // 9. Select the component in the Layers panel
    selectLayersById(component);

    // 10. Merge shapes (Edit > Merge Shapes keeps paths live)
    mergeSelectedShapes();
    // After merge, the new combined layer becomes the active layer
    var mergedLayer = doc.activeLayer;

    // 11. Paste layer style onto the merged layer (if targetLayer had one)
    if (hasCopiedStyle) {
        pasteLayerStyle(mergedLayer);
    }

    // 12. End of script notification
    app.beep();

}


///// FUNCTIONS /////

/*
 * Returns true if the layer has at least one live layer effect (fx).
 * Checks the "layerEffects" key in the layer descriptor - it is only present
 * when effects have been added, and its "scale" sub-key alone doesn't count.
 */
function hasLayerStyle(lyr) {
    try {
        var ref = new ActionReference();
        ref.putIdentifier(charIDToTypeID("Lyr "), lyr.id);
        var desc   = executeActionGet(ref);
        var fxKey  = stringIDToTypeID("layerEffects");
        if (!desc.hasKey(fxKey)) { return false; }

        // "layerEffects" exists but may contain only the "scale" key with no
        // actual effects enabled - check that at least one effect key is present.
        var fxDesc        = desc.getObjectValue(fxKey);
        var effectKeys    = [
            "dropShadow", "innerShadow", "outerGlow", "innerGlow",
            "bevelEmboss", "chromeFX", "solidFill", "gradientFill",
            "patternFill", "frameFX"
        ];
        for (var i = 0; i < effectKeys.length; i++) {
            var ek = stringIDToTypeID(effectKeys[i]);
            if (fxDesc.hasKey(ek)) { return true; }
        }
        return false;
    } catch (e) { return false; }
}

/*
 * Copies the layer style of the given layer to Photoshop's internal clipboard
 * using the AM "copyEffects" event (Layer > Layer Style > Copy Layer Style).
 */
function copyLayerStyle(lyr) {
    // Make the layer active so copyEffects targets it
    app.activeDocument.activeLayer = lyr;
    try {
        executeAction(stringIDToTypeID("copyEffects"), undefined, DialogModes.NO);
    } catch (e) {
        alert("Warning: could not copy layer style from \"" + lyr.name + "\".\n" + e);
    }
}

/*
 * Pastes the previously copied layer style onto the given layer
 * using the AM "pasteEffects" event (Layer > Layer Style > Paste Layer Style).
 */
function pasteLayerStyle(lyr) {
    app.activeDocument.activeLayer = lyr;
    try {
        executeAction(stringIDToTypeID("pasteEffects"), undefined, DialogModes.NO);
    } catch (e) {
        alert("Warning: could not paste layer style onto \"" + lyr.name + "\".\n" + e);
    }
}

/*
 * Merges the currently selected components into one live shape layer.
 */
function mergeSelectedShapes() {
    try {
        var idMrgtwo = charIDToTypeID("Mrg2");
        var desc3766 = new ActionDescriptor();
        var idshapeOperation = stringIDToTypeID("shapeOperation");
        var idshapeOperation = stringIDToTypeID("shapeOperation");
        var idAdd = charIDToTypeID("Add ");
        desc3766.putEnumerated(idshapeOperation, idshapeOperation, idAdd);
        executeAction(idMrgtwo, desc3766, DialogModes.NO);

        /*
        // Optional: Combine/Add live shapes into a single path (destructive operation)
        var idcombine = stringIDToTypeID( "combine" );
        var desc3845 = new ActionDescriptor();
        var idnull = charIDToTypeID( "null" );
        var ref710 = new ActionReference();
        var idPath = charIDToTypeID( "Path" );
        var idOrdn = charIDToTypeID( "Ordn" );
        var idTrgt = charIDToTypeID( "Trgt" );
        ref710.putEnumerated( idPath, idOrdn, idTrgt );
        desc3845.putReference( idnull, ref710 );
        executeAction( idcombine, desc3845, DialogModes.NO );
        */

    } catch (e) {}
}

function isVectorLayer(lyr) {
    try {
        var ref = new ActionReference();
        ref.putIdentifier(charIDToTypeID("Lyr "), lyr.id);
        var desc  = executeActionGet(ref);
        var vmKey = stringIDToTypeID("vectorMaskEnabled");
        return desc.hasKey(vmKey) && desc.getBoolean(vmKey);
    } catch (e) { return false; }
}

function collectVectorLayers(layerSet, result) {
    for (var i = 0; i < layerSet.length; i++) {
        var lyr = layerSet[i];
        if (lyr.typename === "LayerSet") {
            collectVectorLayers(lyr.layers, result);
        } else if (isVectorLayer(lyr)) {
            result.push(lyr);
        }
    }
}

function safeBounds(lyr) {
    try {
        var b  = lyr.bounds;
        var l  = b[0].as("px"), t  = b[1].as("px"),
            r  = b[2].as("px"), bm = b[3].as("px");
        if (l === r || t === bm) { return null; }
        return { left: l, top: t, right: r, bottom: bm };
    } catch (e) { return null; }
}

function boundsOverlap(a, b) {
    if (!a || !b) { return false; }
    return !(a.right  <= b.left  || b.right  <= a.left  ||
             a.bottom <= b.top   || b.bottom <= a.top);
}

function getSelectedLayers(doc) {
    var selected = [];
    try {
        var ref = new ActionReference();
        ref.putEnumerated(charIDToTypeID("Dcmn"), charIDToTypeID("Ordn"), charIDToTypeID("Trgt"));
        var desc     = executeActionGet(ref);
        var layerIDs = desc.getList(stringIDToTypeID("targetLayersIDs"));
        for (var i = 0; i < layerIDs.count; i++) {
            var lyID  = layerIDs.getReference(i).getIdentifier();
            var found = null;
            try { found = doc.layerTree.getByID(lyID); } catch(e2) {}
            if (!found) { found = getLayerByID(doc, lyID); }
            if (found)  { selected.push(found); }
        }
    } catch (e) {
        if (doc.activeLayer) { selected.push(doc.activeLayer); }
    }
    return selected;
}

function getLayerByID(doc, id) {
    var all = [];
    collectAllLeaves(doc.layers, all);
    for (var i = 0; i < all.length; i++) {
        if (all[i].id === id) { return all[i]; }
    }
    return null;
}

function collectAllLeaves(layerSet, result) {
    for (var i = 0; i < layerSet.length; i++) {
        var lyr = layerSet[i];
        if (lyr.typename === "LayerSet") { collectAllLeaves(lyr.layers, result); }
        else { result.push(lyr); }
    }
}

function selectLayersById(layers) {
    if (layers.length === 0) { return; }
    app.activeDocument.activeLayer = layers[0];
    if (layers.length === 1) { return; }
    for (var i = 1; i < layers.length; i++) {
        var desc = new ActionDescriptor();
        var ref  = new ActionReference();
        ref.putIdentifier(charIDToTypeID("Lyr "), layers[i].id);
        desc.putReference(charIDToTypeID("null"), ref);
        desc.putEnumerated(
            stringIDToTypeID("selectionModifier"),
            stringIDToTypeID("selectionModifierType"),
            stringIDToTypeID("addToSelection")
        );
        desc.putBoolean(charIDToTypeID("MkVs"), false);
        try { executeAction(charIDToTypeID("slct"), desc, DialogModes.NO); }
        catch (e) { /* locked/hidden - skip */ }
    }
}

/*
 * Moves the target layer to sit above all other layers in the component.
 *
 * Photoshop's "Merge Shapes" (mergeLayersNew) merges all selected paths into
 * the topmost selected layer and uses that layer's name for the result.
 * By moving the target layer to the top of the component stack first, we ensure:
 *   - the target layer becomes the merge target, not an arbitrary component layer.
 *   - the merged layer retains the target layer's name, fill and or stroke.
 *
 * Implementation: uses the scripting DOM layer.move() with
 * ElementPlacement.PLACEBEFORE to reorder the target layer above the topmost
 * component member without touching layer content. If the target layer is already
 * topmost in the component, this is a no-op.
 */
function moveTargetAboveComponents(target, component) {

    // Build a lookup of component layer IDs for fast membership testing
    var inComponent = {};
    for (var i = 0; i < component.length; i++) {
        inComponent[component[i].id] = true;
    }

    // Walk the flat layer list (top to bottom in stack order) to find which
    // component member is currently the topmost.
    var allLeaves = [];
    collectAllLeaves(app.activeDocument.layers, allLeaves);

    var topmostComponentIndex = -1;
    for (var k = 0; k < allLeaves.length; k++) {
        if (inComponent[allLeaves[k].id]) {
            topmostComponentIndex = k;
            break;   // first hit is the topmost
        }
    }

    if (topmostComponentIndex === -1) { return; }  // safety - should never happen

    // If the target layer is already the topmost component layer, nothing to do.
    if (allLeaves[topmostComponentIndex].id === target.id) { return; }

    // Move target layer to just above the current topmost component member using the
    // scripting DOM's layer.move() with ElementPlacement.PLACEBEFORE.
    // PLACEBEFORE places the target layer directly above the reference layer in the stack.
    try {
        target.move(allLeaves[topmostComponentIndex], ElementPlacement.PLACEBEFORE);
    } catch (e) {
        alert("Warning: could not reorder target layer \"" + target.name + "\" above the component.\n" +
              "The merge will still proceed but may target a different layer. Double check the fill and or stroke attributes!\n\nError: " + e);
    }
}
