kwdanaher1107
kwdanaher1107
Participant
January 25, 2018
Question

Changing every pixel

  • January 25, 2018
  • 3 replies
  • 13897 views

I have a one layer photoshop file. It is from a line drawing I scanned in and retouched. The background is transparent. Is there a way to change all pixels that aren't transparent to one color? Like every pixel that is active in the layer? Black, gray, white whatever, all to just one solid color?

    3 replies

    rayek.elfin
    rayek.elfin
    Legend
    January 26, 2018

    One more alternative solution to convert your line art to pure black and white:

    1) image-->Mode-->Grayscale.

    2) Image-->Mode-->Bitmap. Choose 50% threshold.

    3) image-->Mode-->Grayscale.

    4) image-->Mode-->RGB.

    Bit long-winded, but gets the job done. Make sure to apply this to your line art file only.

    R
    Ronald Keller
    Legend
    January 25, 2018

    Yet another way: Edit > Fill > Choose color but with Preserve Tranparency checked.

      kwdanaher1107
      kwdanaher1107Author
      Participant
      January 26, 2018

      I tried that and it seems there are still grays on the outside of the lines. Is that impossible to avoid?

      c.pfaffenbichler
      Community Expert
      c.pfaffenbichlerCommunity Expert
      Community Expert
      January 26, 2018
      I tried that

      You tried what?

      Your screenshot does not seem to show a Layer Style or a clipping masked Solid Color Layer.

      If edge pixels are semi-transparent and you want to change that you could

      • Layer > Layer Mask > From Transparency

      • apply a Threshold (Image > Adjustments > Threshold) to the Layer Mask

      c.pfaffenbichler
      Community Expert
      c.pfaffenbichlerCommunity Expert
      Community Expert
      January 25, 2018

      Please post a screenshot with all pertinent Panels visible.

      Options are

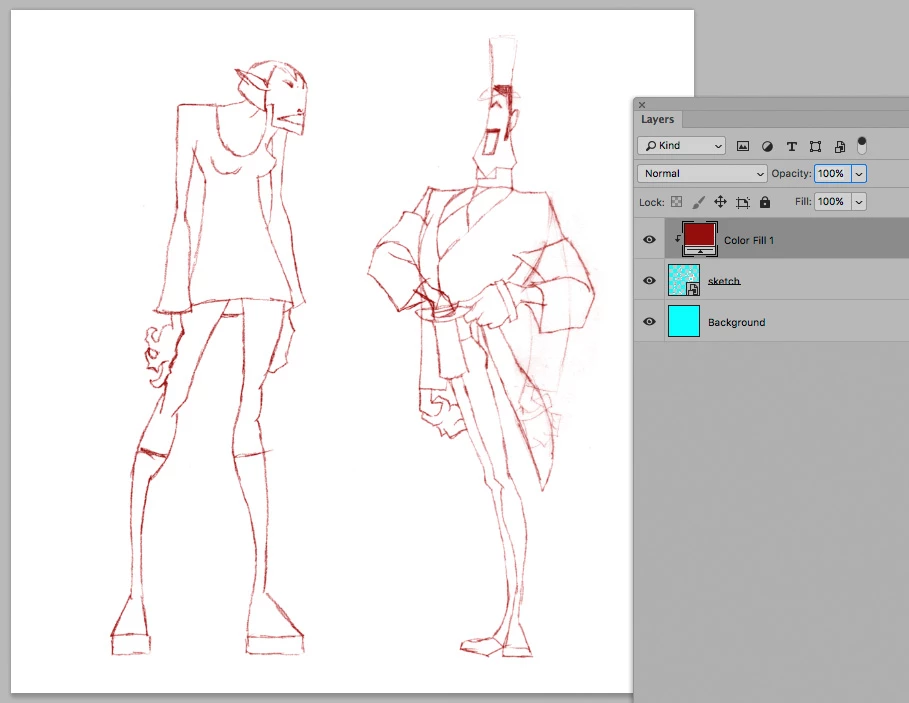

      Layer > Layer Style > Color Overlay

      or

      Layer > New Fill Layer > Solid Color (then clipping masked to the Layer and possibly with an appropriate Blend Mode)

      Edit:

      kwdanaher1107
      kwdanaher1107Author
      Participant
      January 26, 2018

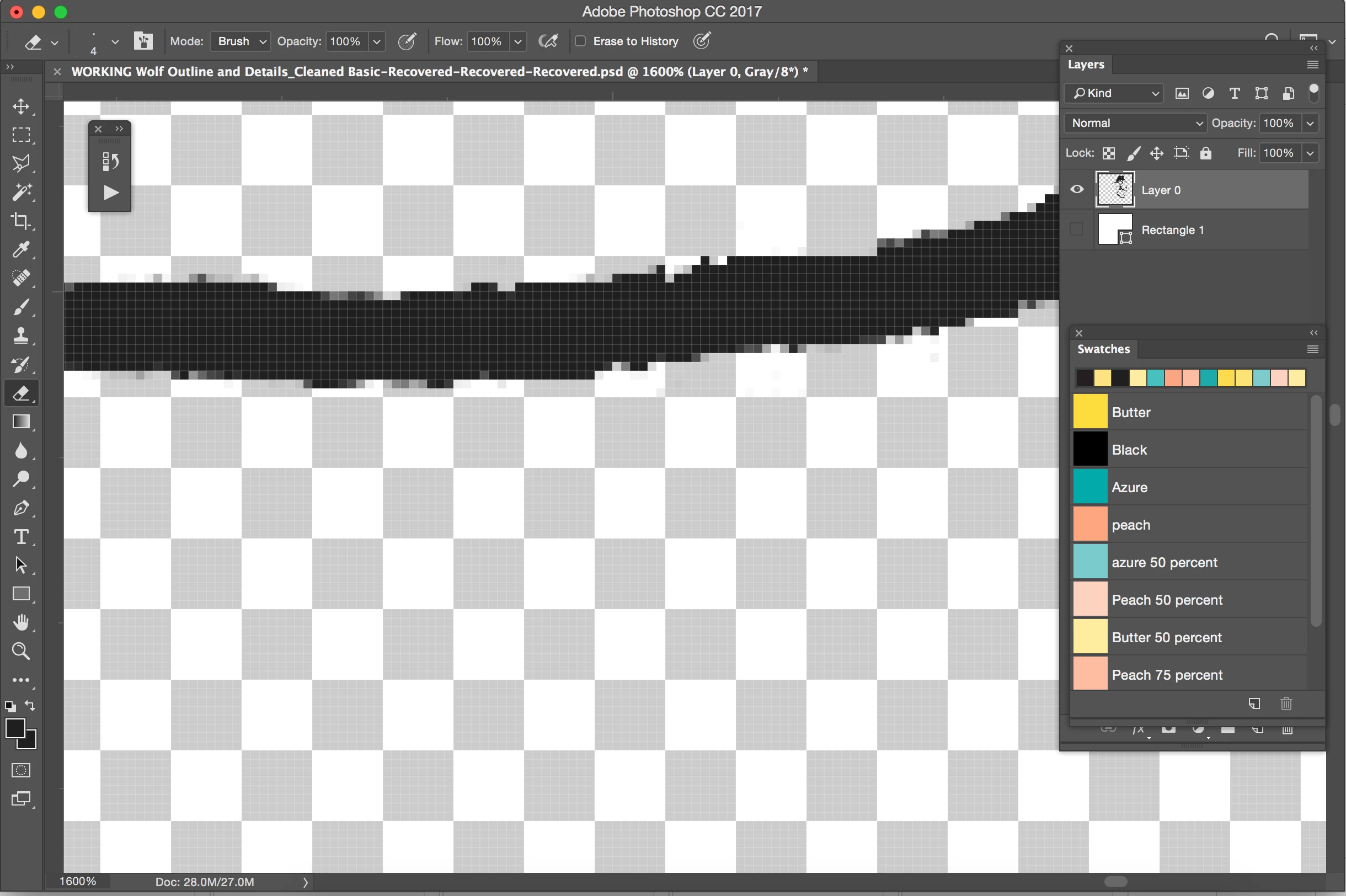

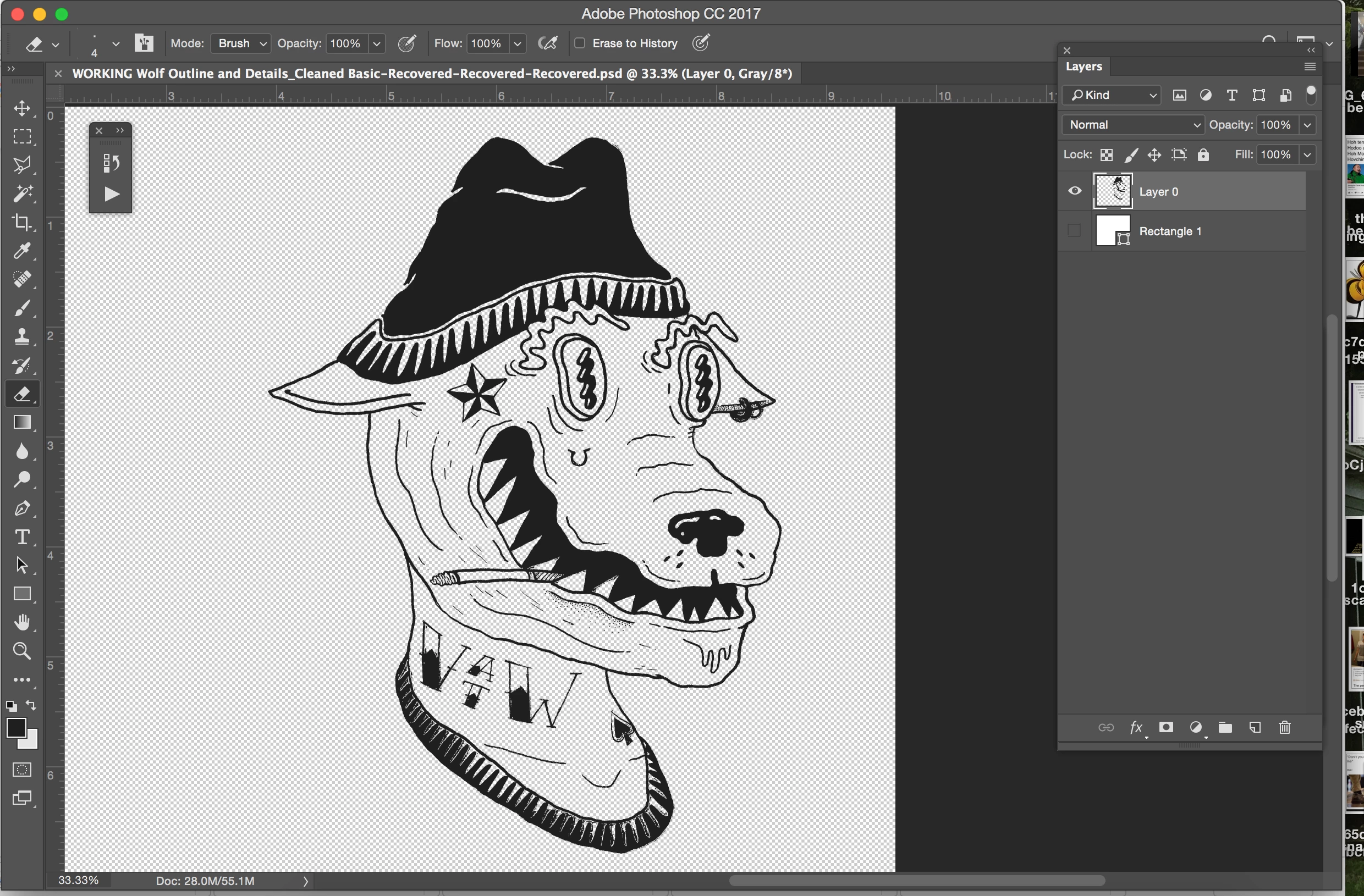

      This is what I'm working on. It looks like it'd be 100k black but it has a lot of minor greys going on in there

      rayek.elfin
      rayek.elfin
      Legend
      January 26, 2018

      Just out of curiosity: is this going to be printed as black-and-white artwork? If it will, then you may not have sufficient image resolution (educated guess based on your screenshot).

      For black-and-white artwork, create a canvas at a minimum of 800ppi (1200ppi preferred) at the required physical size it will be printed at.

      For example, A4: 297mmx210mm@1200ppi 9922px by 14032px.

      Trouble is, Photoshop doesn't allow us to mix layers with different physical resolutions. Nor can we have a true black-and-white only high resolution layer, because that is not allowed (1bit images do not support layers anyway). A work-around is to work at 800-1200ppi resolution, and use black and white only on the ink layer, while we work with full colour on the fill layers. Later the ink and colour layers are separated (ink @ 800-1200ppi 1bit, colour layer at 300ppi full colour) and brought into InDesign for final compositing.

      If your machine can't handle that high resolution smoothly, another option is to bring in a 300ppi version of your ink layer in Photoshop, and work at native 300ppi for your colours. Then later export the 300ppi colour layer, and use the 800-1200ppi ink image when bringing them together in InDesign.

      This may sound a bit confusing, but it results in the best quality for comics, and illustrations with bitmap inked artwork with colours (or without colour).

      If all of this isn't applicable to your situation, or it sounds too much like a bother, then disregard my post :-)
