Export several artboards as GIF animated

23 replies
25116 views
Translate

Hi everyone!

Currently, I have 24+ static photoshop artboards. These are 24 banners with different resolutions.

For now I needed to create animated banners, but while I export it (ctrl+shift+alt+s) I have no options to choose artboards to export and it gives me one output file. The examples I put below.

Please, could someone help me with that issue or maybe advice another method to create animated banners.

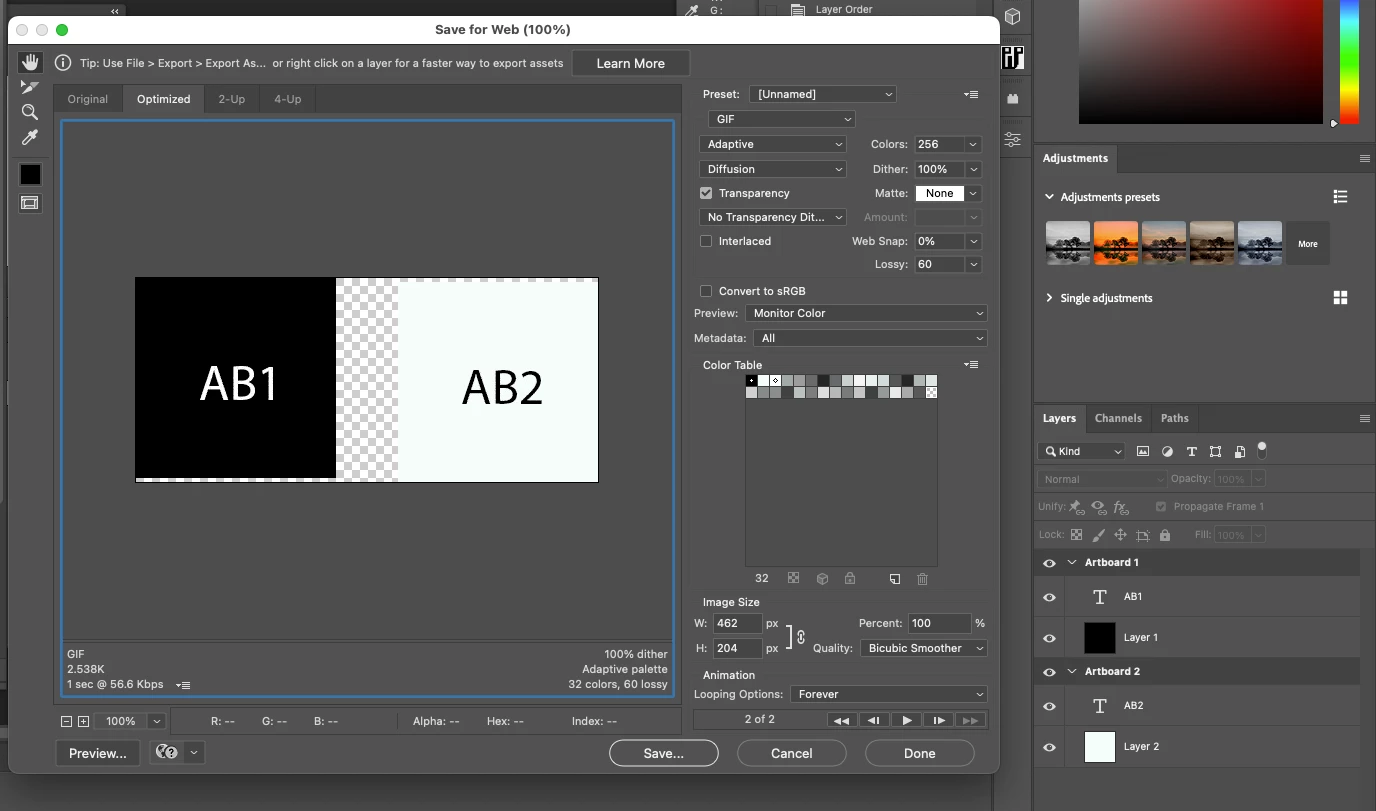

This is what it looks like, full canvas has been exported as animated gif.

Photoshop v19.0 (en x64);

Windows 10 (updated)

MyleniumCorrect answer

Legend

That's how it works. Animation stuff does not use artboards, being that the timeline only ever uses one canvas. You have to adapt your workflow and use separate documents and/or organize your stuff using groups.

Mylenium

C

Celestial_mentorcfe9

Participant

What you can do, draw up all your artboards, make the gifs then when you are done, use the slice tool and mark around your artboard. Save for web will then make the individual gifs however it wont name according to your artboard so you will need to rename your gifs

Translate

H

Hindepicts

Participant

I know I'm late to the party BUT i just unchecked the "eye" of the layer that I don't want to export (basically hid it) and then exported web (legacy).

Translate

luke-2010

Participant

Perfect, this worked for me, thank you.

Translate

M

marco_0791

Participant

This was a pain to discover after doing a bunch of artboards, BUT, yeah no definite answer. Solution now, create individual photoshop files. To do this, this is what I did:

• Create a shape to your desired specs and place it as the background layer.

• Right click on your artboard name in the layers panel and click, Ungroup Artboards.

• Command Click on the preview window of the shape layer you just created to put the selection of ants around it, click C to crop.

Hopefully that makes sense but that's what I'm doing on my artboards that I need to be single photoshop files.

Translate

Stephen Marsh

Community Expert

Artboards were added to Photoshop after Save for Web was created. Save for Web uses very old code, so we are lucky that it works with artboards...

As previously mentioned:

Layer visibility controls what is available in Save for Web!

This is only workable if the timeline is common for all artboards.

Translate

D

defaultyv64d7kbqmy5

Participant

There is a slight work-around for animated artboards and exporting as animated GIFs.

Step 1 - Hide all Artboards you don't want to be exported.

Step 2 - Select that artboard, Save for Web (Legacy).

Step 3 - Save for Web

Step 5 - Turn off that Artboard and switch to the next Artboard you want to export.

Translate

P

Pamela23840916gh7w

Participant

The work around would be creating all your gifs as normal using the artboard and THEN - you can cut them off - to prevent the "EXTRA" Artboard space, double click to select that particular artboard - then Crop! Or when you save it out on the huge Artboard you can re-open it and crop. Extra step yes, no extra than it would be opening each document anyways if you make them separate. I hate opening up multiple files, exspecially if there is a change. You will have to crop each time, and its not the best option but it works.

Translate

A

Albertine3

Inspiring

I found a way by doing slices (C tool) on my artboards and then Save for web. You still have to remove the empty files and rename others (it doesn't take the artboards names) but you have one animated file for each artboard.

Translate

sinangencer

Participant

you are a genius bro

Translate

R

RodrigoCantini

Participant

You have to to export one by one: hide all artboards except the one you want to export as gif, than export it normaly.

Do the same for all other artboards. Just check the gif naming: it takes the psd name by default, not the artboard name, you will have to correct that every time.

Translate

good_Whirlwind98A4

Participant

this way the export includes a bigger artboard including the hidden one. I've test this to export as a video. File / export / render video

Translate

C

codythebro

Participant

hahaha dang he ditched you

Translate

MyleniumCorrect answer

Legend

That's how it works. Animation stuff does not use artboards, being that the timeline only ever uses one canvas. You have to adapt your workflow and use separate documents and/or organize your stuff using groups.

Mylenium

Translate

Alexis.IndesignAuthor

Participating Frequently

Could you please describe on how to organize stuff using groups?

or at least clear out what you meant

Translate

Alexis.IndesignAuthor

Participating Frequently

Any words on how to organize stuff using groups?

Translate
