How is the working size of 40 feet X 20 feet billboard

  • August 3, 2015
  • 3 replies
  • 32023 views

Hi im designing a  40 feet x 20 feet billboard..  but the file size is  not handled my PC how to i work or how is the working size of 40 feet X 20 feet

    This topic has been closed for replies.
    Correct answer JJMack

    I hope your not trying to create an image that large at 300 DPI the would be crazy and not needed.  Some DPI like 50 may be approbate

    3 replies

    ySayeem
    ySayeemAuthor
    Participant
    August 4, 2015

    if. i want to working with 4000 pixel X 2000 pixel and 150+ or 200+ DPI.... this is right way for 40 feet X 20 feet ?

    sishamIAGD
    Community Expert
    sishamIAGDCommunity Expert
    Community Expert
    August 4, 2015

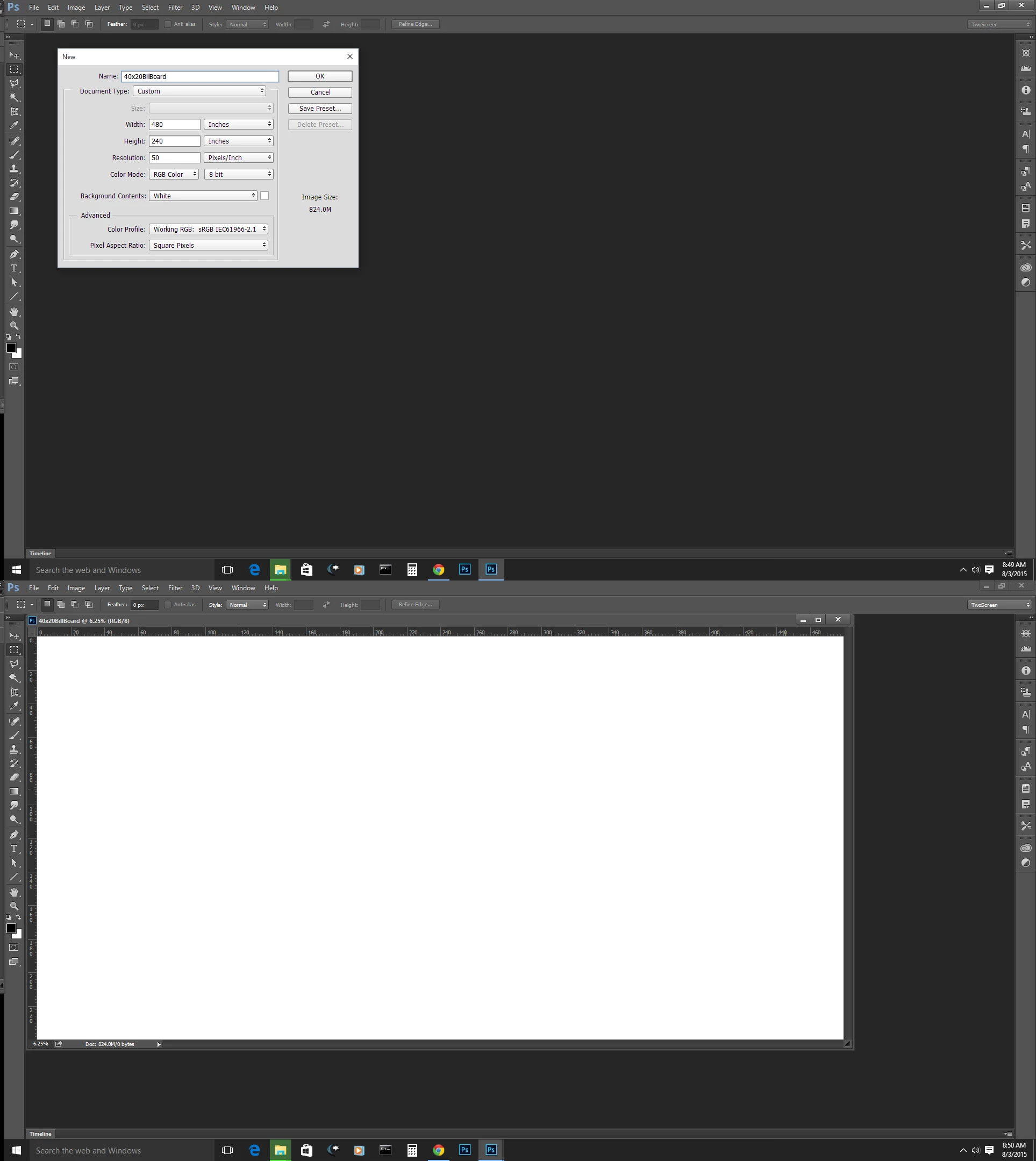

    no, just set your artboard/canvas to be 480x240 inches at 50-75ppi

    sishamIAGD
    Community Expert
    sishamIAGDCommunity Expert
    Community Expert
    August 3, 2015

    When working in large format I often find that you can produce at a 1/4 of the size or smaller and this can then be blown up by the printers.

    It would be worth getting the printing specification from the people you are producing it through and then work to that.

    But like jjMack said you can decrease the dpi also.

    ySayeem
    ySayeemAuthor
    Participant
    August 3, 2015

    sishamDSS‌ bro thank you for replay...

    brother...

    if produce at a 1/4 of the size or smaller... what will be size of dpi?

    like : 120 X 60 inc and dpi = ?

    D Fosse
    Community Expert
    D FosseCommunity Expert
    Community Expert
    August 3, 2015

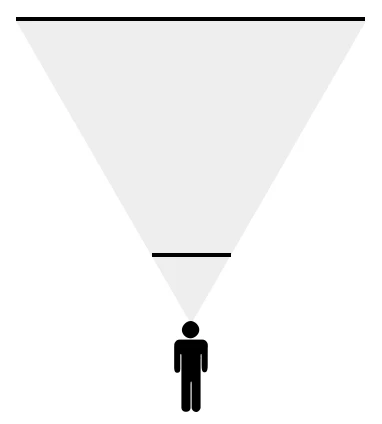

    The quarter size advice is meaningless. You need a certain number of pixels to fill a certain angle of view. This is how you need to think:

    So from how far away will it be seen? Obviously you won't stick your nose into a banner this size. If from across the street, 25 ppi is usually good enough.

    A high resolution photograph of good technical execution, say 7000 to 10000 pixels, will normally work whatever size. The bigger the banner, the further away, so the net perceived effect is the same.

    JJMack
    Community Expert
    JJMackCommunity ExpertCorrect answer
    Community Expert
    August 3, 2015

    I hope your not trying to create an image that large at 300 DPI the would be crazy and not needed.  Some DPI like 50 may be approbate

    JJMack
      ySayeem
      ySayeemAuthor
      Participant
      August 3, 2015
      @JJMack
      thank you sir... for the replay
