how to border selection with sharp corners

Here are three scripts to force sharp corners, so should only be used to modify square/rectangular selections...

Border:

/*
Select Modify Border Sharp Corners.jsx
https://community.adobe.com/t5/photoshop-ecosystem-discussions/how-to-border-selection-with-sharp-corners/td-p/13260671
Stephen Marsh, v1.0 - 12th October 2022
Based on:
https://community.adobe.com/t5/photoshop-ecosystem-discussions/transform-selection-script/td-p/12707931
*/

#target photoshop

function main() {

	if (app.documents.length > 0) {

		// Save the current ruler units and set to pixels
		var origRulers = app.preferences.rulerUnits;
		app.preferences.rulerUnits = Units.PIXELS;

		// Loop the input prompt until a number is entered
        var userInput;
        while (isNaN(userInput = prompt("Border Selection (sharp corner):", "")));
        // Test if cancel returns null, then terminate the script
        if (userInput === null) {
            //alert('Script cancelled!');
            return
        }
        // Test if an empty string is returned, then repeat
        while (userInput.length === 0) {
            userInput = prompt("Blank value not accepted, please enter a value in pixels:", "");
        }
        // Convert decimal input to integer
        var promptValue = parseInt(userInput);
		var borderValue = promptValue / 2;

		// Original selection bounds
		var origSelBounds = activeDocument.selection.bounds;

		expandSelection(SelectionType.REPLACE);
		contractSelection(SelectionType.DIMINISH);

		// Restore the ruler units
		app.preferences.rulerUnits = origRulers;


		// Functions

		function expandSelection(selType) {
			var expandArray = [
				[origSelBounds[0] - borderValue, origSelBounds[1] - borderValue],
				[origSelBounds[2] + borderValue, origSelBounds[1] - borderValue],
				[origSelBounds[2] + borderValue, origSelBounds[3] + borderValue],
				[origSelBounds[0] - borderValue, origSelBounds[3] + borderValue]
			];
			activeDocument.selection.select(expandArray, selType, 0, false);
		}

		function contractSelection(selType) {
			var contractArray = [
				[origSelBounds[0] + borderValue, origSelBounds[1] + borderValue],
				[origSelBounds[2] - borderValue, origSelBounds[1] + borderValue],
				[origSelBounds[2] - borderValue, origSelBounds[3] - borderValue],
				[origSelBounds[0] + borderValue, origSelBounds[3] - borderValue]
			];
			activeDocument.selection.select(contractArray, selType, 0, false);
		}

	} else {
		alert('A document must be open to use this script!');
	}
}
app.activeDocument.suspendHistory("Select Modify Border Sharp Corners.jsx", "main()");

Expand:

/*
Select Modify Expand Sharp Corners.jsx
https://community.adobe.com/t5/photoshop-ecosystem-discussions/how-to-border-selection-with-sharp-corners/td-p/13260671
Stephen Marsh, v1.0 - 12th October 2022
Based on:
https://community.adobe.com/t5/photoshop-ecosystem-discussions/transform-selection-script/td-p/12707931
*/

#target photoshop

function main() {

    if (app.documents.length > 0) {

        // Save the current ruler units and set to pixels
        var origRulers = app.preferences.rulerUnits;
        app.preferences.rulerUnits = Units.PIXELS;

        // Loop the input prompt until a number is entered
        var userInput;
        while (isNaN(userInput = prompt("Expand Selection (sharp corner):", "")));
        // Test if cancel returns null, then terminate the script
        if (userInput === null) {
            //alert('Script cancelled!');
            return
        }
        // Test if an empty string is returned, then repeat
        while (userInput.length === 0) {
            userInput = prompt("Blank value not accepted, please enter a value in pixels:", "");
        }
        // Convert decimal input to integer
        var theValue = parseInt(userInput);

        // Original selection bounds
        var origSelBounds = activeDocument.selection.bounds;

        // Expand selection array
        var theArray = [
            [origSelBounds[0] - theValue, origSelBounds[1] - theValue],
            [origSelBounds[2] + theValue, origSelBounds[1] - theValue],
            [origSelBounds[2] + theValue, origSelBounds[3] + theValue],
            [origSelBounds[0] - theValue, origSelBounds[3] + theValue]
        ];

        // Replace the selection with new selection
        activeDocument.selection.select(theArray, SelectionType.REPLACE, 0, false);

        // Restore the ruler units
        app.preferences.rulerUnits = origRulers;

    } else {
        alert('A document must be open to use this script!');
    }
}
app.activeDocument.suspendHistory("Select Modify Expand Sharp Corners.jsx", "main()");

Contract:

/*
Select Modify Contract Sharp Corners.jsx
https://community.adobe.com/t5/photoshop-ecosystem-discussions/how-to-border-selection-with-sharp-corners/td-p/13260671
Stephen Marsh, v1.0 - 12th October 2022
Based on:
https://community.adobe.com/t5/photoshop-ecosystem-discussions/transform-selection-script/td-p/12707931
*/

#target photoshop

function main() {

    if (app.documents.length > 0) {

        // Save the current ruler units and set to pixels
        var origRulers = app.preferences.rulerUnits;
        app.preferences.rulerUnits = Units.PIXELS;

        // Loop the input prompt until a number is entered
        var userInput;
        while (isNaN(userInput = prompt("Contract Selection (sharp corner):", "")));
        // Test if cancel returns null, then terminate the script
        if (userInput === null) {
            //alert('Script cancelled!');
            return
        }
        // Test if an empty string is returned, then repeat
        while (userInput.length === 0) {
            userInput = prompt("Blank value not accepted, please enter a value in pixels:", "");
        }
        // Convert decimal input to integer
        var theValue = parseInt(userInput);

        // Original selection bounds
        var origSelBounds = activeDocument.selection.bounds;

        // Contract selection array
        var theArray = [
            [origSelBounds[0] + theValue, origSelBounds[1] + theValue],
            [origSelBounds[2] - theValue, origSelBounds[1] + theValue],
            [origSelBounds[2] - theValue, origSelBounds[3] - theValue],
            [origSelBounds[0] + theValue, origSelBounds[3] - theValue]
        ];

        // Replace the selection with new selection
        activeDocument.selection.select(theArray, SelectionType.REPLACE, 0, false);

        // Restore the ruler units
        app.preferences.rulerUnits = origRulers;

    } else {
        alert('A document must be open to use this script!');
    }
}
app.activeDocument.suspendHistory("Select Modify Contract Sharp Corners.jsx", "main()");

---

@Will5CD1 wrote:

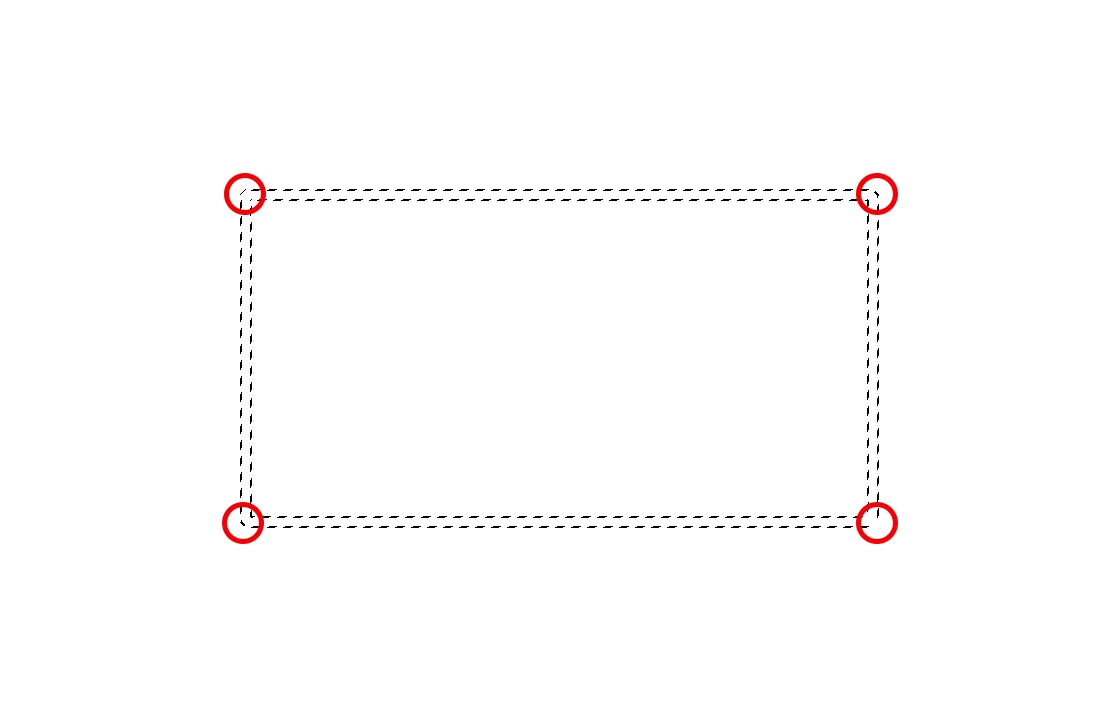

select>modify>border creates a border with rounded corners. what i really need is an offset of the original selection as a border, with sharp corners. how can i do this?



---

To clarify, Select > Modify > Border does not create rounded corners, although it appears to. What it has actually done is feathered the selection. This behavior started in CS3, and I have hated it ever since.

To confirm that the issue is actually feathering, try filling your selection after you have made the border.

Jane

The Select>Modify>Border command or Select>Fringe in ps 1 and 2 always creates a feathered border

good for getting rid of Halos of a pasted object/image or using Gaussian Blur to blend in a pasted object/image

better.

Anyway, you ca get rid of the feather by:

1. With the selection active after running the Modify Border command, press Q on your keyboard to

     enter Quickmask Mode

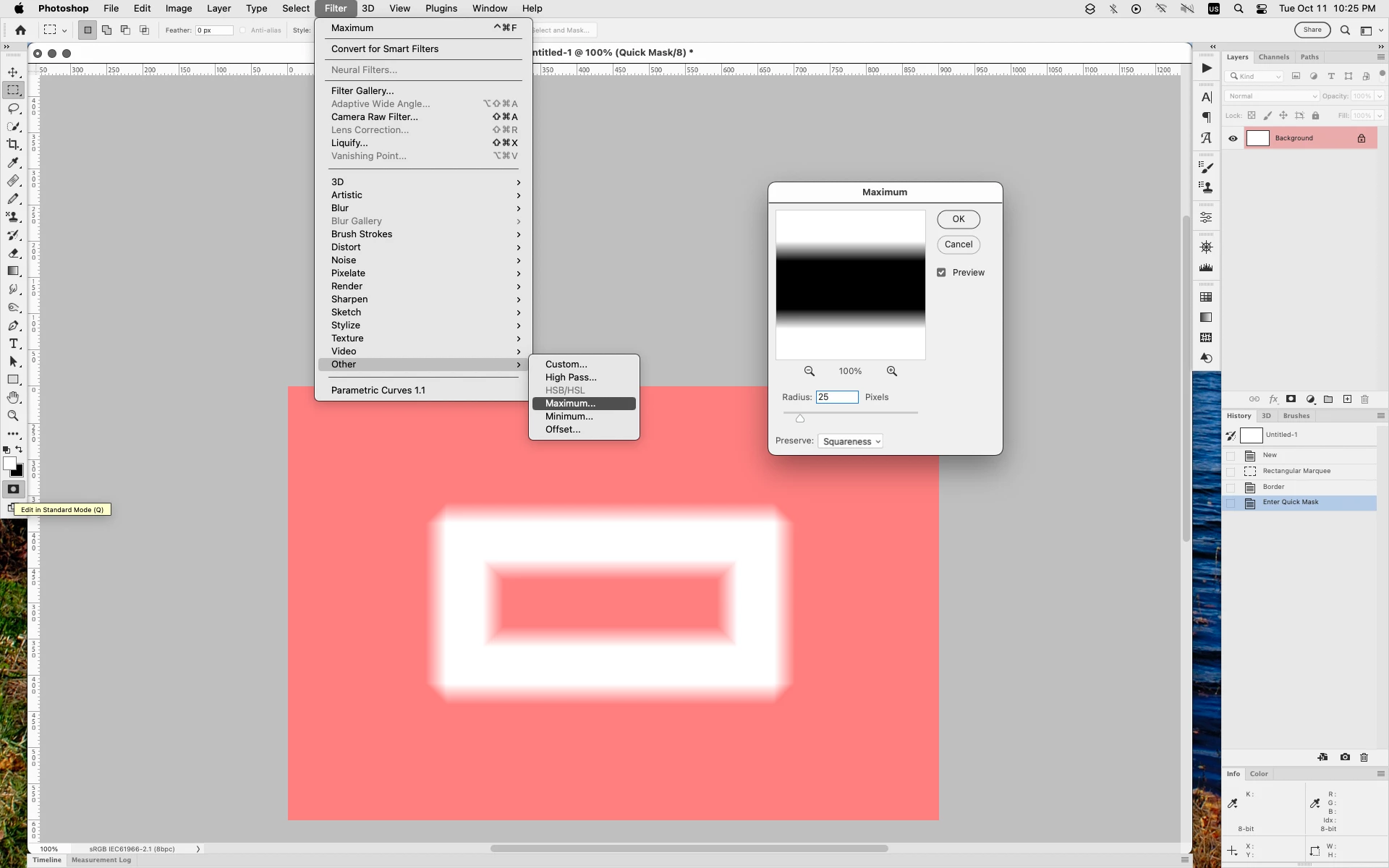

2. Go to Filter>Other>Maximum with Preserve Squareness, enter about half the value you used in

     the Border command.

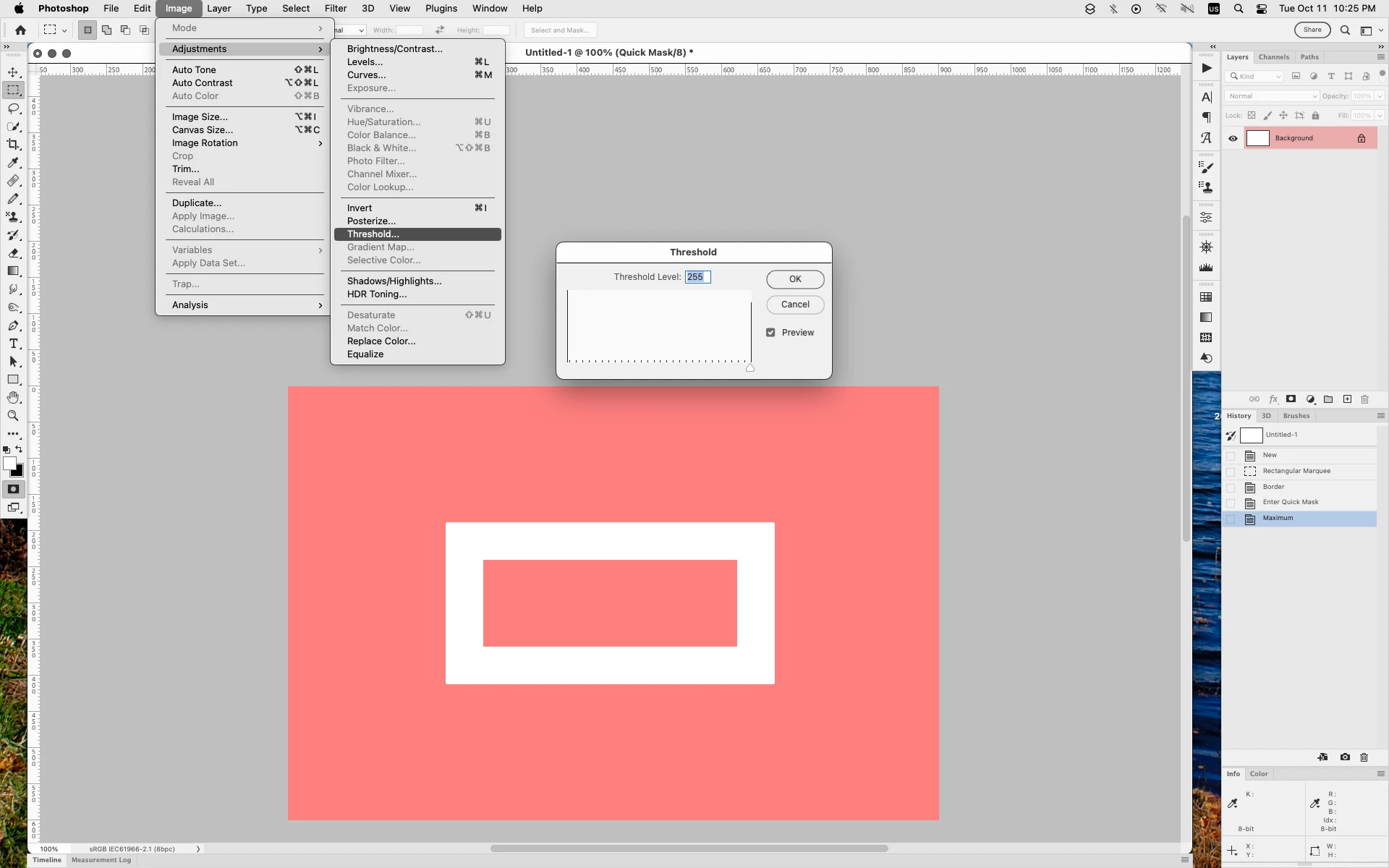

3. Then go to Image>Adjustments>Threshold and move the slider all the way to the right (255)

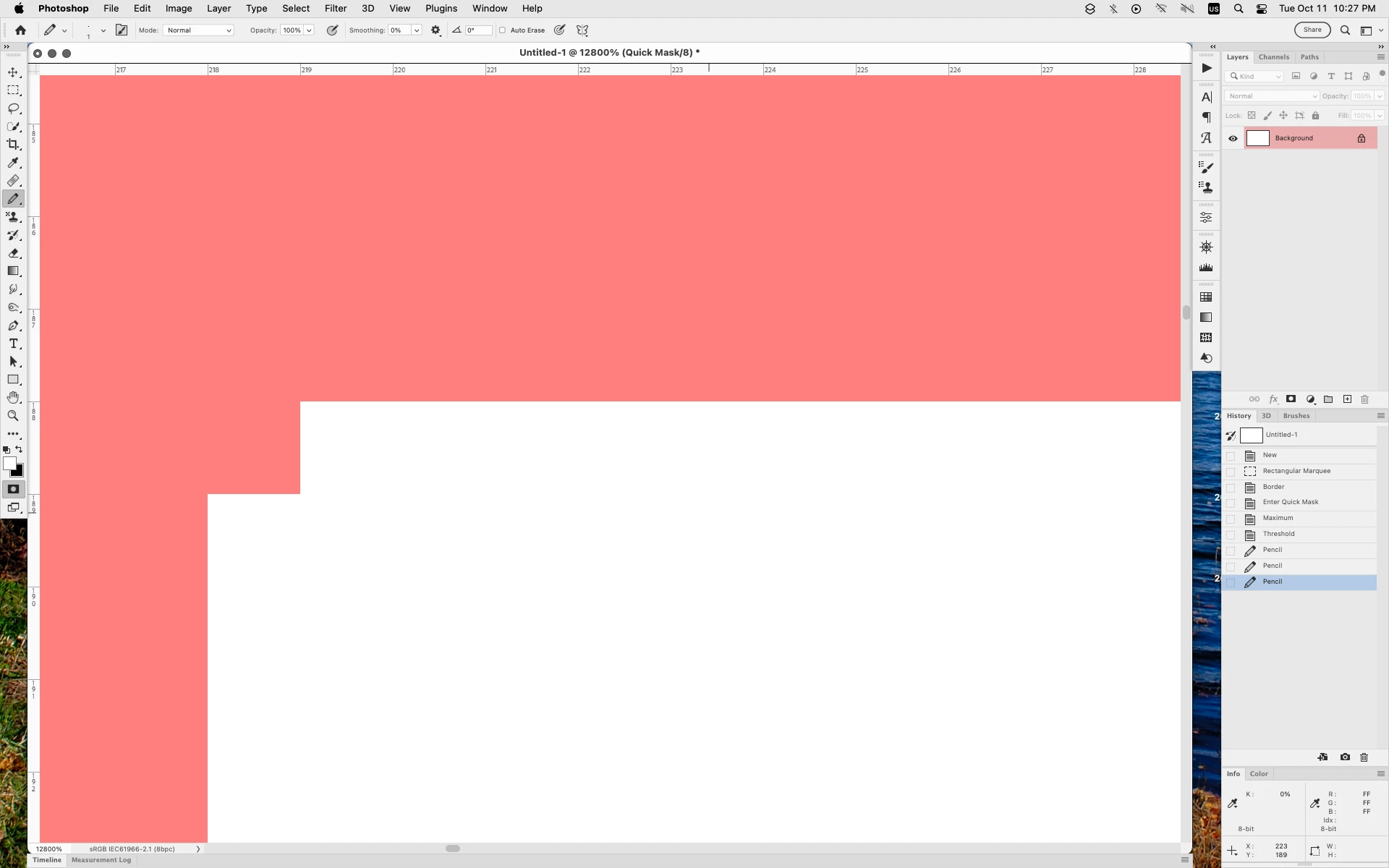

4. Unfortunately when doing this and using higher values in the Border command above

     about 15, the threshold leave a 1px cutout at each corner, though it's easily corrected by

     using the pencil tool set to 1px and just filling in each corner.

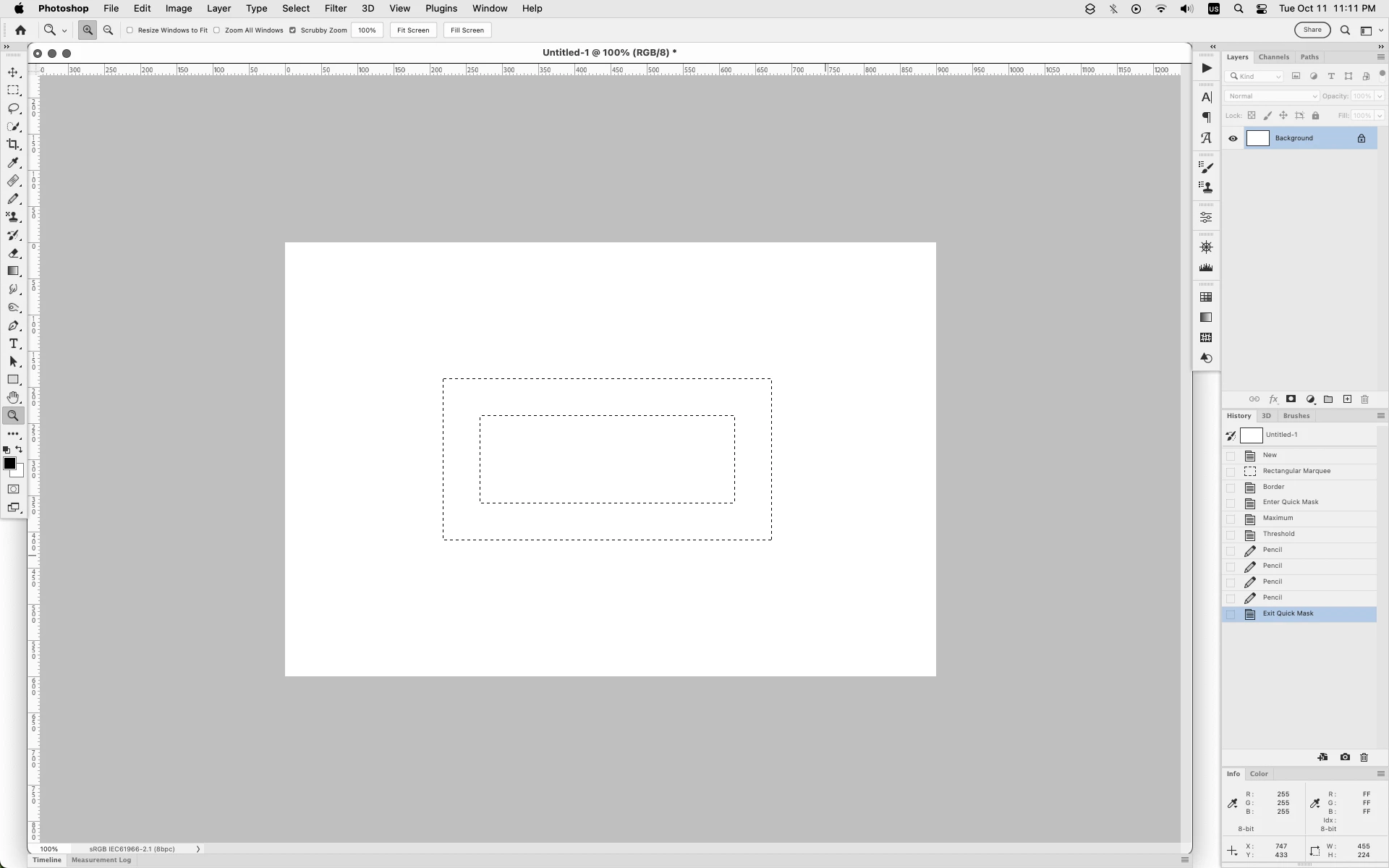

5. Press Q to Exit Quick Mask Mode

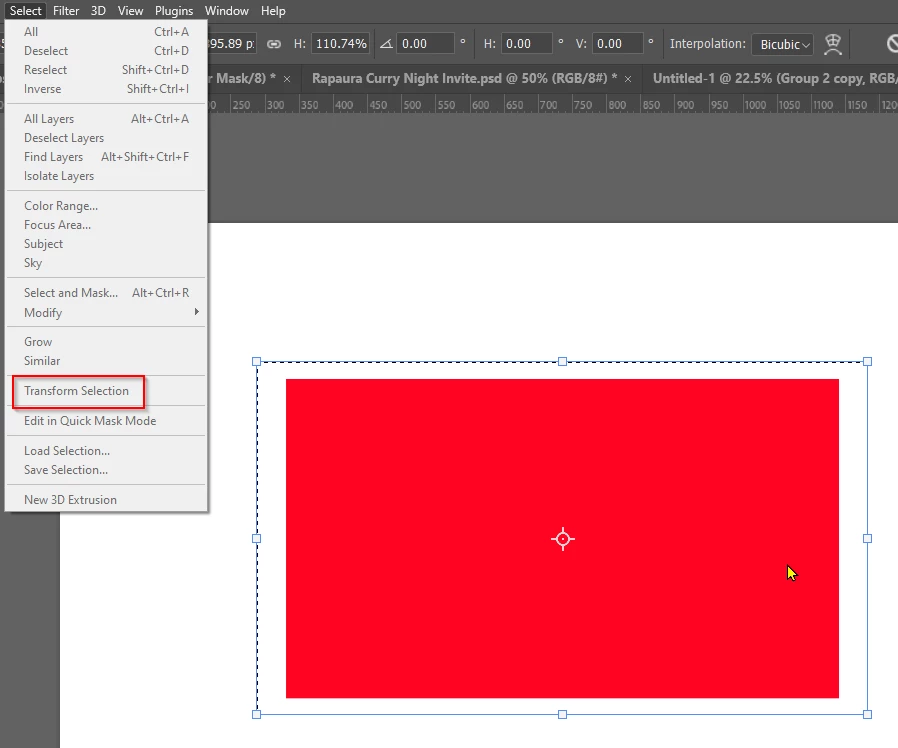

You could use Select > Transform Selection, using 100% + X px in the Width and Height fields, with X being twice the offset.

Hi there,

Thanks for reaching out. We're here to help.

From what I understood, you want to get the edges with sharp corners. There are multiple ways to do it.

Let me help you with one.

1) First, we can use the rectangular shape tool (Shift + U)

2) Select the area, remove the fill and increase the stroke.

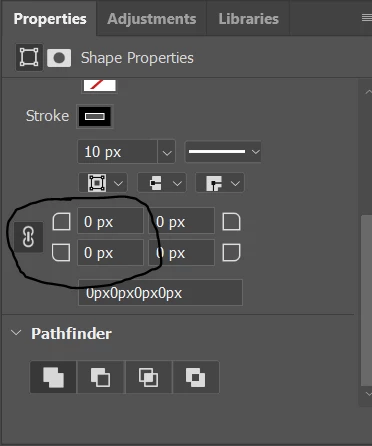

3) We go to properties and make the corner radius 0, or you can manually adjust it from the boundaries.

That's how you can get the result quickly and fast.

Let us know if this helps,

Thanks,

Ranjisha

One solution to retain the existing selection would be with a script. I don't have time right now, however, I can look into this if there is interest.

That would be best achieved by just manually drawing the selections and combining them. To make it more controllable you can also draw paths and convert them to a selection.

Mylenium
