How to get the dimensions of multiple selected layers?

  • September 12, 2025
  • 1 reply
  • 350 views

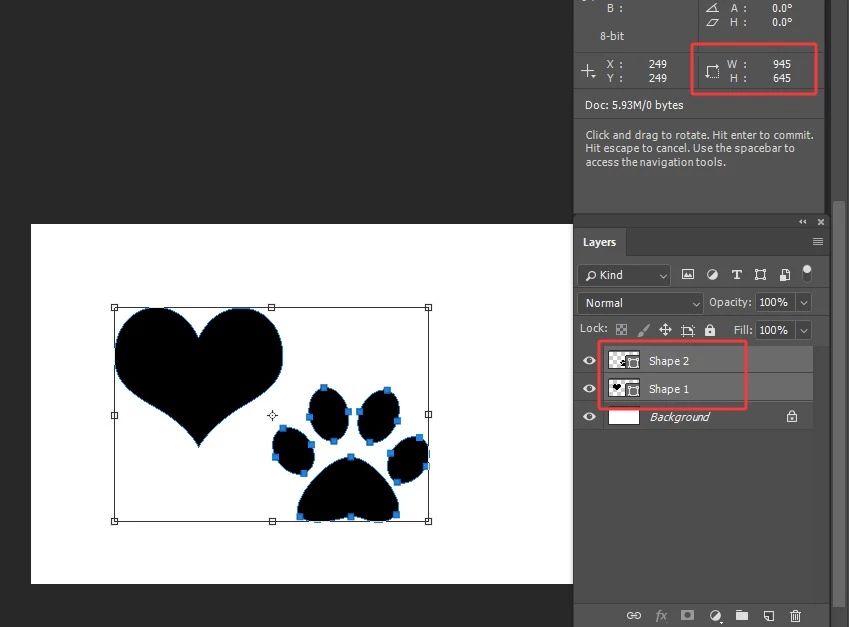

How can I get the width and height of multiple selected layers? For example, the width and height visible in the Info panel during Free Transform.Could you please advise? Thank you, everyone

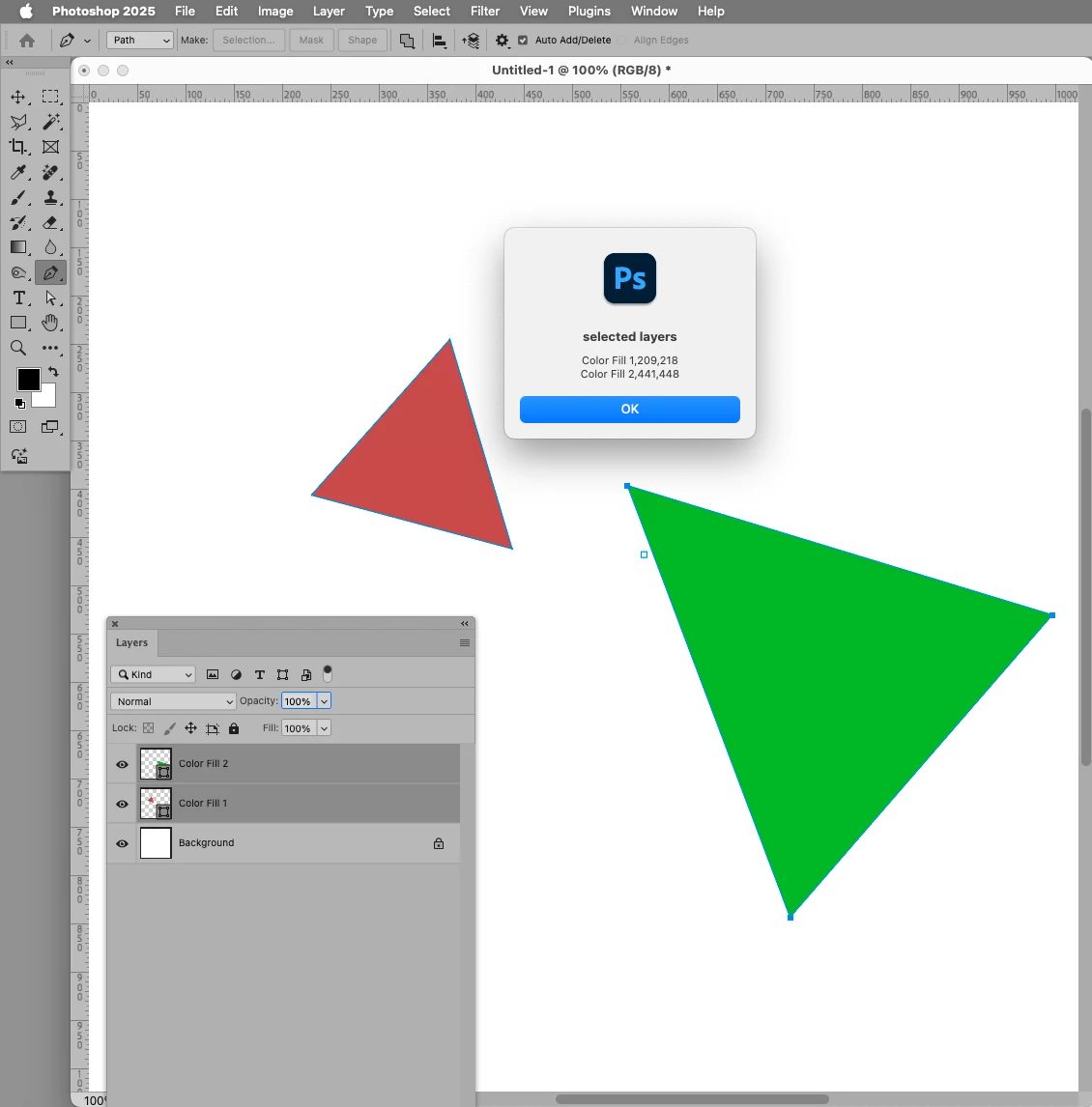

Correct answer c.pfaffenbichler

// edited
// 2025, use it at your own risk;
if (app.documents.length > 0) {
var originalRulerUnits = app.preferences.rulerUnits;
app.preferences.rulerUnits = Units.PIXELS;
var theLayers = collectSelectedLayersBounds ();
var x1 = theLayers[0][2][0];
var x2 = theLayers[0][2][2];
var y1 = theLayers[0][2][1];
var y2 = theLayers[0][2][3];
for (var m = 1; m < theLayers.length; m++) {
var x1 = Math.min(x1, theLayers[m][2][0]);
var x2 =  Math.max(x2, theLayers[m][2][2]);
var y1 =  Math.min(y1, theLayers[m][2][1]);
var y2 =  Math.max(y2, theLayers[m][2][3]);
};
alert ("selected layers\n"+(x2-x1)+"\n"+(y2-y1));
app.preferences.rulerUnits = originalRulerUnits;
};
////// collect bounds of selected layers //////
function collectSelectedLayersBounds () {
// set to pixels;
    var originalRulerUnits = app.preferences.rulerUnits;
    app.preferences.rulerUnits = Units.PIXELS;
// get selected layers;
    var selectedLayers = new Array;
    var ref = new ActionReference();
    ref.putEnumerated( charIDToTypeID("Dcmn"), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
    var desc = executeActionGet(ref);
    if (desc.getBoolean(stringIDToTypeID("hasBackgroundLayer")) == true) {var theAdd =0}
    else {var theAdd = 1};
    if( desc.hasKey( stringIDToTypeID( 'targetLayers' ) ) ){
    desc = desc.getList( stringIDToTypeID( 'targetLayers' ));
    var c = desc.count;
    var selectedLayers = new Array();
    // run through selected layers;
    for(var i=0;i<c;i++){
    var theIndex = desc.getReference( i ).getIndex()+theAdd;
    // get id for solid color layers;
    try {
    var ref = new ActionReference();
    ref.putIndex( charIDToTypeID("Lyr "), theIndex );
    var layerDesc = executeActionGet(ref);
    var theName = layerDesc.getString(stringIDToTypeID('name'));
    var theIdentifier = layerDesc.getInteger(stringIDToTypeID ("layerID"));
    var theBounds = layerDesc.getObjectValue(stringIDToTypeID("bounds"));
    var theseBounds = [theBounds.getUnitDoubleValue(stringIDToTypeID("left")), theBounds.getUnitDoubleValue(stringIDToTypeID("top")), theBounds.getUnitDoubleValue(stringIDToTypeID("right")), theBounds.getUnitDoubleValue(stringIDToTypeID("bottom"))];
    selectedLayers.push([theName, theIdentifier, theseBounds]);
    //selectedLayers.push([theName, theseBounds[2] - theseBounds[0], theseBounds[3] - theseBounds[1]])
    } catch (e) {};
    };
    // if only one:
    }else{
    var ref = new ActionReference();
    ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
    var layerDesc = executeActionGet(ref);
    try {
    var theName = layerDesc.getString(stringIDToTypeID('name'));
    var theIdentifier = layerDesc.getInteger(stringIDToTypeID ("layerID"));
    var theBounds = layerDesc.getObjectValue(stringIDToTypeID("bounds"));
    var theseBounds = [theBounds.getUnitDoubleValue(stringIDToTypeID("left")), theBounds.getUnitDoubleValue(stringIDToTypeID("top")), theBounds.getUnitDoubleValue(stringIDToTypeID("right")), theBounds.getUnitDoubleValue(stringIDToTypeID("bottom"))];
    selectedLayers = [[theName, theIdentifier, theseBounds]]
    //selectedLayers = [[theName, theseBounds[2] - theseBounds[0], theseBounds[3] - theseBounds[1]]]
    } catch (e) {};
    };
// reset;
    app.preferences.rulerUnits = originalRulerUnits;
    return selectedLayers;
};

1 reply

c.pfaffenbichler
Community Expert
c.pfaffenbichlerCommunity ExpertCorrect answer
Community Expert
September 12, 2025

// edited
// 2025, use it at your own risk;
if (app.documents.length > 0) {
var originalRulerUnits = app.preferences.rulerUnits;
app.preferences.rulerUnits = Units.PIXELS;
var theLayers = collectSelectedLayersBounds ();
var x1 = theLayers[0][2][0];
var x2 = theLayers[0][2][2];
var y1 = theLayers[0][2][1];
var y2 = theLayers[0][2][3];
for (var m = 1; m < theLayers.length; m++) {
var x1 = Math.min(x1, theLayers[m][2][0]);
var x2 =  Math.max(x2, theLayers[m][2][2]);
var y1 =  Math.min(y1, theLayers[m][2][1]);
var y2 =  Math.max(y2, theLayers[m][2][3]);
};
alert ("selected layers\n"+(x2-x1)+"\n"+(y2-y1));
app.preferences.rulerUnits = originalRulerUnits;
};
////// collect bounds of selected layers //////
function collectSelectedLayersBounds () {
// set to pixels;
    var originalRulerUnits = app.preferences.rulerUnits;
    app.preferences.rulerUnits = Units.PIXELS;
// get selected layers;
    var selectedLayers = new Array;
    var ref = new ActionReference();
    ref.putEnumerated( charIDToTypeID("Dcmn"), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
    var desc = executeActionGet(ref);
    if (desc.getBoolean(stringIDToTypeID("hasBackgroundLayer")) == true) {var theAdd =0}
    else {var theAdd = 1};
    if( desc.hasKey( stringIDToTypeID( 'targetLayers' ) ) ){
    desc = desc.getList( stringIDToTypeID( 'targetLayers' ));
    var c = desc.count;
    var selectedLayers = new Array();
    // run through selected layers;
    for(var i=0;i<c;i++){
    var theIndex = desc.getReference( i ).getIndex()+theAdd;
    // get id for solid color layers;
    try {
    var ref = new ActionReference();
    ref.putIndex( charIDToTypeID("Lyr "), theIndex );
    var layerDesc = executeActionGet(ref);
    var theName = layerDesc.getString(stringIDToTypeID('name'));
    var theIdentifier = layerDesc.getInteger(stringIDToTypeID ("layerID"));
    var theBounds = layerDesc.getObjectValue(stringIDToTypeID("bounds"));
    var theseBounds = [theBounds.getUnitDoubleValue(stringIDToTypeID("left")), theBounds.getUnitDoubleValue(stringIDToTypeID("top")), theBounds.getUnitDoubleValue(stringIDToTypeID("right")), theBounds.getUnitDoubleValue(stringIDToTypeID("bottom"))];
    selectedLayers.push([theName, theIdentifier, theseBounds]);
    //selectedLayers.push([theName, theseBounds[2] - theseBounds[0], theseBounds[3] - theseBounds[1]])
    } catch (e) {};
    };
    // if only one:
    }else{
    var ref = new ActionReference();
    ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
    var layerDesc = executeActionGet(ref);
    try {
    var theName = layerDesc.getString(stringIDToTypeID('name'));
    var theIdentifier = layerDesc.getInteger(stringIDToTypeID ("layerID"));
    var theBounds = layerDesc.getObjectValue(stringIDToTypeID("bounds"));
    var theseBounds = [theBounds.getUnitDoubleValue(stringIDToTypeID("left")), theBounds.getUnitDoubleValue(stringIDToTypeID("top")), theBounds.getUnitDoubleValue(stringIDToTypeID("right")), theBounds.getUnitDoubleValue(stringIDToTypeID("bottom"))];
    selectedLayers = [[theName, theIdentifier, theseBounds]]
    //selectedLayers = [[theName, theseBounds[2] - theseBounds[0], theseBounds[3] - theseBounds[1]]]
    } catch (e) {};
    };
// reset;
    app.preferences.rulerUnits = originalRulerUnits;
    return selectedLayers;
};
Known Participant
September 12, 2025

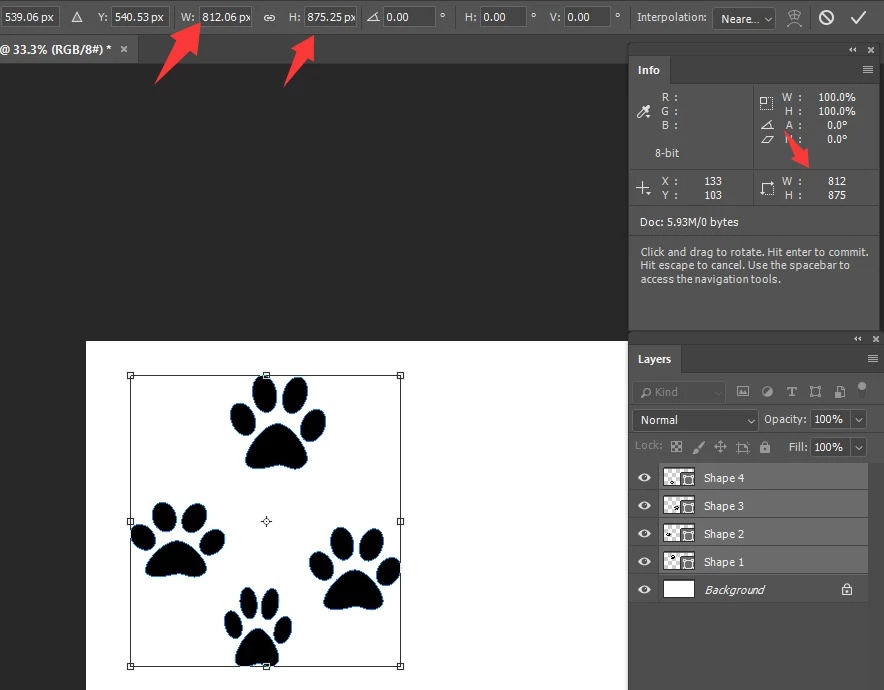

Thank you for your reply. I don't need to iterate through the dimensions of all the selected layers, but rather the total width and height of the currently selected layers

c.pfaffenbichler
Community Expert
Community Expert
September 12, 2025

Sorry for the misunderstanding, I edited the code in the previous post.
