Images look different in Bridge versus Photoshop.

Forum|Forum|7 years ago
April 25, 2018
5 replies
3432 views

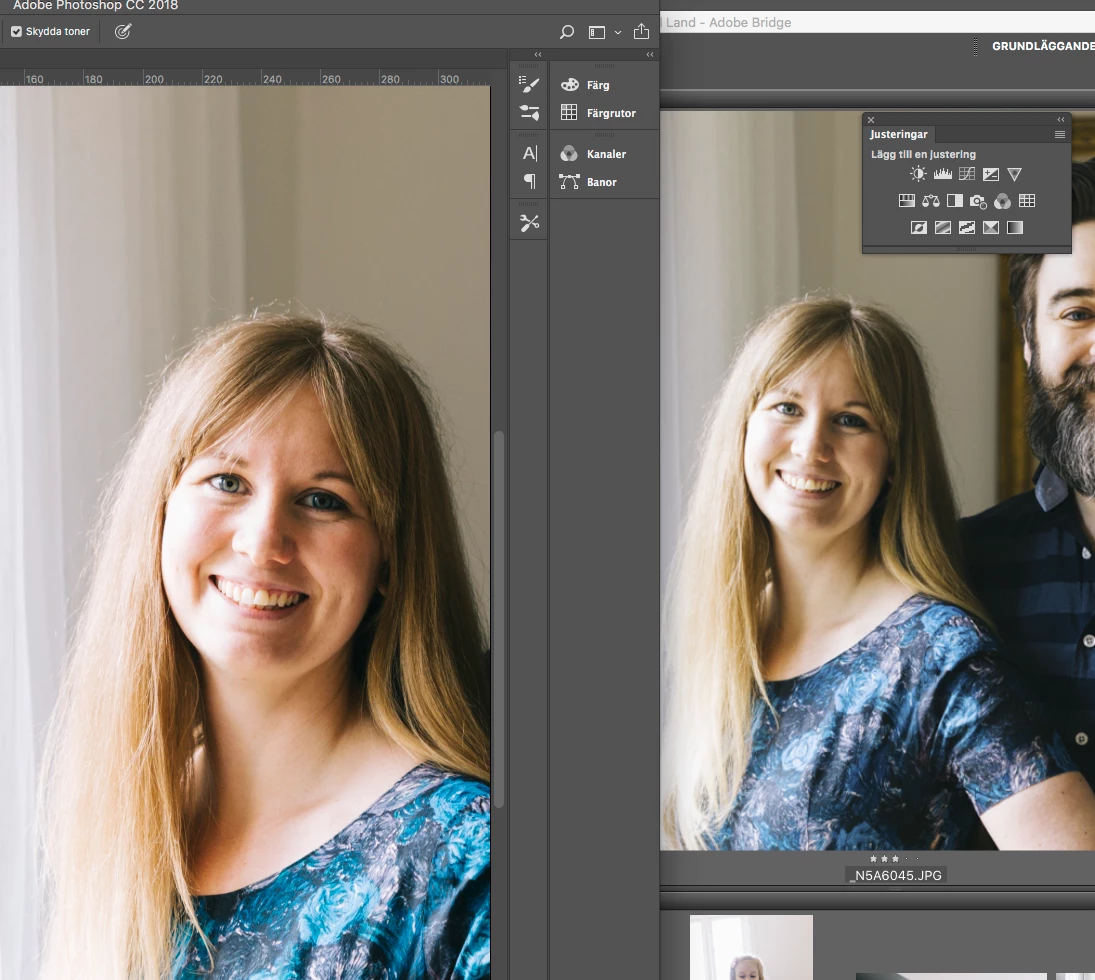

Ok, what the heck is this? Screenshot below is of jpg image, shown on same monitor. To the right in bridge, to the left in Photoshop. Which one is correct? I´ve been looking in settings but haven´t found anything that I think would change anything. Please help! Latest versions of all programs, using Imac but Eizo monitor for image work.

H

harabergsmannenAuthor

Inspiring

on my way to bed now, will try tomorrow. Bridge crashed before so couldnt try it then

Marianne-Deiters

Participating Frequently

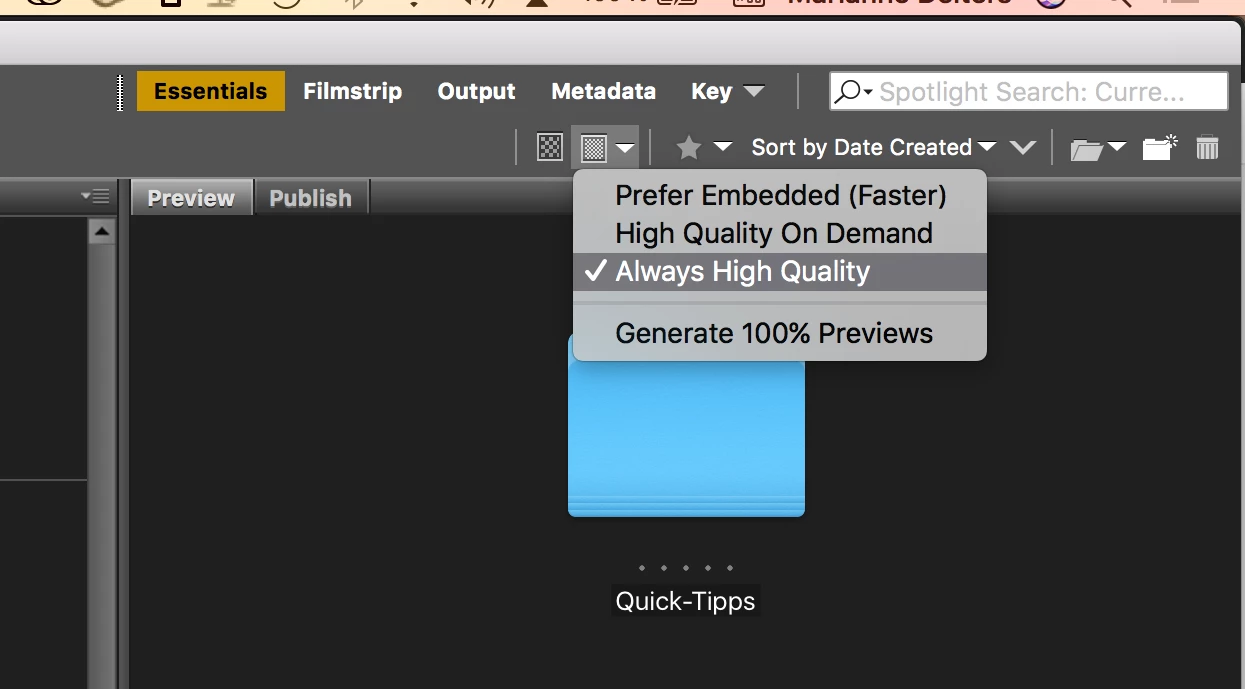

Are you using the option "Prefer Embedded" in Bridge? Those previews are not color managed. With "Always High Quality" you should be fine. (I hope so)

D Fosse

Community Expert

Marianne-Deiters wrote
Are you using the option "Prefer Embedded" in Bridge? Those previews are not color managed.

Prefer Embedded means Bridge displays the embedded jpeg instead of going to the Bridge Preview Cache to get an updated preview. It's still color managed (it is here), but it may not match the "proper" preview.

magical_Skyline0D4A

Inspiring

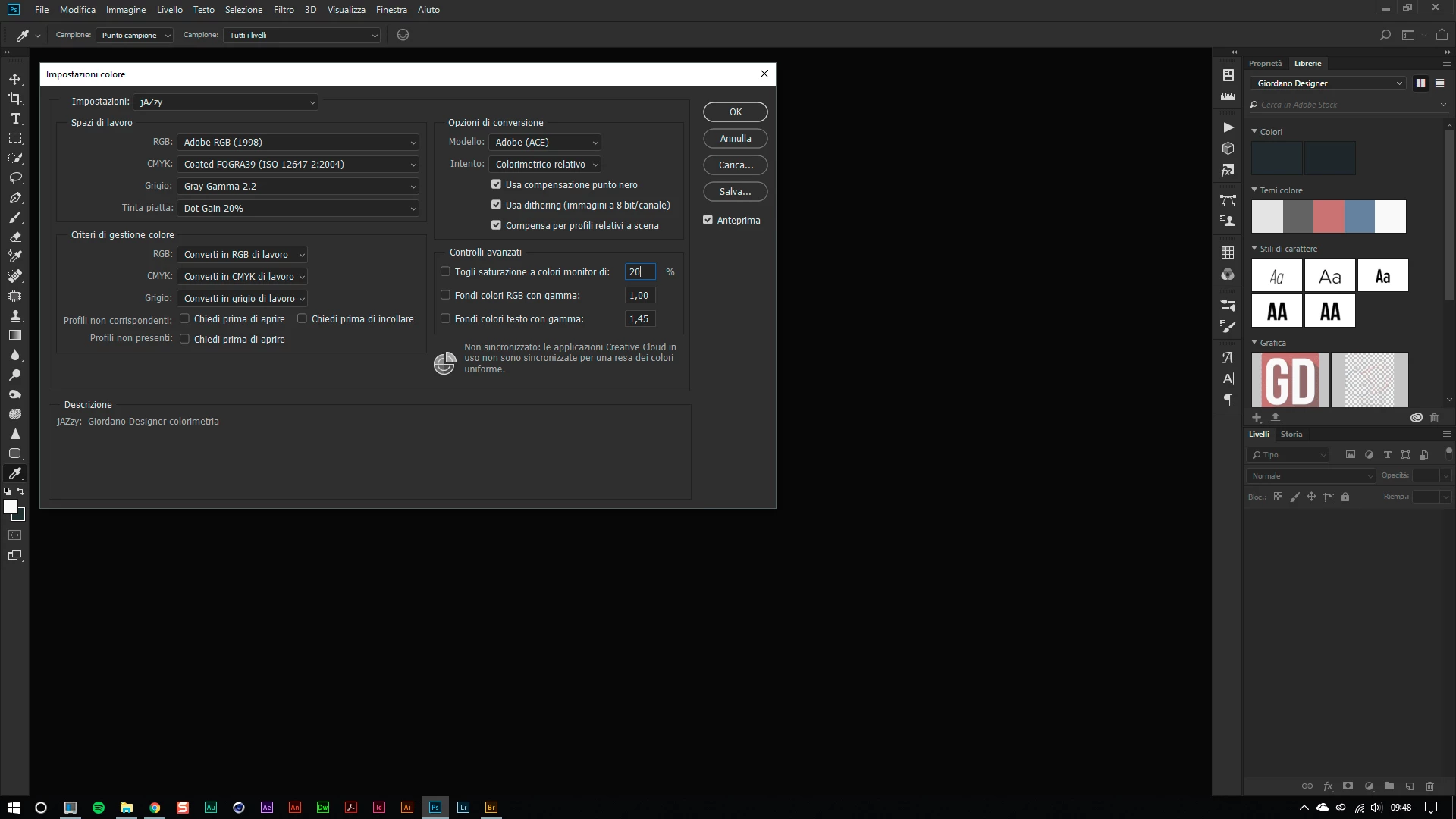

Go to menu > edit > color setting and from the panel choose the color profile and options you want ... then you save the profile with the name "My-Color-Profile" after you go to the other applications and choose as a color setting "My-Color-Profile"

D Fosse

Community Expert

I repeat: don't change any color settings - that's not where the problem is. This is the _monitor_ profile. Color settings don't need to match!

magical_Skyline0D4A

Inspiring

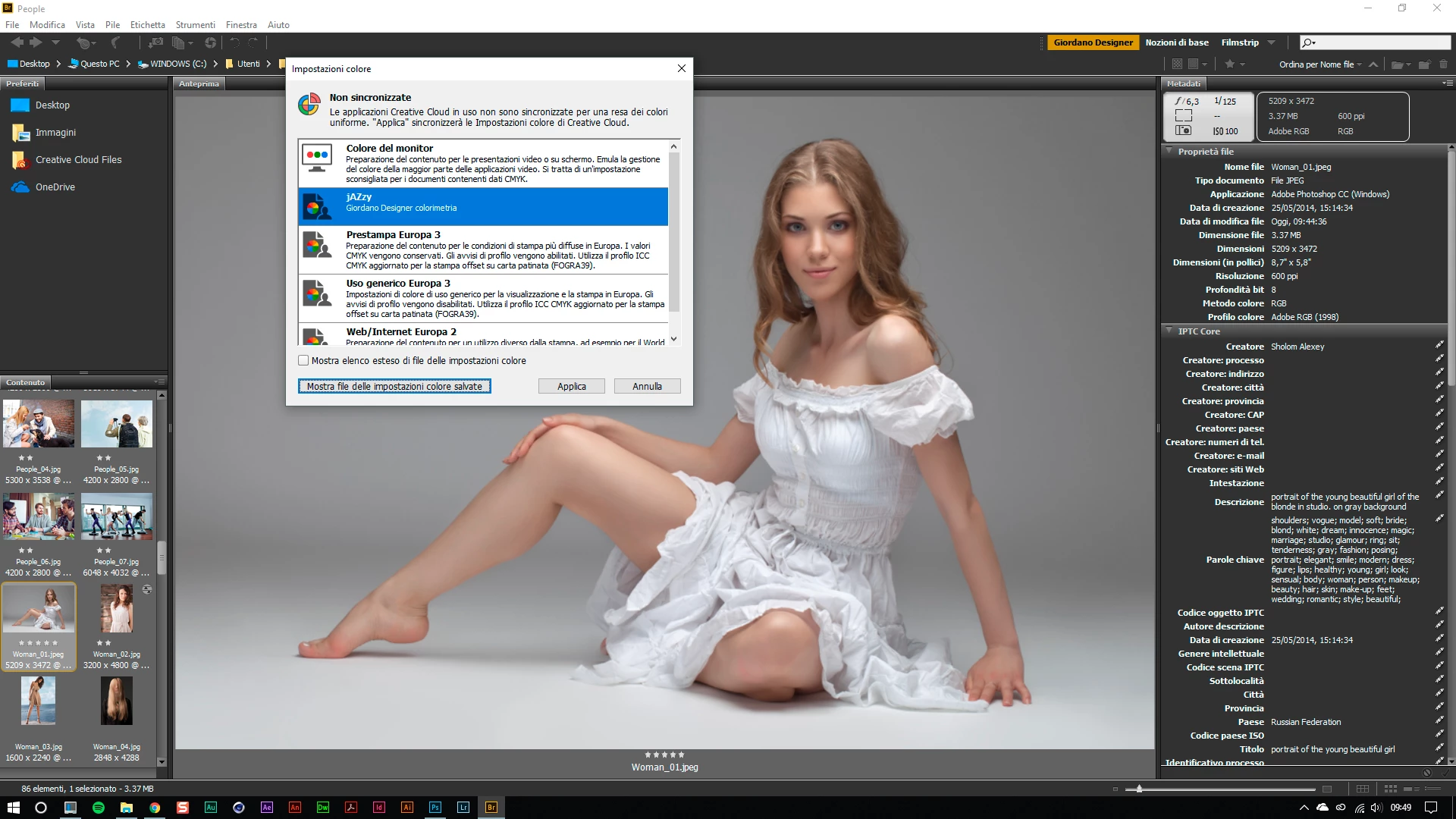

Hello,

the first thing you have to remember that Photoshop is an image editor while Bridge is an advanced browser to manage the contents in the various folders and the image of a file showing is a preview (it's not a final render like PS).

The best rule to observe is to have the same color profile in all applications ... Adobe RGB 1998? ... Adobe RGB 1998 for everything

For example, go to Photoshop from the menu > edit > color setting and choose the best settings for you then save this profile with a name

open other applications like Bridge, Illustrator, InDesign ... and always from the menu > edit > color setting choose your color profile

so everything speaks the same language and you have no errors or color artifacts

H

harabergsmannenAuthor

Inspiring

Thanks a lot for your replys, found the color settings in Bridge now! However, in bridge there is not the option of choosing Adobe RGB as my color workspace, only alternatives like "generic Europa", "monitor color", "prepress europa", "web and internet europa", "Generic Japan", "generic north america" etc. All the prepress ones are in one way or another related to Fogra 39, but if the other ones, like "monitor color" is Adobe RGB, it just doesnt say.

D Fosse

Community Expert

harabergsmannen, can you open Bridge and Photoshop on your iMac screen and see if there's still a difference?

Can you next try to set the Eizo as the primary display, if possible, and open both apps there again?

The way this looks, Photoshop is using the display profile for the iMac, when the application actually is on the Eizo and obviously should use that profile. This bug occasionally comes up in dual-display setups.

----

Let me just be clear about Color Settings: they deal exclusively with profiles on the document side, and policies for handling them. The most important one is Color Management Policies, and this should normally be "Preserve Embedded Profiles". With this setting, all embedded document profiles will always override the working space! This is the way Photoshop is designed to work, and this policy should never be changed unless you have very compelling reasons.

In other words, the working space isn't particularly important insofar as image representation and handling is concerned. It's more a question of color picker readouts and so on.

Color Settings do not affect the monitor profile, which is handled on system level. The application requests a monitor profile from the OS and normally uses whichever one the OS gives it.

The presets mentioned above (Europe Prepress and so on) are just that: presets. They set a certain predetermined combination of working spaces and policies, no different than setting them yourself.

And to be absolutely sure: Color Settings don't need to match between applications. Color managed applications will always display correctly whatever the document profile.

D Fosse

Community Expert

Don't change any color settings, that's not where the problem is.

This looks very much like an erratic bug that pops out now and then in dual-monitor setups. What happens is that one of the applications uses the wrong monitor profile, like e.g. the profile for the main display even if the application is on the secondary.

This becomes very obvious if one is wide gamut and the other standard.

The only fix I know is to switch display assignments in the OS (main<>secondary).

B

b_2446

Participant

Thank you very much! I sorted photos in Bridge and colored them in ACR for a while, and it was fine, and then suddenly I saw a huge difference; the preview ones in Bridge have much greater saturation. I started checking everything, but nothing helped until I found your comment and realised that a day before, I connected my old Sony TV and played with profiles, resolutions, and assignments. Once I connected it and restored all the settings, everything returned to normal as before. Thank you a lot again!
