Photoshop gallery wrap script with plain black border

@St3ffy22

Apologies, I had an old 1.0.2 version in my archive, so the previous posts won't work.

I'll download the latest 2.0.1 version and post back again.

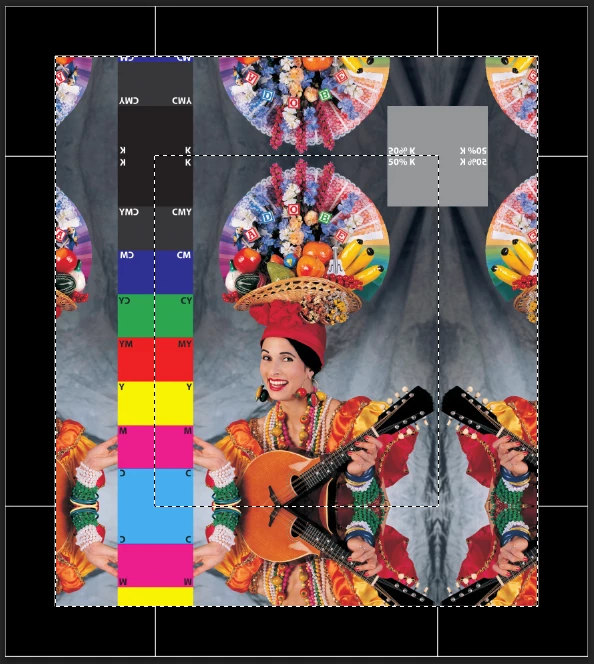

Edit: Here it is with a black background and reversed trims:

//
#target photoshop
//
// Gallery Wrap Script
//
// Martin Renters
// 3 Elsley Court
// Dundas, Ontario
// Canada L9H 6Z2
//
// email: martin@teckelworks.com
// web:   www.teckelworks.com
//
// Copyright (c) 2016-2023 Martin Renters, All rights reserved.
//
// Redistribution and use in source and binary forms, with or without
// modification, are permitted provided that the following conditions are met:
//
//   1. Redistributions of source code must retain the above copyright notice,
//      this list of conditions and the following disclaimer.
//
//   2. Redistributions in binary form must reproduce the above copyright
//      notice, this list of conditions and the following disclaimer in the
//      documentation and/or other materials provided with the distribution.
//
// THIS SOFTWARE IS PROVIDED BY MARTIN RENTERS ``AS IS'' AND ANY EXPRESS OR
// IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
// OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
// IN NO EVENT SHALL MARTIN RENTERS BE LIABLE FOR ANY DIRECT, INDIRECT,
// INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,
// BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS
// OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
// ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
// TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
// USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.


// Edit the following for the default amount of gallery wrap in inches

var GWconfig={
    defaultUnits: "inch",       // Can be "inch" or "cm"
    wrapSize: 2,                // Size of wrap area in default Units
    trimSize: 1,                // Trim area around wrap in default Units
    lineWidth: 5,               // Line width for trim lines
    innerBox: true,             // Draw inner box (limits of wrap)
    outerBox: true,             // Draw outer box (limits of trim area)
    foldLines: true,            // Draw fold lines
    style: "Mirrored",          // Style: "Plain", "Mirrored", "Content Aware"
    addLogo: true,              // Add a logo to the trim area
    logoName: null,             // Logo name (fill in by dialog)
    position: 'Bottom (Upside Down)' // Logo position
};

// No further changes should be required to any of the code below
var gallery_wrap_version = "2.1.0";

/*
    <javascriptresource>
    <name>Gallery Wrap</name>
    <type>automate</type>
    <about>This script automates the process of creating a gallery wrap</about>
    <enableinfo>true</enableinfo>
    </javascriptresource>
*/

//////////////////////////////////////////////////////////////////////////
//
// Draw Line
//
//////////////////////////////////////////////////////////////////////////
function drawLine(start, stop, width) {

    if (width <= 0) return;

    var desc = new ActionDescriptor();
    var lineDesc = new ActionDescriptor();
    var startDesc = new ActionDescriptor();
    var endDesc = new ActionDescriptor();

    startDesc.putUnitDouble(charIDToTypeID('Hrzn'), charIDToTypeID('#Pxl'),
        start[0]);
    startDesc.putUnitDouble(charIDToTypeID('Vrtc'), charIDToTypeID('#Pxl'),
        start[1]);
    endDesc.putUnitDouble(charIDToTypeID('Hrzn'), charIDToTypeID('#Pxl'),
        stop[0]);
    endDesc.putUnitDouble(charIDToTypeID('Vrtc'), charIDToTypeID('#Pxl'),
        stop[1]);
    lineDesc.putObject(charIDToTypeID('Strt'), charIDToTypeID('Pnt '),
        startDesc);
    lineDesc.putObject(charIDToTypeID('End '), charIDToTypeID('Pnt '), endDesc);
    lineDesc.putUnitDouble(charIDToTypeID('Wdth'), charIDToTypeID('#Pxl'),
        width);
    desc.putObject(charIDToTypeID('Shp '), charIDToTypeID('Ln  '), lineDesc);
    desc.putBoolean(charIDToTypeID('AntA'), true);
    executeAction(charIDToTypeID('Draw'), desc, DialogModes.NO);
}

//////////////////////////////////////////////////////////////////////////
//
// Check for valid value for Wrap/Trim Size and Line Weight
//
//////////////////////////////////////////////////////////////////////////
function check_value(name, obj)
{
    var v = parseFloat(obj.text);
    if (isNaN(v) || (v < 0)) {
        alert(name + " is not a valid value");
        return 1;
    }
    return 0;
}

//////////////////////////////////////////////////////////////////////////
//
// Preferences dialog
//
//////////////////////////////////////////////////////////////////////////

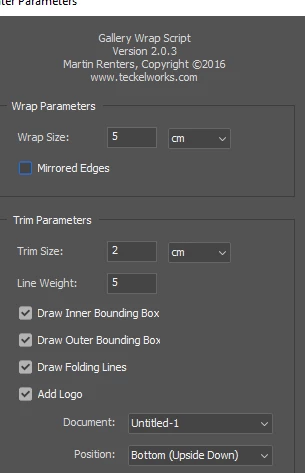

function PreferencesDialog()
{
    // Create the dialog box
    var dialog = new Window('dialog', 'Enter Parameters');
    dialog.alignChildren = ['fill', 'top'];

    var header = dialog.add('group', undefined, '', { orientation: 'row'});

    var msg = header.add('statictext{justify: "center", \
        properties: {multiline: true}}');
    msg.text = 'Gallery Wrap Script\nVersion ' + gallery_wrap_version + '\n' +
        'Martin Renters, Copyright \u00A92016-2023\n' + 'www.teckelworks.com';
    msg.preferredSize.width = 300;

    ///////////////////////////////////////////////////////
    // Wrap Size
    ///////////////////////////////////////////////////////
    wrap = dialog.add('panel', undefined, 'Wrap Parameters', {
        orientation: 'column'
    });
    wrap.alignChildren = 'left';
    wrap.margins = 20;
    wrap.indent = 20;

    var wrap_size = wrap.add('group', undefined, '', {
        orientation: 'row'
    });
    wrap_size.s = wrap_size.add('statictext', undefined,
        'Wrap Size:');
    wrap_size.s.preferredSize.width = 80;
    wrap_size.e = wrap_size.add('edittext', undefined,
        GWconfig.wrapSize);
    wrap_size.e.characters = 5;
    wrap_size.e.justify = 'right';
    wrap_size.u = wrap_size.add('dropdownlist');

    var wrap_style = wrap.add('group', undefined, '', {
        orientation: 'row'
    });
    wrap_style.s = wrap_style.add('statictext', undefined,
        'Wrap Style:');
    wrap_style.s.preferredSize.width = 80;
    wrap_style.dropdown = wrap_style.add('dropdownlist');

    ///////////////////////////////////////////////////////
    // Trim Size
    ///////////////////////////////////////////////////////
    var trim = dialog.add('panel', undefined, 'Trim Parameters', {
        orientation: 'column'
    });
    trim.alignChildren = 'left';
    trim.margins = 20;
    trim.indent = 20;

    // Trim Size
    var trim_size = trim.add('group', undefined, '', {
        orientation: 'row'
    });
    trim_size.s = trim_size.add('statictext', undefined,
        'Trim Size:');
    trim_size.s.preferredSize.width = 80;
    trim_size.e = trim_size.add('edittext', undefined,
        GWconfig.trimSize);
    trim_size.e.characters = 5;
    trim_size.e.justify = 'right';
    trim_size.u = trim_size.add('dropdownlist');

    // Line Width
    var line_width = trim.add('group', undefined, '', {
        orientation: 'row'
    });
    line_width.s = line_width.add('statictext', undefined,
        'Line Weight:');
    line_width.s.preferredSize.width = 80;
    line_width.e = line_width.add('edittext', undefined,
        GWconfig.lineWidth);
    line_width.e.characters = 5;
    line_width.e.justify = 'right';

    var innerBox = trim.add('checkbox', undefined, 'Draw Inner Bounding Box');
    innerBox.value = GWconfig.innerBox;
    var outerBox = trim.add('checkbox', undefined, 'Draw Outer Bounding Box');
    outerBox.value = GWconfig.outerBox;
    var foldLines = trim.add('checkbox', undefined, 'Draw Folding Lines');
    foldLines.value = GWconfig.foldLines;

    // Logo
    var addlogo = trim.add('checkbox', undefined, 'Add Logo');
    addlogo.onClick = function() {
        logo.enabled = this.value;
        pos.enabled = this.value;
    };
    var logo = trim.add('group', undefined, '', {
        orientation: 'row',
        enabled: false
    });
    logo.s = logo.add('statictext', undefined,
        'Document:');
    logo.s.preferredSize.width = 100;
    logo.s.justify = 'right';

    logo.dropdown = logo.add('dropdownlist');

    // Position
    var pos = trim.add('group', undefined, '', {
        orientation: 'row',
        enabled: false
    });
    pos.s = pos.add('statictext', undefined,
        'Position:');
    pos.s.preferredSize.width = 100;
    pos.s.justify = 'right';
    pos.dropdown = pos.add('dropdownlist');

    // Buttons
    var buttons = dialog.add('group', undefined, '', {
        orientation: 'row'
    });
    buttons.alignment='center';
    buttons.okBtn = buttons.add('button', undefined, 'OK');
    buttons.okBtn.onClick = function() {
        if (check_value("Wrap Size", wrap_size.e)) return;
        if (check_value("Trim Size", trim_size.e)) return;
        if (check_value("Line Weight", line_width.e)) return;
        dialog.close(1);
    return 1;
    };

    buttons.cancelBtn = buttons.add('button', undefined, 'Cancel');

    var documents = app.documents;
    var i;
    var listitem;

    addlogo.enabled = false;
    logo.enabled = this.value;
    pos.enabled = this.value;

    // Populate logos if other documents open
    for (i=0; i<app.documents.length; i++) {
    if (app.documents[i] == docRef) continue;
        listitem = logo.dropdown.add("item", app.documents[i].name);
        if (listitem.index == 0) {
            logo.dropdown.selection = listitem;
            addlogo.enabled = true;
            addlogo.value = GWconfig.addLogo;
            if (addlogo.value) {
                logo.enabled = true;
                pos.enabled = true;
            }
        }
    }

    if (!logo.enabled) {
        logo.dropdown.selection = logo.dropdown.add("item", "No other open documents");
    }

    // Populate logo positioning
    var positions = ['Bottom', 'Bottom (Upside Down)', 'All Sides'];
    for (i=0; i<positions.length; i++) {
        listitem = pos.dropdown.add("item", positions[i]);
        if (GWconfig.position == positions[i])
            pos.dropdown.selection = listitem;
    }

    // Populate wrap style
    var styles = ['Plain', 'Mirrored', 'Content Aware'];
    for (i=0; i<styles.length; i++) {
        listitem = wrap_style.dropdown.add("item", styles[i]);
        if (GWconfig.style == styles[i])
            wrap_style.dropdown.selection = listitem;
    }

    // Populate wrap/trim units
    var units = ['inch', 'cm'];
    for (i=0; i<units.length; i++) {
        listitem = wrap_size.u.add("item", units[i]);
        if (GWconfig.defaultUnits == units[i])
            wrap_size.u.selection = listitem;
        listitem = trim_size.u.add("item", units[i]);
        if (GWconfig.defaultUnits == units[i])
            trim_size.u.selection = listitem;
    }

    // Center dialog and show it to user
    dialog.center();
    var code = dialog.show();

    // Fetch the user's preferences
    GWconfig.wrapSize = parseFloat(wrap_size.e.text);
    GWconfig.style = wrap_style.dropdown.selection.text;
    GWconfig.trimSize = parseFloat(trim_size.e.text);
    GWconfig.addLogo = addlogo.value;
    GWconfig.lineWidth = line_width.e.text;
    GWconfig.innerBox = innerBox.value;
    GWconfig.outerBox = outerBox.value;
    GWconfig.foldLines = foldLines.value;

    // Logo name
    listitem = logo.dropdown.selection;
    if (listitem) GWconfig.logoName = listitem.text;

    // Logo position
    listitem = pos.dropdown.selection;
    if (listitem) GWconfig.position = listitem.text;

    // Convert to cm if necessary
    listitem = wrap_size.u.selection;
    if (listitem && listitem.text == "cm")
        GWconfig.wrapSize = GWconfig.wrapSize / 2.54;

    listitem = trim_size.u.selection;
    if (listitem && listitem.text == "cm")
        GWconfig.trimSize = GWconfig.trimSize / 2.54;

    // Convert wrap from inches to pixels
    GWconfig.wrapSize = Math.round(GWconfig.wrapSize * docRef.resolution);
    GWconfig.trimSize = Math.round(GWconfig.trimSize * docRef.resolution);

    return code;
}

//////////////////////////////////////////////////////////////////////////
//
// drawLogos
//
//////////////////////////////////////////////////////////////////////////
function drawLogos(config)
{
    var layer;
    var trimSize = config.trimSize;

    // Can't draw logo if there is no trim size
    if (trimSize <= 0) return;
    if (config.addLogo == false) return;
    if (config.logoName == null) return;

    var logo = app.documents.getByName(config.logoName);
    app.activeDocument = logo;

    // Duplicate logo and get reference to new one
    logo = logo.duplicate("Logo-Gallery-Wrap");
    logo.flatten();

    var logo_h = logo.height.value;
    var logo_w = logo.width.value;

    // Figure out how much to resize the image
    var scale = trimSize*0.8/logo_h;
    logo.resizeImage(scale*logo_w, scale*logo_h, docRef.Resolution);
    logo_h = logo.height.value;
    logo_w = logo.width.value;

    // Copy to LAB so that we can paste without color space mismatches
    logo.convertProfile("Lab Color", Intent.RELATIVECOLORIMETRIC);
    logo.selection.selectAll();
    logo.selection.copy();

    app.activeDocument = docRef;

    // Logo on bottom
    docRef.selection.selectAll();
    layer = docRef.paste();
    if (config.position != "Bottom")
        layer.rotate(180, AnchorPosition.MIDDLECENTER);
    layer.translate(0, (docRef.height.value - trimSize)/2);
    layer.merge();

    if (config.position == "All Sides") {
        // Logo on top
        docRef.selection.selectAll();
        layer = docRef.paste();
        layer.rotate(0, AnchorPosition.MIDDLECENTER);
        layer.translate(0, -(docRef.height.value - trimSize)/2);
        layer.merge();

        // Logo on Left
        docRef.selection.selectAll();
        layer = docRef.paste();
        layer.rotate(-90, AnchorPosition.MIDDLECENTER);
        layer.translate(-(docRef.width - trimSize)/2, 0);
        layer.merge();

        // Logo on right
        docRef.selection.selectAll();
        layer = docRef.paste();
        layer.rotate(90, AnchorPosition.MIDDLECENTER);
        layer.translate((docRef.width - trimSize)/2, 0);
        layer.merge();
    }

    logo.close(SaveOptions.DONOTSAVECHANGES);

    // Delete Reference
    logo = null;
}

//////////////////////////////////////////////////////////////////////////
//
// drawTrimLines
//
//////////////////////////////////////////////////////////////////////////
function drawTrimLines(config)
{
    var wrapSize = config.wrapSize;
    var trimSize = config.trimSize;
    var lineWidth = config.lineWidth;

    // If no trimSize, then nothing to do
    if (trimSize <= 0) return;

    var white = new SolidColor();
    white.rgb.hexValue = "FFFFFF";
    app.foregroundColor = white;

    size = wrapSize + trimSize;
    height = docRef.height;
    width = docRef.width;

    // Fold Lines
    if (config.foldLines) {
        // Top Left
        drawLine([0,size], [trimSize,size], lineWidth);
        drawLine([size,0], [size,trimSize], lineWidth);

        // Top Right
        drawLine([width.value,size], [width.value-trimSize,size], lineWidth);
        drawLine([width.value-size,0], [width.value-size,trimSize], lineWidth);

        // Bottom Left
        drawLine([0,height.value-size],
            [trimSize,height.value-size], lineWidth);
        drawLine([size,height.value],
            [size,height.value-trimSize], lineWidth);

        // Bottom Right
        drawLine([width.value,height.value-size],
            [width.value-trimSize,height.value-size], lineWidth);
        drawLine([width.value-size,height.value],
            [width.value-size,height.value-trimSize], lineWidth);
    }

    // Inner box
    if (config.innerBox) {
        drawLine([trimSize, trimSize],
                [width.value-trimSize, trimSize], lineWidth);
        drawLine([width.value-trimSize, trimSize],
                [width.value-trimSize, height.value-trimSize], lineWidth);
        drawLine([width.value-trimSize, height.value-trimSize],
                [trimSize, height.value-trimSize], lineWidth);
        drawLine([trimSize, height.value-trimSize],
                [trimSize, trimSize], lineWidth);
    }

    // Outer Box
    if (config.outerBox) {
        drawLine([0, 0], [width.value, 0], lineWidth);
        drawLine([width.value, 0], [width.value, height.value], lineWidth);
        drawLine([width.value, height.value], [0, height.value], lineWidth);
        drawLine([0, height.value], [0, 0], lineWidth);
    }
}

//////////////////////////////////////////////////////////////////////////
//
// selectWrapArea - Selects the gallery wrap area
//
//////////////////////////////////////////////////////////////////////////
function selectWrapArea(outerBorder, innerBorder)
{
    if (innerBorder <= 0) return;

    var height = docRef.height;
    var width = docRef.width;
    var selRegion;
    var size;

    app.activeDocument = docRef;

    // Select image canvas image area
    selRegion = [   [outerBorder, outerBorder],
            [width-outerBorder, outerBorder],
            [width-outerBorder, height-outerBorder],
            [outerBorder, height-outerBorder]
        ];
    docRef.selection.select(selRegion, SelectionType.REPLACE, 0);

    size = outerBorder + innerBorder;
    selRegion = [   [size, size],
            [width-size, size],
            [width-size, height-size],
            [size, height-size]
        ];
    docRef.selection.select(selRegion, SelectionType.DIMINISH, 0);
}

//////////////////////////////////////////////////////////////////////////
//
// getMode
//
//////////////////////////////////////////////////////////////////////////
function getMode(doc)
{
    switch(doc.mode) {
        case DocumentMode.BITMAP: mode = NewDocumentMode.BITMAP; break;
        case DocumentMode.CMYK: mode = NewDocumentMode.CMYK; break;
        case DocumentMode.GRAYSCALE: mode = NewDocumentMode.GRAYSCALE; break;
        case DocumentMode.LAB: mode = NewDocumentMode.LAB; break;
        case DocumentMode.RGB: mode = NewDocumentMode.RGB; break;
        default:
            alert("This document mode isn't supported by this script. Converting document to RGB mode");
            doc.changeMode(ChangeMode.RGB);
            mode = NewDocumentMode.RGB;
            break;
    }
    return mode;
}

//////////////////////////////////////////////////////////////////////////
//
// Content Aware Fill
//
//////////////////////////////////////////////////////////////////////////
function ContentAwareFill(config)
{
    selectWrapArea(0, config.wrapSize)
    desc = new ActionDescriptor();
    desc.putEnumerated( charIDToTypeID( "Usng" ), charIDToTypeID( "FlCn" ),
        stringIDToTypeID( "contentAware" ) );
    executeAction( charIDToTypeID( "Fl  " ), desc, DialogModes.NO );
}

//////////////////////////////////////////////////////////////////////////
//
// Mirror Wrap
//
//////////////////////////////////////////////////////////////////////////
function MirrorWrap(config)
{
    var i;
    var selRegion;
    var copyRef;
    var layer;

    var mode = getMode(docRef);;
    var wrapSize = config.wrapSize;
    var height = docRef.height;
    var width = docRef.width;

    var areas = [
        {                                           // Left
            src_selection: [
                [wrapSize, 0],
                [wrapSize*2, 0],
                [wrapSize*2, height],
                [wrapSize, height]
            ],
            dst_selection: [
                [0, 0],
                [wrapSize, 0],
                [wrapSize, height],
                [0, height]
            ],
            w: wrapSize,
            h: height
        },
        {                                           // Right
            src_selection: [
                [width-wrapSize, 0],
                [width-(wrapSize*2), 0],
                [width-(wrapSize*2), height],
                [width-wrapSize, height]
            ],
            dst_selection: [
                [width, 0],
                [width-wrapSize, 0],
                [width-wrapSize, height],
                [width, height]
            ],
            w: wrapSize,
            h: height
        },
        {                                           // Top
            src_selection: [
                [0, wrapSize],
                [0, wrapSize*2],
                [width, wrapSize*2],
                [width, wrapSize]
            ],
            dst_selection: [
                [0, 0],
                [0, wrapSize],
                [width, wrapSize],
                [width, 0]
            ],
            w: width,
            h: wrapSize
        },
        {                                           // Bottom
            src_selection: [
                [0, height-wrapSize],
                [0, height-(wrapSize*2)],
                [width, height-(wrapSize*2)],
                [width, height-wrapSize]
            ],
            dst_selection: [
                [0, height],
                [0, height-wrapSize],
                [width, height-wrapSize],
                [width, height]
            ],
            w: width,
            h: wrapSize
        }
    ];

    for (i=0; i<4; i++) {
        docRef.selection.select(areas[i].src_selection,
            SelectionType.REPLACE, 0);
        docRef.selection.copy();
        if (docRef.colorProfileType.toString() != ColorProfile.NONE) {
          copyRef = app.documents.add(areas[i].w, areas[i].h,
            docRef.resolution, "Mirror",
            mode, DocumentFill.WHITE, docRef.pixelAspectRatio,
            docRef.bitsPerChannel, docRef.colorProfileName);
            var idInvr = charIDToTypeID("Invr"); // Image > Adjustments > Invert
            executeAction(idInvr, undefined, DialogModes.NO);
        } else {
          copyRef = app.documents.add(areas[i].w, areas[i].h,
            docRef.resolution, "Mirror",
            mode, DocumentFill.WHITE, docRef.pixelAspectRatio,
            docRef.bitsPerChannel);
            var idInvr = charIDToTypeID("Invr"); // Image > Adjustments > Invert
            executeAction(idInvr, undefined, DialogModes.NO);
        }
        copyRef.paste();
        if (i < 2)
            copyRef.flipCanvas(Direction.HORIZONTAL);
        else
            copyRef.flipCanvas(Direction.VERTICAL);

        copyRef.selection.selectAll();
        copyRef.selection.copy();
        copyRef.close(SaveOptions.DONOTSAVECHANGES);
        app.activeDocument = docRef;
        docRef.selection.select(areas[i].dst_selection,
            SelectionType.REPLACE, 0);
        layer = docRef.paste(true);
        docRef.flatten();
    }
    copyRef = null;
}

//////////////////////////////////////////////////////////////////////////
//
// Gallery Wrap Procedure
//
//////////////////////////////////////////////////////////////////////////
function GalleryWrap(config)
{
    var wrapSize = config.wrapSize;
    var trimSize = config.trimSize;

    docRef.flatten();

    var black = new SolidColor();
    black.rgb.hexValue = "000000";
    app.backgroundColor = black;

    // Create the wrap area if greater than zero
    if (wrapSize > 0) {
        docRef.resizeCanvas(docRef.width+wrapSize*2, docRef.height+wrapSize*2,
                            AnchorPosition.MIDDLECENTER);
        if (config.style == 'Mirrored') MirrorWrap(config)
        if (config.style == 'Content Aware') ContentAwareFill(config)
    }
    if (trimSize > 0) {
        docRef.resizeCanvas(docRef.width+trimSize*2, docRef.height+trimSize*2,
                            AnchorPosition.MIDDLECENTER);
        drawTrimLines(config);
        drawLogos(config);
    }
    selectWrapArea(trimSize, wrapSize)
}

//////////////////////////////////////////////////////////////////////////
//
// Main Procedure
//
//////////////////////////////////////////////////////////////////////////

var docRef;

var originalRulerUnits = app.preferences.rulerUnits;
preferences.rulerUnits = Units.PIXELS;

if (app.documents.length == 0) {
    alert("No documents open. Terminating.");
} else {
    docRef = app.activeDocument;

    app.bringToFront();

    if (docRef && PreferencesDialog() == 1) {
        docRef.suspendHistory("Gallery Wrap",
            " GalleryWrap(GWconfig);");
    }
}

// Release references
docRef = null;

// Restore original ruler unit setting
app.preferences.rulerUnits = originalRulerUnits;

https://www.teckelworks.com/2016/01/canvas-gallery-wrap-script-version-2/

@St3ffy22

Unfortunately, DocumentFill.BLACK doesn't exist.

It might also be possible to add an invert step after the doc is created, but I haven't tried...

You can use DocumentFill.BACKGROUNDCOLOR

Changing a copy of the original script from this:

if (docRef.colorProfileType.toString() != ColorProfile.NONE) {
	  copyRef = app.documents.add(w, h, docRef.resolution, "Mirror",
		mode, DocumentFill.WHITE, docRef.pixelAspectRatio,
		docRef.bitsPerChannel, docRef.colorProfileName);
	} else {
	  copyRef = app.documents.add(w, h, docRef.resolution, "Mirror",
		mode, DocumentFill.WHITE, docRef.pixelAspectRatio,
		docRef.bitsPerChannel);
	}

To this:

if (docRef.colorProfileType.toString() != ColorProfile.NONE) {
	var s2t = function (s) {
		return app.stringIDToTypeID(s);
	};
	var descriptor = new ActionDescriptor();
	var reference = new ActionReference();
	reference.putProperty(s2t("color"), s2t("colors"));
	descriptor.putReference(s2t("null"), reference);
	executeAction(s2t("reset"), descriptor, DialogModes.NO);
	executeAction(s2t("exchange"), descriptor, DialogModes.NO);
	copyRef = app.documents.add(w, h, docRef.resolution, "Mirror",
		mode, DocumentFill.BACKGROUNDCOLOR, docRef.pixelAspectRatio,
		docRef.bitsPerChannel, docRef.colorProfileName);
} else {
	var s2t = function (s) {
		return app.stringIDToTypeID(s);
	};
	var descriptor = new ActionDescriptor();
	var reference = new ActionReference();
	reference.putProperty(s2t("color"), s2t("colors"));
	descriptor.putReference(s2t("null"), reference);
	executeAction(s2t("reset"), descriptor, DialogModes.NO);
	executeAction(s2t("exchange"), descriptor, DialogModes.NO);
	copyRef = app.documents.add(w, h, docRef.resolution, "Mirror",
		mode, DocumentFill.BACKGROUNDCOLOR, docRef.pixelAspectRatio,
		docRef.bitsPerChannel);
}

Which adds code to reset and exchange the foreground/background colours. An alternative would be to capture the original background colour and then make it black, then reset it back to the captured colour afterwards.
