Script to arrange artboard in grid

Hello guys, I need a script to arrange selected artboards in a grid format in photoshop cc 2017 or cc 2018. Thanks in advance

This topic is closed to new replies. Start a new post to keep the conversation going.
r-binCorrect answer
Legend
Sep 7, 2018 8:55 AM UTC

Hello, where can you share this script with me?

I need him very much.


var clms = 5;

var space_x = 20;

var space_y = 20;

clms = prompt("Columns", clms, "Input");

if (clms)

    {

    clms = Number(clms);

    var arts = new Array();

    var w = 0;

    var h = 0;

    for (var i = 0; i < activeDocument.layerSets.length; i++)

        {

        var r = new ActionReference();

        r.putProperty(stringIDToTypeID("property"), stringIDToTypeID("artboardEnabled"));

        r.putIdentifier(stringIDToTypeID("layer"), activeDocument.layerSets.id);



        if (executeActionGet(r).getBoolean(stringIDToTypeID("artboardEnabled")))

            {

            var r = new ActionReference();

            r.putProperty(stringIDToTypeID("property"), stringIDToTypeID("artboard"));

            r.putIdentifier(stringIDToTypeID("layer"), activeDocument.layerSets.id);



            var rect = executeActionGet(r).getObjectValue(stringIDToTypeID("artboard")).getObjectValue(stringIDToTypeID("artboardRect"));



            var l = rect.getDouble(stringIDToTypeID("left"));

            var t = rect.getDouble(stringIDToTypeID("top"));

            var r = rect.getDouble(stringIDToTypeID("right"));

            var b = rect.getDouble(stringIDToTypeID("bottom"));



            arts.push([activeDocument.layerSets, [l,t,r,b]]);



            var w1 = r-l;

            var h1 = b-t;



            if (w1 > w) w = w1;

            if (h1 > h) h = h1;

            }

        }

    var rows = Math.floor(arts.length/clms);

    if (rows*clms < arts.length) ++rows;

    var i = 0;

    for (var y = 0; y < rows; y++)

        {

        var pos_y = y * (h + space_y);

        for (var x = 0; x < clms; x++)

            {

            if (i >= arts.length) break;

            activeDocument.activeLayer = arts[0];

            var pos_x = x * (w + space_x);

            move(pos_x-arts[1][0], pos_y-arts[1][1])

            i += 1;

            }

        }

    }

///////////////////////////////////////////////////////////////////////////

function move(x, y)

    {

    try {

        var d = new ActionDescriptor();

        var r = new ActionReference();

        r.putEnumerated(stringIDToTypeID("layer"), stringIDToTypeID("ordinal"), stringIDToTypeID("targetEnum"));

        d.putReference(stringIDToTypeID("null"), r);

        var d1 = new ActionDescriptor();

        d1.putUnitDouble(stringIDToTypeID("horizontal"), stringIDToTypeID("pixelsUnit"), x);

        d1.putUnitDouble(stringIDToTypeID("vertical"), stringIDToTypeID("pixelsUnit"), y);

        d.putObject(stringIDToTypeID("to"), stringIDToTypeID("offset"), d1);

        executeAction(stringIDToTypeID("move"), d, DialogModes.NO);

        }

    catch (e) { throw(e); }

    }

9 replies

Participant
Jul 21, 2022 3:37 PM UTC

I thought it might be worth mentioning here that you can also use the "Align" and "Distribute" tools on artboards. Just select the artboards in the layers panel and then click one of the "Align" and "Distribute" icons.

Translate
Jarda Bereza
Inspiring
Oct 30, 2017 1:49 PM UTC

Can you upload image how result of script should look at your screen?

Translate
Inspiring
Oct 30, 2017 2:14 PM UTC

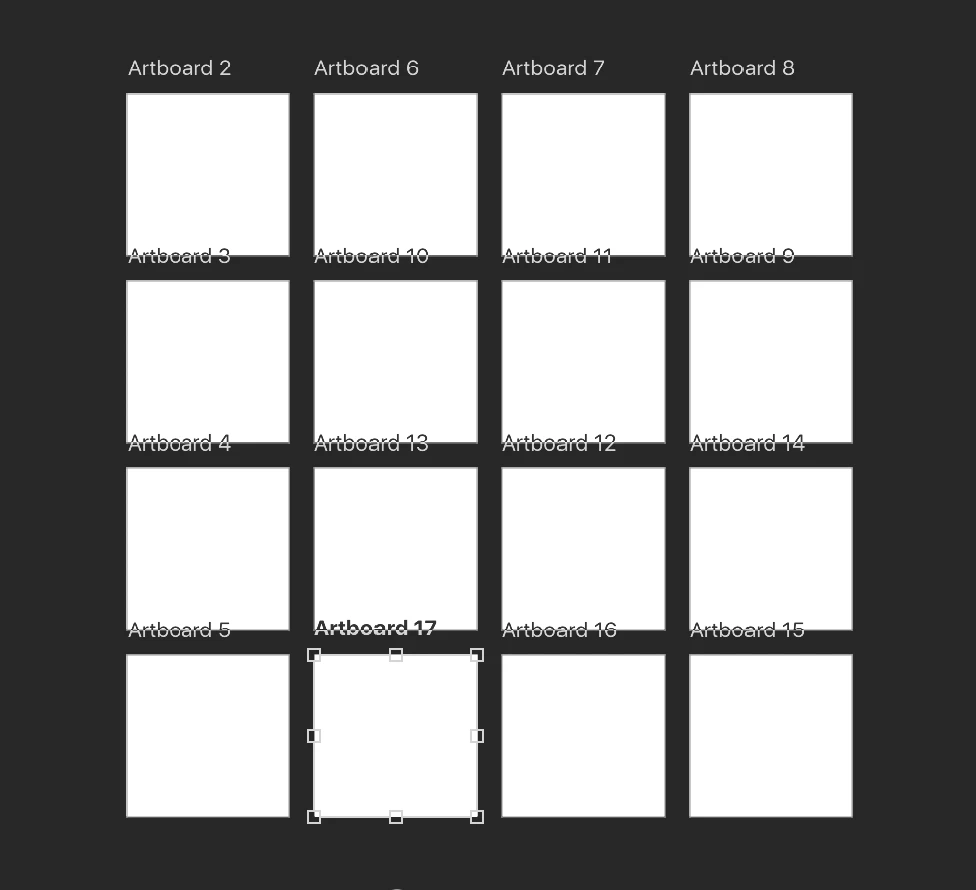

Here is more description A simple script to rearrange selected artboards into a grid with the option of how many rows and columns + how much spacing between them vertically and horizontally. Preferably in the order they're laid out in the layers panel. This is all assuming that the selected artboards have the same dimensions to make the math slightly easier. Final result will be as in screen shot.

Translate
Pretend that I am ACP
Known Participant
Sep 7, 2018 12:06 AM UTC

Hello, where can you share this script with me?

I need him very much.
