July 13, 2024
Question

start brush stroke where I just stopped

  • July 13, 2024
  • 2 replies
  • 342 views

I am drawing with my tablet.  Is there a way to have my brush pick up where I just left off so the lines come together perfectly, and there isn't that little bit of offset as you stop and start new strokes along the same line?  I have tried Adobe Tech Support, but they don't seem to understand what I'm asking.  They told me to activate "Stroke Catch Up," but that is not correct.

This topic has been closed for replies.

2 replies

Trevor.Dennis
Community Expert
Community Expert
July 15, 2024

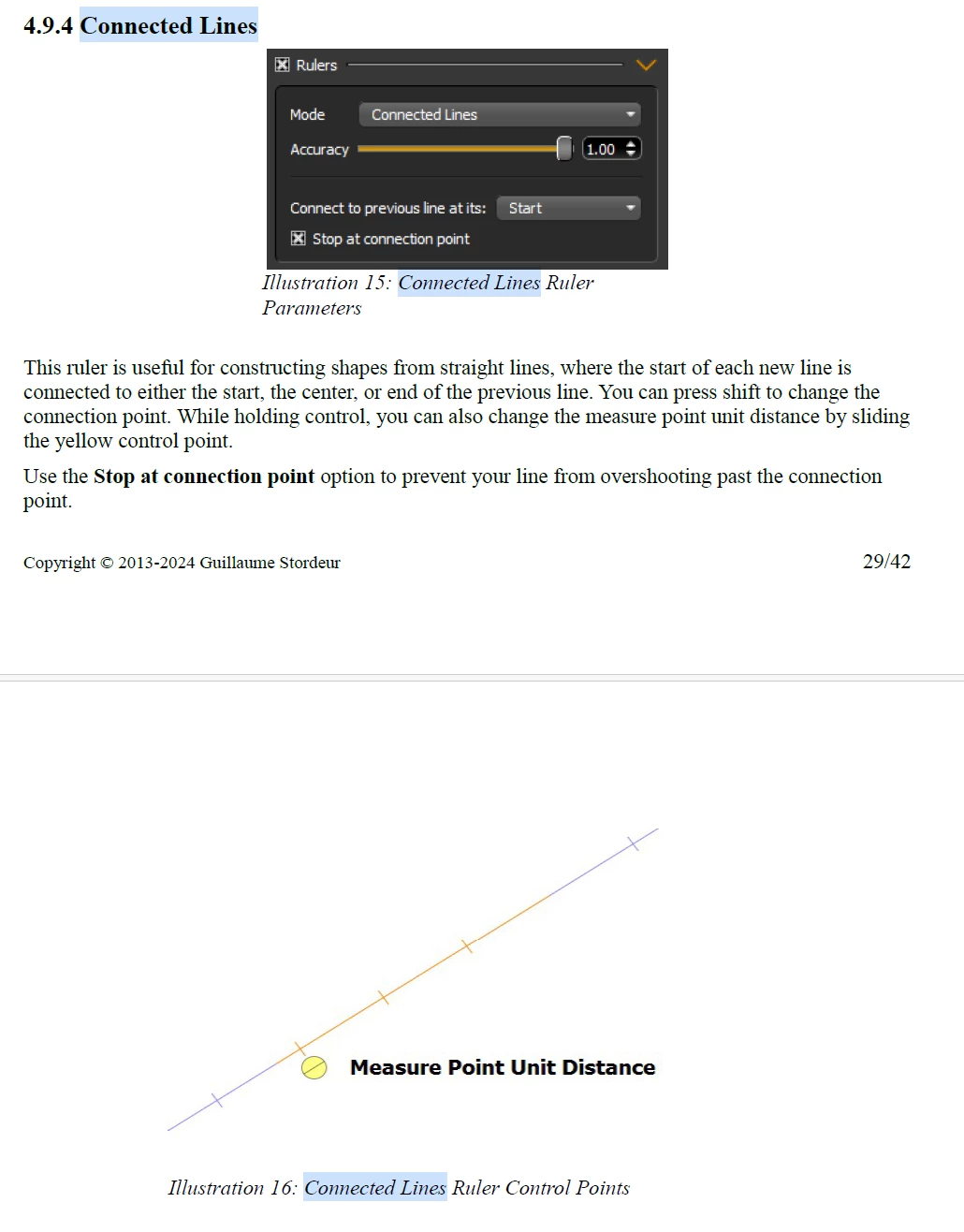

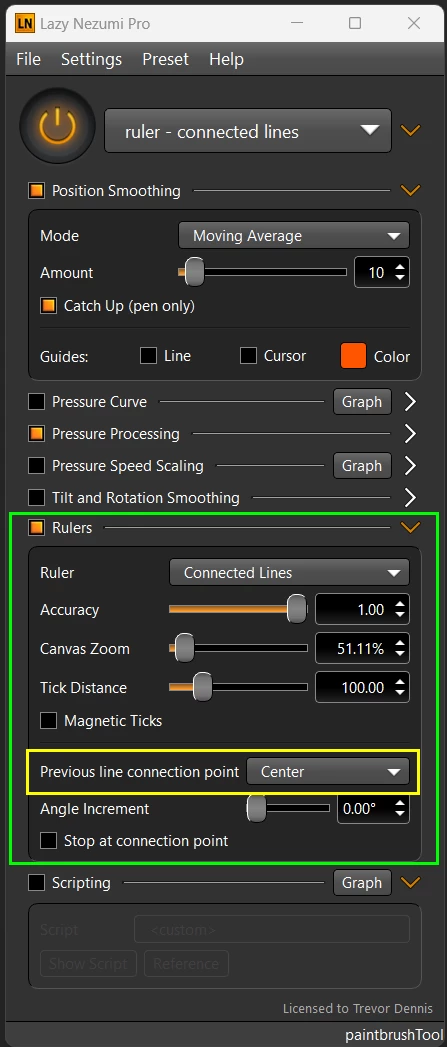

Do you have Lazy Nezumi Pro?  If you are using Windows and have a tablet, then LNP is the biggest no brainer Photoshop add-on bar none.  You can set whether the next line starts at the start, centre or end of the previous line, or you can toggle between those using the Shift key.



LNP has a zillion different presets like this, and a lot of them work just as well with a mouse.  Unfortunately, we are told there will never be a Mac version.  You can try it for 15 days before committing your $30.  I think it's $13 a year to  keep getting updates, and there are a LOT of updates.   The preset I use the most (appart from Masive Smoothing) are the perspective aids.  It makes drawing so much easier, and accurate.



https://lazynezumi.com/



[EDIT]

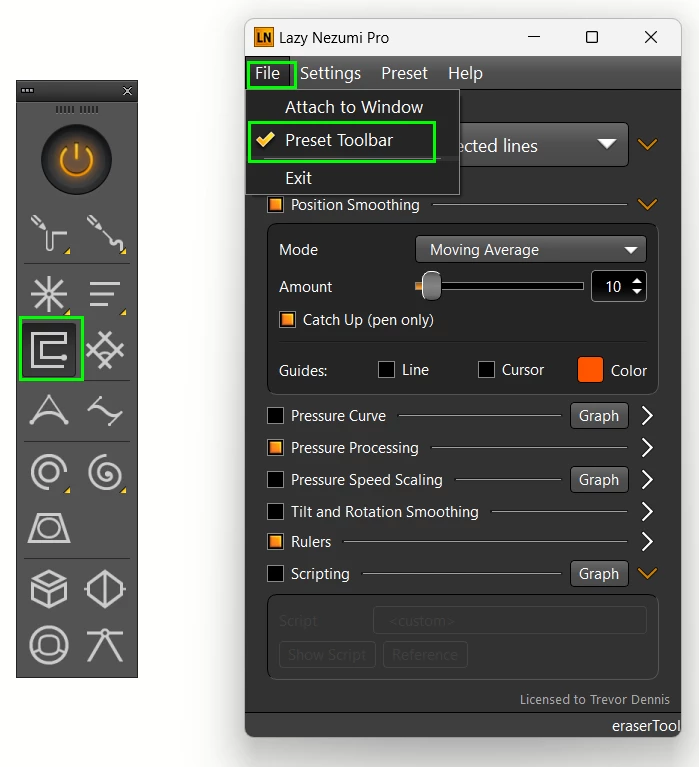

I thought I'd add that because of the imense number of LNP preset options, it can be a matter of finding 'wood for the trees', so a wee tip is to use the LNP toolbar.  That makes it much easier to find and select particular functions.  I've outlined the Connected Lines icon.

Semaphoric
Community Expert
Community Expert
July 13, 2024

You could do it like this: After your initial stroke, position your cursor at the end of the initial stroke, and Shift+Click to start a continuation, but release the mouse before dragging it to paint.

jennboley
jennboleyAuthor
Participant
July 14, 2024

That did not work for me.  All it does is make a dot where I shift+click, and it doesn't make the dot at the end of the last stroke.

Semaphoric
Community Expert
Community Expert
July 14, 2024

One thing to check is make sure the Spacing control in the Brush Setting panel is checked. What I described isn't really an improvement on the way you don't like, only that it makes a straight line segment from the previous location.



It sounds like you wish to draw with the cursor relative to the previous location, rather than the absolute XY position? Maybe you could do that via scripting.
