The script for obtaining the Bezier curve coordinates of the deformed smart object was not fou

  • March 22, 2024
  • 2 replies
  • 1038 views

I am writing a script that obtains the Bessel curve coordinate data after obtaining the deformation of the smart object, and I didn’t find the relevant API.



const layers = app.activeDocument.layers;

for(var i = 0; i < layers.length; ++i) {

  var layer = layers[i];

  if (layer.kind === LayerKind.SMARTOBJECT) {
    alert(layer.kind);
    // layer, Layer is an smart object, but the smart object data cannot be obtained from Layer
  }
}
    Correct answer c.pfaffenbichler

    Does this help?

    // get stuff for warp on a smart objects;
// based on code by michael l hale;
// 2024, use it at your own risk;
#target photoshop
if (app.documents.length > 0) {
var ref = new ActionReference();
ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var layerDesc = executeActionGet(ref);
var soDesc = layerDesc.getObjectValue(stringIDToTypeID('smartObject'));
var soMoreDesc = layerDesc.getObjectValue(stringIDToTypeID('smartObjectMore'));
var placedDesc = soDesc.getEnumerationValue(stringIDToTypeID('placed'));
var theFileRef = soDesc.getString(stringIDToTypeID('fileReference'));
var theDocID = soDesc.getString(stringIDToTypeID('documentID'));
var warp = soMoreDesc.getObjectValue(stringIDToTypeID("warp"));
var envelopeWarp = warp.getObjectValue(stringIDToTypeID("customEnvelopeWarp"));
var meshPoints = envelopeWarp.getList(stringIDToTypeID("meshPoints"));
var xx = new Array;
for (var m = 0; m < meshPoints.count; m++) {
    xx.push(checkDesc2 (meshPoints.getObjectValue(m)));
};
alert ("warp\n\n"+xx.join("\n\n"));
};
//////
////// based on code by michael l hale //////
function checkDesc2 (theDesc, theAlert) {
var c = theDesc.count;
var str = '';
for(var i=0;i<c;i++){ //enumerate descriptor's keys
str = str + 'Key '+i+' = '+typeIDToStringID(theDesc.getKey(i))+': '+theDesc.getType(theDesc.getKey(i))+'\n'+getValues (theDesc, i)+'\n';
};
if (theAlert == true) {alert("desc\n\n"+str);
return};
return str
};
////// check //////
function getValues (theDesc, theNumber) {
switch (theDesc.getType(theDesc.getKey(theNumber))) {
case DescValueType.ALIASTYPE:
return theDesc.getPath(theDesc.getKey(theNumber));
break;
case DescValueType.BOOLEANTYPE:
return theDesc.getBoolean(theDesc.getKey(theNumber));
break;
case DescValueType.CLASSTYPE:
return theDesc.getClass(theDesc.getKey(theNumber));
break;
case DescValueType.DOUBLETYPE:
return theDesc.getDouble(theDesc.getKey(theNumber));
break;
case DescValueType.ENUMERATEDTYPE:
return (typeIDToStringID(theDesc.getEnumerationValue(theDesc.getKey(theNumber)))+"_"+typeIDToStringID(theDesc.getEnumerationType(theDesc.getKey(theNumber))));
break;
case DescValueType.INTEGERTYPE:
return theDesc.getInteger(theDesc.getKey(theNumber));
break;
case DescValueType.LISTTYPE:
return theDesc.getList(theDesc.getKey(theNumber));
break;
case DescValueType.OBJECTTYPE:
return (theDesc.getObjectValue(theDesc.getKey(theNumber))+"_"+typeIDToStringID(theDesc.getObjectType(theDesc.getKey(theNumber))));
break;
case DescValueType.REFERENCETYPE:
return theDesc.getReference(theDesc.getKey(theNumber));
break;
case DescValueType.STRINGTYPE:
return theDesc.getString(theDesc.getKey(theNumber));
break;
case DescValueType.UNITDOUBLE:
return (theDesc.getUnitDoubleValue(theDesc.getKey(theNumber))+"_"+typeIDToStringID(theDesc.getUnitDoubleType(theDesc.getKey(theNumber))));
break;
default:
break;
};
};

    2 replies

    c.pfaffenbichler
    Community Expert
    c.pfaffenbichlerCommunity Expert
    Community Expert
    March 22, 2024

    May I ask how you intend to process/use the information?

    J
    javaer
    Inspiring
    July 11, 2025

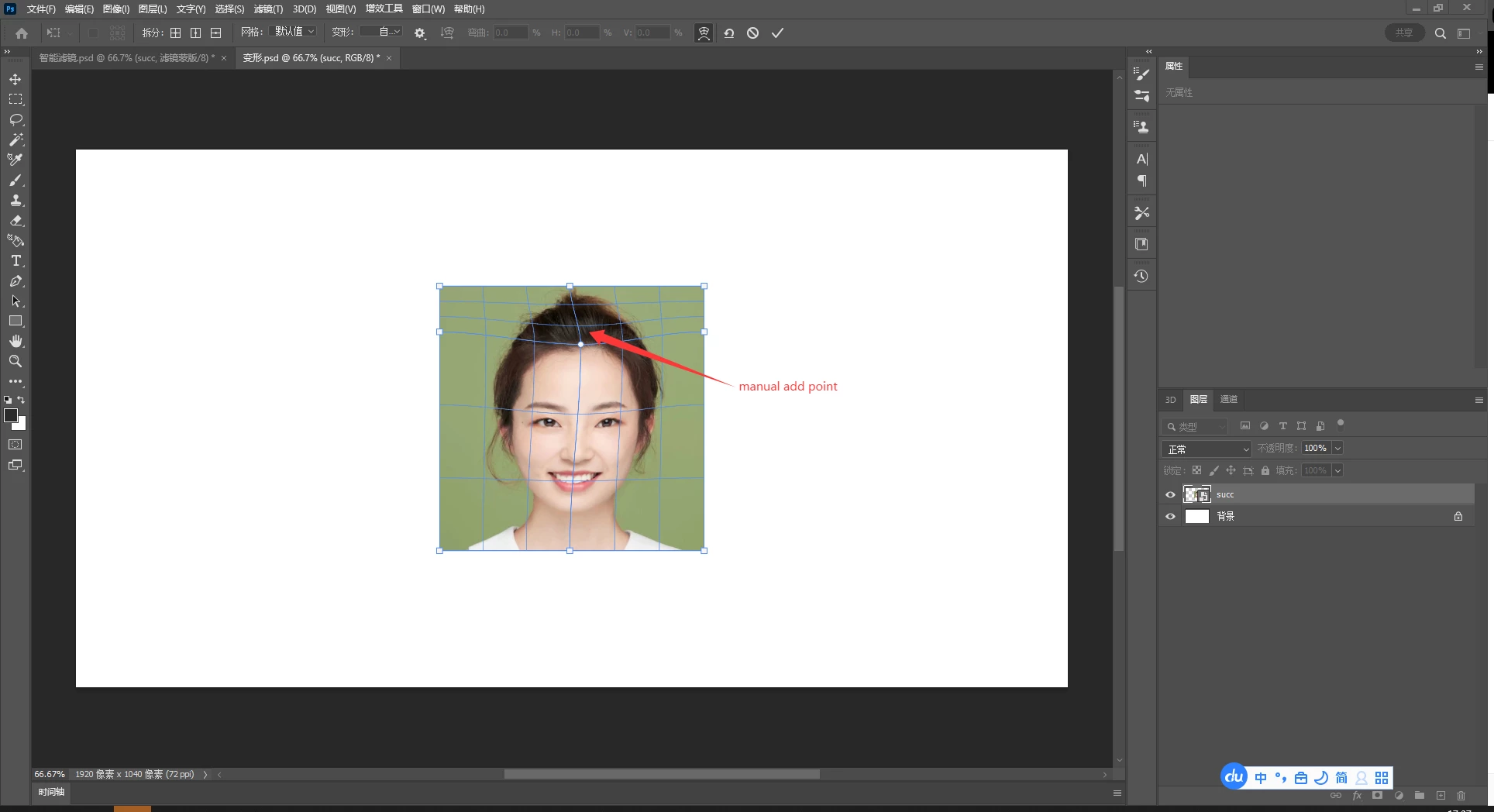

    The default is 16 control points, which is normal. If you add control points manually, an error will be reported. customEnvelopeWarp does not exist

    c.pfaffenbichler
    Community Expert
    c.pfaffenbichlerCommunity Expert
    Community Expert
    July 11, 2025
    quote

    customEnvelopeWarp does not exist

    Can you provide the image file for testing?

    c.pfaffenbichler
    Community Expert
    c.pfaffenbichlerCommunity Expert
    Community Expert
    March 22, 2024

    I don’t understand what you mean.

    Please explain with the help of screenshots/sketches.

    Z
    zeyou36248626sb54Author
    Participating Frequently
    March 22, 2024

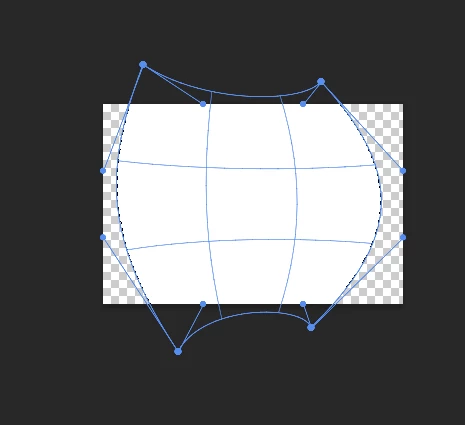

    I want to get these coordinate data

      c.pfaffenbichler
      Community Expert
      c.pfaffenbichlerCommunity ExpertCorrect answer
      Community Expert
      March 22, 2024

      Does this help?

      // get stuff for warp on a smart objects;
// based on code by michael l hale;
// 2024, use it at your own risk;
#target photoshop
if (app.documents.length > 0) {
var ref = new ActionReference();
ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var layerDesc = executeActionGet(ref);
var soDesc = layerDesc.getObjectValue(stringIDToTypeID('smartObject'));
var soMoreDesc = layerDesc.getObjectValue(stringIDToTypeID('smartObjectMore'));
var placedDesc = soDesc.getEnumerationValue(stringIDToTypeID('placed'));
var theFileRef = soDesc.getString(stringIDToTypeID('fileReference'));
var theDocID = soDesc.getString(stringIDToTypeID('documentID'));
var warp = soMoreDesc.getObjectValue(stringIDToTypeID("warp"));
var envelopeWarp = warp.getObjectValue(stringIDToTypeID("customEnvelopeWarp"));
var meshPoints = envelopeWarp.getList(stringIDToTypeID("meshPoints"));
var xx = new Array;
for (var m = 0; m < meshPoints.count; m++) {
    xx.push(checkDesc2 (meshPoints.getObjectValue(m)));
};
alert ("warp\n\n"+xx.join("\n\n"));
};
//////
////// based on code by michael l hale //////
function checkDesc2 (theDesc, theAlert) {
var c = theDesc.count;
var str = '';
for(var i=0;i<c;i++){ //enumerate descriptor's keys
str = str + 'Key '+i+' = '+typeIDToStringID(theDesc.getKey(i))+': '+theDesc.getType(theDesc.getKey(i))+'\n'+getValues (theDesc, i)+'\n';
};
if (theAlert == true) {alert("desc\n\n"+str);
return};
return str
};
////// check //////
function getValues (theDesc, theNumber) {
switch (theDesc.getType(theDesc.getKey(theNumber))) {
case DescValueType.ALIASTYPE:
return theDesc.getPath(theDesc.getKey(theNumber));
break;
case DescValueType.BOOLEANTYPE:
return theDesc.getBoolean(theDesc.getKey(theNumber));
break;
case DescValueType.CLASSTYPE:
return theDesc.getClass(theDesc.getKey(theNumber));
break;
case DescValueType.DOUBLETYPE:
return theDesc.getDouble(theDesc.getKey(theNumber));
break;
case DescValueType.ENUMERATEDTYPE:
return (typeIDToStringID(theDesc.getEnumerationValue(theDesc.getKey(theNumber)))+"_"+typeIDToStringID(theDesc.getEnumerationType(theDesc.getKey(theNumber))));
break;
case DescValueType.INTEGERTYPE:
return theDesc.getInteger(theDesc.getKey(theNumber));
break;
case DescValueType.LISTTYPE:
return theDesc.getList(theDesc.getKey(theNumber));
break;
case DescValueType.OBJECTTYPE:
return (theDesc.getObjectValue(theDesc.getKey(theNumber))+"_"+typeIDToStringID(theDesc.getObjectType(theDesc.getKey(theNumber))));
break;
case DescValueType.REFERENCETYPE:
return theDesc.getReference(theDesc.getKey(theNumber));
break;
case DescValueType.STRINGTYPE:
return theDesc.getString(theDesc.getKey(theNumber));
break;
case DescValueType.UNITDOUBLE:
return (theDesc.getUnitDoubleValue(theDesc.getKey(theNumber))+"_"+typeIDToStringID(theDesc.getUnitDoubleType(theDesc.getKey(theNumber))));
break;
default:
break;
};
};
