Tiled printing of image larger than paper size

  • March 29, 2020
  • 4 replies
  • 20790 views

I have a 40cm x 50cm image I wanted to print over multiple US Letter sized pages.  From what I find online, photoshop used to have options "tile full pages" and "tile imageable areas" in the print settings, but I don't see them in my latest version of photoshop.  Apparently you can only print this way from Acrobat now?  I have a Mac if that makes a difference.

4 replies

Participant
November 14, 2024

Yes!!  I used Photoshop to make my patterns and the "tile large pages" was a life saver!  Now as it is gone do I have to purchase Acrobat or InDesign just so I can move the image there and print with tiled pages?? Nonesense! Why was it removed in the first place? Photoshop is a logical program to have this feature!
Those who say Photoshop never had this option just never used it that's all. I used it for years. My patterns are large but the printer is A4. Tile large pages option was how I printed them.

NB, colourmanagement
Community Expert
Community Expert
November 14, 2024

@EraSh I believe the free Acrobat Reader includes the tile feature



I hope this helps neil barstow, colourmanagement net - adobe forum volunteer - co-author: 'getting colour right' google me "neil barstow colourmanagement" for lots of free articles on colour management Help others by clicking "Correct Answer" if the question is answered. Found the answer elsewhere? Share it here. "Upvote" is for useful posts.



Conrad_C
Community Expert
Community Expert
July 15, 2021
@skullrendition wrote:

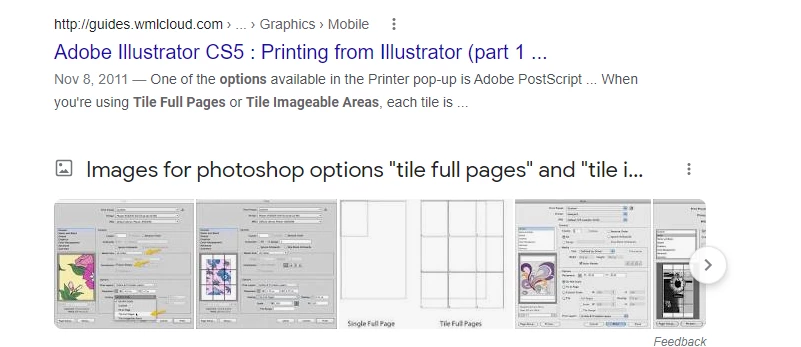

From what I find online, photoshop used to have options "tile full pages" and "tile imageable areas" in the print settings




I’m interested in seeing one of those online references, because I am not sure those options were ever in Photoshop. Those terms are definitely in the Print dialog box for Adobe Illustrator. However, it would be a nice feature request for Photoshop.



@skullrendition wrote:

Apparently you can only print this way from Acrobat now?

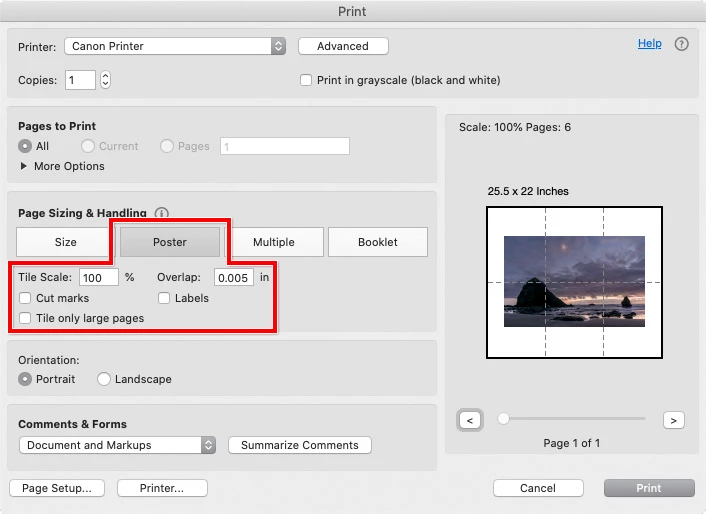

Acrobat is one option. And it’s fast and simple. All you have to do is drag the image and drop it on the Acrobat application icon, and it opens the image. Then you just choose File > Print, click the Poster button, and tiling options appear. You could be printing in seconds (if the correct printer and paper size are already selected).





Another option is Adobe InDesign. It takes a little more time because you have to create a document first. But after that, you simply drop the image on the page, choose File > Print, and click Setup to see the Tile options.



Either way it is really no big deal, and beacuse both have automatic tiling, both are a lot easier and faster than spending the time to set it up manually in Photoshop.

marcosl8034831
Participant
July 15, 2021

The big question here is... Why would Adobe take this feature away?   I used it for tiling references for my painting to size.  Bummer.

JJMack
Community Expert
Community Expert
July 15, 2021

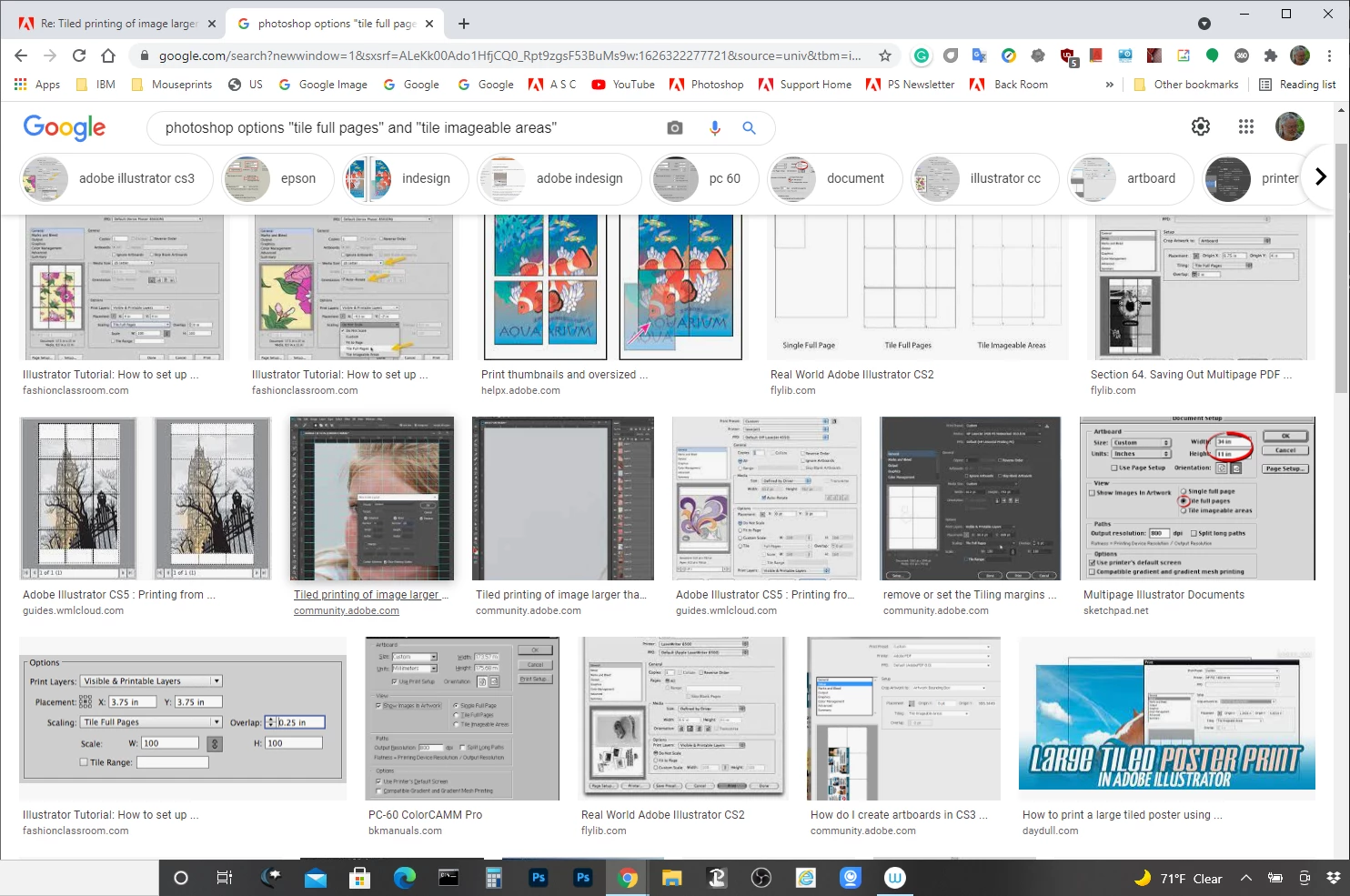

As fas as I kown the may not have been removed.  I do no install AI I jane been using Photosho for areunt 28  years and never saw those options in Photoshop but the I nevet used Adobe Print PostScript output.  Never has access toe a Postscript device. Using Google I see this  though it shows Photoshop when  I view the image  I see AI,  Adobe does remove feature in some releases so there are some compatibility issuse

JJMack
JJMack
Community Expert
Community Expert
March 29, 2020

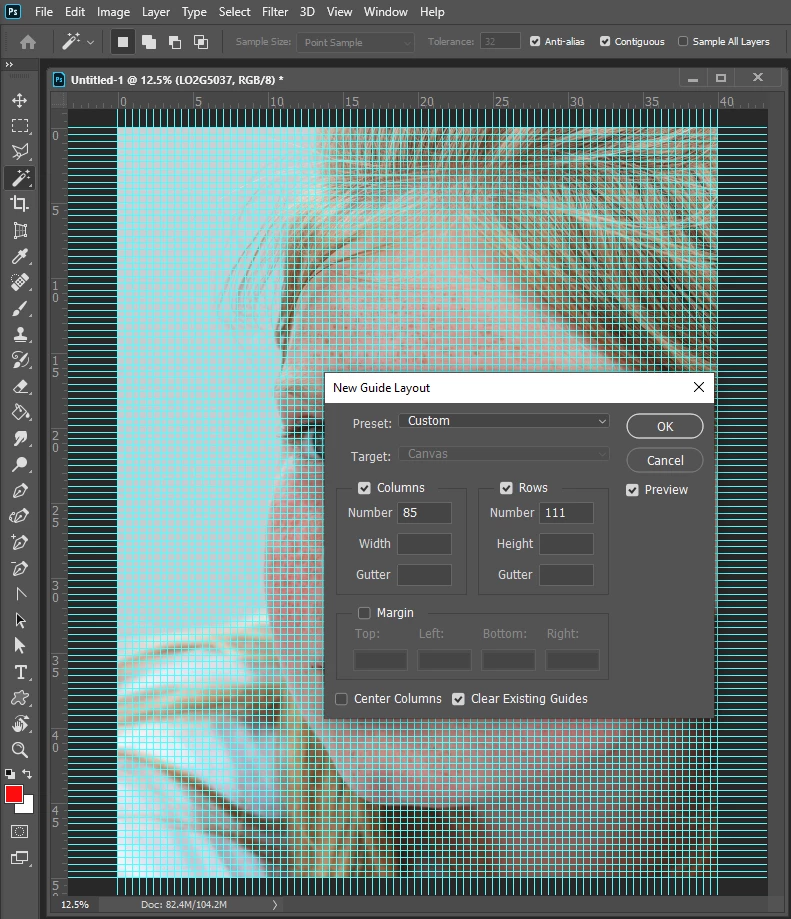

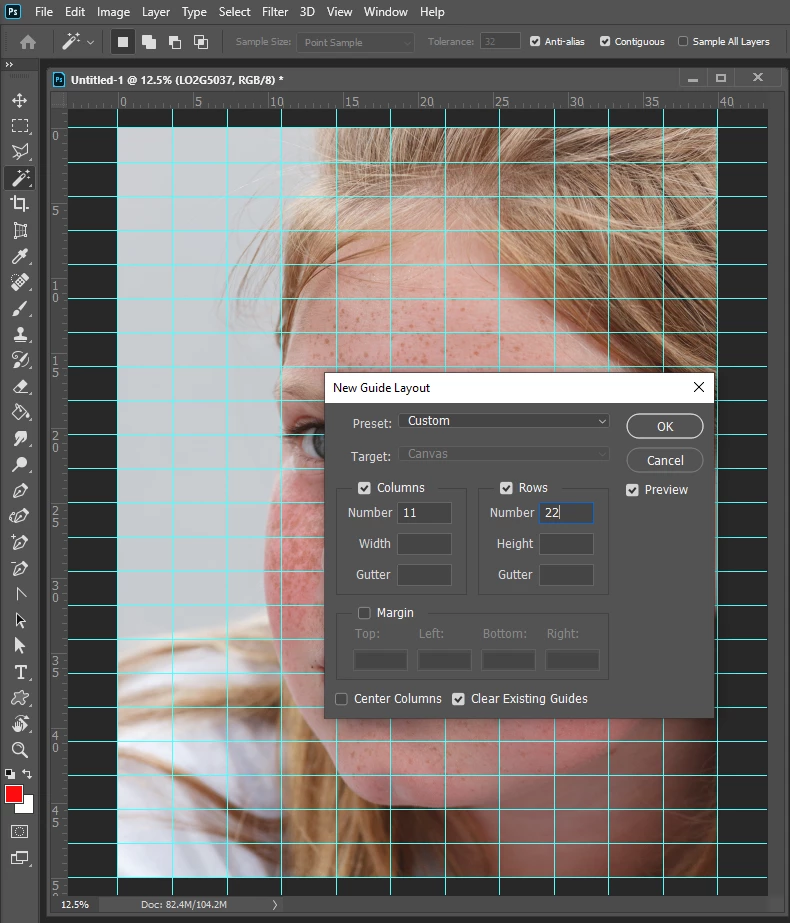

Think not so much about size to begin with.  Think first about what you want to do and the two aspect ratios involved.  You want to cut up a 4:5 aspect ration image into tiles that have an 17:22 aspect ratio. Now do the math.   Or have Photoshop lay out the guide line for you.

or is it



The tiles must have an 8.5:11 aspect ratio.  The thing is the math may not work out nicely to print bordless 8.5" x 11" tiles.

A simple script I posted a few days ago with the action I posted will automate the tiling process.

JJMack
JJMack
Community Expert
Community Expert
March 29, 2020

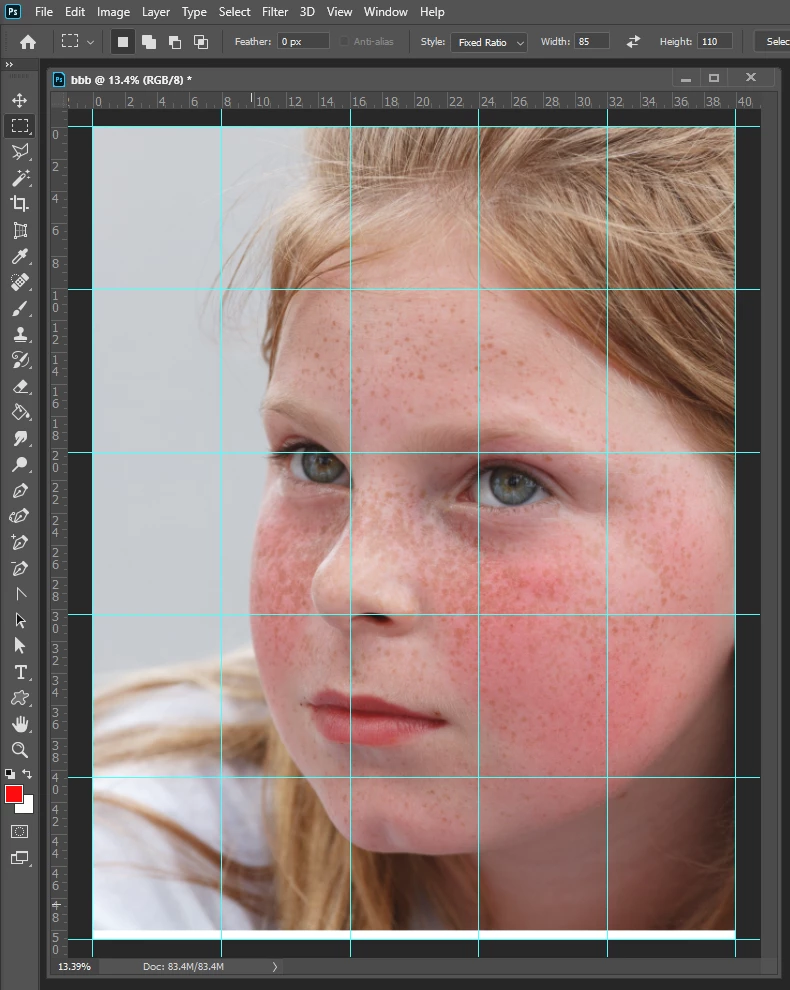

So it is an Aspect Ratio problem. 5:4 = 1.25 aspect  and 11:8.5 is a 1.29 there not the far apart.  Your best solution would be to add a little canvas to you image so that it has a US letter aspect ratio.   You image would the correct aspect ratio to  be tiled for US letter aspect ratio tiles.   You image would be 40 cm by 56 cm.  That  will have a small white 6 cm boarder on the bottom of the image.  You could easily trim off  the bottom set of image tiles.   A 5 x would be 200 cm by 280 cm you would trim 30 cm off the bottom tile so the image tiled would be 200cm by 250cm to haver you imags 4:5 aspect ratio.  Five sheets of letter paper would be 42.5" by 55" you would  trime some number of bottom inches off.

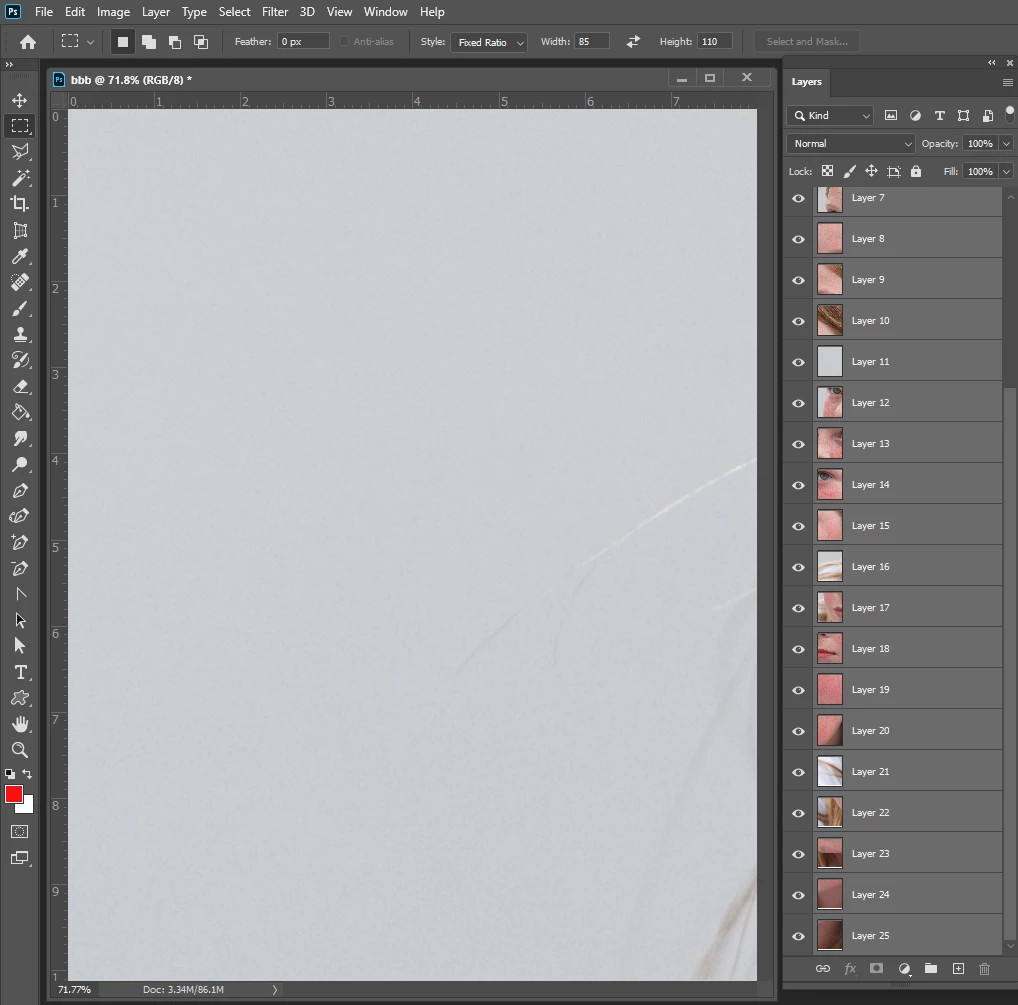

There would be 25 Print files from layers for the 25 sheets of paper for the 108 cm by 135 cm tiled print

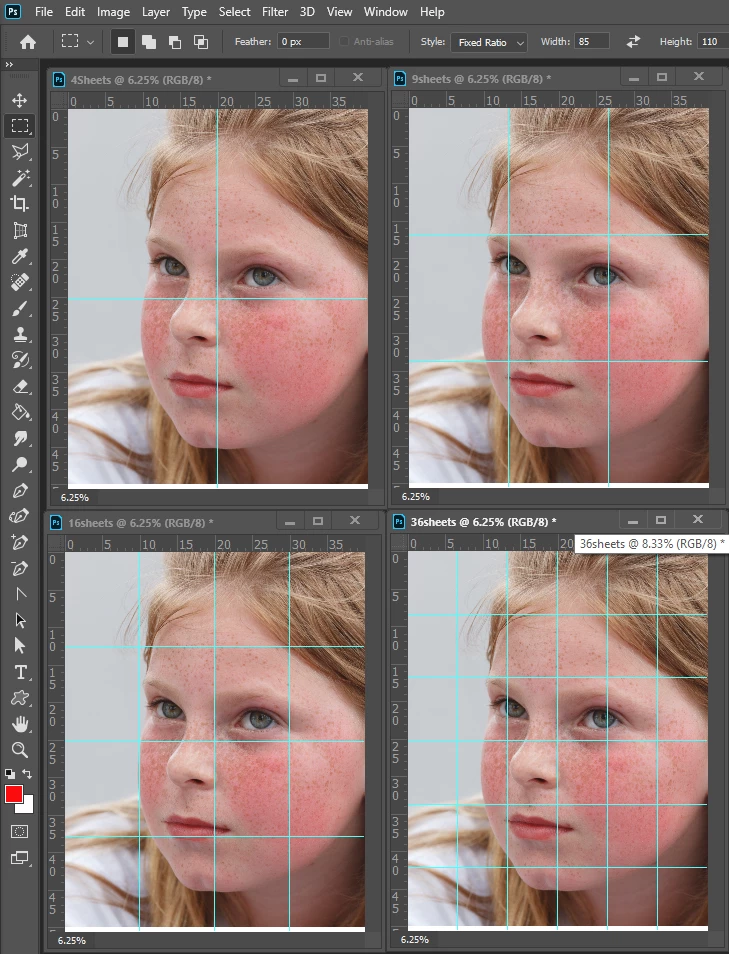

Sizing is by number of sheets of paper printed.



JJMack
