Question

difficulty with anchor point on basic 3D effect

  • January 21, 2019
  • 3 replies
  • 7421 views

Hi everybody, I'm from Italy and this is my first time here.

Can you tell me if with the basic 3D effect (on "perspective" menu of Premiere 2019), the texts can be rotated on another anchor point that is not only what is at its base?

I would like to create with a text, the effect of a curtain that unfolds from the ceiling to the bottom, and as it is can not.

Or if maybe it could be another command / method to use?

Andrew,

Italy

    This topic has been closed for replies.

    3 replies

    C
    Community Expert
    Carlos ZiadeCommunity Expert
    Community Expert
    January 21, 2019

    not a perfect solution, but a workaround for now:

    01. take the text tool and start your text on the program monitor.

    02. select the text from the Effect Controls panel, this should show you the anchor point, hold 'ctrl' or 'command' on mac and drag the anchor point until it snaps to the center of the text. then drag the text while holding 'ctrl' or command until it snaps to the center of your frame.

    03. apply the basic 3D effect.

    04. scale your text but don't fit it 100% to the frame, leave about 30% room and without deselecting or pressing anything drag the anchor point again to the top of your text, you will notice the text layer is sliding when doing this, no problem...

    05. take your playhead to the start, keyframe the 'tilt' on basic 3D (90 degress value), then go forward and set another keyframe at 0 value. this should rotate it around the anchor point at the top and not around the center as it is defaulted.

    06. nest your text layer to be able to reposition and resize it later without affecting the keyframes.

    Anchor Point on Premiere Pro works with respect to size and dimensions relative to the sequence dimensions, that is why you need to scale your text or video and then move the anchor point when applying 'Basic 3D'. its different from how after effects behaves.

    Ann Bens
    Community Expert
    Ann BensCommunity Expert
    Community Expert
    January 21, 2019

    Nice.

    Instead of using ctrl/cmd turn on Snap Graphics under the wrench in the program monitor.

    A
    Anonymous
    January 21, 2019

    Thank you all guys, Ann, Carlos and Vishuagg.

    I try now and let you know.

    Meanwhile, I wanted to put a part of the graphic animation that I want to create, only that I did not understand why you can not post as you do for an image; I must necessarily put it on a site like Youtube?

    I had not thought about the discourse of the dimension concerning the whole frame; actually it works like this also for the clock transition;)

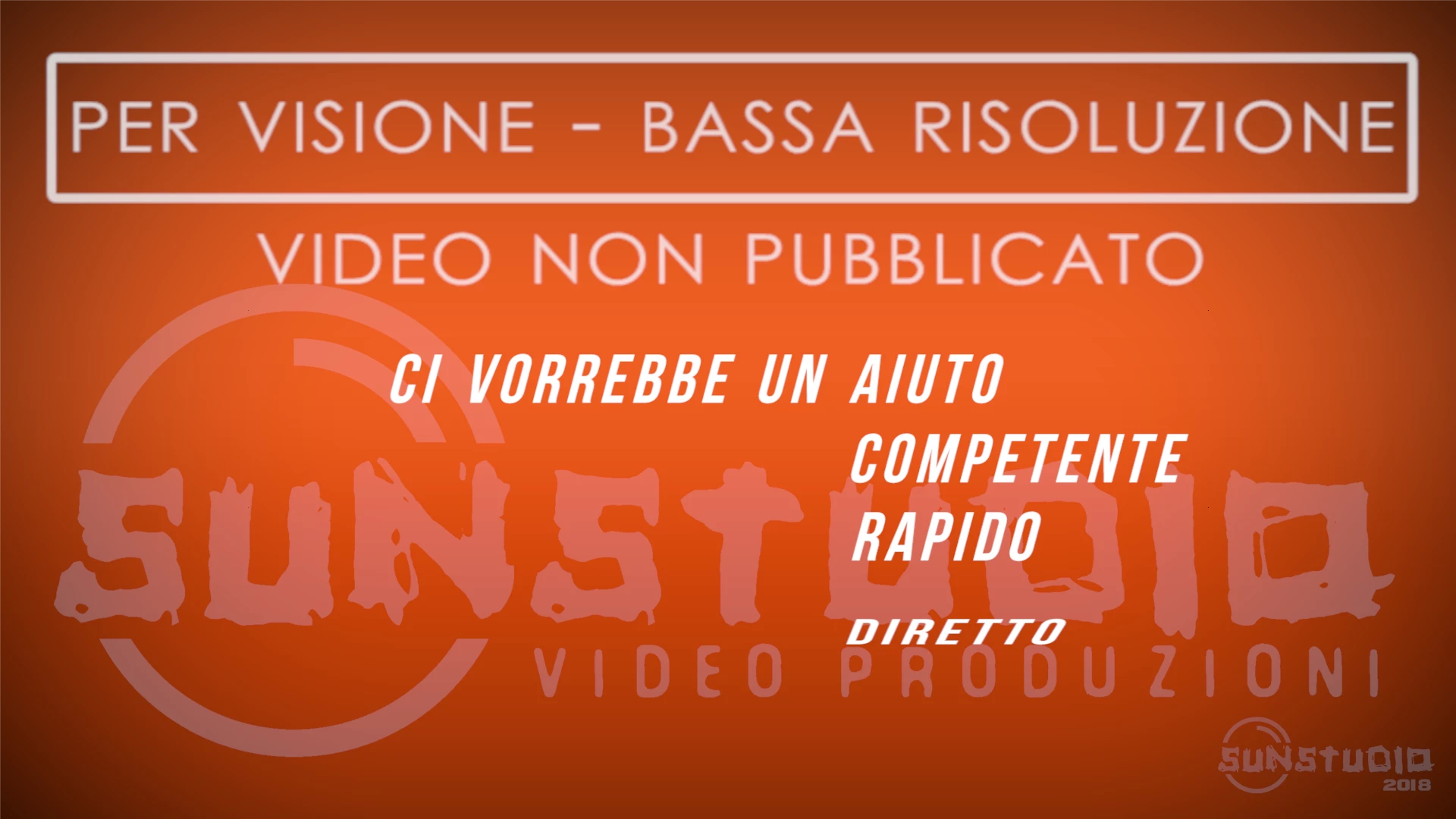

    Here it is an image. As you can see, the title that is appearing from the "diretto" words rotation, has its anchor point at the bottom and not above as I would like; what I'll try to do now.

    Vishu_Aggarwal
    Vishu_Aggarwal
    Participating Frequently
    January 21, 2019

    Do you have any reference video of what you want achive. may be your right the effect needs AE because it has many more options for text animation... If you know after effects then create the effect in AE and import it in premiere pro as a graphic essentials template...so that you can do basic customization with premiere pro.

    Vishu AggarwalAdobe Certified Instructor, Professional and Expert
    Vishu_Aggarwal
    Vishu_Aggarwal
    Participating Frequently
    January 21, 2019

    Can you tell me if with the basic 3D effect (on "perspective" menu of Premiere 2019), the texts can be rotated on another anchor point that is not only what is at its base?

    It can only be rotated from the centre of the text or video clip

    I would like to create with a text, the effect of a curtain that unfolds from the ceiling to the bottom, and as it is can not.

    Or if maybe it could be another command / method to use?

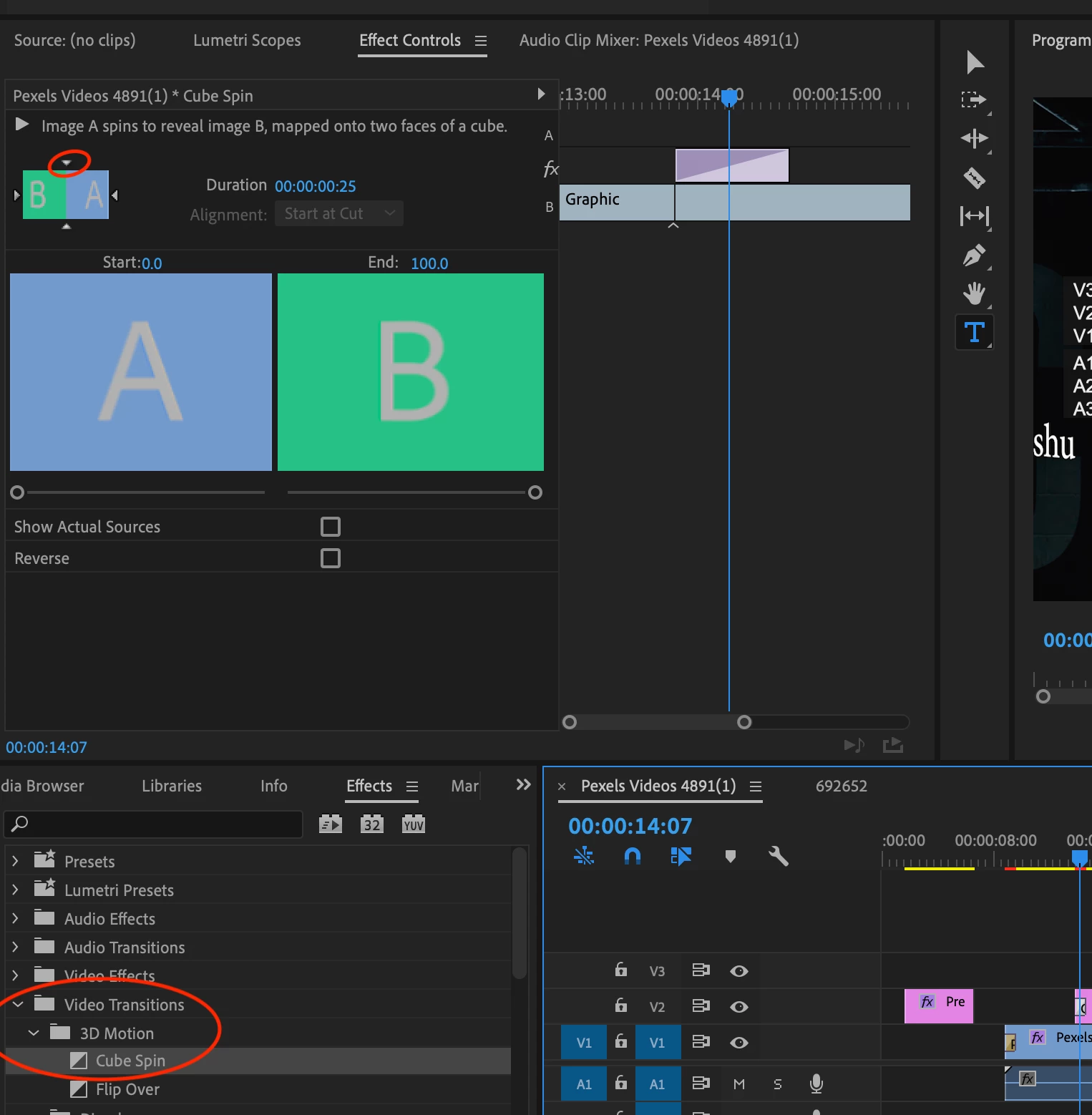

    I am not sure whether it will work as per your requirement but you can try out the Video Transition. Effects panel > 3D motion > Cube Spin > Apply it as the start of a text clip or end of it...then select the transition & in the effects control...choose top.

    Vishu AggarwalAdobe Certified Instructor, Professional and Expert
    A
    Anonymous
    January 21, 2019

    Ok thank you.

    uhm very interesting indeed. That could be a solution.

    I try and tell you about it;)

    A
    Anonymous
    January 21, 2019

    Nothing to do: the effect does not give what I wanted to recreate because I wanted the text and then the movement to start from a specific point.

    I'm afraid it can only be done with AE.

    Thanks anyway for your interest
