Known Participant

Question

Export coming out pixelated when exporting hi quality?

Forum|Forum|1 year ago
April 29, 2024
3 replies
2132 views

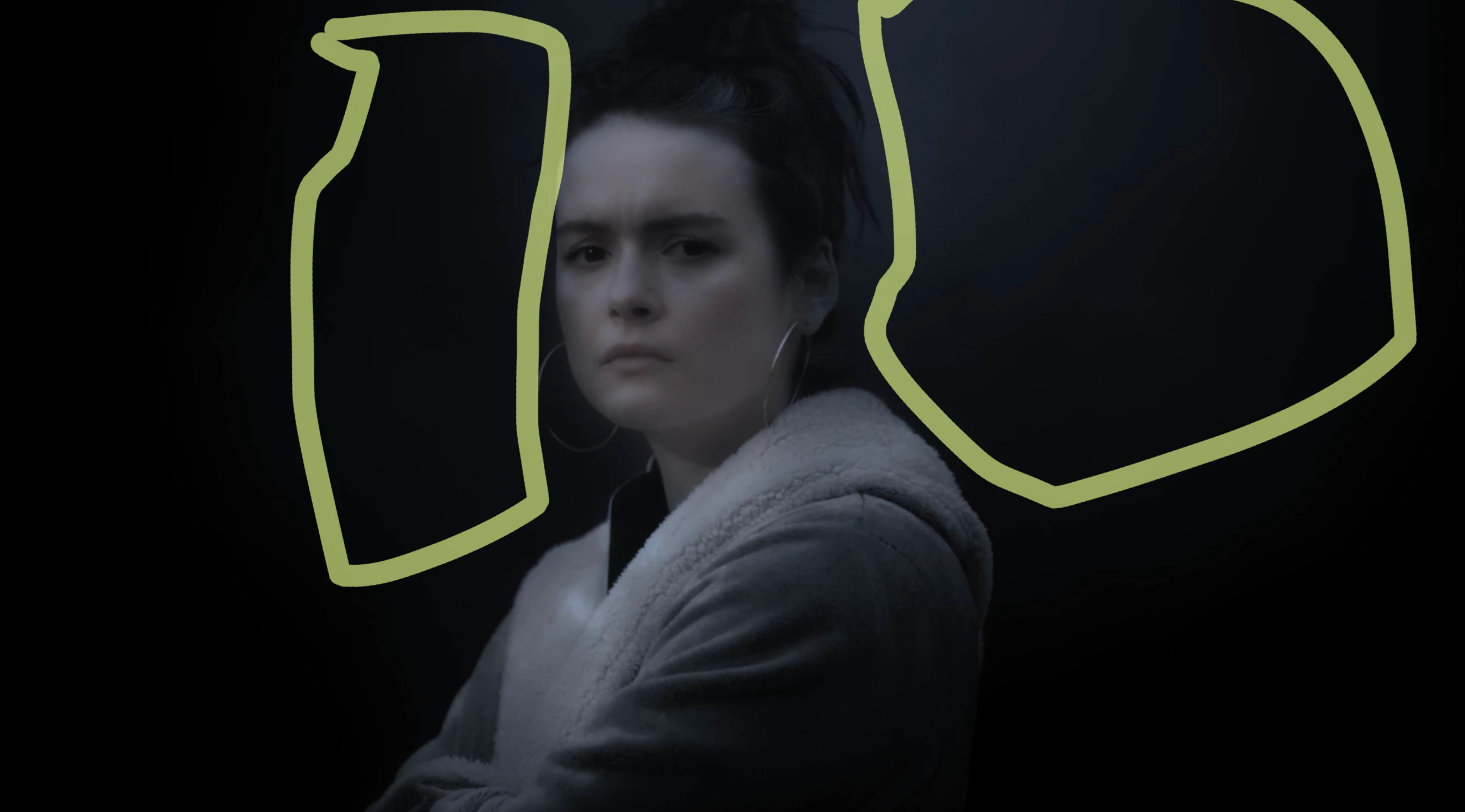

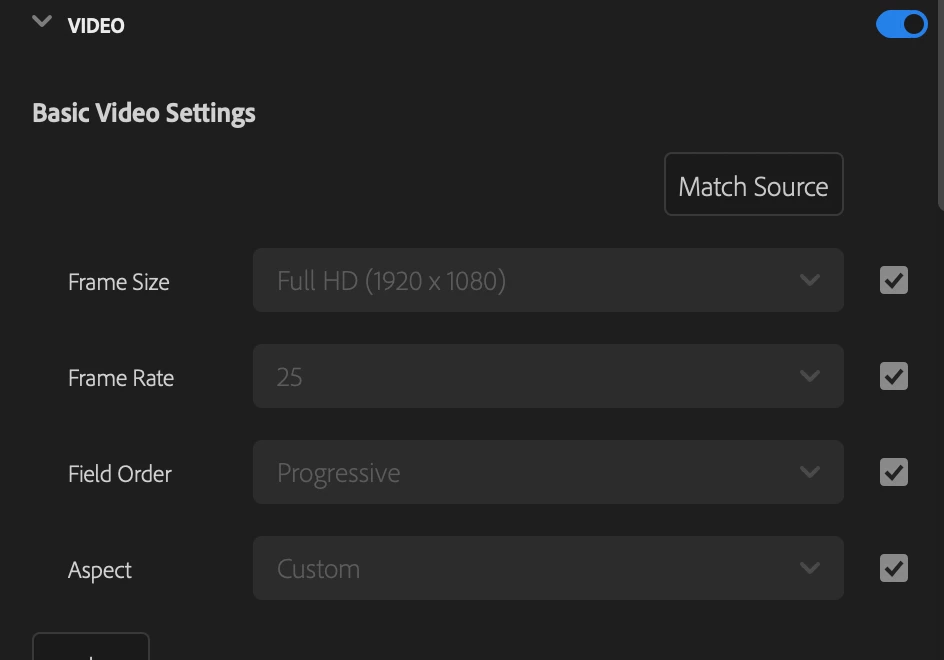

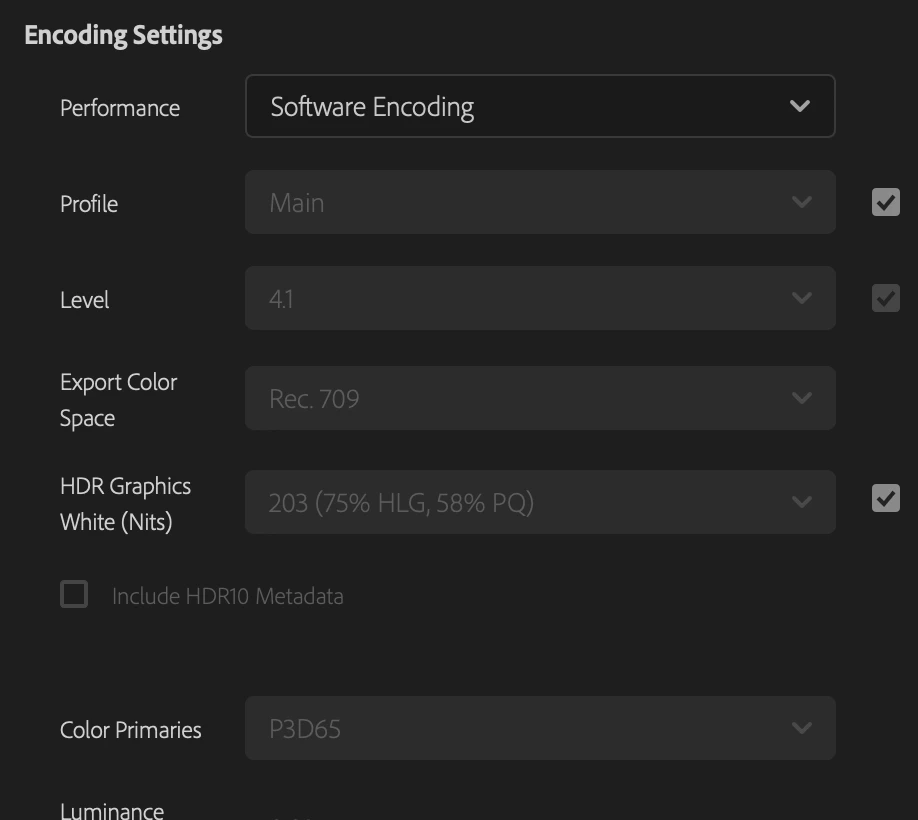

Hi, this is a Apple 4444 Pro Res file that I bring into premiere and export at these settings, it comes out pixelated and not looking great, how can I fix this?

It shouldn't be looking this bad

Images attached

This topic has been closed for replies.

Averdahl

Community Expert

...how can I fix this?

By @SiHutch

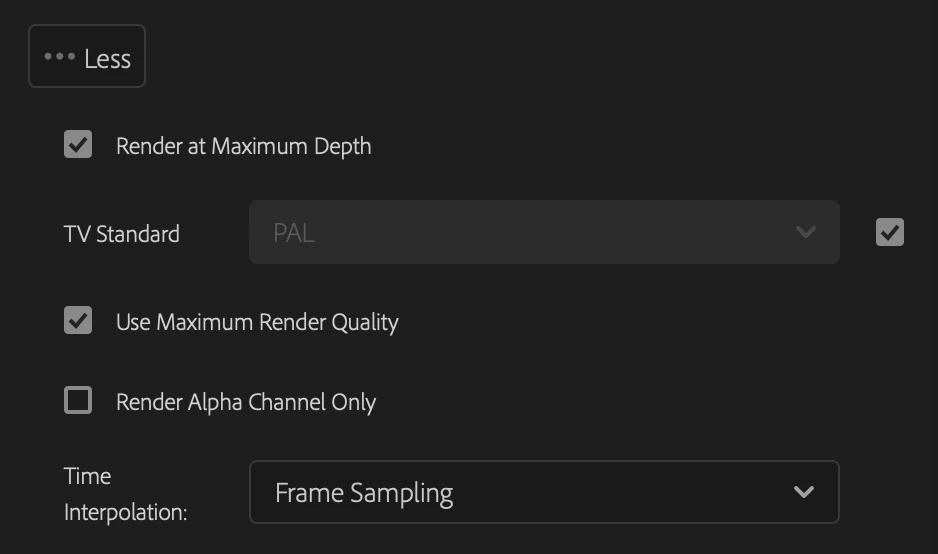

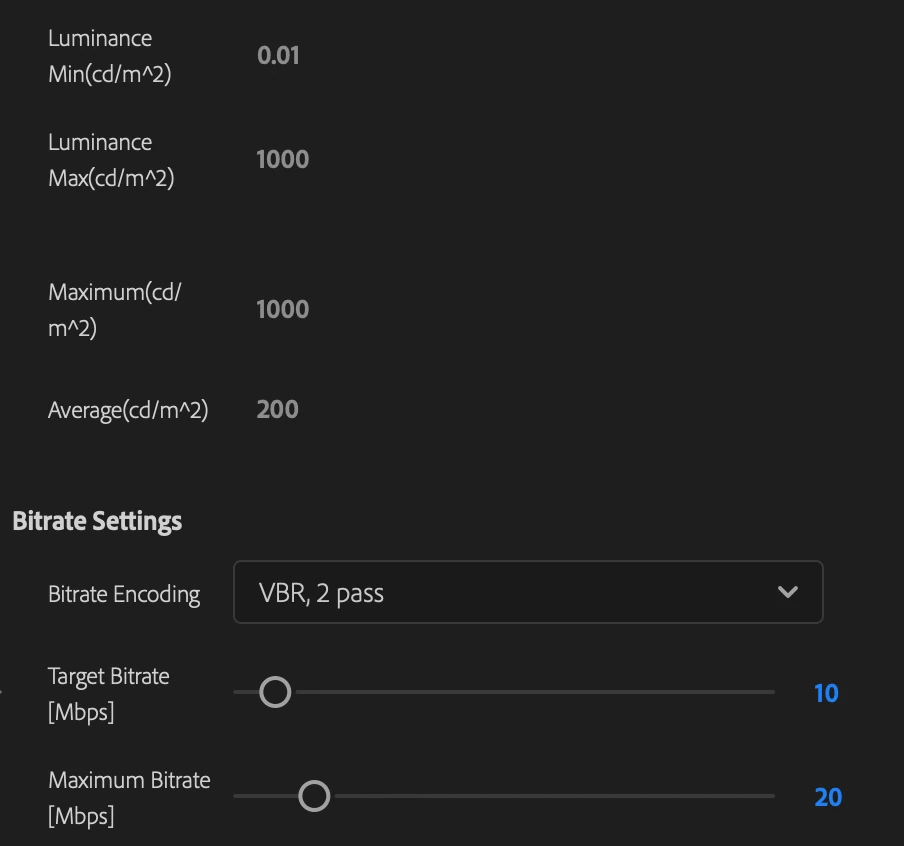

What happens if you use CBR instead of VBR and also un-check Render at Maximum Depth and Use Maximum Render Quality. Set the CBR bitrate to 30.

You can also try to set the Key Frame Distance from 72 to 25.

And, how does it look if you render out to Apple ProRes?

SiHutchAuthor

Known Participant

Thanks boss, will try that 🙂

Very helpful thank you

R Neil Haugen

Legend

From what I can see of the actual image involved, it's very low on exposure. What did the scopes show of the image, Waveform or Parade?

Everyone's mileage always varies ...

SiHutchAuthor

Known Participant

Hey, the Pro Res 4444 file back grom grade is fine, its just when exporting that file to h.264

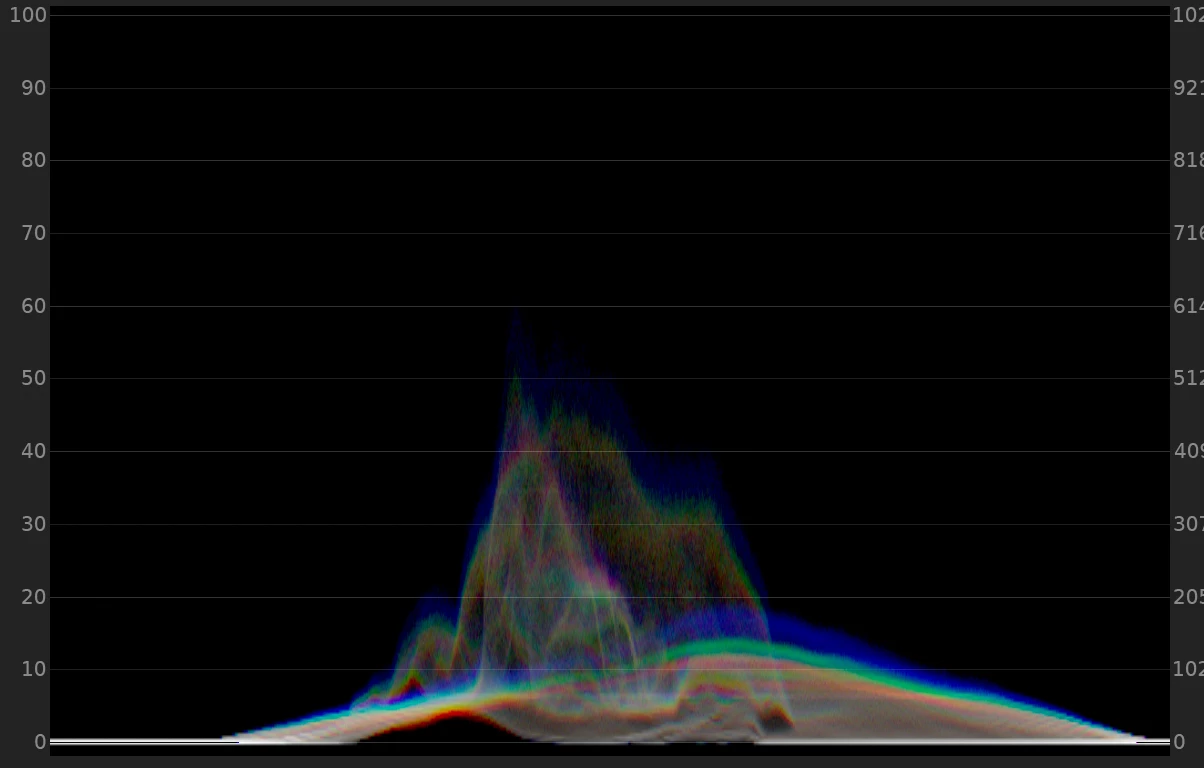

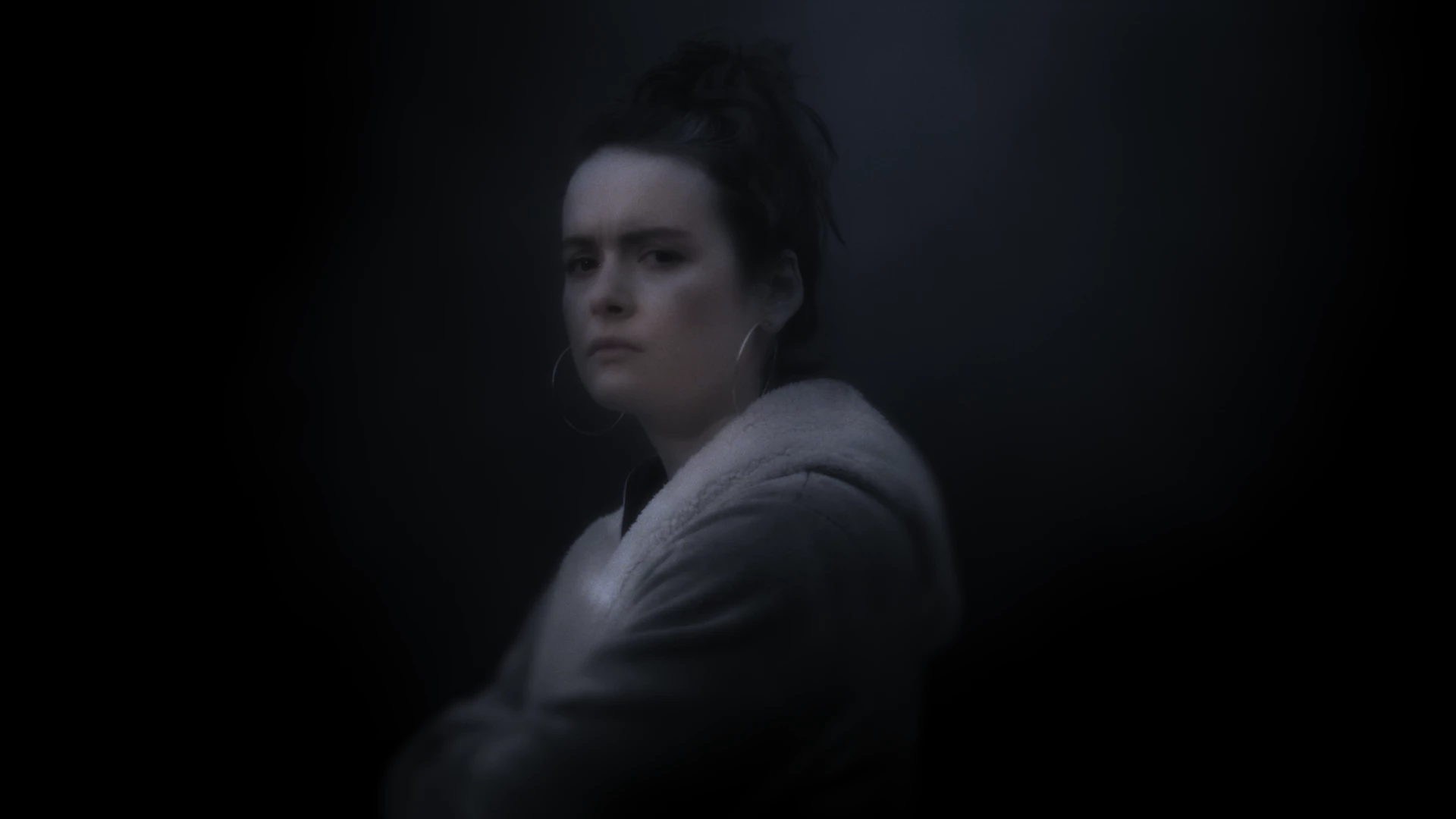

Waveform and also the export of the still to show how I need to get the mp4 looking

Ann Bens

Community Expert

Please post comp specs, Premiere version and build.
Also screenshots of MediaInfo info in Treeview on footage used, sequence settings

https://mediaarea.net/en/MediaInfo

Please next time embed the images so we dont have to open them one by one.

SiHutchAuthor

Known Participant

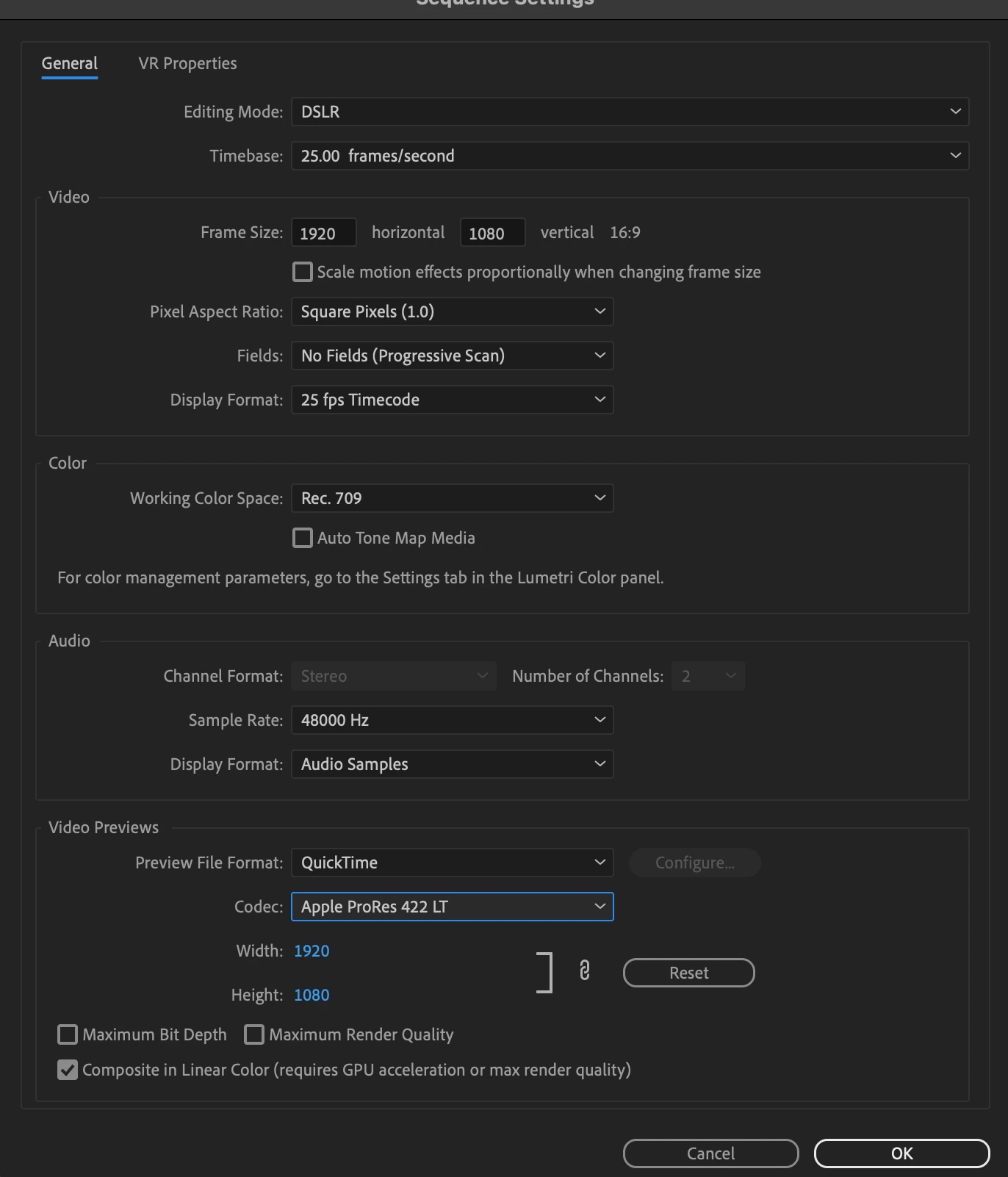

Hi Ann, seuqence settings and media info below

General
Complete name : /Volumes/VideoMaster/SUSAN/wetransfer_2024-04-26_prores4444_hd_sdr_2024-04-26_1545/2024-04-26_prores4444_HD_SDR/2024-04-26_susan_prores4444_HD_SDR_rec709_legal_OAR_25FPS.mov
Format : MPEG-4
Format profile : QuickTime
Codec ID : qt 2005.03 (qt )
File size : 17.6 GiB
Duration : 9 min 51 s
Overall bit rate mode : Variable
Overall bit rate : 256 Mb/s
Frame rate : 25.000 FPS
Encoded date : 2024-04-26 15:08:40 UTC
Tagged date : 2024-04-26 15:08:40 UTC

Video
ID : 1
Format : ProRes
Format version : Version 1
Format profile : 4444
HDR format : SMPTE ST 2086
Codec ID : ap4h
Duration : 9 min 51 s
Bit rate mode : Variable
Bit rate : 256 Mb/s
Width : 1 920 pixels
Height : 1 080 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 25.000 FPS
Color space : YUV
Chroma subsampling : 4:4:4
Scan type : Progressive
Bits/(Pixel*Frame) : 4.937
Stream size : 17.6 GiB (100%)
Writing library : afl0
Language : English
Encoded date : 2024-04-26 15:08:40 UTC
Tagged date : 2024-04-26 15:08:40 UTC
Color primaries : BT.709
Matrix coefficients : BT.709
Mastering display color primaries : BT.709
Mastering display luminance : min: 0.0000 cd/m2, max: 100 cd/m2
Gamma : 2.400

Other
ID : 2
Type : Time code
Format : QuickTime TC
Duration : 9 min 51 s
Frame rate : 25.000 FPS
Time code of first frame : 01:00:00:00
Time code of last frame : 01:09:51:20
Time code, stripped : Yes
Language : English
Default : No
Encoded date : 2024-04-26 15:08:40 UTC
Tagged date : 2024-04-26 15:08:40 UTC

Let me know what you think, I need to export for online use so H.264 really
