Exporting Audio in Mono

  • December 7, 2020
  • 3 replies
  • 1794 views

A client alerted me to the fact that the audio was not playing back correctly on one of our delivered videos they posted on Instagram IGTV. The soundtrack would play back and some (not all) the diaologue tracks would sound distorted. The video would play back perfectly with audio on quicktime but experience dropouts only when publishing on IG.



I was advised to export my video out of Pr CC with the Audio settings in Mono instead of Stereo becasue of the undesirable "mono summing" effects of the IG compression algorithm. However, when I attempted to export the video in Mono, I realize some of the audio tracks were missing.



Why am I experiencing audio dropouts when exporting in Mono?



This topic has been closed for replies.

3 replies

R
Community Expert
Richard M KnightCommunity Expert
Community Expert
December 9, 2020

There's a good chance you have a XLR balanced mic which has 3 connectors wired as balance mono feeding into a 3.5mm stereo jack which also has 3 conductors but is wired as unbalanced stereo.

    P
    PZpixAuthor
    Participating Frequently
    December 10, 2020

    Thanks Richard, I belive you're right. I used an Rode XLR mic and adpted it to a mini to plug into the camera.

    P
    PZpixAuthor
    Participating Frequently
    December 9, 2020

    If anyone is looking for a Premiere Pro solution to the above problem, here it is:

    To eleminate "out of phase" audio tracks which cause dropouts when converting from stereo to mono when you export, I highlighted all affected audio tracks in the timeline, right clicked and selected Audio Channels and simply eliminated the Left track by unchecking the L box, so all audio was now mono before exporting.  Now, when I exported the video, with audio settings in mono, I did not experience any dropouts whatsoever. Finally, the mono version of the video was uploaded to IG and so far zero audio loss or degredation has been observed. Lesson learned: IGTV compression is brutal on stereo audio, specially if it peaks or nearly peaks, the algorithm simply cuts it out.



    Below instructions of how to fix it by inverting or manipulating the waves in order to repair out of phase stereo or multi channel audio tracks in Adobe Audition, sent me into a rabit hole with no exit; so I came up with this crude technique. The question still remains though why my audio recording of a one man interview, from a shot gun mic into the camera, was out of phase in the first plasce. If anyone has any ideas, I'd certainly appreciate the input.



    Averdahl
    Community Expert
    AverdahlCommunity Expert
    Community Expert
    December 9, 2020

    The question still remains though why my audio recording of a one man interview, from a shot gun mic into the camera, was out of phase in the first plasce. If anyone has any ideas, I'd certainly appreciate the input.



    Can you zip and upload one of the original offending files and PM the link to me? I would like to check it and it is easier to answer the question if i can see the file.

    Averdahl
    Community Expert
    AverdahlCommunity Expert
    Community Expert
    December 7, 2020

    Why am I experiencing audio dropouts when exporting in Mono?



    Probably because some of your source audio is out of phase and thus cancel out when summing to mono. When you playback the video on a device with stereo speakers the audio will not drop out but it will drop out on devices with a mono speaker or when summing down the audio to mono.

    Audio Phase: Why You Need To Pay Attention To This

    P
    PZpixAuthor
    Participating Frequently
    December 7, 2020

    Thank you, Averdahl, is there anyway to identify and correct the out of phase audio in the Pr timeline now? so I can export in Mon without any losses or dropouts?

    Averdahl
    Community Expert
    AverdahlCommunity Expert
    Community Expert
    December 7, 2020

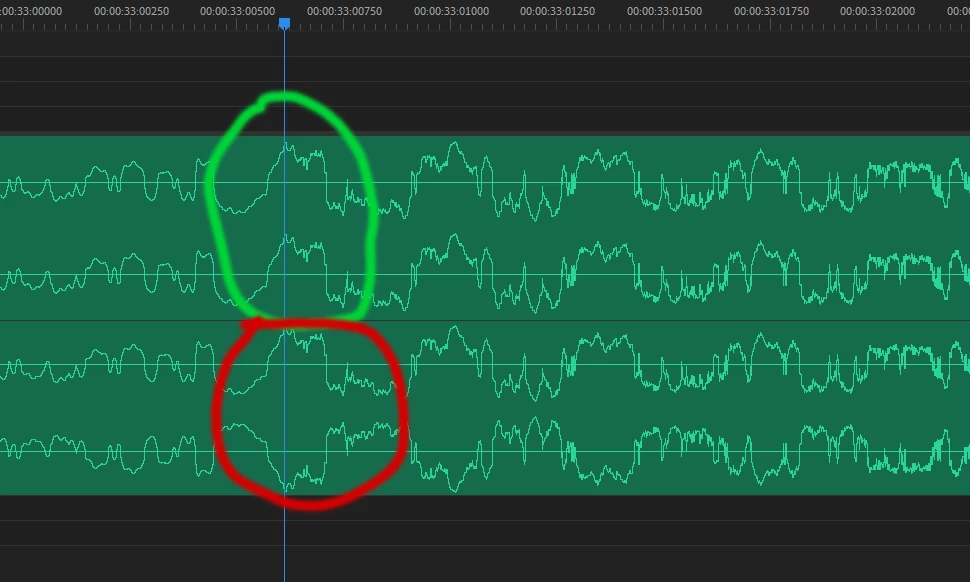

    There are several ways. One of them is to locate where it happens on the timeline. Let´s say that the audio drops out between 00:00:30:00 and 00:00:40:00 one use the drop down menu on the timeline and can set it to Show Audio Time Units and zoom into the audio curves. If both audio curves point at the same direction, upwards in the attached image, it is in phase. If one curve point upwards and the other downwards the file are out of phase.

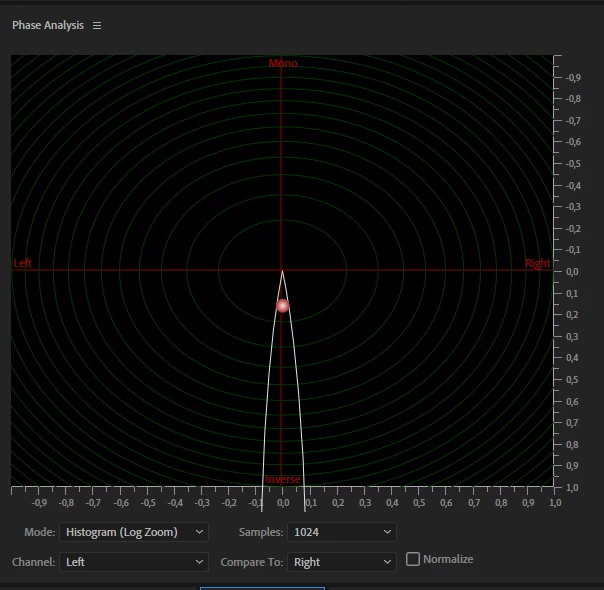

    If it is as clear as this, open the file in Adobe Audition and go to Window > Phase Analysis. If the dot in the Phase Analysis panel is below the center line the audio is out of phase. Yet another way to confirm or rule out.



    To fix:

    Open the clip in Adobe Audition and just click anywhere on the audio waves. Press Ctrl+Shift+L to mute the Left channel. Now, go to Effects > Invert and then press Ctrl+Shift+L again and then save the file, File > Save.



    It can be more complicated than this. If you for example has used a portable audio recorder that records in stereo to interview people phase issues can appear for several reasons and there are different ways of fixing it depending on several variables.



    Save backups of the original audio files in case you do something wrong.



    What kind of audio do you have were it happens, interview, music bed, ambience audio, or?
