ExtendScript: `track.insertClip` placement offset depends on clip framerate

  • March 26, 2026
  • 0 replies
  • 14 views

Steps to reproduce the issue:

  1. Say we have two clips: one at 16 fps and the same at 60 fps. I'll also attach a second pair of files: scene1_16fps.mp4, scene1_60fps.mp4, scene2_16fps.mp4, scene2_60fps.mp4. Just in case, I'll attach MediaInfo for the files.
    Complete name               : D:\temp\scene1_16fps.mp4
    Format : MPEG-4
    Format profile : Base Media
    Codec ID : isom (isom/iso2/avc1/mp41)
    File size : 8.82 MiB
    Duration : 5 s 63 ms
    Overall bit rate : 14.6 Mb/s
    Frame rate : 16.000 FPS
    Writing application : Lavf61.1.100

    Video
    ID : 1
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : High@L3.1
    Format settings : CABAC / 4 Ref Frames
    Format settings, CABAC : Yes
    Format settings, Reference : 4 frames
    Codec ID : avc1
    Codec ID/Info : Advanced Video Coding
    Duration : 5 s 63 ms
    Bit rate : 14.6 Mb/s
    Width : 720 pixels
    Height : 1 280 pixels
    Display aspect ratio : 0.563
    Frame rate mode : Constant
    Frame rate : 16.000 FPS
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive
    Bits/(Pixel*Frame) : 0.991
    Stream size : 8.82 MiB (100%)
    Writing library : x264 core 164 r3191 4613ac3
    Encoding settings : cabac=1 / ref=3 / deblock=1:0:0 / analyse=0x3:0x113 / me=hex / subme=7 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=1 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=32 / lookahead_threads=5 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=3 / b_pyramid=2 / b_adapt=1 / b_bias=0 / direct=1 / weightb=1 / open_gop=0 / weightp=2 / keyint=250 / keyint_min=16 / scenecut=40 / intra_refresh=0 / rc_lookahead=40 / rc=crf / mbtree=1 / crf=10.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / ip_ratio=1.40 / aq=1:1.00
    Codec configuration box : avcC



  2. Create a sequence at 60 fps. Place all the mp4s into the Project.
  3. Run the code:
    var project = app.project;
    var rootItem = project.rootItem;
    var scene1_16fps_item = rootItem.children[0];
    var scene2_16fps_item = rootItem.children[1];
    var scene1_60fps_item = rootItem.children[2];
    var scene2_60fps_item = rootItem.children[3];

    var seq = project.activeSequence
    var track = seq.videoTracks[0]
    var track2 = seq.videoTracks[1]
    // remove all
    for (var i = track.clips.numItems - 1; i >= 0; i--) {
    var clip = track.clips[i];
    clip.remove(false, false);
    }
    for (var i = track2.clips.numItems - 1; i >= 0; i--) {
    var clip = track2.clips[i];
    clip.remove(false, false);
    }

    var time = new Time()
    var targetSeconds = 0.3749
    //var targetSeconds = 0.38;
    var targetTicks = targetSeconds * 254016000000;
    time.ticks = targetTicks.toString()

    scene1_16fps_item.setOutPoint(time, 1)
    var newClip11 = track.insertClip(scene1_16fps_item, 0);

    scene1_60fps_item.setOutPoint(time, 1)
    var newClip21 = track2.insertClip(scene1_60fps_item, 0);

    var newClip12 = track.insertClip(scene1_16fps_item, time);
    var newClip22 = track2.insertClip(scene1_60fps_item, time);

    What it does: places the first clip scene1 starting at frame 0, cut at 0.3749s. Then places the next two clips at the same time offset.

  4. Expected behavior: first clip ends at 0.3749 × 60 = 22.494 ≈ 22 frames. Next clip starts immediately after.
    Actual behavior: 60 fps clips are placed correctly; 16 fps clip has a gap of 4 (!) frames.

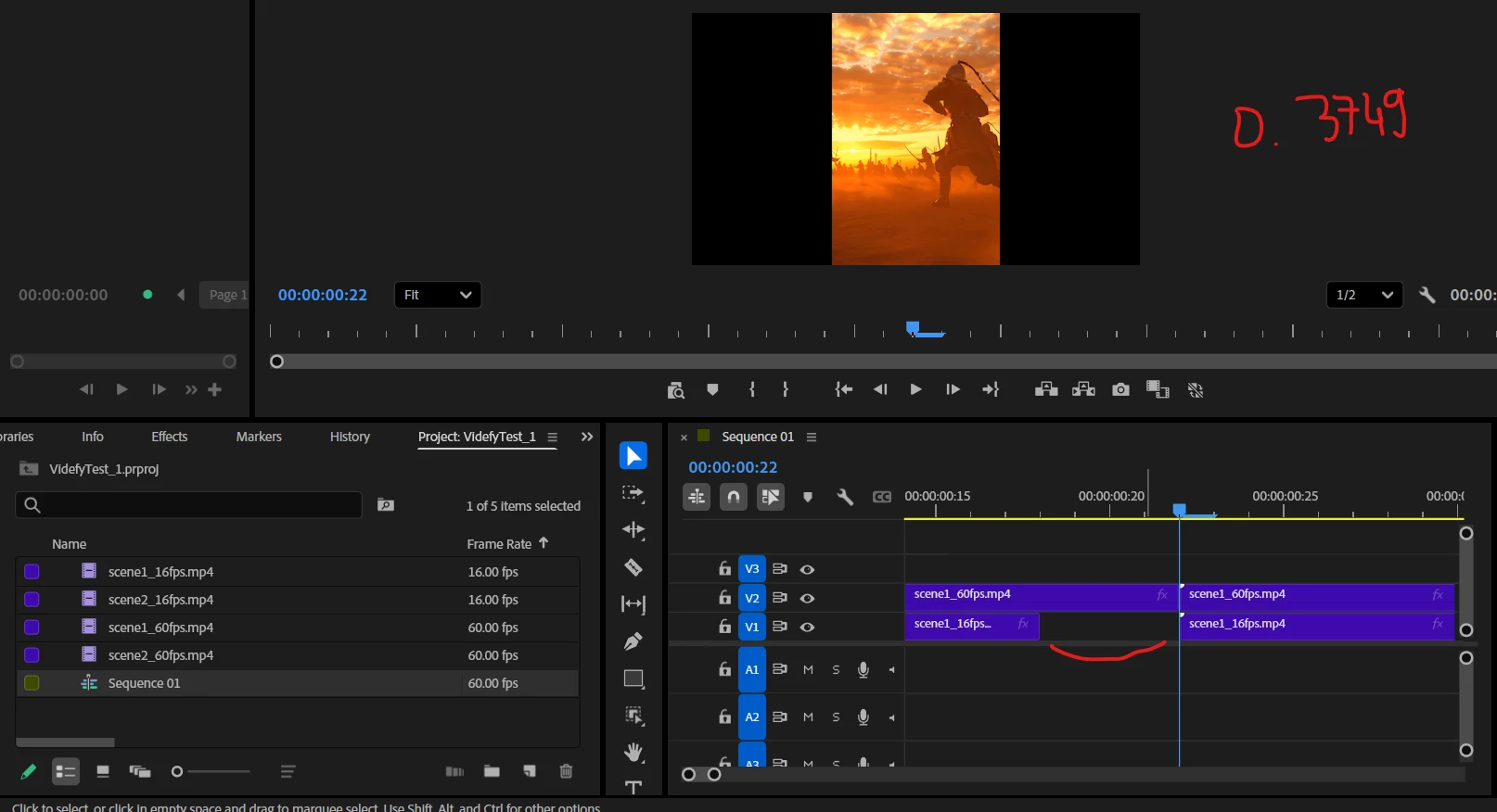

    time = 0.3749s



  5. You can change the value to 0.38 and see that both first clips end at frame 22 and both second clips start one frame later - which is also incorrect.

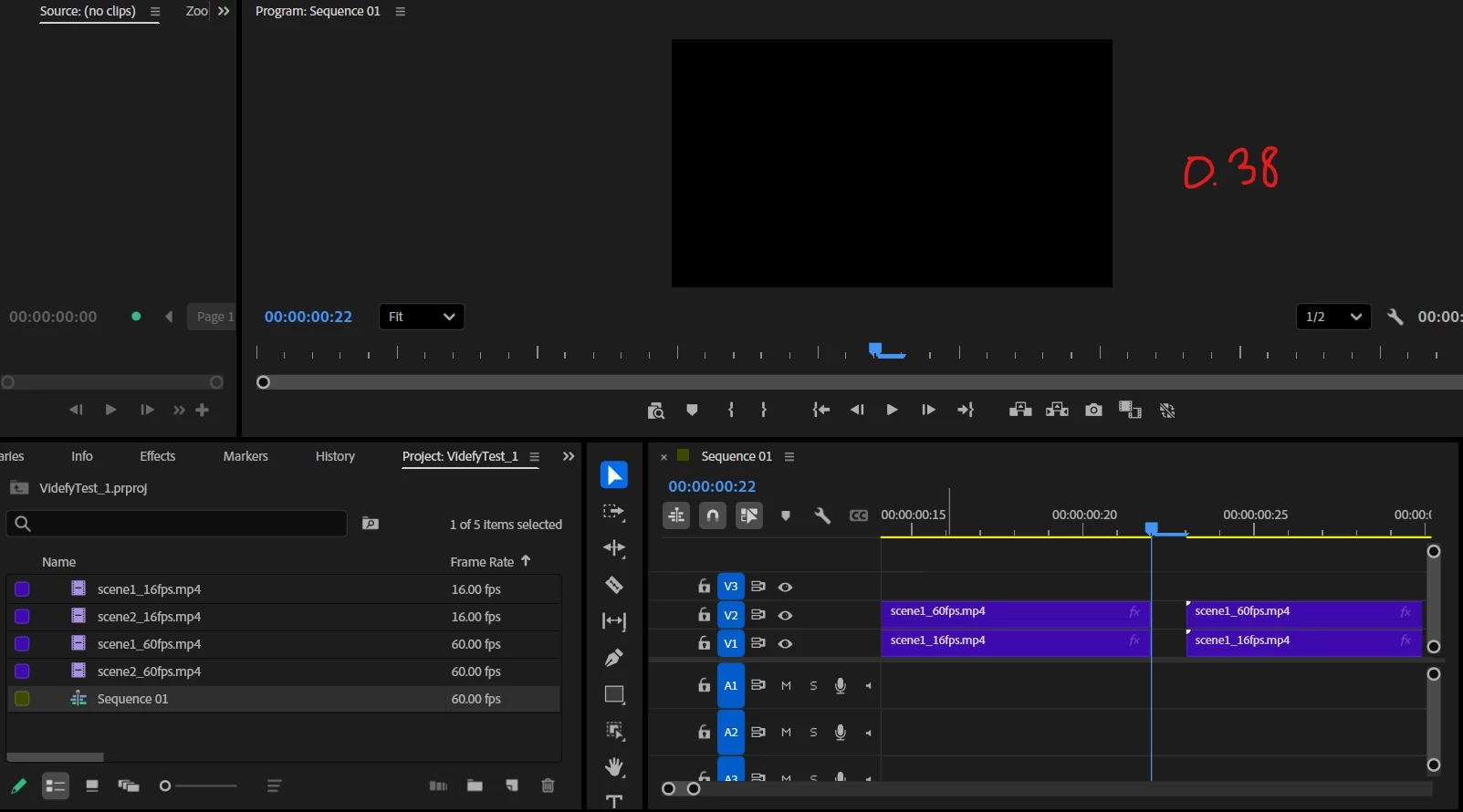

    time = 0.38s



  6. No matter what I try, I always get missing frames (1-4) whenever I have a clip whose out-point ends at time X (while the source is longer than X) and the next clip starts at the same X. I also tried exotic formulas like var roundedSeconds = Math.round(targetSeconds * srcFps) / srcFps, but that didn't help either.

    Any ideas what math is happening under the hood? How do I place clips without gaps, matching my script's time data, using ExtendScript?
