HD Proxies not attaching to 4K files

  • November 25, 2021
  • 1 reply
  • 719 views

Shot 4K footage from the Canon C300 Mk111, Black Magic 6K pocket Camera, DJI Mavic 2, GoPro, and a bunch of other misc footage (ie. Timelapse rendered in AE). The DIT transcoded all of the footage on set with clean wav form audio in Davinci Resolve and outputed to UHD 3840 x 2160 which we are calling 4K proxies. He then transcoded those into HD Proxies (1920x1080). I am trying to use the HD Proxies instead of the crappy proxy presets inside of Premiere and they are not attaching. I am stumped. Does anybody have any advice here?

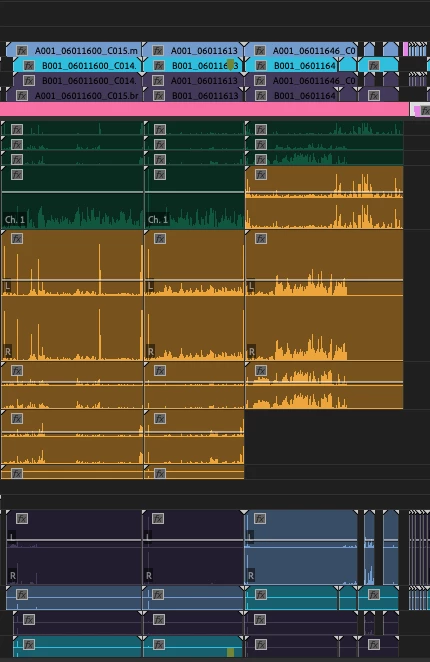

Normally I stack HD on top of UHD/4K. I work in HD, then drill down and unmute footage if I have to punch in or what not. The amount of footage I am dealing with here is sometimes 4 cameras syncing (which would mean 8 layers, with multiple tracks of sound). I have been hearing how much proxies have improved and was advised I was doing this wrong. My old workflow can't get a little hairy but this workflow has been bullet proof for quite a few years.

This topic has been closed for replies.

1 reply

Mike Dziennik
Community Expert
Mike DziennikCommunity Expert
Community Expert
November 25, 2021

What happens when you try to attach? Do the clips have the same frame-rate? Eg. No 23.98/24 mismatch.

Do they have the same number of audio channels?

https://helpx.adobe.com/premiere-pro/using/ingest-proxy-workflow.html

The supported workflow allows attachment of Proxies with other frame sizes & PAR (pixel aspect ratio) combinations that are divisible by the Full Res clip (for example, 1920x1080 1.0 PAR Full Res and 960x540 1.0 PAR Proxy or 1440x1080 1.33 PAR Proxy), but other parameters such as fielding, frame rate, duration, and audio channels must match. Mismatched audio channels results in warning dialogs and are not allowed, but other mismatched video parameters are not blocked and results in issues.

michaelcwelch
michaelcwelchAuthor
Known Participant
November 25, 2021

They are identical clones of the 4K proxies. Dropped in media encoder to the exact specifications of the clip only in HD.

Nothing happens. I go through the whole process and nada.  I right click the metadata display box, list Proxy Media Path and File Name and nothing shows up.



I just want to make sure this is possible that you can use HD proxies not the default ones they have listed.



Technically they are exactly half in size, that is why I told the DIT to encode in UHD (3840 x 2160) not 4K.



I am really puzzled on this one and the clock is ticking on me from the client. Should I trash the preferences? Remove Media Cache files? Any advice would be greatly appreciated.



MacPro 5,1, Mojave, Premiere Pro 15.4.1

Kevin J. Monahan Jr.
Kevin J. Monahan Jr.
Legend
November 25, 2021

Hi Michael,

Did the DIT name the proxies according to Premiere Pro spec when they were created (using "_proxy.<filetype>")? https://helpx.adobe.com/premiere-pro/using/ingest-proxy-workflow.html#CreateProxies



It that is not working, then yes, trash preferences - which is a step listed in the documentation I just linked you to.



This is kind of a common problem as assumptions are made by certain techs that do not understand the correct cross platform constraints.



Thanks,
Kevin

Kevin Monahan - Sr. Community and Engagement Strategist – Adobe Pro Video and Audio
