Joining MP4 Clips

  • July 3, 2021
  • 4 replies
  • 828 views

I have two MP4 clips that I want to join together to make a new video.  Clip 1 is my own creation.  Clip 2 came from someone else.

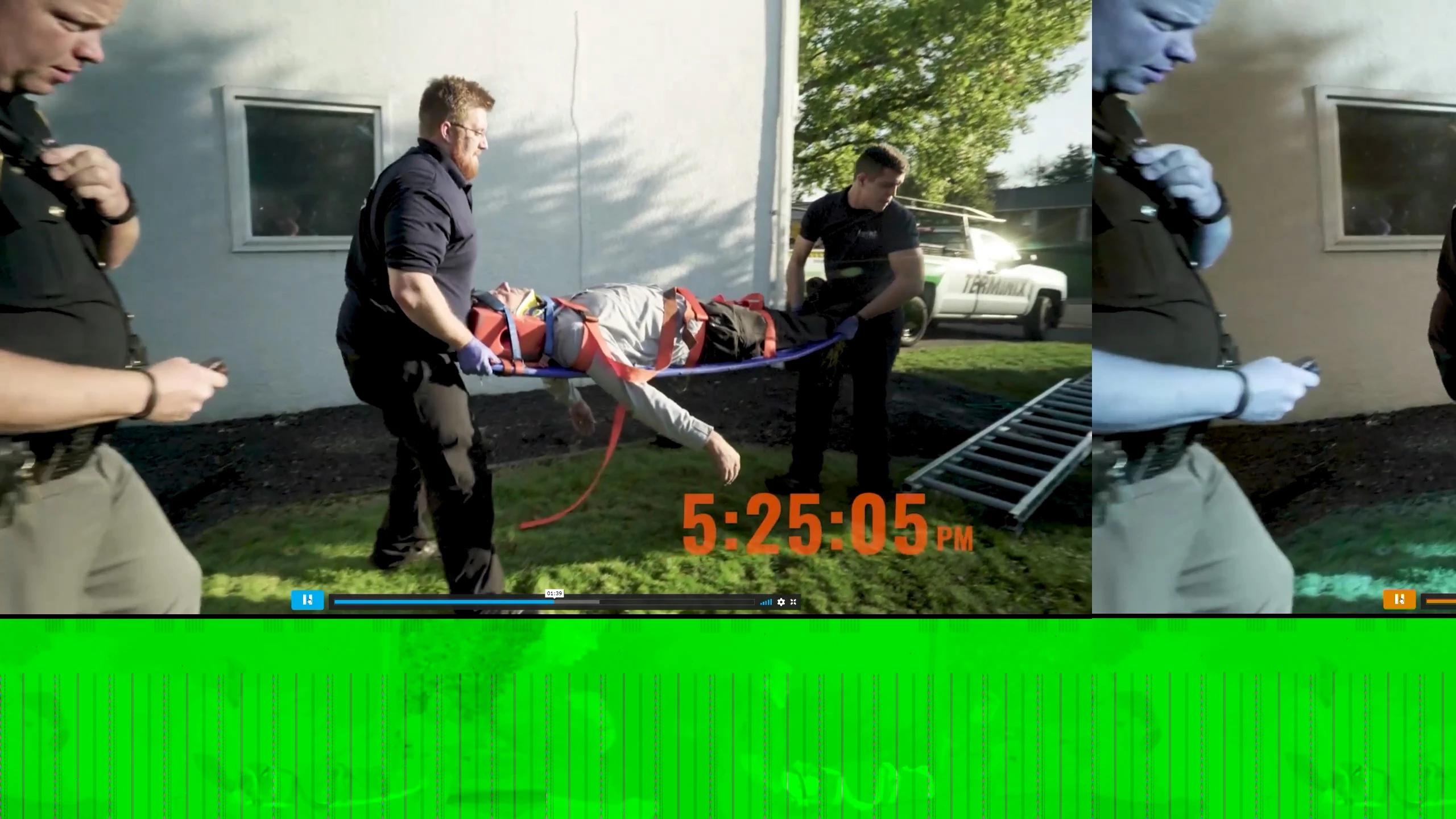

When I put them on the timeline they play just fine together.  When I render the timeline the images in all the frames of Clip 2 become smaller and split the image with a large green bar filling the lower part of the screen.   I've attached an image showing the green bar.



I tried starting a new project with just Clip 2 and I get the same result when attempting to render.  I've done this many times with MP4 clips that I've created but I'm missing something with this particular clip and not recognizing the problem.



Any ideas??

This topic has been closed for replies.
Correct answer John T Smith

>Frame rate mode : Variable



PPro does not play well with that kind of file convert to constant frame rate with https://handbrake.fr/ open source transcoder/converter



4 replies

John T Smith
Community Expert
John T SmithCommunity ExpertCorrect answer
Community Expert
July 4, 2021

>Frame rate mode : Variable



PPro does not play well with that kind of file convert to constant frame rate with https://handbrake.fr/ open source transcoder/converter



jimclark1947
jimclark1947Author
Inspiring
July 4, 2021

John,



Thank you.  Good to know.  Converting it to constant frame fixed the problem.  I appreciate your help.

S
salvo34
Inspiring
July 3, 2021

get a small portion of clip 2 ( the problem) to save time. if possible.

try to strip out the bad data from the images ( your green bar ) using handbrake, etc.

Just export same exact specs as source and see it it doesn't strip out the bad data.



Ann Bens
Community Expert
Ann BensCommunity Expert
Community Expert
July 3, 2021

Change mp4 extension to mov and try again.

John T Smith
Community Expert
John T SmithCommunity Expert
Community Expert
July 3, 2021

MP4 is a wrapper, what is inside YOUR wrapper - Exactly what is INSIDE the video you are editing?
Report back with the codec details of your file, use the program below
Free program to get file information for PC/Mac http://mediaarea.net/en/MediaInfo/Download
- when you analyze your file in MediaInfo and post a screen shot in the forum, do so in TREE view
- post your information IN your message, not as an attachment that someone would have to download



You need to compare the two files to see what is different

jimclark1947
jimclark1947Author
Inspiring
July 4, 2021

Here are the two files evaluated with MediaInfo.  The first is the one that produces the green bar when rendered.

General
Complete name : E:\Kai 18 Years\Kai Terminix Video\TERMINIX_Kai Video_2020-11-17 20-22-31.mp4
Format : MPEG-4
Format profile : Base Media / Version 2
Codec ID : mp42 (mp41/isom)
File size : 215 MiB
Duration : 3 min 14 s
Overall bit rate : 9 243 kb/s
Movie name : TERMINIX - Minute by Minute - Terminix: Minute By Minute on Vimeo - Google Chrome
Performer : Microsoft Game DVR
Encoded date : UTC 2020-11-18 01:25:45
Tagged date : UTC 2020-11-18 01:25:45

Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : Main@L4.1
Format settings : CABAC / 1 Ref Frames
Format settings, CABAC : Yes
Format settings, Reference frames : 1 frame
Format settings, GOP : M=1, N=29
Codec ID : avc1
Codec ID/Info : Advanced Video Coding
Duration : 3 min 14 s
Source duration : 3 min 14 s
Bit rate : 9 068 kb/s
Width : 2 560 pixels
Original width : 1 920 pixels
Height : 1 440 pixels
Original height : 1 080 pixels
Display aspect ratio : 16:9
Frame rate mode : Variable
Frame rate : 30.000 FPS
Minimum frame rate : 26.690 FPS
Maximum frame rate : 62.893 FPS
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.082
Stream size : 211 MiB (98%)
Source stream size : 211 MiB (98%)
Encoded date : UTC 2020-11-18 01:25:45
Tagged date : UTC 2020-11-18 01:25:45
mdhd_Duration : 194914
Codec configuration box : avcC

Audio
ID : 2
Format : AAC LC
Format/Info : Advanced Audio Codec Low Complexity
Codec ID : mp4a-40-2
Duration : 3 min 14 s
Bit rate mode : Constant
Bit rate : 128 kb/s
Channel(s) : 2 channels
Channel layout : L R
Sampling rate : 48.0 kHz
Frame rate : 46.875 FPS (1024 SPF)
Compression mode : Lossy
Stream size : 2.97 MiB (1%)
Encoded date : UTC 2020-11-18 01:25:45
Tagged date : UTC 2020-11-18 01:25:45
mdhd_Duration : 194901

____________________________________________

General
Complete name : E:\Kai 18 Years\Without Terminex Clip.mp4
Format : MPEG-4
Format profile : Base Media / Version 2
Codec ID : mp42 (mp42/mp41)
File size : 628 MiB
Duration : 11 min 31 s
Overall bit rate mode : Variable
Overall bit rate : 7 615 kb/s
Encoded date : UTC 2021-07-03 12:57:55
Tagged date : UTC 2021-07-03 12:57:58
TIM : 00;00;00;00
TSC : 30000
TSZ : 1001

Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : Main@L3.1
Format settings : CABAC / 4 Ref Frames
Format settings, CABAC : Yes
Format settings, Reference frames : 4 frames
Codec ID : avc1
Codec ID/Info : Advanced Video Coding
Duration : 11 min 31 s
Bit rate : 7 288 kb/s
Width : 720 pixels
Height : 544 pixels
Display aspect ratio : 4:3
Frame rate mode : Constant
Frame rate : 29.970 (30000/1001) FPS
Standard : NTSC
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.621
Stream size : 601 MiB (96%)
Language : English
Encoded date : UTC 2021-07-03 12:57:55
Tagged date : UTC 2021-07-03 12:57:55
Color range : Limited
Color primaries : BT.601 NTSC
Transfer characteristics : BT.601
Matrix coefficients : BT.601
Codec configuration box : avcC

Audio
ID : 2
Format : AAC LC
Format/Info : Advanced Audio Codec Low Complexity
Codec ID : mp4a-40-2
Duration : 11 min 31 s
Source duration : 11 min 31 s
Bit rate mode : Variable
Bit rate : 317 kb/s
Maximum bit rate : 419 kb/s
Channel(s) : 2 channels
Channel layout : L R
Sampling rate : 48.0 kHz
Frame rate : 46.875 FPS (1024 SPF)
Compression mode : Lossy
Stream size : 26.2 MiB (4%)
Source stream size : 26.2 MiB (4%)
Language : English
Encoded date : UTC 2021-07-03 12:57:55
Tagged date : UTC 2021-07-03 12:57:55
