MOGRT media showing AE missing file bars in Premiere Pro - how to fix?

Forum|Forum|3 years ago
May 24, 2022
12 replies
9683 views

Hi there,

I recently migrated all of my editing materials from one external hard drive to another. I opened up a Premiere Pro project that I had been working on recently but from the new drive. When I opened the project, all of my MOGRT media was either unlinked/red missing media screen or showing the missing media bars that one sees in After Effects (see attached image).

I was able to relink the offline MOGRTS easily enough, but I am not sure how to relink the media the MOGRT thinks is missing when I can't open the .aegraphic file the MOGRT instance in my Premiere Pro project is using.

I have the following questions:
1) is there a way to open .aegraphic files and relink the media that way? I'm under the impression you cannot open .aegraphic files in AE though they are created by AE.

2) Is there another fix for this? I have tried opening the parent AE file the MOGRT is based on and relinking media there but it has not worked. It is possible I tried that with the wrong version of the AE file, however.

Thanks in advance!

D

dh3

Participant

I figured out one solution, is keep the file name super simple and short if possible. It seems to fix the missing footage problem. Then also exporting the MOGRT to the desktop works better than exporting anywhere else.

Hope this can help someone with this issue. It seems to be a big problem, hopefully adobe can fix it soon.

J

jokebrtn

Participant

After wrestling with this for hours, rolling back versions, clearing caches etc. I tried renaming the comp and then exporting the MOGRT and it worked. No idea why, there were no wacky characters in there. Worth a try if you're struggling with this

Multipasser

Inspiring

Because it is all on your computer. It will find the files via the path's.

But try giving it to a friend and let him open the mogrt?

C

CarlosCarneiro

Participant

Hello there, i had the same issue.

My AE project was quite basic, but had 2 MOV files in there used for matte a solid.

My worflow is a workaround that i find to share the files im premiere with multiple editors, so they can share premiere projects between them.
After export the mgrt to premiere, in there i use project manager to create a similar thing to "collect files" in AE. Then that premiere project serves as a template for the editor's team, with this they can share premiere projects with this mgrt, withut having missing files (when imported as mgrt in premiere, what happens is that premiere create a temporary folder for it, but is native for each machine, so each time a premiere files is open in another machine missing file appear).

I've done various projects with this workflow using MOV files (cineform and prores), but recently i started to have the same issue that everybody, the workaround that i find is to use PNG files instead of MOV, and it worked as before.

Using AE 24.2.1 for create the mgrt and Premiere 24.2.1 for reading the mgrt.

Windows 11 23H2 and also Sonoma 14.4

Hope it helps
Best

R Neil Haugen

Legend

And simply exporting the mogrt to a shared library doesn't work for your team?

Everyone's mileage always varies ...

C

CarlosCarneiro

Participant

hello, this workflow was created before we had library available, but gonna try, thanks

Best

MyerPj

Community Expert

Here's another. This time I delete your files, then unzipped them into a renamed folder, the only thing I did in AE is give it a new mogrt name (the upper most field). I created the mg and it was in PP, and I dropped it on the timeline and it worked. This time on the same machine again, but this is mostly for you to test. Here it is: Very Original Mogrt

MyerPj

Community Expert

Sorry about that, I didn't catch that part. But I did just load up my tester and:

1) Copied in your original which I had recompiled

2) Imported the one I had saved w/out HSL and then added it and exported.

One I copied in and one I imported in. They both worked on my different machine, but it does have the same file paths, etc from the original machines. But I didn't unzip your folder here and didn't fire up AE at all.

Win22h2,

PP 24.0.3

Maybe it's a path issue?

Multipasser

Inspiring

can you just open my original AE project, make an Mogrt Export (without changing a thing) and upload the .mogrt file here? so I can try to load it?

MyerPj

Community Expert

Yes, give it a try: Mogrt Link - Zip

MyerPj

Community Expert

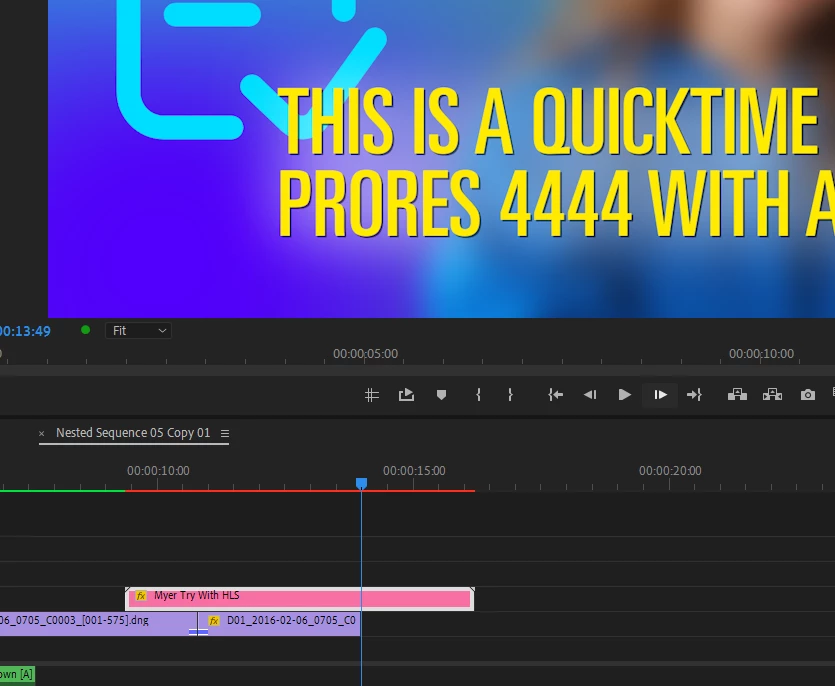

I tried it and got the missing video file, then in AE I modified it and by removing the HLS option, sent it to PP and it worked. I'll get it back to stock and see what I get.

PP 24.1, Win11 22h2

Multipasser

Inspiring

Could be. But HLS isn't the issue. I've just added it to have some lofty features. I almost never used it in the other mogrts that fails. The problem is the embedded ProRes movies. You noticed when extracting the AE project that all files are correctly collected and present. I am glad this seems like a true bug. I have lost hours of throubleshooting. 😞

MyerPj

Community Expert

OK, I added back th HSL/Hue myself in AE and it worked, then I got yours out as you sent it, and used 'Export Motion Graphic Template' (EMGT) and it worked. Got your mogrt, used the PP Import (I ususally just copy it into the mgt folder myself) that again had your error (Same as just copying directly to the folder). Then I used the EMGT right from your original aep ... ---... and it worked! 🙂

Theresa Rostek

Community Manager

@Multipasser

I had a quick look and was able to repro the color bars issue on both Windows and Mac with failing mogrt. I haven't gotten to diagnose further, but the next steps for me is digging through the file to find out where the issue is stemming from.

Could you please reply with the following information:

What Operating system and version number the mogrts are created on
Adobe After Effects version number used to create the mogrt
What Operating system and version number the mogrts are used on
Premiere Pro version number the mogrts are used on

Thanks,

Theresa

R Neil Haugen

Legend

Theresa,

Thank you SO much for helping out with this! Thank you thank you thank you...

Everyone's mileage always varies ...

DaciaSaenz

Community Manager

OH! to follow up!
Another reason media in a Mogrt will show up as missing on Windows (and not Mac) is if there are any "illegal" characters in the media file, project or comp name.
Windows OS does not support the following characters
< (less than)
> (greater than)
: (colon - sometimes works, but is actually NTFS Alternate Data Streams)
" (double quote)
/ (forward slash)
\ (backslash)
| (vertical bar or pipe)
? (question mark)
* (asterisk)

If any of these appear in the file, project, or comp name, then Windows OS will invalidate them and the media will show up as missing.

Might this be the case?

- Dacia Saenz, AE & PR Engineering Teams

Multipasser

Inspiring

I've read about this, but it was only in the path name of the files?

Don't think I'm using of those. Anyhow the same mogrt also fails on Premiere in mac 🙂

DaciaSaenz

Community Manager

😭😭😭😭😭

It definitely sounds like an issue with the temp folder 😞

I'd like to set up a time to talk to you and see what's going on, but also if you could send me the files I'd like to try and repro on my end.
Thanks so much!

- Dacia Saenz, AE & PR Engineering Teams

Multipasser

Inspiring

Guys this is DRIVING me crazy!!!!!

Honestly!

I do 'collect files' in AE. Open up that project and export the MOGRT.
Yet when I extract that MOGRT and and see the .txt file AE made it still uses absolute PATHS!!!

why the hell? That's why it's missing files maybe?

Drive my absolutely insane. Clients are complaining and I cant fix it!

I have AE 2022/2023/2024 tested on PC and MAC !!!

All have the same issues!
