Monitoring Multiple Audio Channels Media and Sequence

  • July 31, 2020
  • 3 replies
  • 2961 views

I'm using Premiere Pro v.14.3.1, and I'm working with a program that has multiple audio channels. However, I can't hear the audio coming out of Ch. 3 or Ch. 4, only Ch. 1 and Ch. 2 are audible. I have tried changing a number of settings with no avail. Do you have any idea about this?

    Correct answer

    I finally figured this out by myself. In order to hear source audio from tracks other than Ch 1 and 2, I had to change the Edit Preference Audio setting by clicking the check box that said Sum multichannel ouputs to mono in Source Monitor.

    3 replies

    B
    Bright37880074mjss
    Participant
    February 22, 2025

    bro please help me i m not get it i m still stuck in this issue.

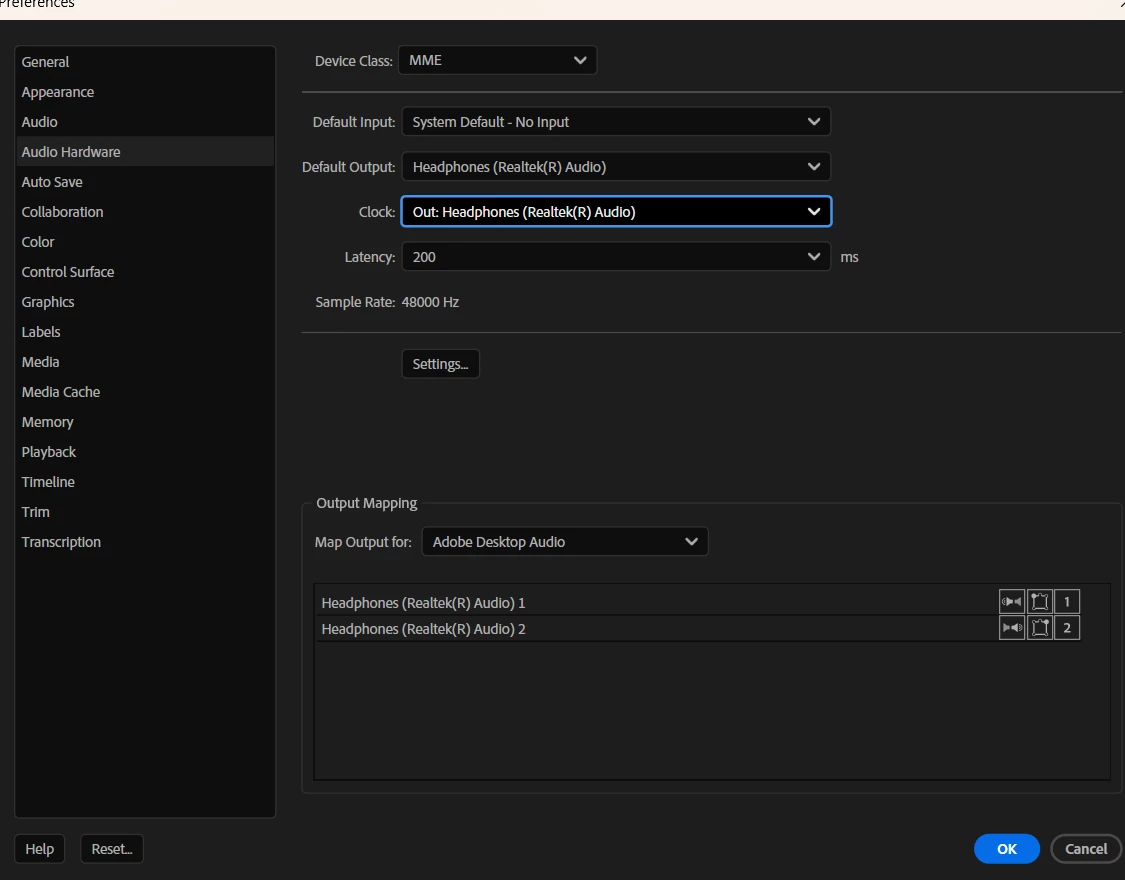

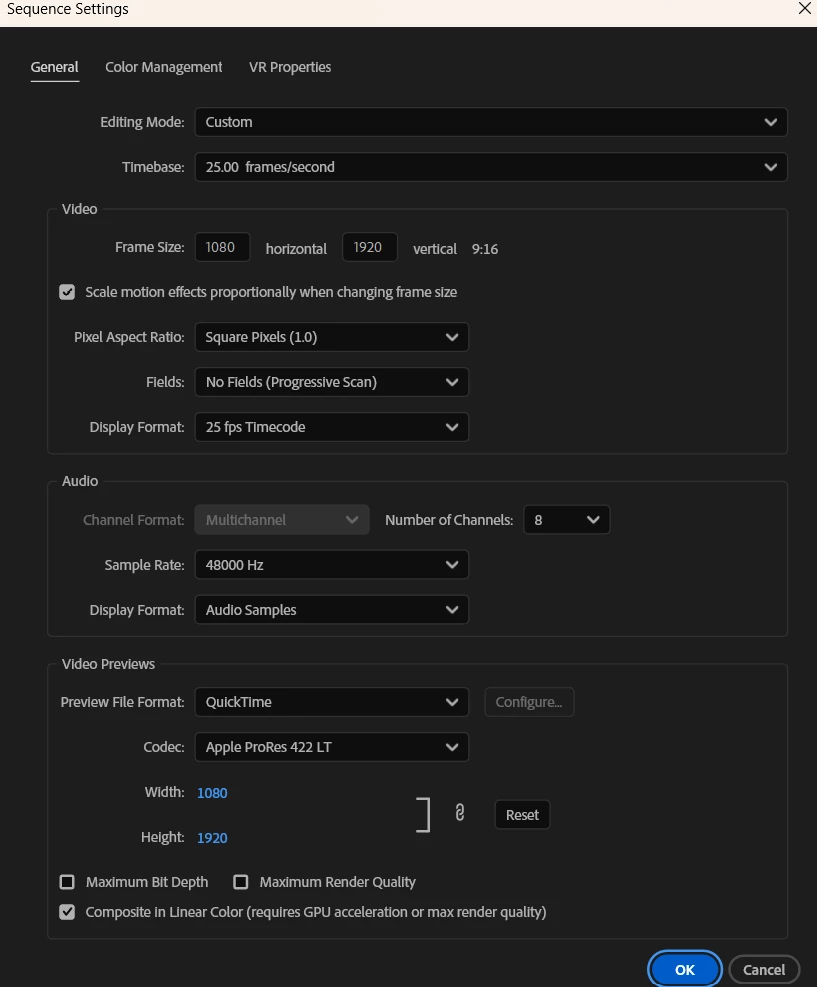

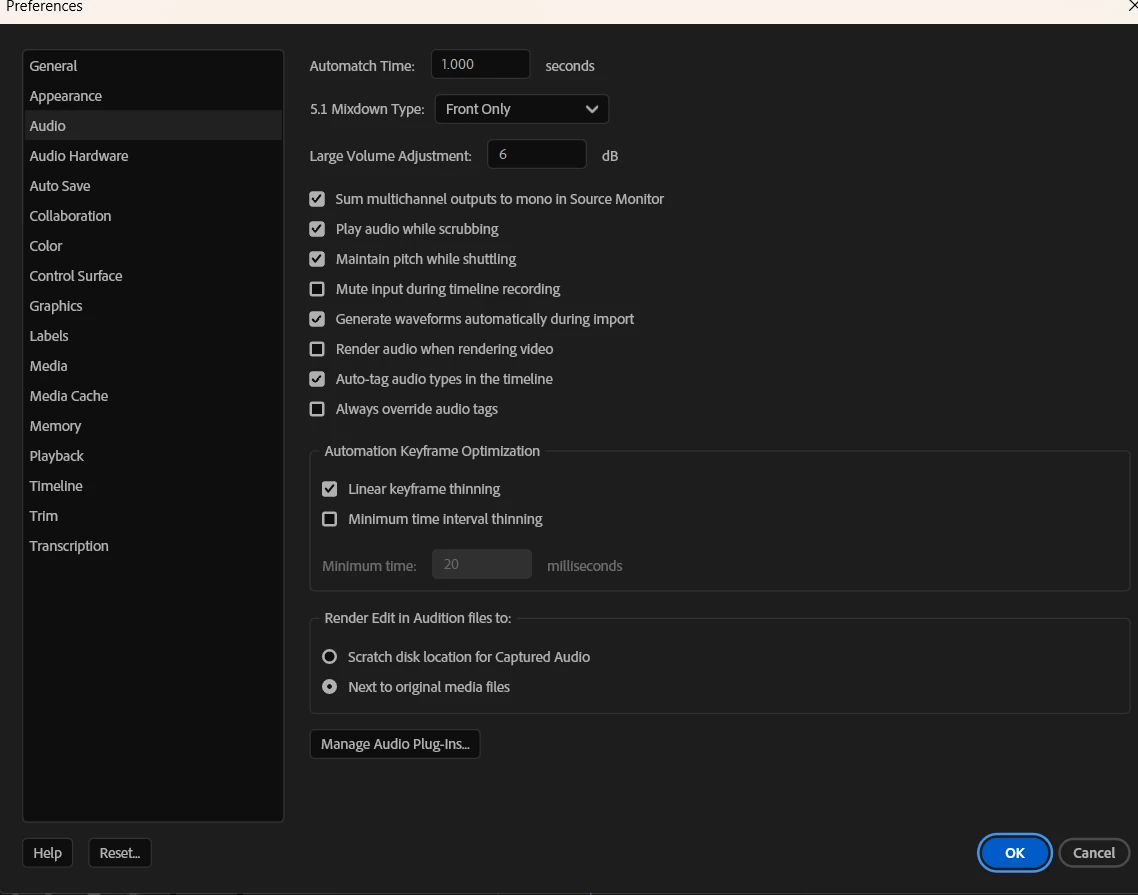

    i will share some of my setting snap with you...and check it and tell me does it correct or not?

    A
    Anonymous
    August 4, 2020

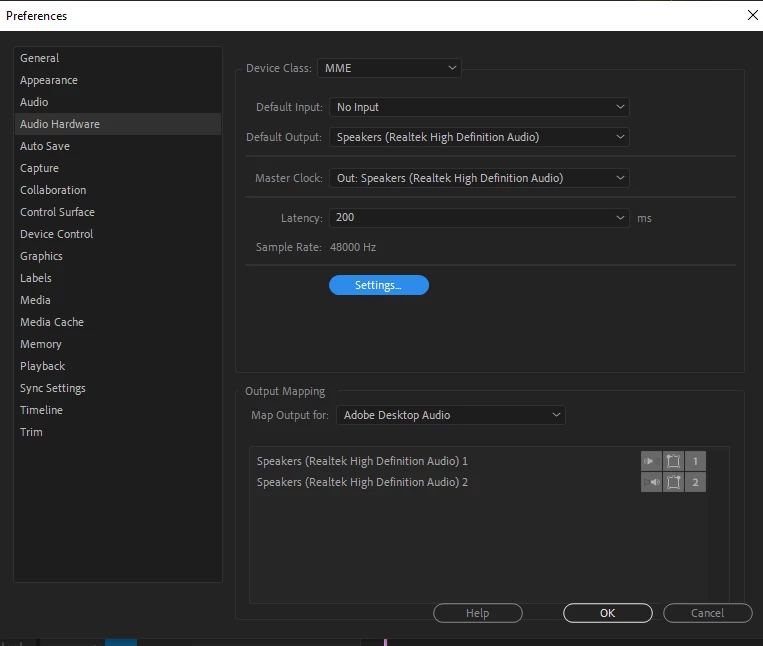

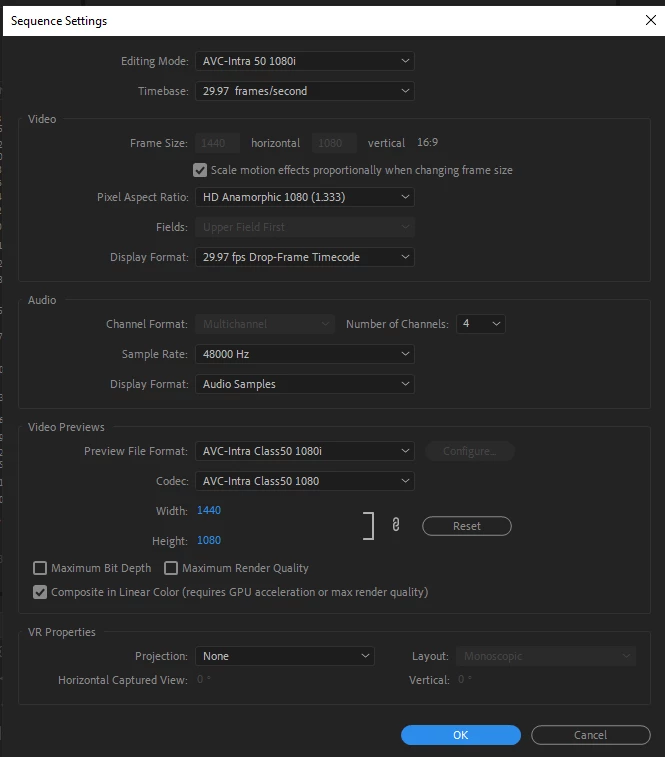

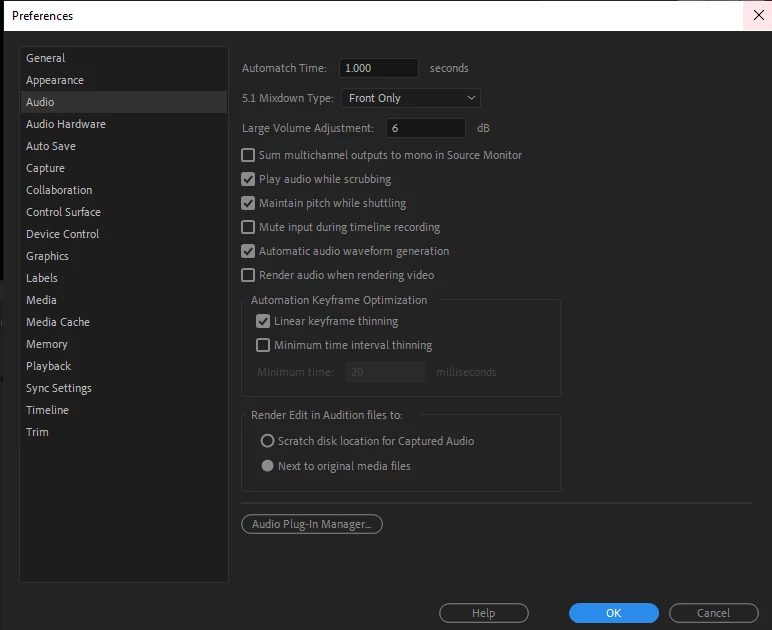

    Thank you for your response. I just like to clarify that I can't hear Ch.3 and Ch.4 from both the Source Media and Seq. Here are a couple of the screen grabs:

    Ann Bens
    Community Expert
    Ann BensCommunity Expert
    Community Expert
    August 4, 2020

    Post screenshot of video/audio clip in Media info in treeview.

    MediaInfo windows



    A
    Anonymous
    August 6, 2020

    The following is the Info requested. I've exported it from the Media info treeview. I think the audio issue may have more to do with the Premiere Pro's settings because I can't hear Ch 3 and 4 from neither the source nor seq, and this happens to more than one files that I imported:



    General
    Format : MXF
    Commercial name : XDCAM HD422
    Format version : 1.2
    Format profile : OP-1a
    Format settings : Closed / Complete
    File size : 11.9 GiB
    Duration : 28 min 14 s
    Overall bit rate : 60.3 Mb/s
    Law rating : TV-G
    Encoded date : 2020-07-16 15:34:32.000
    Writing application : AVID TRMG 3.01

    Video
    ID : 2
    Format : MPEG Video
    Commercial name : XDCAM HD422
    Format version : Version 2
    Format profile : 4:2:2@High
    Format settings : CustomMatrix / BVOP
    Format settings, BVOP : Yes
    Format settings, Matrix : Custom
    Format settings, GOP : M=3, N=15
    Format settings, picture structure : Frame
    Format settings, wrapping mode : Frame
    Codec ID : 0D01030102046001-0401020201040300
    Duration : 28 min 14 s
    Bit rate mode : Constant
    Bit rate : 50.0 Mb/s
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Active Format Description : Letterbox 16:9 image, with alternative 4:3 center
    Frame rate : 29.970 (30000/1001) FPS
    Standard : Component
    Color space : YUV
    Chroma subsampling : 4:2:2
    Bit depth : 8 bits
    Scan type : Interlaced
    Scan order : Top Field First
    Compression mode : Lossy
    Bits/(Pixel*Frame) : 0.805
    Time code of first frame : 00:58:35;00
    Time code source : Group of pictures header
    GOP, Open/Closed : Open
    GOP, Open/Closed of first frame : Closed
    Stream size : 9.86 GiB (83%)
    Color range : Limited
    Color primaries : BT.709
    Transfer characteristics : BT.709
    Matrix coefficients : BT.709

    Audio #1
    ID : 3
    Format : PCM
    Format settings : Little
    Format settings, wrapping mode : Frame (AES)
    Codec ID : 0D01030102060300
    Duration : 28 min 14 s
    Bit rate mode : Constant
    Bit rate : 1 152 kb/s
    Channel(s) : 1 channel
    Sampling rate : 48.0 kHz
    Frame rate : 29.970 FPS (1601.6 SPF)
    Bit depth : 24 bits
    Stream size : 233 MiB (2%)
    Locked : Yes

    Audio #2
    ID : 4
    Format : PCM
    Format settings : Little
    Format settings, wrapping mode : Frame (AES)
    Codec ID : 0D01030102060300
    Duration : 28 min 14 s
    Bit rate mode : Constant
    Bit rate : 1 152 kb/s
    Channel(s) : 1 channel
    Sampling rate : 48.0 kHz
    Frame rate : 29.970 FPS (1601.6 SPF)
    Bit depth : 24 bits
    Stream size : 233 MiB (2%)
    Locked : Yes

    Audio #3
    ID : 5
    Format : PCM
    Format settings : Little
    Format settings, wrapping mode : Frame (AES)
    Codec ID : 0D01030102060300
    Duration : 28 min 14 s
    Bit rate mode : Constant
    Bit rate : 1 152 kb/s
    Channel(s) : 1 channel
    Sampling rate : 48.0 kHz
    Frame rate : 29.970 FPS (1601.6 SPF)
    Bit depth : 24 bits
    Stream size : 233 MiB (2%)
    Locked : Yes

    Audio #4
    ID : 6
    Format : PCM
    Format settings : Little
    Format settings, wrapping mode : Frame (AES)
    Codec ID : 0D01030102060300
    Duration : 28 min 14 s
    Bit rate mode : Constant
    Bit rate : 1 152 kb/s
    Channel(s) : 1 channel
    Sampling rate : 48.0 kHz
    Frame rate : 29.970 FPS (1601.6 SPF)
    Bit depth : 24 bits
    Stream size : 233 MiB (2%)
    Locked : Yes

    Audio #5
    ID : 7
    Format : PCM
    Format settings : Little
    Format settings, wrapping mode : Frame (AES)
    Codec ID : 0D01030102060300
    Duration : 28 min 14 s
    Bit rate mode : Constant
    Bit rate : 1 152 kb/s
    Channel(s) : 1 channel
    Sampling rate : 48.0 kHz
    Frame rate : 29.970 FPS (1601.6 SPF)
    Bit depth : 24 bits
    Stream size : 233 MiB (2%)
    Locked : Yes

    Audio #6
    ID : 8
    Format : PCM
    Format settings : Little
    Format settings, wrapping mode : Frame (AES)
    Codec ID : 0D01030102060300
    Duration : 28 min 14 s
    Bit rate mode : Constant
    Bit rate : 1 152 kb/s
    Channel(s) : 1 channel
    Sampling rate : 48.0 kHz
    Frame rate : 29.970 FPS (1601.6 SPF)
    Bit depth : 24 bits
    Stream size : 233 MiB (2%)
    Locked : Yes

    Audio #7
    ID : 9
    Format : PCM
    Format settings : Little
    Format settings, wrapping mode : Frame (AES)
    Codec ID : 0D01030102060300
    Duration : 28 min 14 s
    Bit rate mode : Constant
    Bit rate : 1 152 kb/s
    Channel(s) : 1 channel
    Sampling rate : 48.0 kHz
    Frame rate : 29.970 FPS (1601.6 SPF)
    Bit depth : 24 bits
    Stream size : 233 MiB (2%)
    Locked : Yes

    Audio #8
    ID : 10
    Format : PCM
    Format settings : Little
    Format settings, wrapping mode : Frame (AES)
    Codec ID : 0D01030102060300
    Duration : 28 min 14 s
    Bit rate mode : Constant
    Bit rate : 1 152 kb/s
    Channel(s) : 1 channel
    Sampling rate : 48.0 kHz
    Frame rate : 29.970 FPS (1601.6 SPF)
    Bit depth : 24 bits
    Stream size : 233 MiB (2%)
    Locked : Yes

    Text #1
    ID : 11-CC1
    Format : EIA-608
    Muxing mode : Ancillary data / CDP
    Duration : 28 min 14 s
    Bit rate mode : Constant
    Stream size : 0.00 Byte (0%)
    CaptionServiceName : CC1

    Text #2
    ID : 11-1
    Format : EIA-708
    Muxing mode : Ancillary data / CDP
    Duration : 28 min 14 s
    Bit rate mode : Constant
    Stream size : 0.00 Byte (0%)
    Language : English

    Other #1
    ID : 1-Material
    Type : Time code
    Format : MXF TC
    Frame rate : 29.970 (30000/1001) FPS
    Time code of first frame : 00:58:35;00
    Time code settings : Material Package
    Time code, striped : Yes

    Other #2
    ID : 1-Source
    Type : Time code
    Format : MXF TC
    Frame rate : 29.970 (30000/1001) FPS
    Time code of first frame : 00:58:35;00
    Time code settings : Source Package
    Time code, striped : Yes

    Other #3
    Type : Time code
    Format : SMPTE TC
    Muxing mode : SDTI
    Frame rate : 29.970 (30000/1001) FPS
    Time code of first frame : 00:58:35;00



    R Neil Haugen
    R Neil Haugen
    Legend
    July 31, 2020

    What are the outputs for those channels set to? And how do you have your audio hardware set? Screen grabs of your Preferences/Audio Hardware panel, the audio channels settings for that sequence ... things like that would help.



    Neil



    Neil

    Everyone's mileage always varies ...
